Old 06-16-2015, 01:09 PM   #21
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

Cool? no, that's not cool. That's hot, really hot. Probably the upper end before you start melting stuff or stretching studs.
18psi is offline   Reply With Quote
Old 06-16-2015, 01:10 PM   #22
Junior Member

Join Date: Oct 2011
Location: Montreal, QC
Posts: 194
Total Cats: 28
Default

Nice car.

Question: How do you get those modifications past TUeV? Do you return to stock for inspection?
TalkingPie is offline   Reply With Quote
Old 06-16-2015, 01:39 PM   #23
Newb
Thread Starter

Join Date: Jul 2008
Posts: 40
Total Cats: 1
Default

@18psi: Really so hot? Before I installed my 3", I measured 1020C before turbo. Like I have written, the engine is total stock, even the head gasket is the 1st one.

@TalkingPie: Thanks!
Of course I don't return to stock for inspection Nearly all parts are signed in the papers, so nearly 100% legal. Some things like HKS blow off or the carbon fibre head light cover are not legal, but that is not such a big problem
Mazdaspeed_Miata is offline   Reply With Quote
Old 06-16-2015, 01:45 PM   #24
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,205
Total Cats: 2,586
Default

Yes, those are high EGT's, but for a pull like that, probably normal.
18psi is offline   Reply With Quote
Old 06-16-2015, 03:47 PM   #25
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

1868F is pretty hot.
Braineack is offline   Reply With Quote
Old 06-16-2015, 04:14 PM   #26
Crumple Zone Tester
iTrader: (7)

mgeoffriau's Avatar

Join Date: Jul 2009
Location: Jackson, MS
Posts: 7,656
Total Cats: 447
Default

Quote:
Originally Posted by Arca_ex View Post
Look at the location in first post. Probably on the Autobahn.
It was a bad joke about all the left turn signals.
mgeoffriau is offline   Reply With Quote
Old 06-16-2015, 04:55 PM   #27
Junior Member

Join Date: Oct 2011
Location: Montreal, QC
Posts: 194
Total Cats: 28
Default

Quote:
Originally Posted by mgeoffriau View Post
It was a bad joke about all the left turn signals.
FYI: In Europe, and Germany in particular, the left turn signal is a polite way to say, "Hey, get out of the left lane, please. I'd like to pass."

It's of course useless here in North America, where any such request is seen as an impingement on freedom and liberty, and thus, ignored.*


*This assumes that the traffic ahead is aware of the existence of a rearview mirror in their car, and that it's aimed to do anything other than check makeup.
TalkingPie is offline   Reply With Quote
Old 06-19-2015, 02:12 PM   #28
Junior Member

Join Date: May 2010
Location: Tampa, Florida
Posts: 132
Total Cats: -41
Default

I remember asking Keith at FM about the FM-2 turbo kit and he wrote backing stating it was possible to do 165 mph from that kit.
He never did mention anything about transmission or differential, but I do know that with 250 whp the MSM 6 speed transmission and the 3.63 rear end makes a good reliable combination.
my97miata is offline   Reply With Quote
Old 06-20-2015, 09:50 PM   #29
Newb

Join Date: Apr 2008
Location: Abbotsford BC
Posts: 30
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
Definitely don't need 360whp to go 155mph. My 320whp car would pull 3.63s hard into the 7400rpm limiter at ~152mph GPS.

Keep in mind that tire diameter fluctuates dramatically at high speed. 7400rpm with 3.909s and a 6-speed calculates to ~154mph, but if you actually try it, the GPS will say ~146mph.
With a 5-speed, 3.909 rear end and 195/60/14 5 tires I have had my car on the limiter at 7200 rpm - a calculated 156 mph. The gps recorded a top speed of 145 mph. I always assumed the remaining rpm were eaten up in tire slippage.

Can you explain how a tire can behave as if it were a smaller diameter at speed? If anything I would expect it to grow a little at high speed.
97montego is offline   Reply With Quote
Old 06-22-2015, 03:05 PM   #30
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,333
Default

Quote:
Originally Posted by 97montego View Post
Can you explain how a tire can behave as if it were a smaller diameter at speed? If anything I would expect it to grow a little at high speed.
The distance from the ground to the hub decreases at speed due to tire deflection.
Savington is offline   Reply With Quote
Old 06-25-2015, 03:21 PM   #31
Newb

Join Date: Jun 2015
Location: Hereford,UK
Posts: 22
Total Cats: -1
Default

Quote:
Originally Posted by Savington View Post
The distance from the ground to the hub decreases at speed due to tire deflection.

Try telling that to a top fuel dragster.
phildent is offline   Reply With Quote
Old 06-25-2015, 03:27 PM   #32
Newb

Join Date: Jun 2015
Location: Hereford,UK
Posts: 22
Total Cats: -1
Default

Quote:
Originally Posted by Savington View Post
The distance from the ground to the hub decreases at speed due to tire deflection.

Try telling that to a top fuel dragster.
phildent is offline   Reply With Quote
Old 06-26-2015, 02:12 PM   #33
Newb

Join Date: Apr 2008
Location: Abbotsford BC
Posts: 30
Total Cats: 0
Default

Quote:
Originally Posted by phildent View Post
Try telling that to a top fuel dragster.
I'm with phildent on this, I think the tire would tend to grow at high tire rpm, although I would expect this to be limited on a radial tire.
97montego is offline   Reply With Quote
Old 07-01-2015, 01:51 PM   #34
Elite Member
iTrader: (5)

Join Date: Dec 2010
Location: Raleigh, NC
Posts: 1,970
Total Cats: 49
Default

Quote:
Originally Posted by 97montego View Post
I'm with phildent on this, I think the tire would tend to grow at high tire rpm, although I would expect this to be limited on a radial tire.
tires have a different radius between "unloaded" and "loaded" parts (loaded between the road and unloaded between the fenders). At high speeds a section of tire will go through that transition a lot more frequently. so the actual radius approaches more of the "loaded" radius than unloaded. There maybe other factors at work too that increase the deflection.

to exaggerate this, imagine driving on a tire with no pressure. Its radius is different on the weighted part vs. unweighted. Hence why they suggest higher tire pressures when driving at high speed on the autobahn. Tire rack has a tech article on this.

Not sure about top fuel dragsters, but this is how normal tires work.
Seefo is offline   Reply With Quote
Old 07-01-2015, 05:58 PM   #35
Newb

Join Date: Jun 2015
Location: Hereford,UK
Posts: 22
Total Cats: -1
Default

My reply was completely tongue in cheek.We do not run wrinkle wall slicks on the road/Savington and seefo are quite correct,
If we spin a road tyre from standstill in 1st the tyre will grow and the contact patch decrease,however at higher speeds aerodynamics start to take effect.The car will have more downforce at higher speeds and this will continue to increase as the speed increases.
So effectively as far as the tyre is concerned the weight of the car increases as the speed increases,and therefore the rolling diameter of the tyre goes down as speed increases.
phildent is offline   Reply With Quote
Old 07-11-2015, 02:53 PM   #36
Mr Broke Pants
iTrader: (9)

thumpetto007's Avatar

Join Date: Sep 2010
Posts: 1,602
Total Cats: 28
Default

Oh man, that car is full of win

All those gauges, and the sti intercooler so worth scrolling through this!
thumpetto007 is offline   Reply With Quote
Old 07-14-2015, 07:42 AM   #37
Newb
Thread Starter

Join Date: Jul 2008
Posts: 40
Total Cats: 1
Default

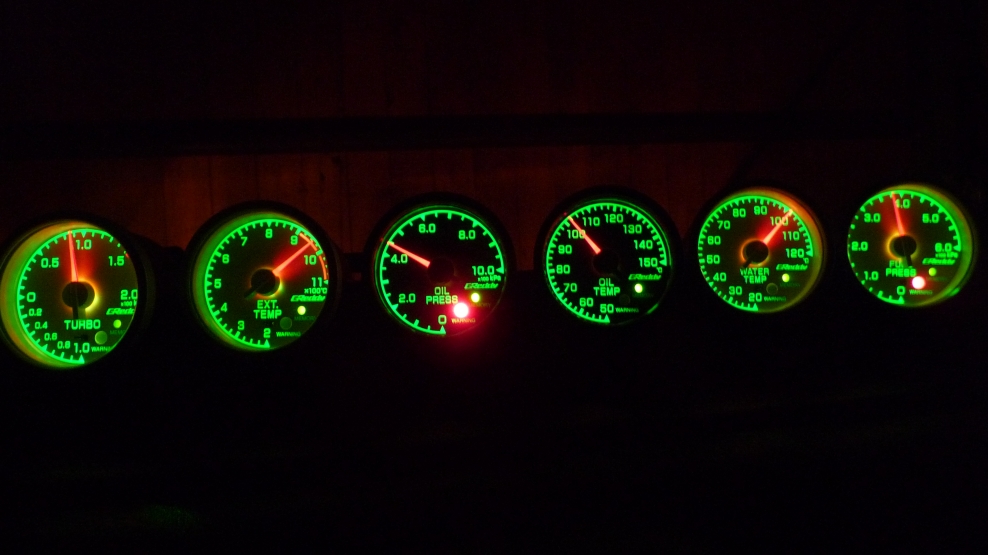

Thanks, I also love my gauges a lot

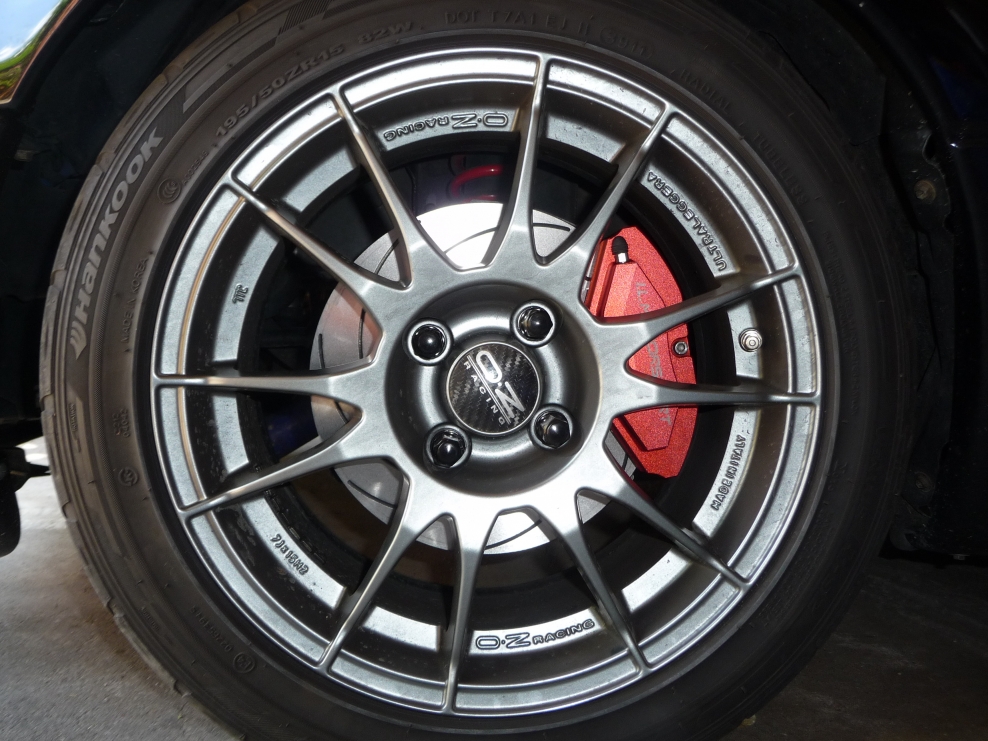

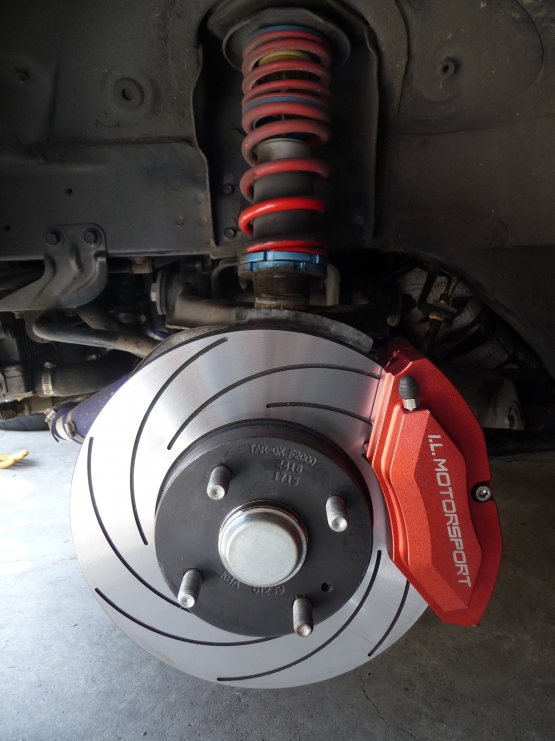

I have also done a little brake upgrade last weekend.

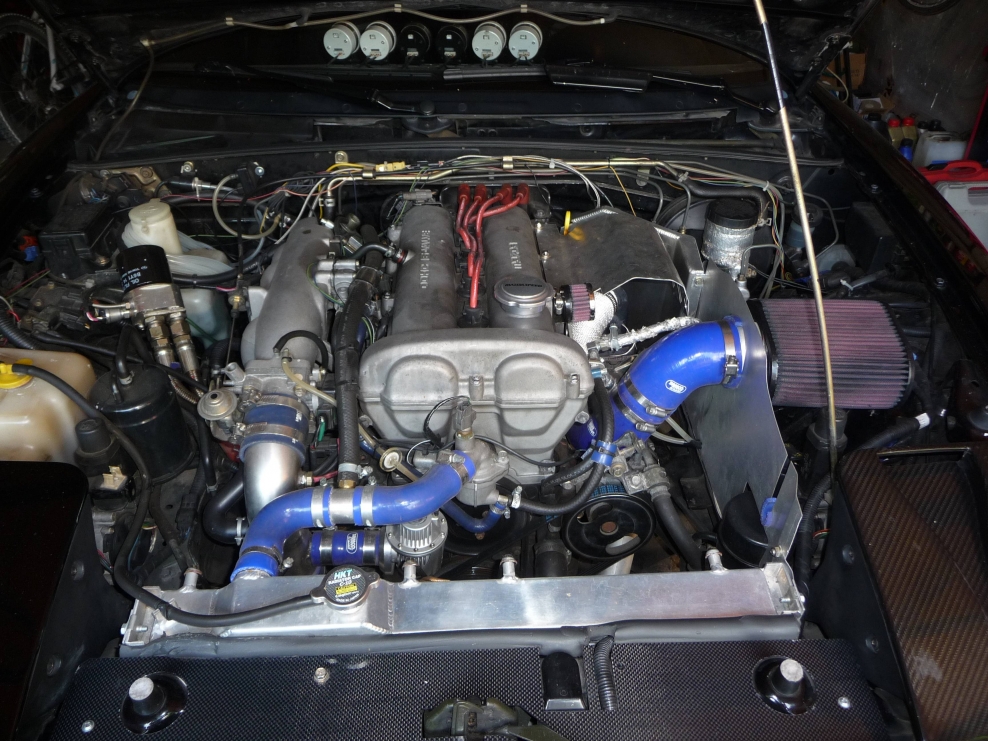

And maybe someone is also interested in a picture of my engine bay.

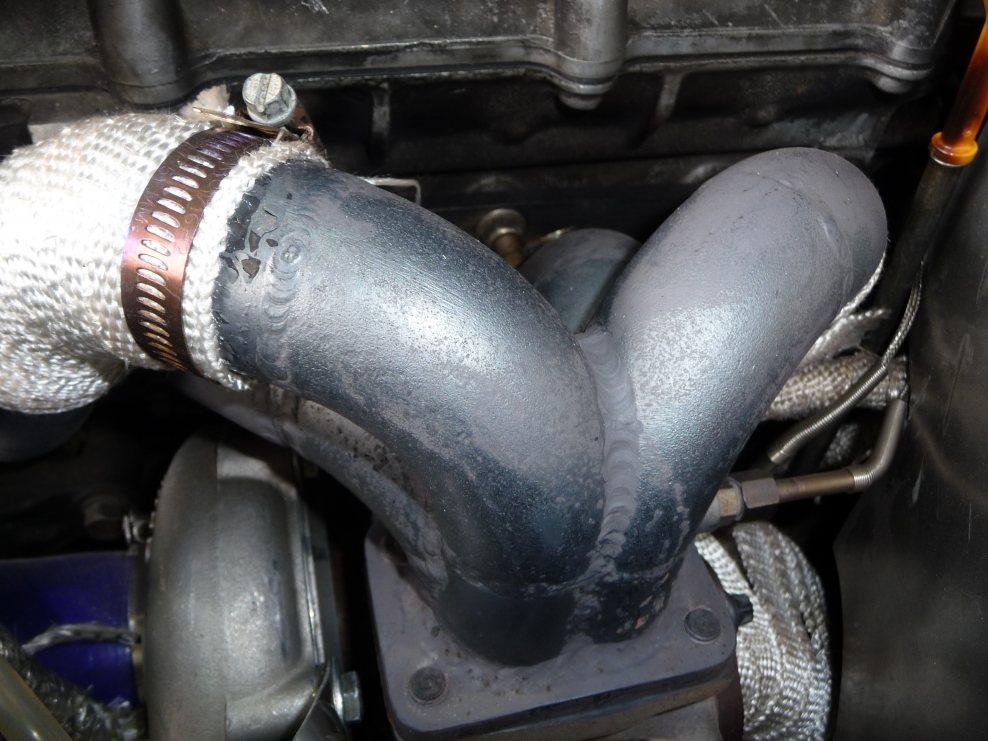

I am using a Begi S4 exhaust manifold. But I have to say, that this is the 4th one. The 3 other one's cracked at different positions.



At the picture you can also see my 2 EGT sensors. 1 at the collector of the manifold, one at the downpipe directly behind the turbine.

Best regards from Germany!
Basti
Attached Thumbnails
my 155mph miata-gx9not6t.jpg   my 155mph miata-eb5mleh3.jpg   my 155mph miata-nulyafzv.jpg   my 155mph miata-z2kejrkp.jpg   my 155mph miata-kan2xtqn.jpg

my 155mph miata-7tub9g4s.jpg
Mazdaspeed_Miata is offline   Reply With Quote
Old 07-14-2015, 07:22 PM   #38
Newb

Join Date: Sep 2010
Location: Portugal
Posts: 36
Total Cats: 1
Default

Quote:
Originally Posted by Mazdaspeed_Miata View Post
Hey guys,


- transmission is 6speed with 3.6torsen (from a 10th anni edition) (I think this is a great gear ratio step up for the car; gears 1-4 are nearly the same like 5speed with 4.3end)


Best regards!
Basti
10AE have a 3.9 torsen

I have a 3.636, check speed diferences:


Last edited by kamel6k; 07-14-2015 at 07:33 PM.
kamel6k is offline   Reply With Quote
Old 07-15-2015, 11:36 AM   #39
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,461
Total Cats: 48
Default

He is in Europe dude. 3.6's are the most prevalent there.
Chilicharger665 is offline   Reply With Quote
Old 07-15-2015, 12:25 PM   #40
Newb

Join Date: Jun 2015
Location: Hereford,UK
Posts: 22
Total Cats: -1
Default

Brandon is quite right,6speeds in Europe,includingUK,had 3.636 diff and 16 inch wheels.
I have thought of sending a container load over to you guys since they are less than $50 over here.
phildent is offline   Reply With Quote
