Default My 1995 can't pass inspection and runs terribly

I'm at a loss. I've done new plug wires, run a gallon of water through the intake plenum (carbon killer) and cleaned the EGR. I don't know where spark time is because the idiot who owned it before me put an under-drive pulley on it, but mechanical timing is right. When I retard timing to what looks like a normal range for the CAS, it misfires and is basically undrivable.

The car detonates, bad, and I know it's weak in #2. The idle is pretty much all over the place. Sometimes 1200rpm, sometimes 800, there is always a 400rpm drop with the AC.

I was 4x the limit on NOX and HC.

Also, when I put MS on this car, will it pass with no EGR?

Thanks for the help.
hustler is offline   Reply With Quote
Old 09-26-2011, 11:57 PM   #2
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

Quote:
Originally Posted by hustler View Post
I don't know where spark time is because the idiot who owned it before me put an under-drive pulley on it, but mechanical timing is right.
I interpret this to mean the timing belt and cam pulleys are all properly aligned with both sets of cam lobes on #1 facing outwards at TDC? Just no mark on the pulley? I'd put a wood dowel down the #1 spark plug hole so you can see exactly where TDC is, make a little notch on that underdrive pulley by the 0 mark on the timing cover, then fire it up and set the timing without guessing.

Quote:
When I retard timing to what looks like a normal range for the CAS, it misfires and is basically undrivable.
Mine did this exact same thing when the timing belt slipped a tooth. Might want to double-check that when the belt and cam sprockets all look aligned properly with 19 belt teeth between the sprockets, you should be able to rotate the crank 720* and still have everything lined up exactly the same. If it doesn't, you're off by one or more teeth.

Quote:
The car detonates, bad, and I know it's weak in #2. The idle is pretty much all over the place. Sometimes 1200rpm, sometimes 800, there is always a 400rpm drop with the AC.
Possibly related to incorrect timing? Never had my idle this bad, can't say.

Quote:
I was 4x the limit on NOX and HC.
Improper timing, misfires, bad cat can all cause this I think.

Quote:
Also, when I put MS on this car, will it pass with no EGR?
Mine did. I mean, the EGR tube and valve are still on the car, but with the MAF unhooked from the stock ECU (my MS is in parallel) it's my understanding that EGR is rendered inoperative. Passed with flying colors on most aspects. Got close to the HC limit for the 25 mph portion, but I was datalogging the smog test and know it was running a little rich (low 14s AFR at 50-ish kPa), so I'll just pull a smidgen of fuel in that region for next time.

I'd start with the obvious- mark the crank pulley and get it timed properly, then go from there.

Quote:
Thanks for the help.
ScottFW is offline   Reply With Quote
Old 09-27-2011, 12:04 AM   #3
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Can you not swap back on a stock pulley instead of running the under drive one?

I would definitely check and see if the timing belt did jump any teeth.

As for EGR, is your car OBD1 or OBD2? If it is OBD1 you should be able to get it to pass fine with the engine swap.
shuiend is offline   Reply With Quote
Old 09-27-2011, 12:20 AM   #4
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

OBD1. I'm relatively certain the crank and cams are in sync.
hustler is offline   Reply With Quote
Old 09-27-2011, 12:56 AM   #5
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

no friendly inspectors?
pusha is offline   Reply With Quote
Old 09-27-2011, 01:09 AM   #6
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by pusha View Post
no friendly inspectors?
They're pretty hard to come by these days. I don't know what I'm going to do for the turbo car next year. I might have to put a cat in it and find someone who likes cars.
hustler is offline   Reply With Quote
Old 09-27-2011, 02:25 AM   #7
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I may just say "**** it" and get a Mariner like this one:
hustler is offline   Reply With Quote
Old 09-27-2011, 03:46 AM   #8
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Remove that underdrive POS pulley and put the stock back in, verify cam timing and 10* ignition timing.
Reverant is offline   Reply With Quote
Old 09-27-2011, 04:36 AM   #9
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Could be a slipped pulley d/t a loose pulley bolt. Might wanna take it off and check the key way. You'll have to in order to put a stock pulley in, which you WILL do.

Last edited by curly; 09-27-2011 at 04:37 AM. Reason: Lol
curly is offline   Reply With Quote
Old 09-27-2011, 09:08 AM   #10
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

lol @ finding a stock pulley.
hustler is offline   Reply With Quote
Old 09-27-2011, 09:31 AM   #11
Junior Member
iTrader: (3)

Join Date: Mar 2008
Location: Murphy, Tx
Posts: 182
Total Cats: 6
Default

Pull the plug on cyl 1
insert something long and skinny (screw driver, wooden dowel, piece of spaghetti, your dick) into spark plug hole
rotate engine while watching object to indicate tdc for cyl 1
make a mark on the pulley at the 0 degree mark on the timing indicator on the timing belt cover
attach timing light and verify timing

it'll at least get you in the ball park
Fidgitk is offline   Reply With Quote
Old 09-27-2011, 10:08 AM   #12
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Fidgitk View Post
Pull the plug on cyl 1
insert something long and skinny (screw driver, wooden dowel, piece of spaghetti, your dick) into spark plug hole
rotate engine while watching object to indicate tdc for cyl 1
make a mark on the pulley at the 0 degree mark on the timing indicator on the timing belt cover
attach timing light and verify timing

it'll at least get you in the ball park
Done. I'm definitely not off a tooth.
hustler is offline   Reply With Quote
Old 09-27-2011, 11:01 AM   #13
Elite Member
iTrader: (5)

pusha's Avatar

Join Date: Nov 2009
Location: Miami, FL
Posts: 7,363
Total Cats: -32
Default

Quote:
Originally Posted by hustler View Post
They're pretty hard to come by these days. I don't know what I'm going to do for the turbo car next year. I might have to put a cat in it and find someone who likes cars.
I find it hard to believe, that in Texas of all places, you're having difficulty finding someone to help out a fellow white man.
pusha is offline   Reply With Quote
Old 09-27-2011, 11:26 AM   #14
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I just want to give a shout out to all the ******** who complain about california's smog laws. **** you very much.
y8s is offline   Reply With Quote
Old 09-27-2011, 01:12 PM   #15
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by pusha View Post
I find it hard to believe, that in Texas of all places, you're having difficulty finding someone to help out a fellow white man.
I no speaky Spanish.
hustler is offline   Reply With Quote
Old 09-27-2011, 01:43 PM   #16
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92
Default

My 95 passes just fine with no EGR. I'd guess yours would too.
revlimiter is offline   Reply With Quote
Old 09-27-2011, 10:07 PM   #17
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

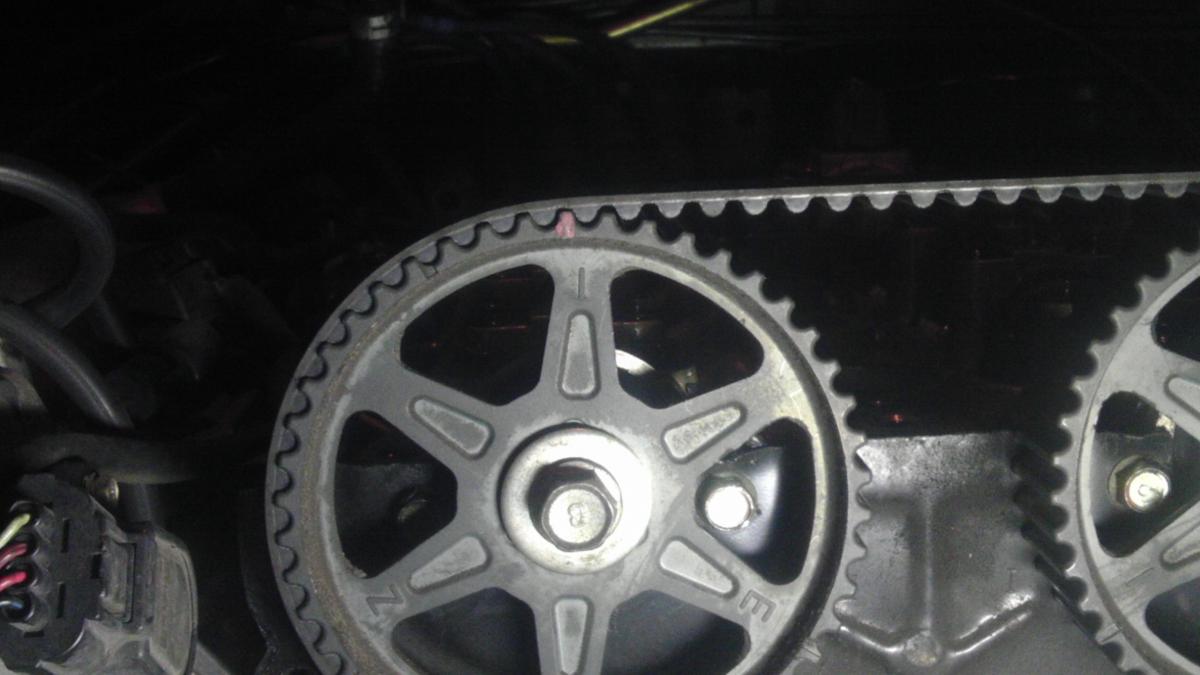

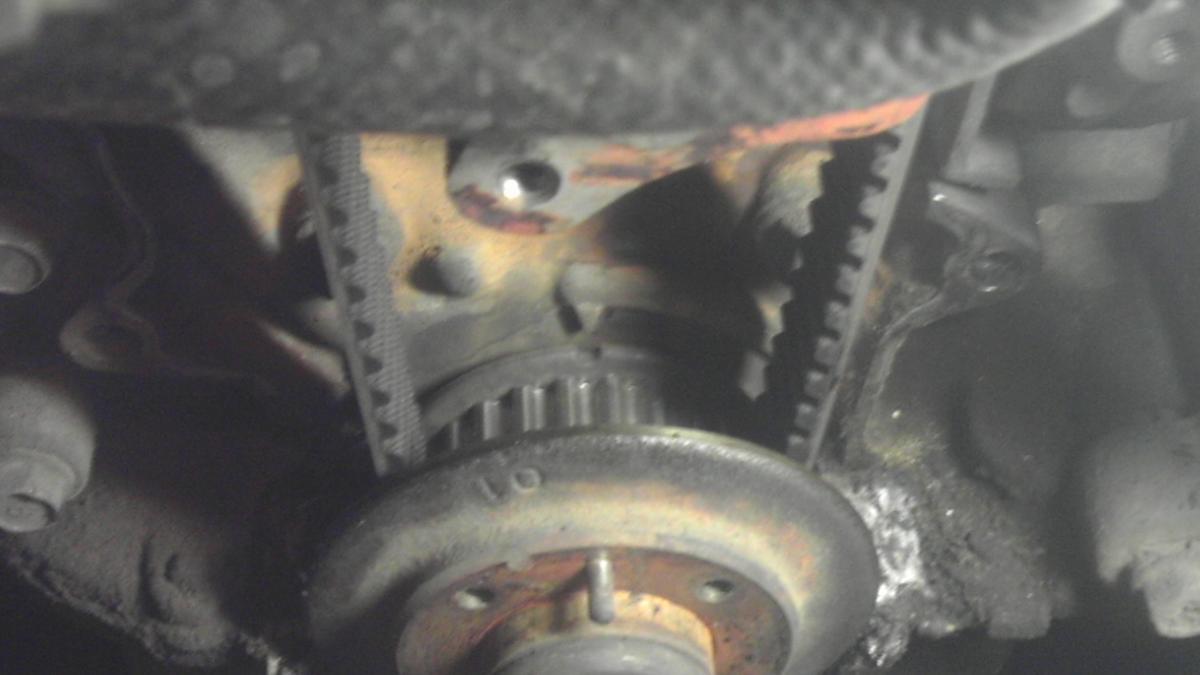

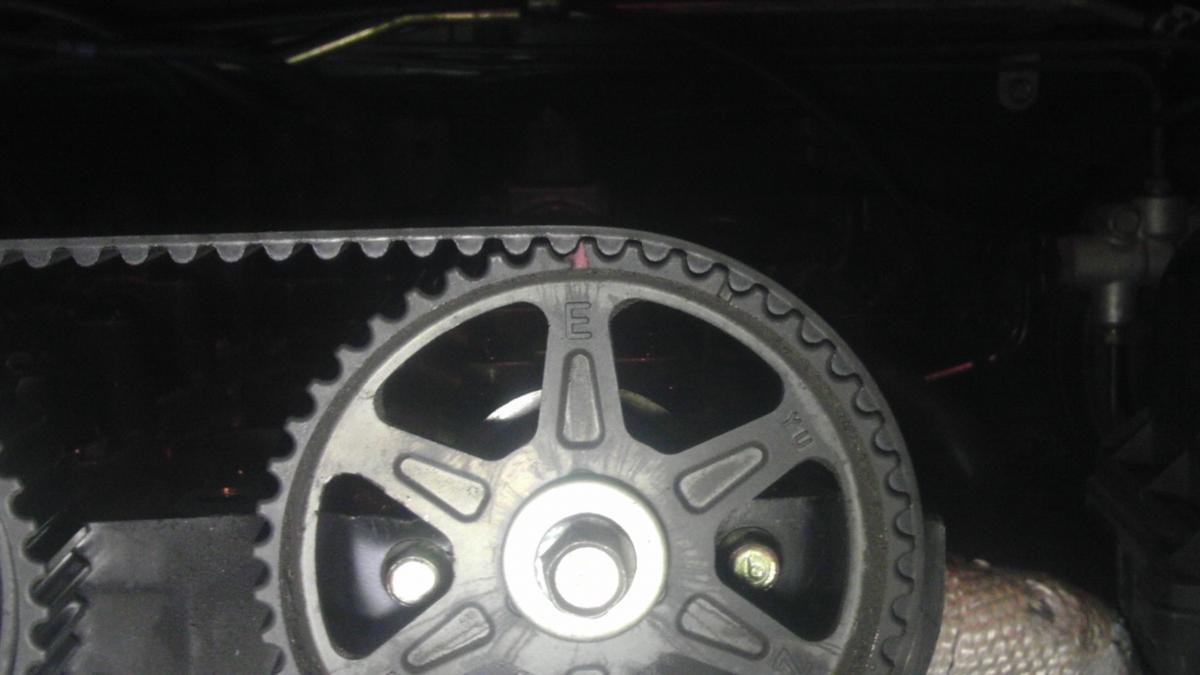

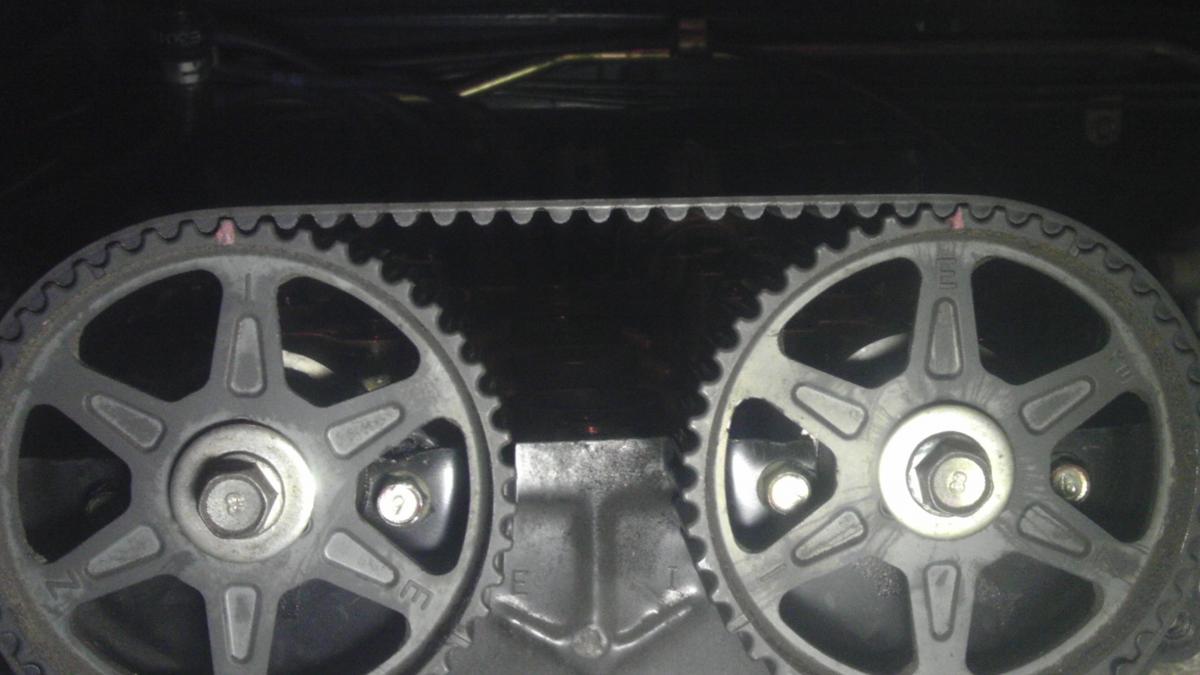

Can we all agree that mechanically its timed correctly?
Attached Thumbnails
My 1995 can't pass inspection and runs terribly-imag0057.jpg   My 1995 can't pass inspection and runs terribly-imag0058.jpg   My 1995 can't pass inspection and runs terribly-imag0059.jpg   My 1995 can't pass inspection and runs terribly-imag0060.jpg
hustler is offline   Reply With Quote
Old 09-27-2011, 10:17 PM   #18
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92
Default

Yup. That looks right to me.
revlimiter is offline   Reply With Quote
Old 09-27-2011, 10:23 PM   #19
Tour de Franzia
Thread Starter
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Apparently this motor is fucked.
hustler is offline   Reply With Quote
Old 09-27-2011, 10:46 PM   #20
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

What are the compression and leak down numbers? Oh, you haven't done it yet? Oh, you're wasting our time?
curly is offline   Reply With Quote
