Default My build/progress thread

I have a 2 week vacation from school, and my car has been down for 8 months. Time to get **** done and get this thing on the road again.

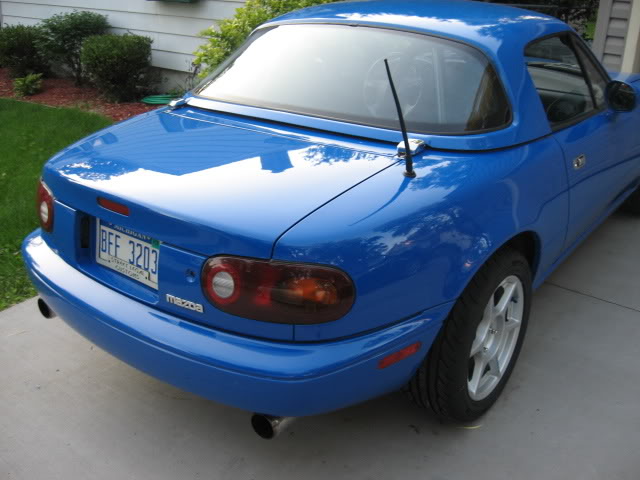

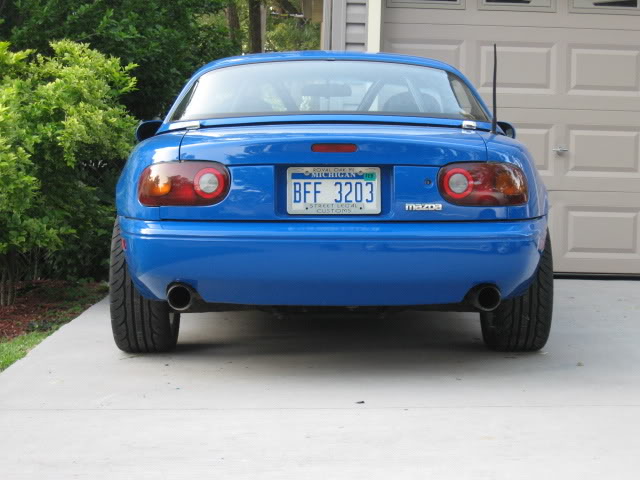

I did the rough cut for the exhaust and got it in place. Only the muffler is on, so it doesn't sit strait. It will when the rest of the mounts are on. Brainstorm 2.5". I would have finished it, but I forgot to buy gaskets and bolts...which are pretty important.
Name:  IMG_1455-1.jpg
Views: 3
Size:  57.0 KB

Name:  IMG_1457.jpg
Views: 3
Size:  52.4 KB

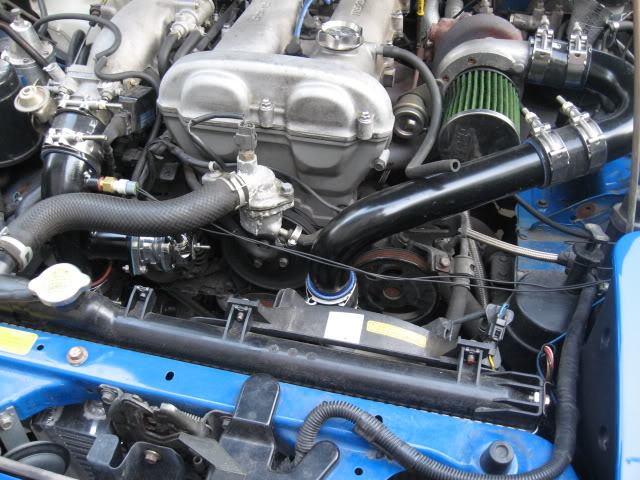

I also finished up the intercooler and pipes. I'm going to try and get a godspeed rad. I still have to trim up the undertray and build some shrouds. The air filter is temp, I need to figure out what I'm going to do with it.
Name:  IMG_1461.jpg
Views: 3
Size:  86.5 KB

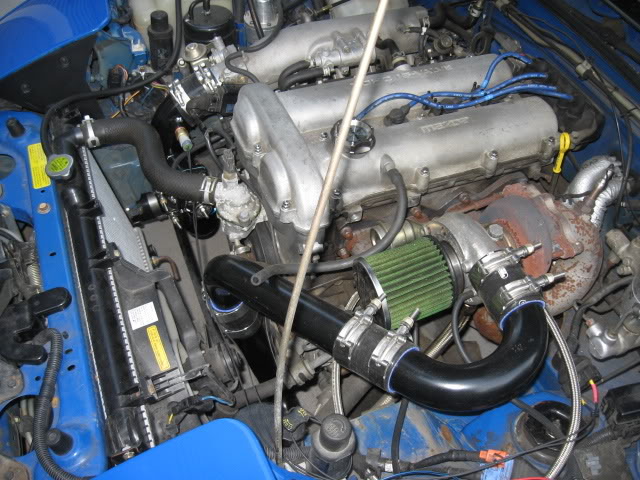

I know, my DP is rusty as hell from sitting. My bowser heat shield covers it for now, I'll fix it next year.
Name:  IMG_1458.jpg
Views: 3
Size:  91.3 KB

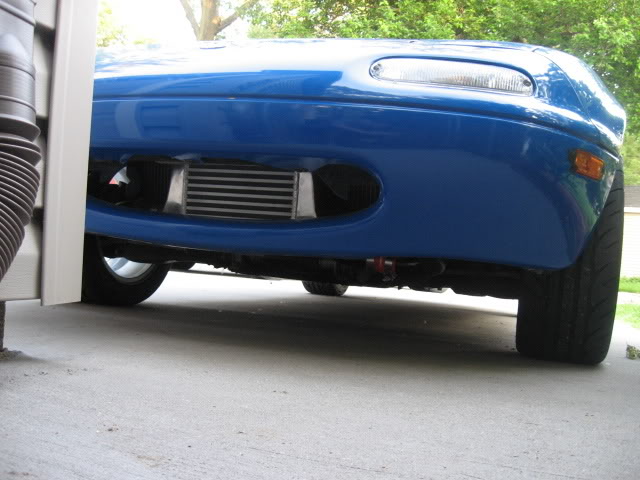

In person this intercooler doesn't look so small. Something about the pictures make it look tiny, it actually looks good to me. I also love how high it sits, hopefully I'll never hit anything ever again.
Name:  IMG_1462.jpg
Views: 3
Size:  57.2 KB

Tommorow I'm going to finish up the exhaust and trim up the undertray. I'm going to work with MS a bit and try and get it running. My idle valve is killing the engine, need to sort it out. Monday I'm going to pull out my Koni sports so I can put on my FM springs and FCM mounts and swap in my 99 front sway bar. I will have more pics later.

Last edited by miataspeed1point6; 06-23-2008 at 09:56 PM.
miataspeed1point6 is offline   Reply With Quote
Old 06-21-2008, 12:54 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

super
hustler is offline   Reply With Quote
Old 06-21-2008, 01:03 AM   #3
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

sell me your car. I want a mint smurf.
neogenesis2004 is offline   Reply With Quote
Old 06-21-2008, 01:03 AM   #4
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

God damn I really like that color.
Saml01 is offline   Reply With Quote
Old 06-23-2008, 10:03 PM   #5
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

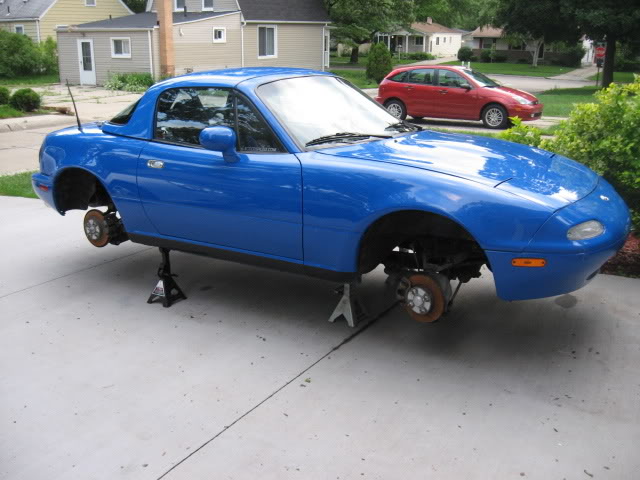

The Koni's are out. I'm going to swap them over tommorow. A big thanks to Shaikh at FCM. Most helpful person I have ever bought parts from.

Tommorow I will have pictures of it on the ground.
Name:  IMG_1472.jpg
Views: 3
Size:  60.2 KB
miataspeed1point6 is offline   Reply With Quote
Old 06-23-2008, 11:29 PM   #6
Junior Member
iTrader: (3)

Join Date: Dec 2007
Posts: 219
Total Cats: 0
Default

Nice car...I like the dual exhaust that makes me want to go that route, looks pretty tough the way the pipes are tucked under the bumper...is that the stock bumper and you just cut out room for the pipes?
scottv is offline   Reply With Quote
Old 06-24-2008, 12:18 AM   #7
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Yeah, just the stock one with a cutout. I went with duals just because I think every car looks better with them, I like symmetry. In the future I want to upgrade to 3" duals, overkill.
miataspeed1point6 is offline   Reply With Quote
Old 06-24-2008, 07:11 AM   #8
Senior Member
iTrader: (8)

paNX2K&SE-R's Avatar

Join Date: Dec 2007
Location: Mocksville, NC
Posts: 676
Total Cats: 11
Default

Thats a great looking car, keep up the good work!
paNX2K&SE-R is offline   Reply With Quote
Old 06-24-2008, 10:56 AM   #9
Junior Member
iTrader: (1)

Join Date: Dec 2007
Location: Orlando,Fl
Posts: 402
Total Cats: 0
Default

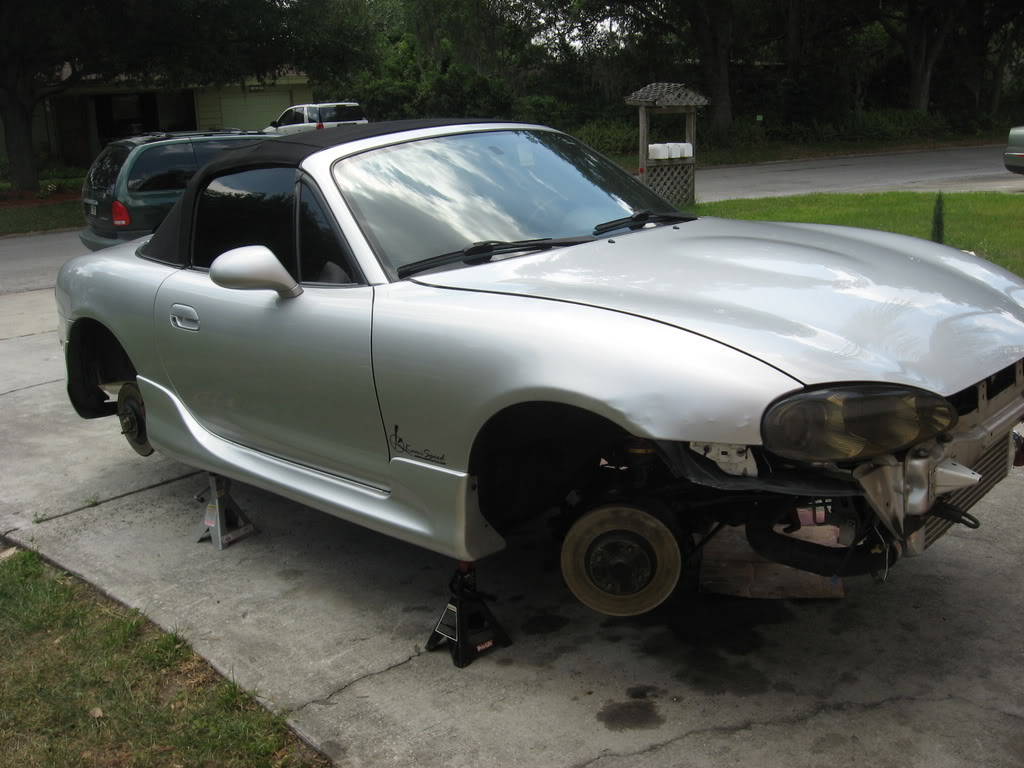

hey just like my car..hahaha
Name:  IMG_4042.jpg
Views: 3
Size:  114.4 KB
mx03tb is offline   Reply With Quote
Old 06-24-2008, 11:00 AM   #10
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Aw man... I saw the duals and thought V8 swap! Fun! Then it was just turbo'd :(
Splitime is offline   Reply With Quote
Old 06-24-2008, 01:36 PM   #11
Junior Member
iTrader: (2)

Join Date: Nov 2006
Location: N/A
Posts: 360
Total Cats: 0
Default

lookin' good
mikeflys1 is offline   Reply With Quote
Old 06-24-2008, 01:42 PM   #12
Senior Member
iTrader: (5)

Join Date: Nov 2007
Location: Troy, MI
Posts: 860
Total Cats: 13
Default

nice work, hope you can get the ms sorted out and get it on the road soon. summer's going by fast!
The_Pipefather is offline   Reply With Quote
Old 06-24-2008, 02:55 PM   #13
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Everybody is getting **** done except me and hustler...that makes me very sad! :(
Zabac is offline   Reply With Quote
Old 06-24-2008, 06:29 PM   #14
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Quote:
Originally Posted by Splitime View Post
Aw man... I saw the duals and thought V8 swap! Fun! Then it was just turbo'd :(
Just turbo'd? I worked hard! It's funny you say this because I decided if I blow this engine I'm just doing a v-8 swap.

Quote:
Originally Posted by The_Pipefather View Post
nice work, hope you can get the ms sorted out and get it on the road soon. summer's going by fast!
I'll be needing your help shortly. I'm about 80% of the way done.

Quote:
Originally Posted by Zabac View Post
Everybody is getting **** done except me and hustler...that makes me very sad! :(
Trust me I know the feeling. My car has been down since last Fall. School has kept me SO FREAKIN busy I only had time to watch other peoples builds. I've been working on it at least 5 hours a day now, I love it.

The suspension is in and looks GOOD. I just need to finish up a few things and I'll get pictures. Thanks for all the compliments. This car has been a bitch, but it's finally coming together and looking how I planned.
miataspeed1point6 is offline   Reply With Quote
Old 06-24-2008, 06:48 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Looks great! your tires remind me of why I put my mudflaps back on.
Braineack is offline   Reply With Quote
Old 06-24-2008, 07:03 PM   #16
Newb

Join Date: Apr 2007
Posts: 19
Total Cats: 0
Default

what intercooler is that? i'm thinking of swapping out my BBR set-up for a front mount.
L111CHT is offline   Reply With Quote
Old 06-24-2008, 07:17 PM   #17
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
Looks great! your tires remind me of why I put my mudflaps back on.
Thanks, but wait until you see it with the new suspension. Yeah, the tires do stick out alot. The front does too.

Quote:
Originally Posted by L111CHT View Post
what intercooler is that? i'm thinking of swapping out my BBR set-up for a front mount.
It is an ebay 18x12x3 with 2.5" openings. Buy it from cxracing on ebay, really good seller. It is taller than it is wide, but it leaves some radiator exposed which i like.
miataspeed1point6 is offline   Reply With Quote
Old 06-24-2008, 07:54 PM   #18
Junior Member
iTrader: (1)

Join Date: Apr 2008
Location: Atlanta, GA
Posts: 293
Total Cats: -3
Default

Very impressive, quite jealous in fact! The hardtop works really well with your particular colour.
jdmaddox88 is offline   Reply With Quote
Old 06-24-2008, 08:10 PM   #19
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Pictures!

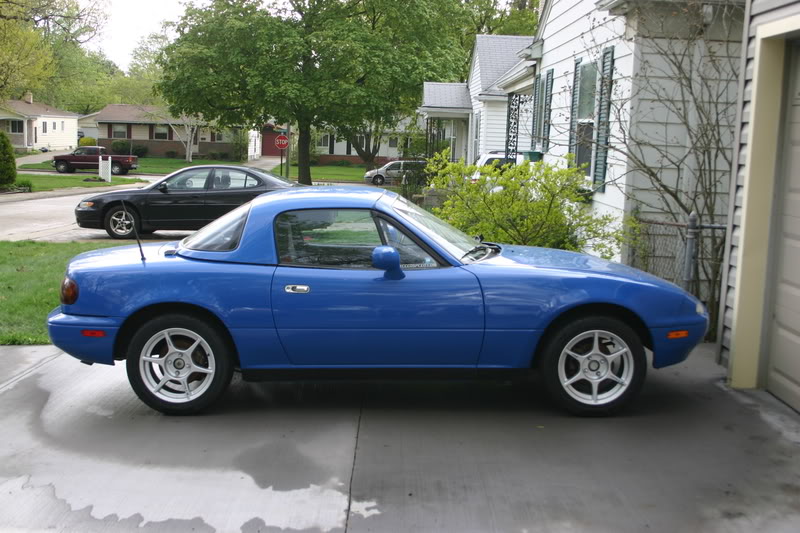

Here it is on stock springs. Looks stupid high.
Name:  IMG_3312.jpg
Views: 3
Size:  96.9 KB

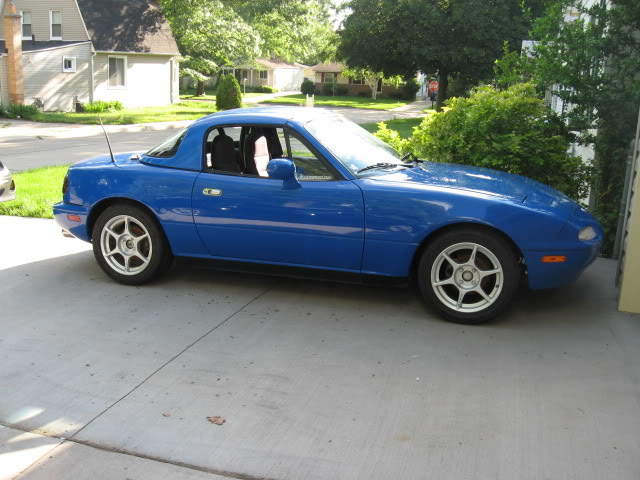

Here it is with its new setup. When I stand next to it my belt is higher than the side mirror.
Name:  IMG_1486.jpg
Views: 3
Size:  70.0 KB

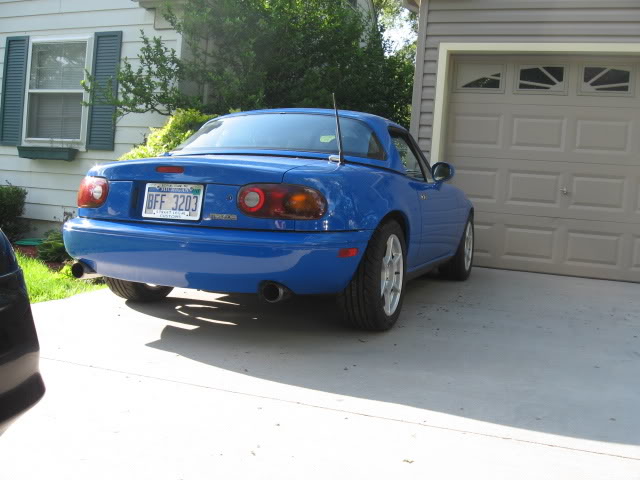

Best I could get of the rear for now. (Family unexpectedly stopped by and parked behind me...I really wanted to show off the rear shot!)
Name:  IMG_1484.jpg
Views: 3
Size:  53.8 KB

I'll try for better pictures later. These ones don't do it justice.
miataspeed1point6 is offline   Reply With Quote
Old 07-08-2008, 11:28 PM   #20
Senior Member
Thread Starter
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

I got around to taking apart my RX7 rear end, and it is indeed a clutch type. I will be swapping this into a 99 open rear to keep my current ratio.

A couple questions though. I just read on rx7club to not use LSD fluid. The fill tag said to use LSD only. Which is it? The carrier bearings are still in good shape, is it worth changing them?

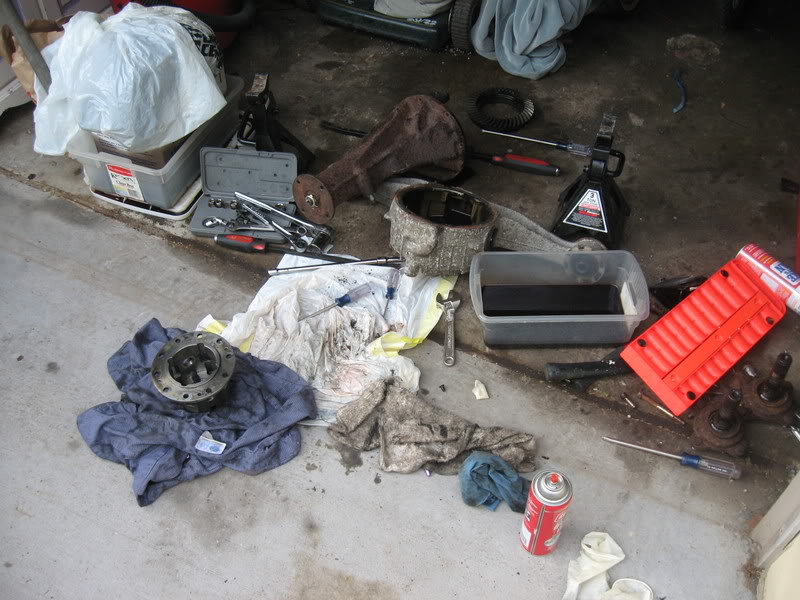

My mess trying to get it a little cleaner. I didn't want gear oil all over my bench.
Name:  IMG_1533.jpg
Views: 3
Size:  96.9 KB

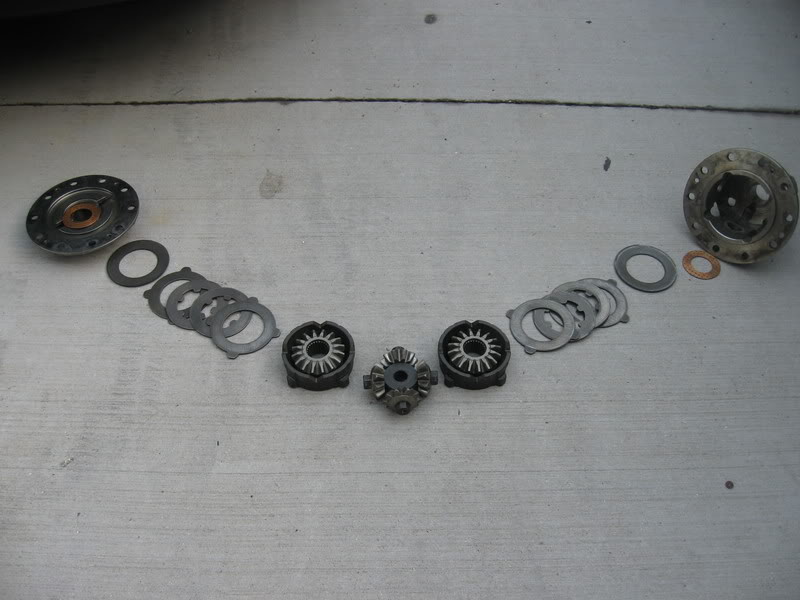

All cleaned up and taken apart to inspect.
Name:  IMG_1536.jpg
Views: 3
Size:  62.6 KB

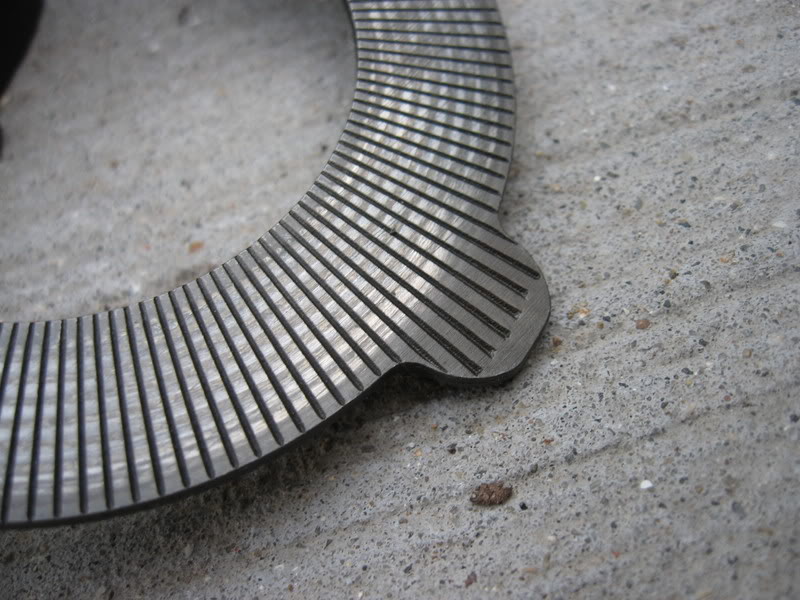

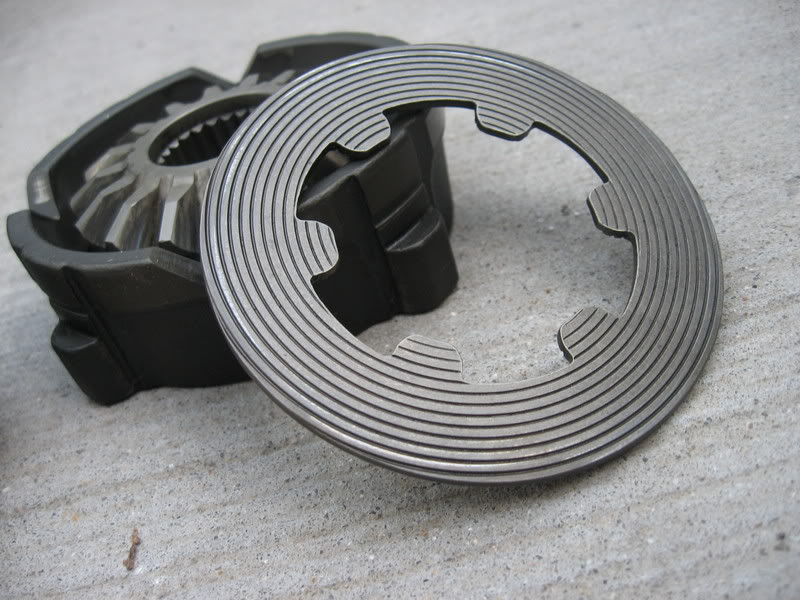

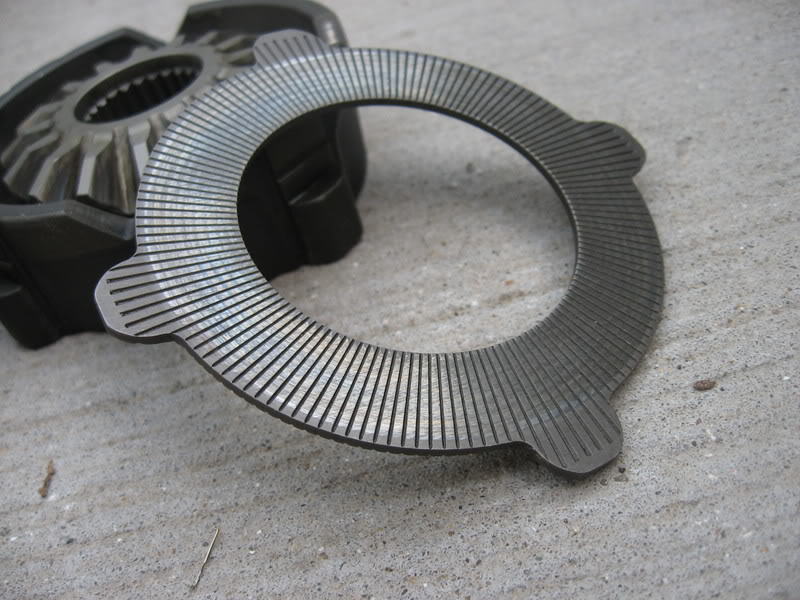

My clutch plates. Do these still look good? It had a pretty good lock before I took it apart so I'm just putting it back in for now.
Name:  IMG_1538.jpg
Views: 4
Size:  99.3 KB

Name:  IMG_1541.jpg
Views: 3
Size:  101.1 KB

Name:  IMG_1539.jpg
Views: 3
Size:  100.4 KB

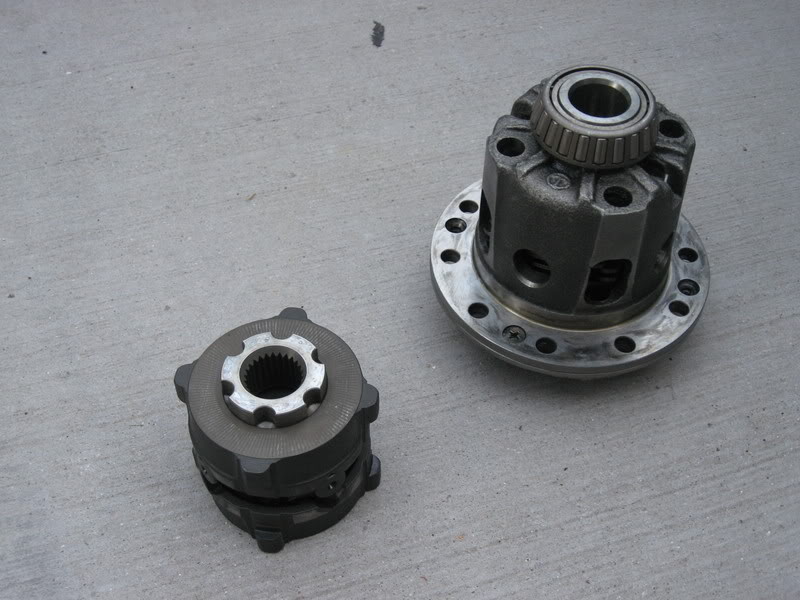

All cleaned up.
Name:  IMG_1542.jpg
Views: 3
Size:  79.8 KB

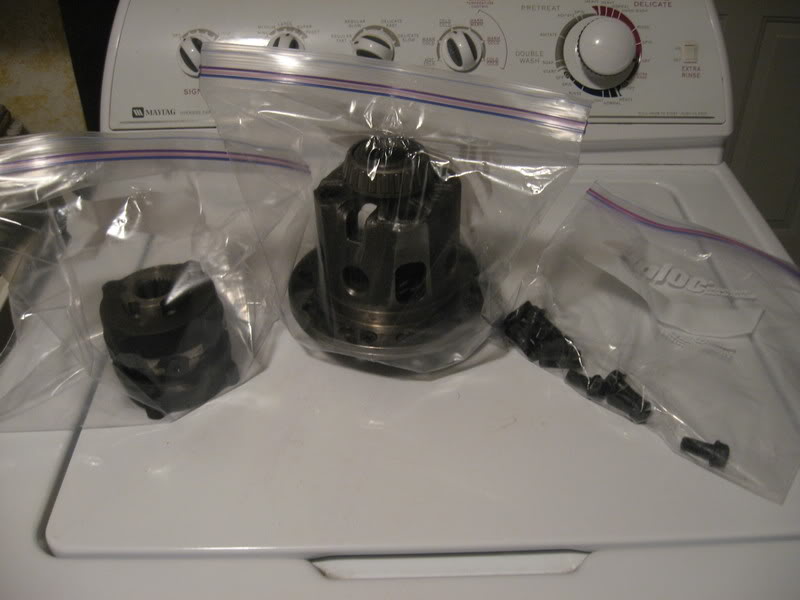

Ready for its date with the parts washer at work.
Name:  IMG_1544.jpg
Views: 3
Size:  49.0 KB
