Thumbs up My Coolant Re-route

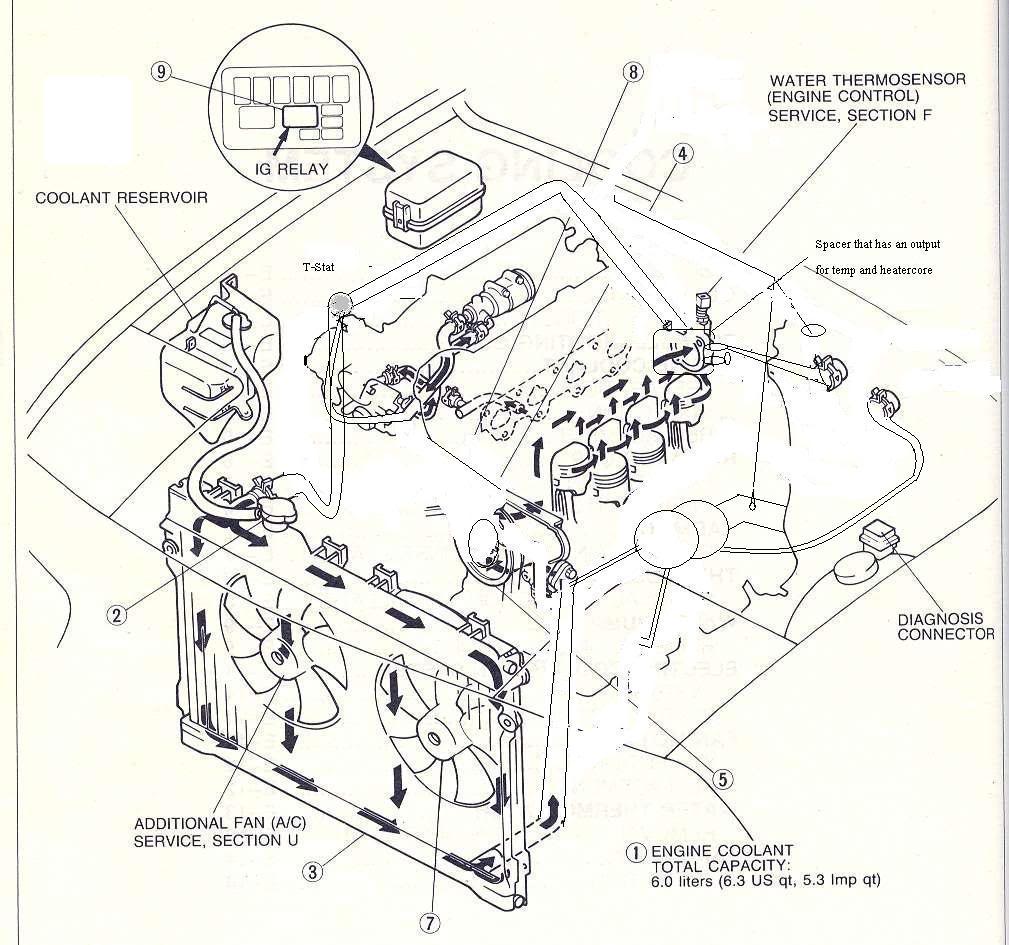

Ok, Sorry this took so long to get pictures up and Im also sorry that the last couple are from my cell phone. First, Here is my design.
Name:  coolantroute-1.jpg
Views: 115
Size:  144.4 KB

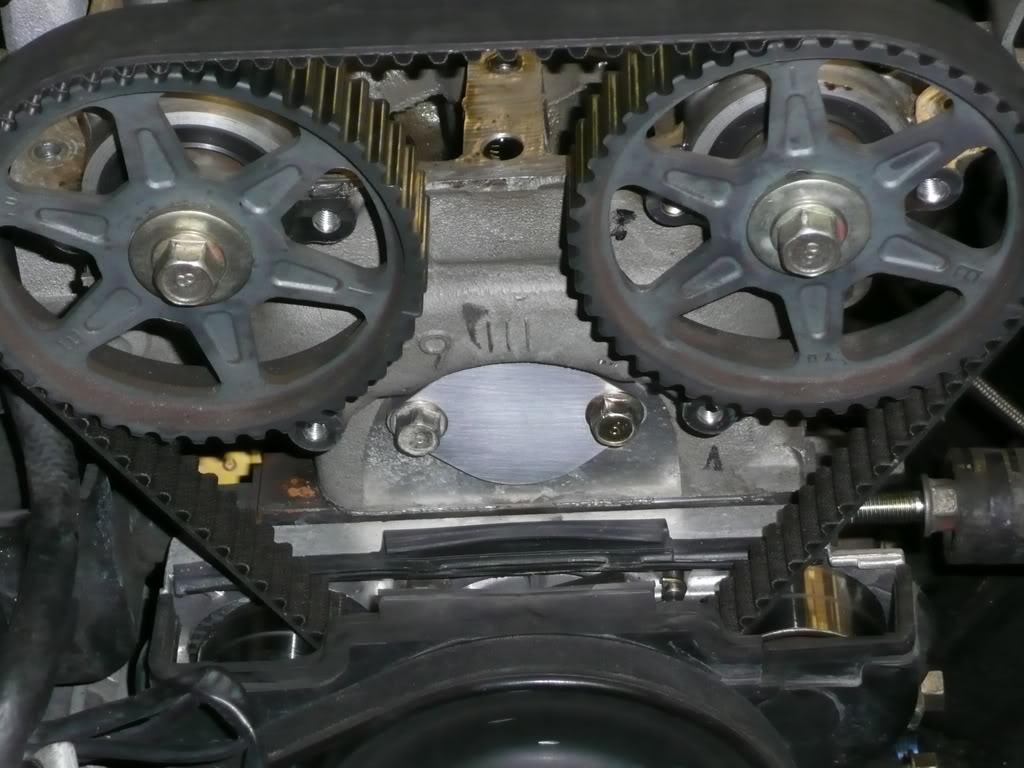

Next I made a plate with an o-ring to make sure it sealed properly.
Name:  P1010066.jpg
Views: 9
Size:  110.7 KB

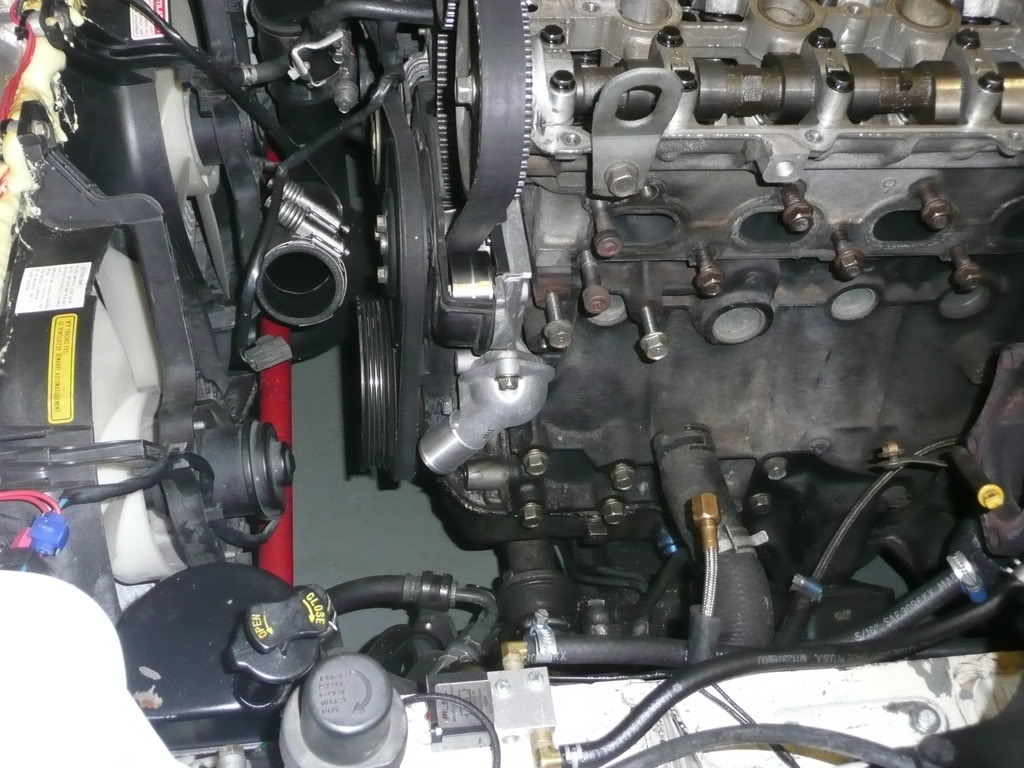

Then Buy a 1.8L T-stat housing
Name:  P1010067.jpg
Views: 25
Size:  141.9 KB

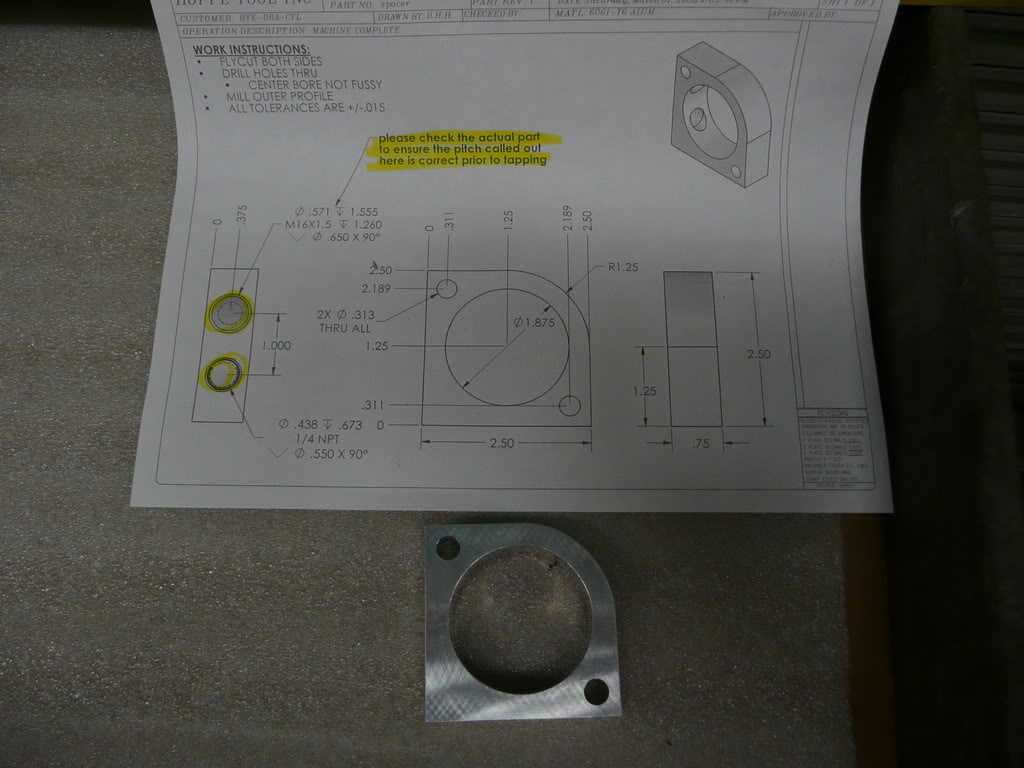

I made this spacer feel free to use my drawing to make your own. I MIGHT be able to make one if someone else if my father allows me to use some more aluminum.
Name:  P1010061.jpg
Views: 8
Size:  100.6 KB

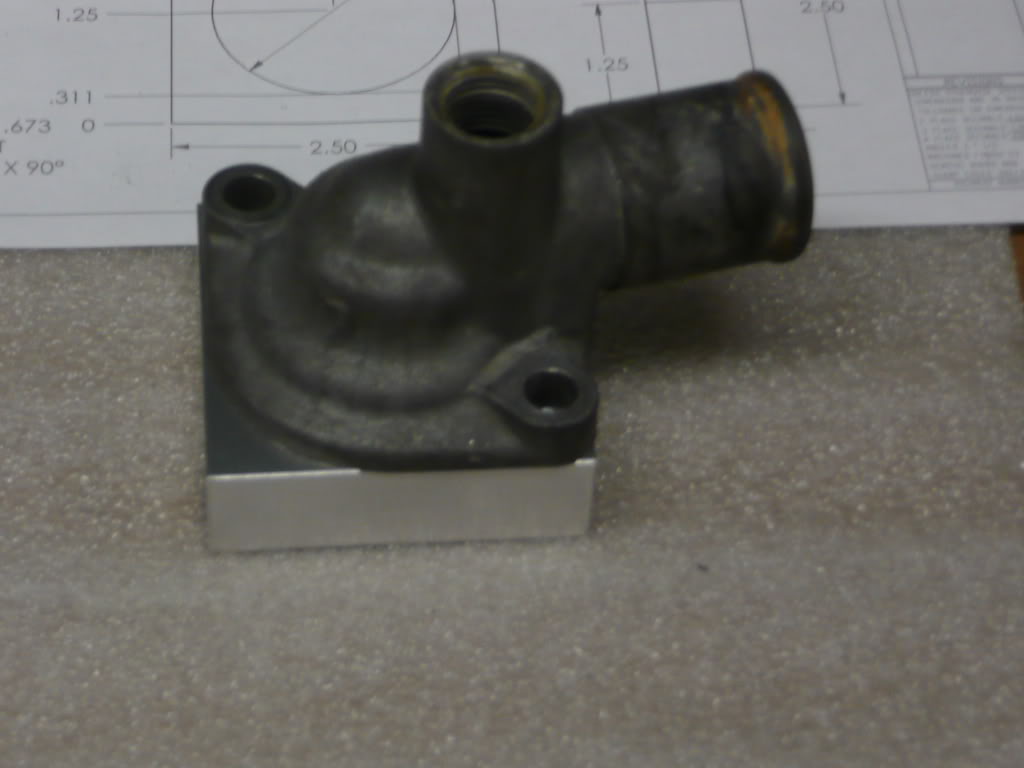

Another veiw, this one with the 1.6L tstat housing on it. What this doesnt show and I dont have a picture of, is that housing is pluged with a bolt and drilled on the flat surface to allow for the green sensor to go in.
Name:  P1010062.jpg
Views: 8
Size:  55.7 KB

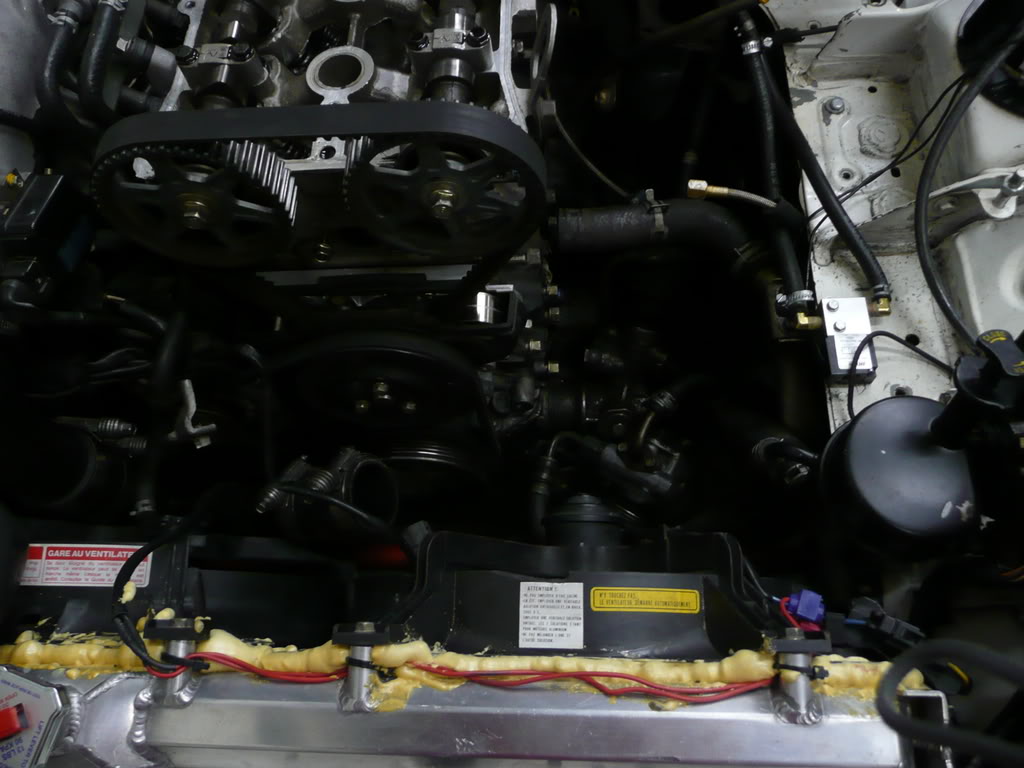

I also dropped the power steering pump at the same time.. Look at how much more space there is!!
Name:  P1010051.jpg
Views: 8
Size:  100.3 KB

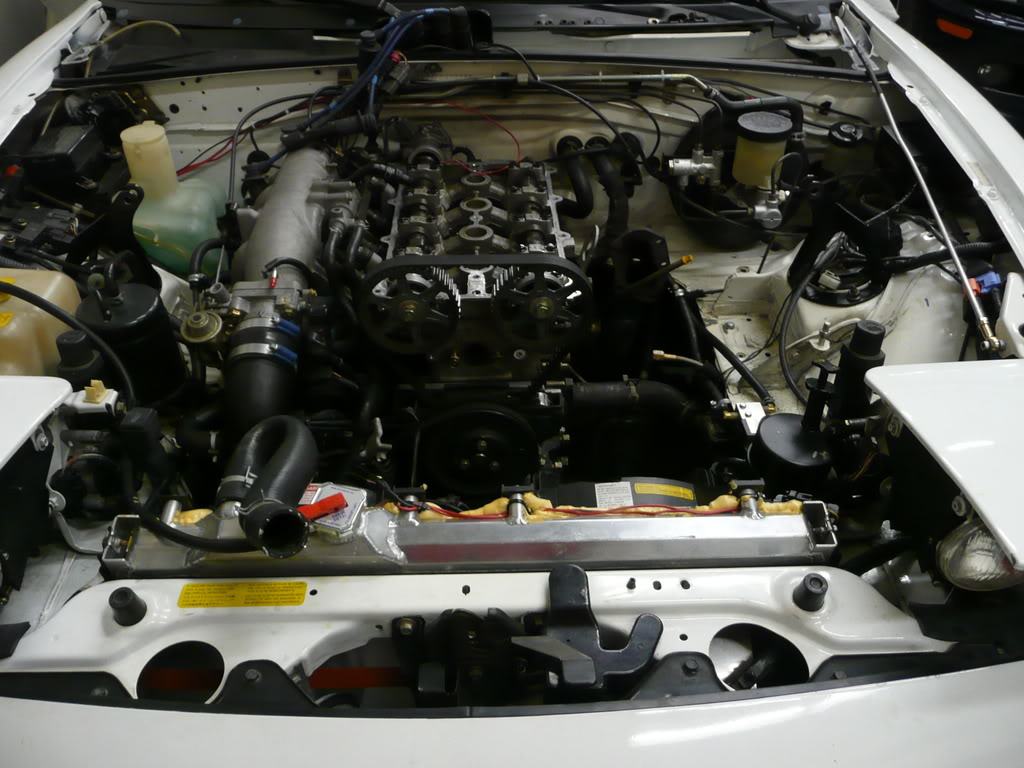

Just an engine shot
Name:  P1010050.jpg
Views: 8
Size:  125.8 KB





Uploading the other images as we speak... not going very well
highroller101 is offline   Reply With Quote
Old 06-04-2008, 02:41 AM   #2
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,326
Total Cats: 1,926
Default

From the diagram it appears that the heater core return goes to the stock mixing manifold location, yet the picture of the block with the thermostat neck in that spot reveals no obvious provision for same. >?
Joe Perez is offline   Reply With Quote
Old 06-04-2008, 02:46 AM   #3
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

Alright, I will take more in depth shots next time I work on it...

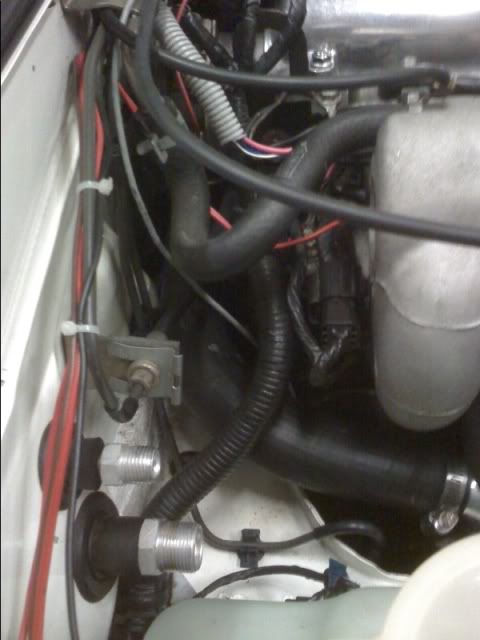

Veiw from the back (sorry its not clear, its just the spacer, temp sensors, 1.6L tstat housing and a rad line)
Name:  backveiw.jpg
Views: 9
Size:  35.2 KB

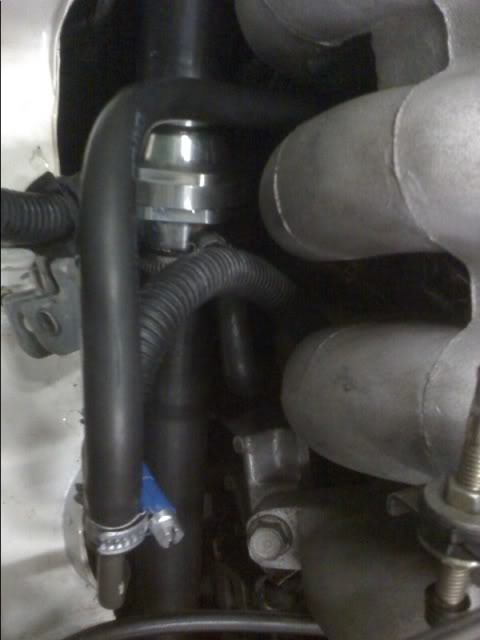

Next it meets up with a Turbo Tim housing and I drilled a hole in it to allow for the throttle body return line.
Name:  turbotim.jpg
Views: 8
Size:  26.5 KB

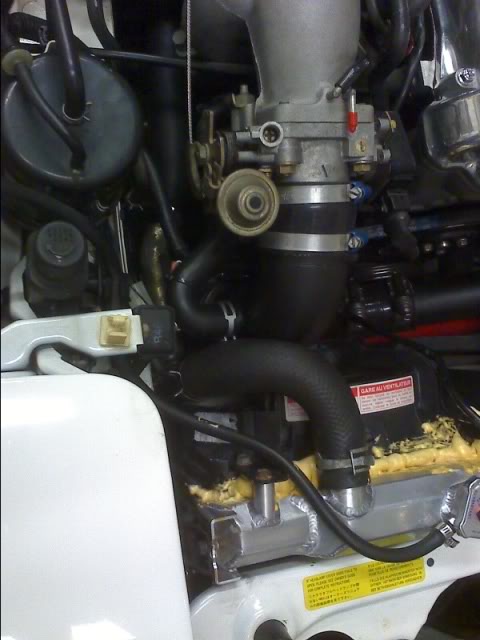

Re-used the hoses from the bottom of the Rad at the top.. Worked great!
Name:  shot.jpg
Views: 8
Size:  42.3 KB

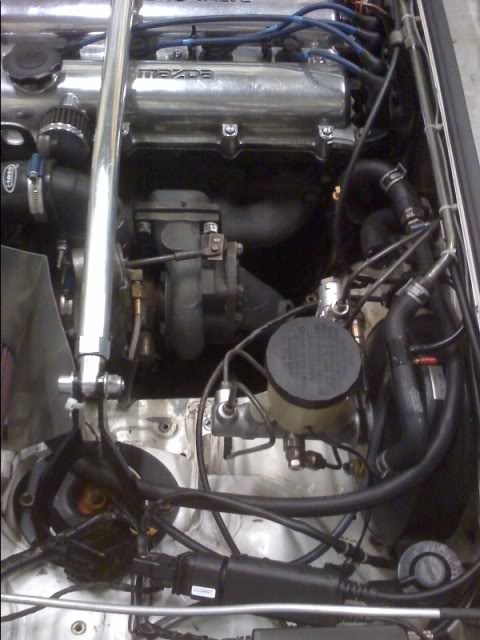

And lastly, the Turbo return line goes through the heater core (not in this picture because I broke the weld on the inlet hahaha so this is just temporary.
Name:  turboreturnline.jpg
Views: 8
Size:  49.5 KB
Hope you all like it! Comments welcome!!
PS 180* tstat with 2 holes drilled
highroller101 is offline   Reply With Quote
Old 06-04-2008, 02:48 AM   #4
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

Quote:
Originally Posted by Joe Perez View Post
From the diagram it appears that the heater core return goes to the stock mixing manifold location, yet the picture of the block with the thermostat neck in that spot reveals no obvious provision for same. >?
That hose from the bottom of the turbo is actually an oil return line. I was just having fun in paint one day drawing my setup, so I used that drawing. Heater return goes straigh into my spacer to meet back up with the coolant at the back of the motor.
highroller101 is offline   Reply With Quote
Old 06-04-2008, 02:55 AM   #5
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

Almost forgot to include my parts list...

parts list:
1.8L thermostat housing
Turbo Tim inline thermostat housing (needs to be drilled to accept a fitting.
(2) 1/8" NPT to 1/4 barb
(3) flexible rad hoses (or ones that match the bend)
Spacer, (I made mine, and I think Turbo Tim makes them too) spacer has 2 outlets, one that matches the temp sensor, and the other is a 1/4 pipe threading
1/4" pipe thread to 5/8" pipe thread "reducer"
insert a bolt in the opening on the reused thermostat upper housing. I drilled and tapped the flat surface to insert the secondary temp sensor (green)
some wire to relocate the front temp sensor.
freeze plug ( I made a plate to make it look pretty) haha
5/8" pipe thread to 1/4" barb
hose 5/8" with a 90* in it. 3/8 hose if you dont already have extra from your turbo.

re-used:
rad hose and metal hose from the bottom outlet of the rad. relocated to the top input of the rad going straight down under the intake mani
heater core 5/8 hose
1.6L tstat upper housing
temp sensors
heater core(acts as a secondary rad for the turbo) WORKS GREAT!
some other little pieces like clamps.

reroute goes like this....
out rad into the motor, pipe fitting to go to turbo
turbo water outlet goes to heater core
engine water passes straight through the motor and through a spacer where it meets with
the water from the heater goes through the spacer and back into the system
spacer has a pipe reducer and the grey temp sensor
1.6L tstat upper housing is attached with longer bolts and is drilled to fit the green temp sensor
flex hose or a fitted hose with a 90* built in
Turbo Tim tstat housing drilled with a fitting.
the return line from the throttle body can be fished through the intake manifold for a perfect fit to the tstat housing
flex hose or fitted hose with a 45* built in
mated to the reused metal and rad hose

FINISHED!!!!

You retain the heater core and provide extra cooling for that turbo water!
highroller101 is offline   Reply With Quote
Old 06-04-2008, 10:33 AM   #6
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Looks decent, good job, I need to get off my *** and do mine already.
I am liking the spacer of yours, you may want to talk your dad into making a few and posting them for sale. Why not?
Q-why didn't you use the 1.8 t-stat housing on the back as well?
Zabac is offline   Reply With Quote
Old 06-04-2008, 12:22 PM   #7
Senior Member
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

I had an 1.8 Tstat housing for my 1.6 head, but the way outlet fits its either point up or down. With the 1.6 is Left or Right.
Mimime is offline   Reply With Quote
Old 06-04-2008, 01:44 PM   #8
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

1.6L housing in the back of the head, originally off the front tstat housing
highroller101 is offline   Reply With Quote
Old 06-04-2008, 05:45 PM   #9
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

i like the idea of using the 1.8 thermostat housing outlet on the water pump inlet and the 1.6 t-stat housing at the rear.
paul is offline   Reply With Quote
Old 06-04-2008, 06:05 PM   #10
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Paul, what were you using on the back of the head? A 1.8 housing?
Zabac is offline   Reply With Quote
Old 06-04-2008, 06:10 PM   #11
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

no, the 1.6. i was joking. he used exactly what i did plus the Turbo Tim t-stat housing.



paul is offline   Reply With Quote
Old 06-04-2008, 06:15 PM   #12
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

If I have COPs and I have the coil packs and bracket out of the way, I should be able to use the 1.8 housing and go cold side without any issues? Any input.
Zabac is offline   Reply With Quote
Old 06-04-2008, 06:20 PM   #13
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

i forget what the back of a 94-97 head looks like but i remember there being **** in the way on the 99 head. temp sensor, oil cooler outlet line
paul is offline   Reply With Quote
Old 06-05-2008, 03:04 AM   #14
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

All I know was I had to trim my coil bracket. And yes I based my re-route off of Paul's. But I went cold side and retained the heater core using the turbo water return line as the feed. So mine is a little different
highroller101 is offline   Reply With Quote
Old 06-05-2008, 01:13 PM   #15
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

I think Paul set the standard here by using the 1.8 housing as a feed for the WP, I love that!!!!x12
Zabac is offline   Reply With Quote
Old 06-05-2008, 01:45 PM   #16
Senior Member
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Is that going to accommodate A/C and P/S????
Mimime is offline   Reply With Quote
Old 06-05-2008, 02:16 PM   #17
Junior Member
iTrader: (7)

Join Date: Feb 2007
Location: Overland Park, KS
Posts: 395
Total Cats: 6
Default

I like the idea of using the 1.8 thermostat housing on the WP inlet, but it looks like it will interfere with AC/PS belt. If that's the case I wonder if the 1.6 housing pointing straight out the front might work.
MazDilla is offline   Reply With Quote
Old 06-06-2008, 02:24 AM   #18
Junior Member
Thread Starter

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

I removed the powersteering box before that, Sorry man. I dont have PS or AC. If you left the PS I think you may even have to retain the mixing mani or have a straight shot to the back of the motor (i think... mind you this is from memory). Just so happens the 1.8 is perfect for me because I have a water cooled turbo and the feed was right there for me, and I used the return line as my heater feed. If you havent dropped your power steering, let me be the first to recomend it.
highroller101 is offline   Reply With Quote
Old 06-16-2013, 05:57 PM   #19
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

i was impressed with your skills...CNC machining, then i saw this:

WTF IS THIS?

Attached Thumbnails
My Coolant Re-route-shot.jpg
Alejo_NIN is offline   Reply With Quote
Old 06-16-2013, 07:40 PM   #20
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

That my friend, is a post from 2008.
