Default My motor = loose butthole

I had some issues this weekend with smoke and oil in the engine bay, finally got to look at it tonight and I'm pretty sure my engine is done. Did a compression test and this is what I got:
Cylinder 1: 70 psi
Cylinder 2: 150
Cylinder 3: 145
Cylinder 4: 135

When I pulled the plug in cylinder 4 it was completely covered with oil as well, pictures of my plugs attached in order (or not because of iPad, will upload spark plug from #4 right now)

This is where I need some advice to get me back to tight butthole. The car is a project car I bought for autocross, I enjoy driving it to work when it's nice and on the weekends. The goal with it this year was to drive to autox events within a 150 mile radius of my home. My plan was for a 200-225whp car that was reliable and fun to drive. So my question is where should I go from here? I've purchased good parts when it matters and used parts when they will do. Budget would probably be around $1500 and I am comfortable doing all work myself (besides what needs to be done by a machine shop). So I look for your opinions and advice
Attached Thumbnails
My motor = loose butthole-image.jpg
tplociniak is offline   Reply With Quote
Old 03-13-2013, 10:35 PM   #2
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

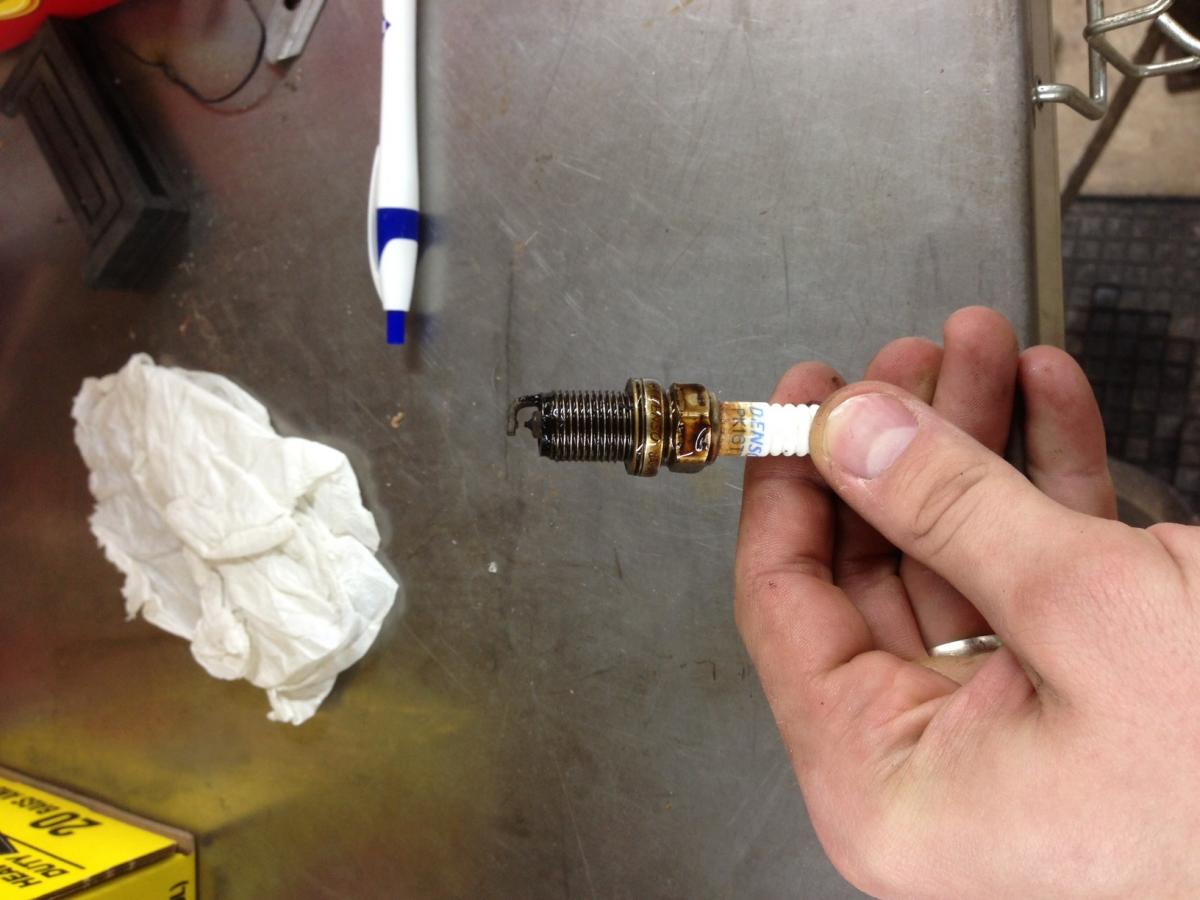

#1 plug
Attached Thumbnails
My motor = loose butthole-image.jpg
tplociniak is offline   Reply With Quote
Old 03-13-2013, 10:36 PM   #3
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

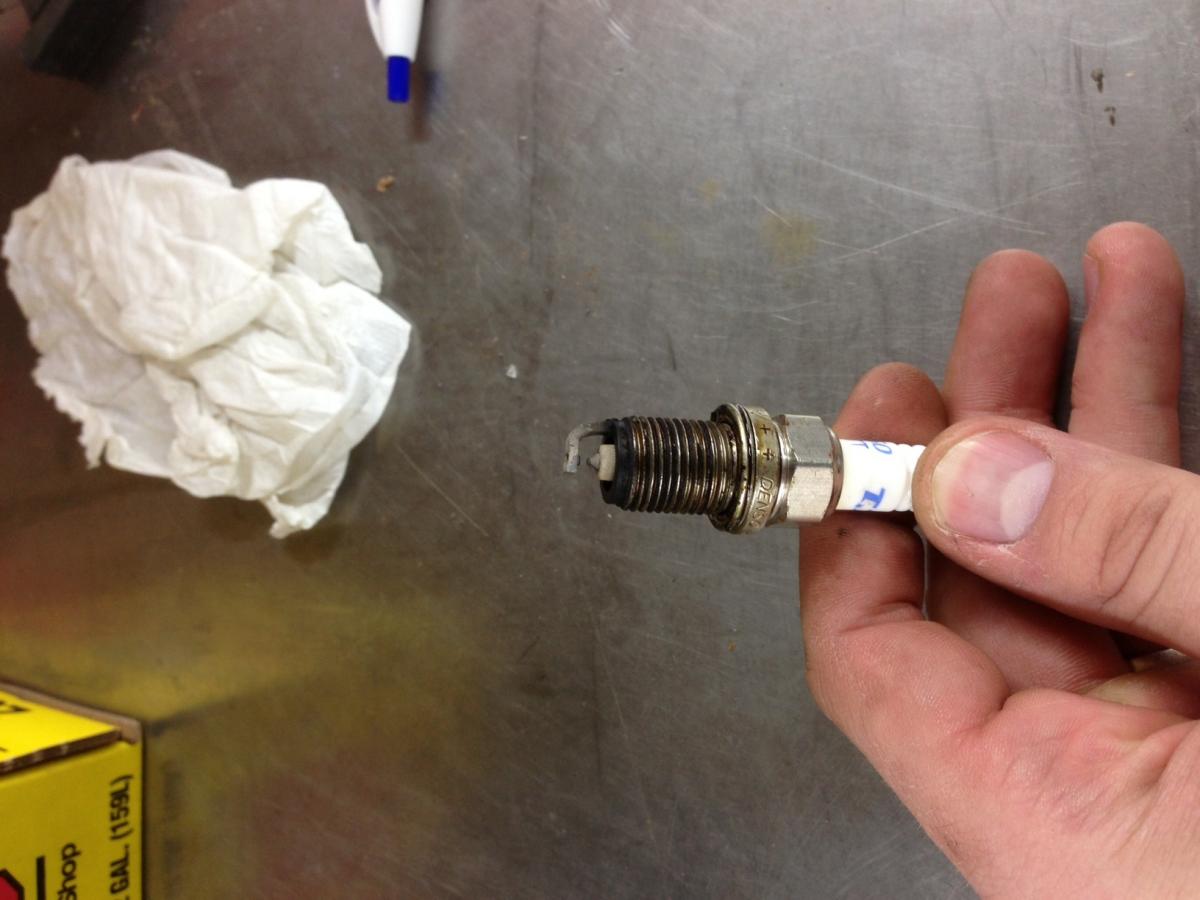

#2
Attached Thumbnails
My motor = loose butthole-image.jpg
tplociniak is offline   Reply With Quote
Old 03-13-2013, 10:37 PM   #4
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

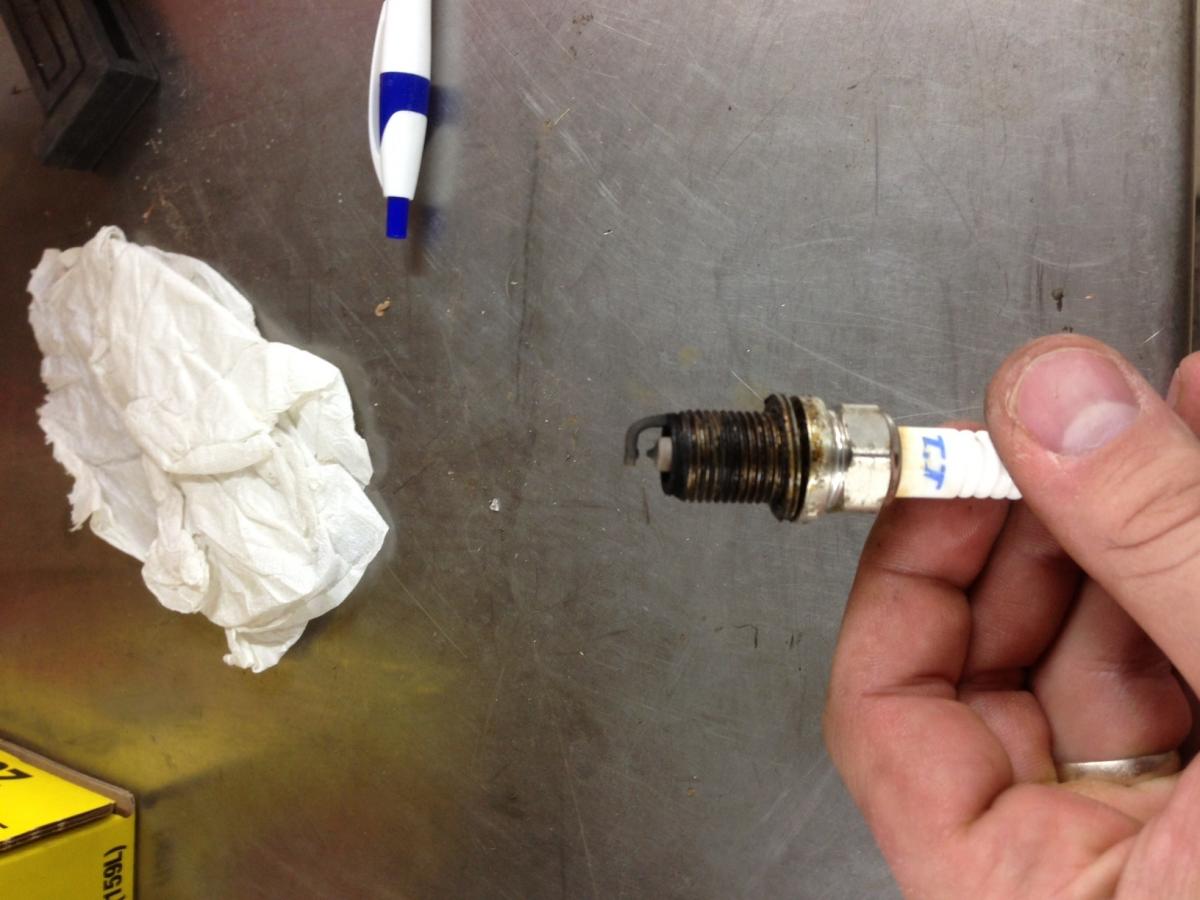

#3
Attached Thumbnails
My motor = loose butthole-image.jpg
tplociniak is offline   Reply With Quote
Old 03-13-2013, 10:38 PM   #5
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

#4 again
Attached Thumbnails
My motor = loose butthole-image.jpg
tplociniak is offline   Reply With Quote
Old 03-13-2013, 10:51 PM   #6
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,685
Total Cats: 216
Default

Probably broke/melted a ringland

Pull the head off
Full_Tilt_Boogie is offline   Reply With Quote
Old 03-13-2013, 11:04 PM   #7
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

Oil on plug 4 is from a leaky vcg, the issue is #1.

Do the teaspoon of oil test and you'll get a better idea of whether it's rings or valves.

GO! And report back yer findings!

flounder is offline   Reply With Quote
Old 03-13-2013, 11:24 PM   #8
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

ST 8.5:1 pistons, Eagle rods, valve job, try again.
hustler is offline   Reply With Quote
Old 03-14-2013, 06:53 AM   #9
Newb

Join Date: Dec 2012
Location: Cheltenham, UK
Posts: 31
Total Cats: 0
Default

Agree with flounder, do a wet compression test first. Does not sound like a healthy engine though!
koan123 is offline   Reply With Quote
Old 03-14-2013, 10:46 AM   #10
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

lolol what's the point in any more tests? I mean its clear as day that motor is done.

don't waste time and start rebuilding
18psi is offline   Reply With Quote
Old 03-14-2013, 11:20 AM   #11
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

If you want to trust it to get you home 150 miles after beating the **** out of it during the day, and you have $1500 budgeted for your engine, then there shouldn't be much of a question. Just look through the build threads of the guys who built their motors and run them at the track. That will tell you what you need and what you don't.
thenuge26 is offline   Reply With Quote
Old 03-14-2013, 04:32 PM   #12
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

So thinking about this more, rebuild my 1.6 or buy a used 1.8 and put that in instead?
tplociniak is offline   Reply With Quote
Old 03-14-2013, 04:34 PM   #13
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

1.6 vs 1.8?


WELL THERE'S A TOUGH CHOICE
18psi is offline   Reply With Quote
Old 03-14-2013, 04:36 PM   #14
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

Well if i go with the 1.8 I would have to wait longer to turbo, would be running just n/a for awhile, or rebuild 1.6 and run turbo and have a fresh motor
tplociniak is offline   Reply With Quote
Old 03-14-2013, 04:46 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

worth the wait.
Braineack is offline   Reply With Quote
Old 03-14-2013, 04:50 PM   #16
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Nothing you say will ever make the 1.Fail be a better option to the 1.8
18psi is offline   Reply With Quote
Old 03-14-2013, 04:51 PM   #17
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

That was my orignal thought, replace it now with a 1.8, just the fact of having a refreshed 1.6 over a used high milage 1.8 seems like a better option reliablity wise
tplociniak is offline   Reply With Quote
Old 03-14-2013, 06:19 PM   #18
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by tplociniak View Post
That was my orignal thought, replace it now with a 1.8, just the fact of having a refreshed 1.6 over a used high milage 1.8 seems like a better option reliablity wise
Save your Obamabucks and do it right.
hustler is offline   Reply With Quote
Old 03-14-2013, 07:28 PM   #19
Junior Member
Thread Starter
iTrader: (3)

Join Date: Apr 2012
Location: Moscow, PA
Posts: 118
Total Cats: 2
Default

Quote:
Originally Posted by hustler View Post
Save your Obamabucks and do it right.
I'm pretty sure Obama just takes my money since I have a decent job

Does doing it right mean rebuild 1.8?
tplociniak is offline   Reply With Quote
Old 03-14-2013, 07:34 PM   #20
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Yes. Any less displacement is doing it wrong
18psi is offline   Reply With Quote
