Old 03-11-2007, 05:42 PM   #61
Junior Member

Join Date: Oct 2006
Location: Zilina,Slovakia
Posts: 79
Total Cats: 0
Default

To M2cupcar: the bearing on the left side is oem bearing without bushing, after approx. 80.000 miles. On the right side (show with pen) is new bearing from xtd kit with bushing. Sizes are exactly the same.
elektron is offline   Reply With Quote
Old 03-14-2007, 10:45 AM   #62
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Looks to me like the problem IS the "bore" on the pp diaphragm springs. The springs are either spaced incorrectly on the pp or they're the wrong springs- too short.

Aimco may be "playing stupid" so he doesn't have to refund or return product. Especially since you're an "international" customer.

I'm not too optimistic about getting results from Aimco given 'his' repsonses. You might try visting the parts store with a list of throw out bearings to try. Definitely try the 80 rx7 and 87 B2000 truck bearings. Check the mating surface of the bearing ring to the springs, making sure there's good over lap so when the clutch pedal is pressed the bearing will push the springs. If none of those work, you might move on to some fwd stuff like 323, protege...
m2cupcar is offline   Reply With Quote
Old 03-14-2007, 10:55 AM   #63
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

Man, I feel sorry for you guys. I just installed another one of these clutches and once agian, I couldnt be happier.
getsidewaysd1 is offline   Reply With Quote
Old 03-14-2007, 06:18 PM   #64
Junior Member

Join Date: Oct 2006
Location: Zilina,Slovakia
Posts: 79
Total Cats: 0
Default

To m2cupcar: Thank you very much. I am working on upgrade of bearing, now, I hope it will be fine, i will sent some photos then ,thanks.
elektron is offline   Reply With Quote
Old 03-14-2007, 11:24 PM   #65
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Bring your fork and OE throw out bearing to the parts store so you can reference the assembly. That way you'll be sure the bearing will "fit" both sides of the assembly.

Post back and let us know what you find. Could be good info for others buying one of these, knowing there's a risk and "hopefully" a resolution.
m2cupcar is offline   Reply With Quote
Old 03-19-2007, 11:40 AM   #66
Junior Member

Join Date: Oct 2006
Location: Zilina,Slovakia
Posts: 79
Total Cats: 0
Default enlarge ring for xtd bearing

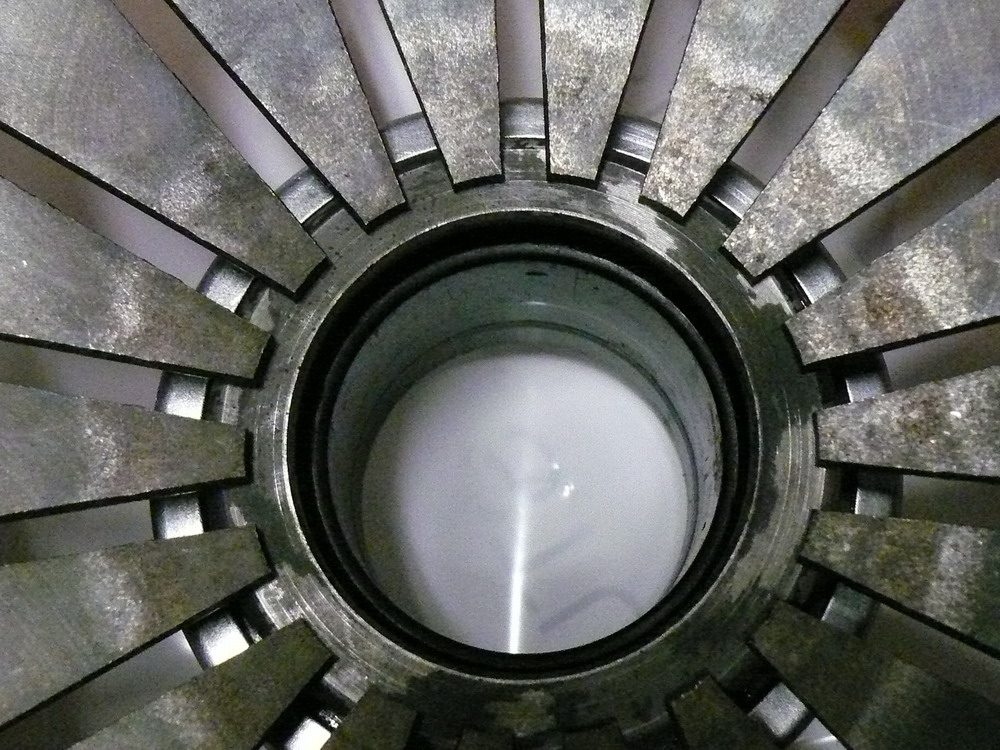

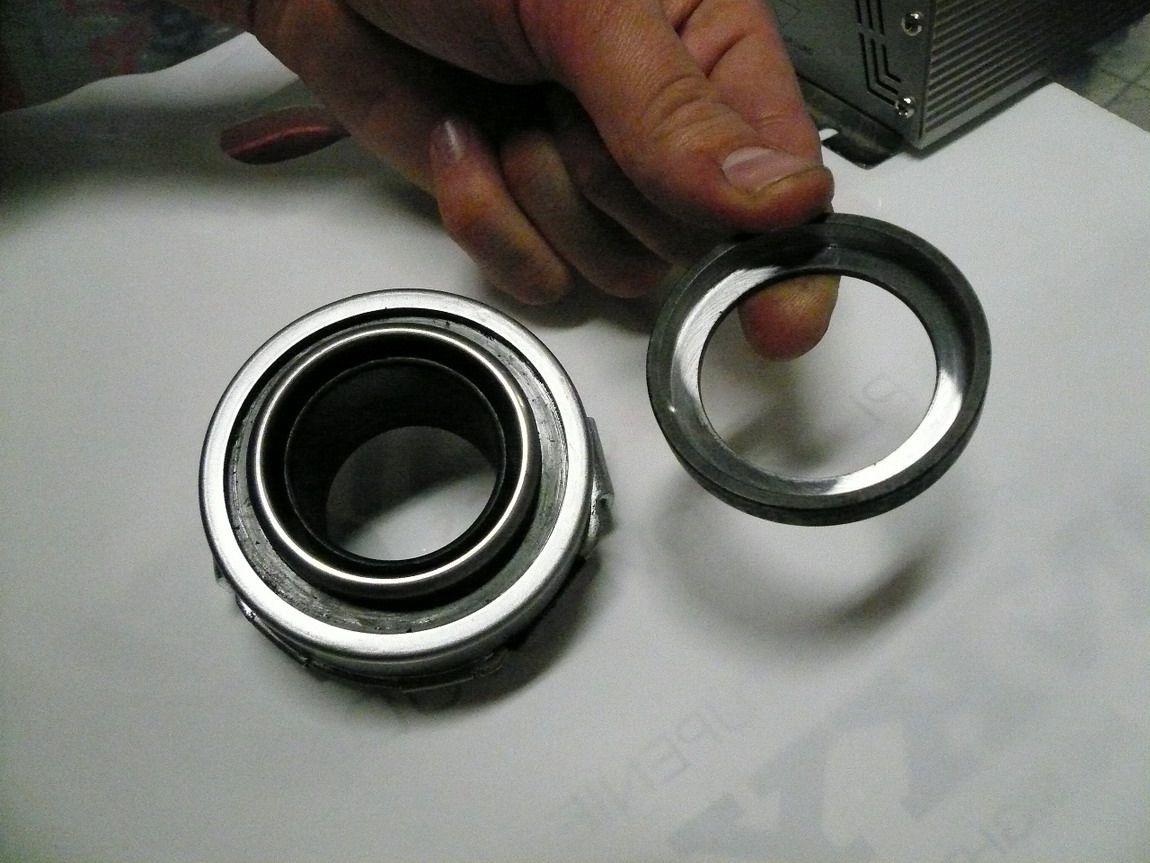

Just installed my xtd clutch,second time. I upgraded bearing with hardened o-ring, it is possible to shift any gear without problem, now.
I would like to have a ride, but the weather is still not fine.
So I can begin with install eaton m45 supercharger...
Attached Thumbnails
my xtd is a peice of shit-p1000201.jpg   my xtd is a peice of shit-p1000202.jpg   my xtd is a peice of shit-p1000207.jpg   my xtd is a peice of shit-p1000208.jpg   my xtd is a peice of shit-p1000205.jpg

elektron is offline   Reply With Quote
Old 03-19-2007, 12:25 PM   #67
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Nice job- just make sure it's not dragging on the stuff that doesn't spin. So how'd you do it? existing part machined?

The only thing I foresee is noise created by the ring between the pp springs and the TO bearing if there's tolerance (I hope there is, because you don't want that stuffs "riding" the crank).
m2cupcar is offline   Reply With Quote
Old 03-19-2007, 12:48 PM   #68
Junior Member

Join Date: Oct 2006
Location: Zilina,Slovakia
Posts: 79
Total Cats: 0
Default

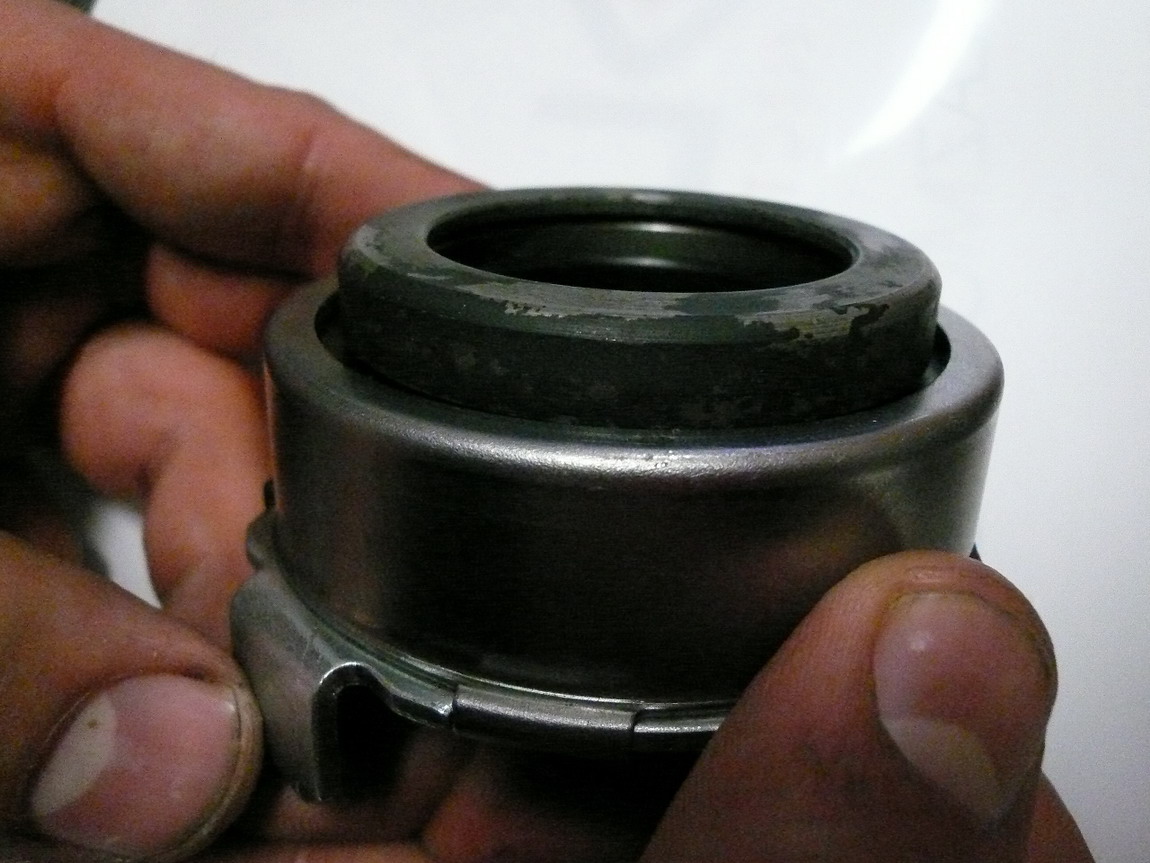

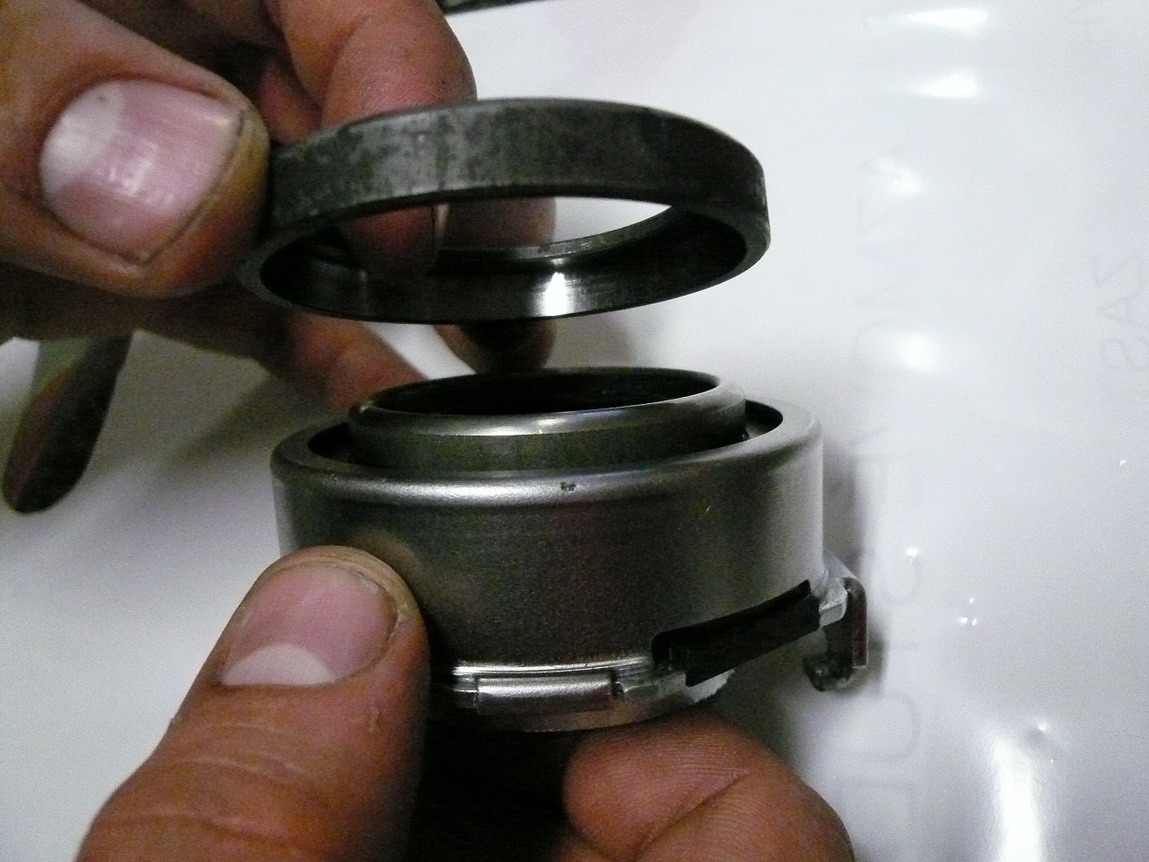

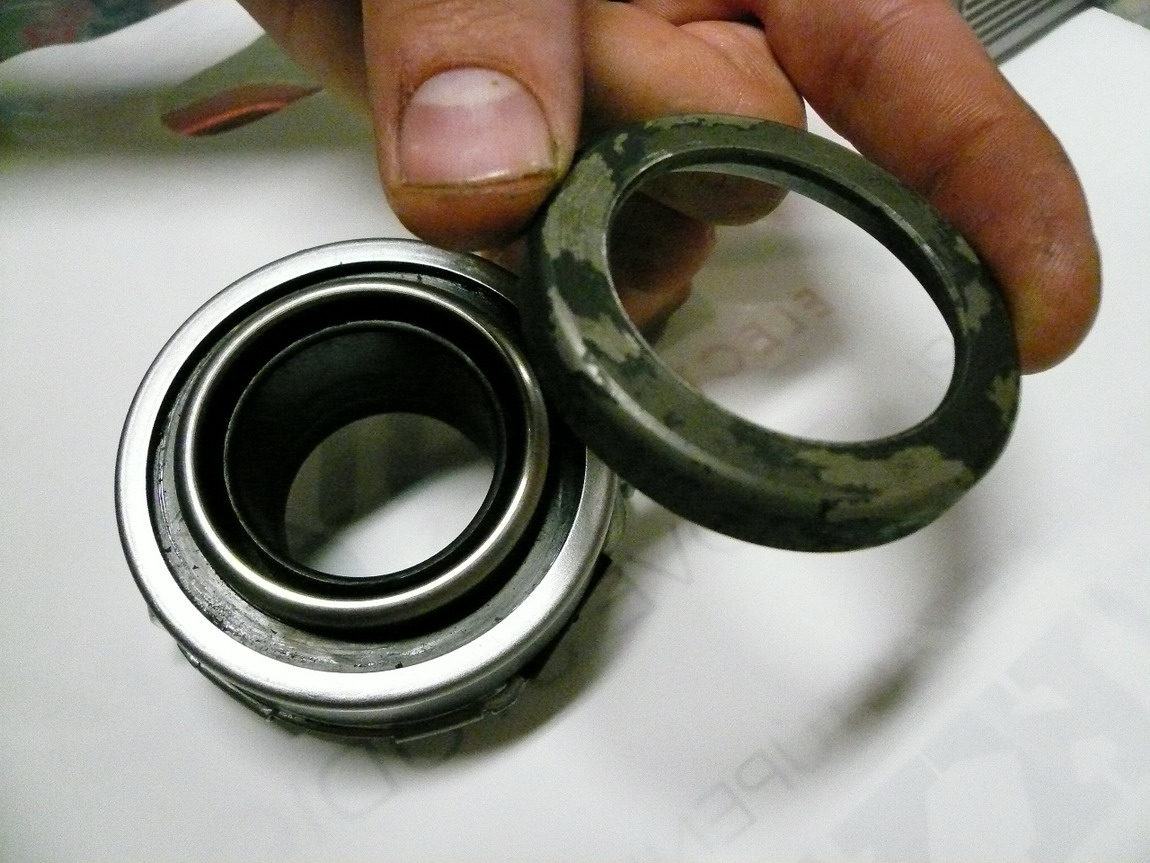

Ring is from steel, cnc machined and then hardened /cause that colouring/ .Then it was squeezed and glued /with loctite bearing glue/ on the bearing.
elektron is offline   Reply With Quote
Old 03-19-2007, 01:00 PM   #69
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

elektron where are you from is english your second language?
magnamx-5 is offline   Reply With Quote
Old 03-19-2007, 01:48 PM   #70
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

He's from Kentucky.

Quote:
Originally Posted by magnamx-5 View Post
elektron where are you from is english your second language?
fmowry is offline   Reply With Quote
Old 03-19-2007, 01:49 PM   #71
Junior Member

Join Date: Oct 2006
Location: Zilina,Slovakia
Posts: 79
Total Cats: 0
Default

Yes, I have got problem with English, I appologize, but my english is still better then your slovak,btw do you know where is Slovakia?
elektron is offline   Reply With Quote
Old 03-19-2007, 02:01 PM   #72
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

yes i know where slovakia is man i was just makin sure you wheren't messing with us. I can read it fine but some people seem to have trouble with transposed gramar for non native english speakers. Over all you are one of the better english speacking slavs ive met to date. In germany they where often lucky to learn german much less English. So GL man.
magnamx-5 is offline   Reply With Quote
Old 03-19-2007, 02:02 PM   #73
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

Quote:
Originally Posted by fmowry View Post
He's from Kentucky.
I was wondering if he was for a second you know us bluegrass boys aren't to good at communicatin with yall city folks.
magnamx-5 is offline   Reply With Quote
Old 03-19-2007, 11:46 PM   #74
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I think he's got you beat on spelling magna :gay:
m2cupcar is offline   Reply With Quote
Old 05-28-2007, 11:19 PM   #75
Junior Member

Join Date: Mar 2007
Location: Singapore
Posts: 130
Total Cats: 0
Default

Ok.
So i took a chance and ordered a XTD stage 3 clutch. Installed it the same time i did my TC setup. And that's where all the nightmares begun. My TOB is shot and replacing the pressure plate with my old cusco one and the TOB with my Mazda one didn't work.
I'm screwed.
IU'll update you guys on what Jimmy at Aimco says.
qes78 is offline   Reply With Quote
Old 05-29-2007, 06:10 AM   #76
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Half (if not all) of these clutch "manufacturers" just out-source there parts. Perhaps 12 year old Jhong was up past his bedtime the night before he made it.
lazzer408 is offline   Reply With Quote
