Default Need water line banjo fitting for Garrett turbo

Anybody in Atlanta know where I could get one preferably same-day? The PO wasn't careful about routing lines and the braided oil line rubbed a pinhole in the line under the turbine.

He also didn't replace the rear main seal when he replaced the clutch. I found out where my quart per 500 miles was going!
quadmasta is offline   Reply With Quote
Old 08-25-2008, 06:05 PM   #2
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Which banjo fitting type do you have? Either AN type or barbed type?
I have 2 spare barb type since I switched to all stainless lines.
RotorNutFD3S is offline   Reply With Quote
Old 08-26-2008, 11:07 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2008
Location: Atlanta, GA
Posts: 157
Total Cats: 0
Default

I ditched the banjo fitting. I ran a 14mm to 6AN and then a 6AN 90 degree to hose barb.

What water carrying part did you tap to put in the AN fittings?
quadmasta is offline   Reply With Quote
Old 08-27-2008, 11:35 AM   #4
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Used the typical spots, utilized hardline to AN adapters. I did a write up of it on here: https://www.miataturbo.net/forum/showthread.php?t=23366
RotorNutFD3S is offline   Reply With Quote
Old 08-27-2008, 12:57 PM   #5
Senior Member
iTrader: (8)

Join Date: Oct 2005
Posts: 764
Total Cats: 0
Default

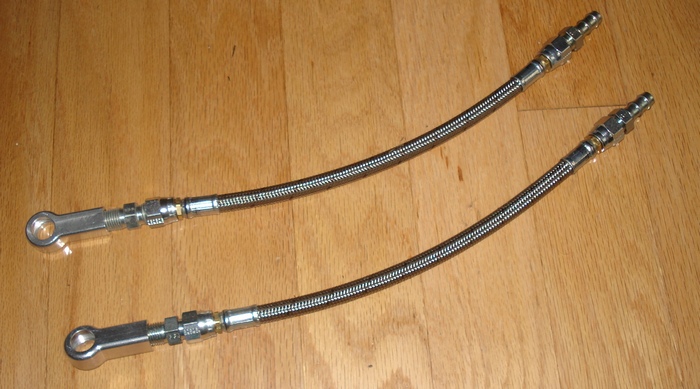

Here's what I am using on a Garrett, in combination with high temp silicone from barbs to engine.
Attached Thumbnails
Need water line banjo fitting for Garrett turbo-lines.jpg
miatanutz is offline   Reply With Quote
Old 08-27-2008, 02:21 PM   #6
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

^^^ I thought about doing something like that, but wanted fewer connection points. However, it does allow for a return to stock configuration, but I figure that my car is way past that point, and I'll probably never sell it, so no matter.
RotorNutFD3S is offline   Reply With Quote
Old 08-27-2008, 02:26 PM   #7
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

Rotornut, check your PMs. I'm interested in your banjos.
kenzo42 is offline   Reply With Quote
