From German miata forum


mx-5.net - die Diskussionsforen von www.mx-5.de - Anzeige des Themas #51372 - Luftmassenmessung im 1.6er NA - Interesse?

I's a simple project to delete the old flow meter with a new MAF
Vitruvio74 is offline   Reply With Quote
Old 01-06-2015, 04:56 AM   #2
Newb
Thread Starter

Join Date: Jan 2015
Location: Roma-Italy
Posts: 19
Total Cats: 0
Default

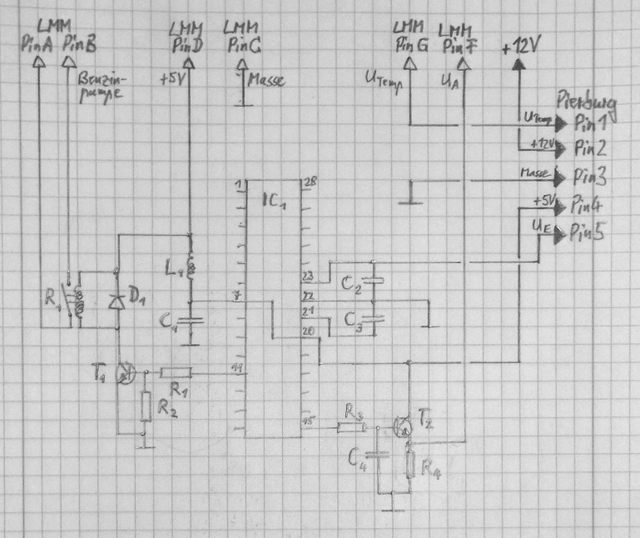

The electronic project



Attached Thumbnails
New AFM killer-drjt.jpg   New AFM killer-j4sh.jpg
Vitruvio74 is offline   Reply With Quote
Old 01-06-2015, 04:58 AM   #3
Newb
Thread Starter

Join Date: Jan 2015
Location: Roma-Italy
Posts: 19
Total Cats: 0
Default

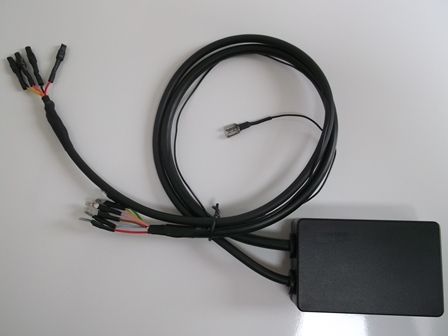

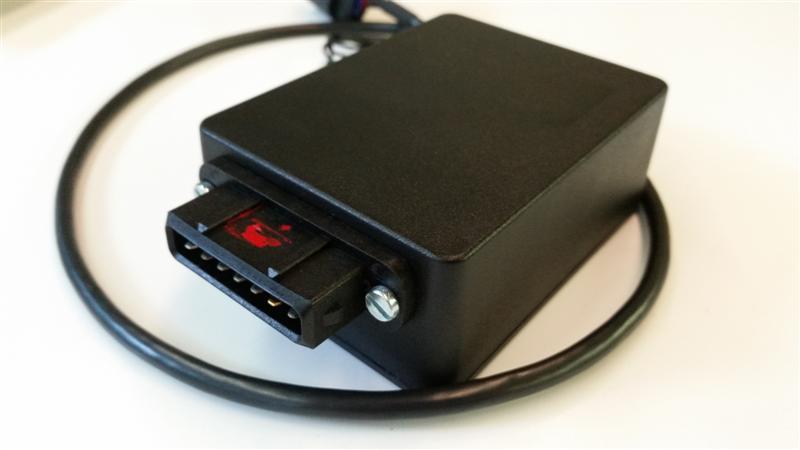

The box with the connectors



Attached Thumbnails
New AFM killer-02my.jpg   New AFM killer-lmmtomafconverter.jpg
Vitruvio74 is offline   Reply With Quote
Old 01-06-2015, 05:00 AM   #4
Newb
Thread Starter

Join Date: Jan 2015
Location: Roma-Italy
Posts: 19
Total Cats: 0
Default

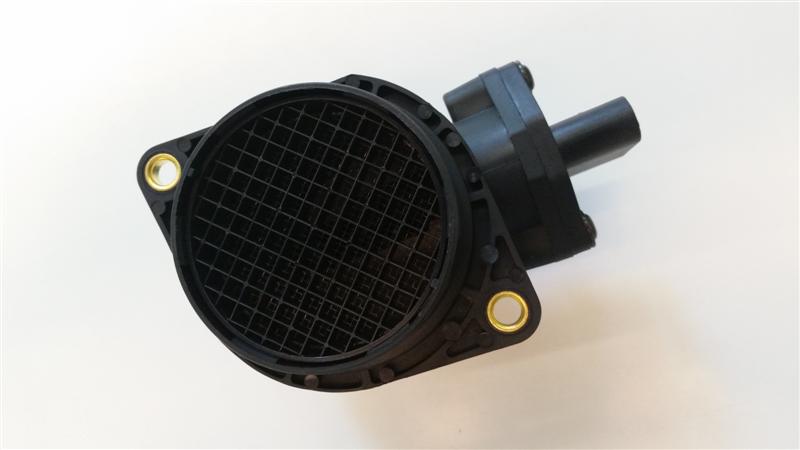

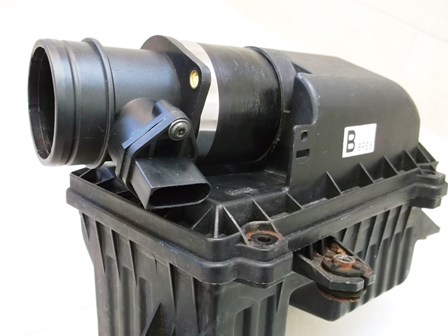

The new MAF (from wv golf IV)




On the 1.8 air box

Attached Thumbnails
New AFM killer-maf.jpg   New AFM killer-2nvk.jpg
Vitruvio74 is offline   Reply With Quote
Old 01-06-2015, 05:02 AM   #5
Newb
Thread Starter

Join Date: Jan 2015
Location: Roma-Italy
Posts: 19
Total Cats: 0
Default

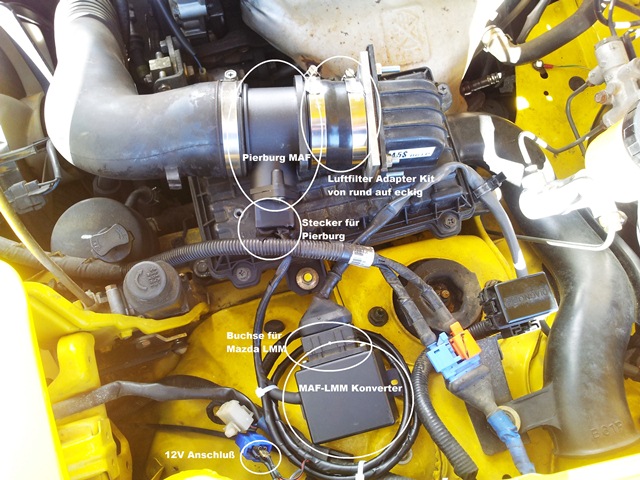

The installation

Attached Thumbnails
New AFM killer-wuq4.jpg
Vitruvio74 is offline   Reply With Quote
Old 01-06-2015, 05:05 AM   #6
Newb
Thread Starter

Join Date: Jan 2015
Location: Roma-Italy
Posts: 19
Total Cats: 0
Default

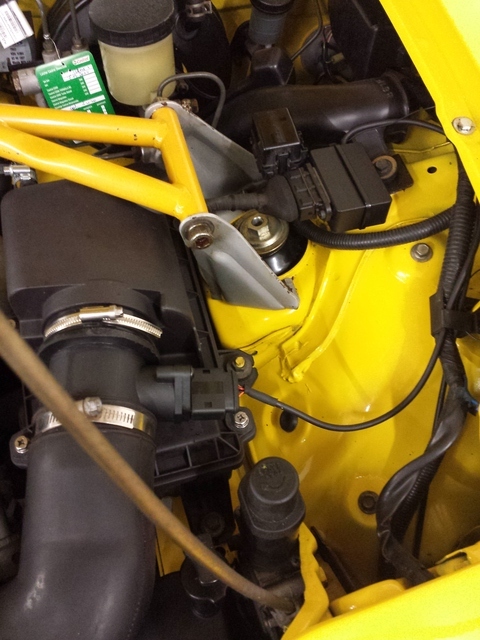

A project really nice, if you want to infomation contact MX5gn in german forum
Attached Thumbnails
New AFM killer-2014081921.18.38rzuux.jpg
Vitruvio74 is offline   Reply With Quote
Old 01-06-2015, 11:04 AM   #7
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,437
Total Cats: 84
Default

Looks nice. I cannot read German, is he selling them?
olderguy is offline   Reply With Quote
Old 01-06-2015, 11:11 AM   #8
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

What is the point? Install MS, use MAP, PROFIT?
shuiend is offline   Reply With Quote
Old 01-06-2015, 11:22 AM   #9
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Quote:
Originally Posted by shuiend View Post
What is the point? Install MS, use MAP, PROFIT?
I was thinking the exact same thing, but whatever you're into I guess.
thirdgen is online now   Reply With Quote
Old 01-06-2015, 11:35 AM   #10
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,437
Total Cats: 84
Default

Quote:
Originally Posted by shuiend View Post
What is the point? Install MS, use MAP, PROFIT?
Point is; there are a LOT of Miatas out there that have not been boosted and the main failure point in a pre '94 control circuit is the mechanical AFM.

A rebuilt AFM is close to $300 and not reliable.

Even in the turbo world, there are some of us that prefer to keep it simple, albeit we don't get to tweak and tune to maximum power.
olderguy is offline   Reply With Quote
Old 01-06-2015, 12:31 PM   #11
Newb
Thread Starter

Join Date: Jan 2015
Location: Roma-Italy
Posts: 19
Total Cats: 0
Default

Yes is for sale, little price.
I bought one a few days ago, has not yet arrived.

Utilities?
A original engine "breathe" better, gain of 2-3 hp at high revs (as when using the afm of rx7).
More air flow ... more power
Vitruvio74 is offline   Reply With Quote
Old 01-06-2015, 06:55 PM   #12
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,437
Total Cats: 84
Default

Quote:
Originally Posted by Vitruvio74 View Post
Yes is for sale, little price.
I bought one a few days ago, has not yet arrived.

Utilities?
A original engine "breathe" better, gain of 2-3 hp at high revs (as when using the afm of rx7).
More air flow ... more power
What kind of pricing?
olderguy is offline   Reply With Quote
Old 01-06-2015, 07:16 PM   #13
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

Does anyone know if the 1.8 MAF is an analog or a frequency based MAF?
cyotani is offline   Reply With Quote
Old 01-06-2015, 07:25 PM   #14
Newb
Thread Starter

Join Date: Jan 2015
Location: Roma-Italy
Posts: 19
Total Cats: 0
Default

Quote:
Originally Posted by olderguy View Post
What kind of pricing?

around 50 euro + shipmet, is very low cost
Vitruvio74 is offline   Reply With Quote
Old 01-08-2015, 08:28 AM   #15
Newb

Join Date: Sep 2014
Posts: 20
Total Cats: 1
Default

Most user of the german mx5 board don't want megasquirt because they think it's not worth it on a N/A application. They experiment a lot with modifications like this one because it's relatively easy and doesn't involve a lot of tuning. Also you need to have it inspected by the TUEV to get it street legal and while a few companies work together with the TUEV engineers to be able to certify a ms most people consider them illegal and don't want to bother with it. The funny part is, while the AFM modification may be not too flashy in a stock looking engine bay it's illegal too because you changed emission relevant parts

Last edited by m00se; 01-08-2015 at 08:29 AM. Reason: correcting spelling garbage
m00se is offline   Reply With Quote
Old 01-08-2015, 11:53 AM   #16
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by cyotani View Post
Does anyone know if the 1.8 MAF is an analog or a frequency based MAF?
The MAF sensors in all '94 - '05 Miatas have a 0-5v analog output.
Joe Perez is offline   Reply With Quote
Old 01-08-2015, 12:27 PM   #17
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,437
Total Cats: 84
Default

Quote:
Originally Posted by Joe Perez View Post
The MAF sensors in all '94 - '05 Miatas have a 0-5v analog output.
Joe, have you looked at the circuit posted? Thoughts?
olderguy is offline   Reply With Quote
Old 01-08-2015, 02:12 PM   #18
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,315
Total Cats: 1,913
Default

Quote:
Originally Posted by olderguy View Post
Joe, have you looked at the circuit posted? Thoughts?
Yeah, it's pretty straightforward. U1 is a microprocessor which is taking in the analog signal from the MAF on pin 23, and using either a lookup table or some formula to output an inverted analog signal on pin 15 via T2. (It's also driving a relay to trigger the fuel pump, presumably when MAF > nothing.)

Not sure what the cute little arrangement at pins 20 & 21 is about, but I assume it's there for a reason. Aside from that, nothing much else to it.

I'm a little surprised that the CPU isn't taking in an IAT signal, as I would have thought that it would be helpful in correcting from mass to volume, but then I admit that when I implemented this same concept in software back around '06 or so with the Greddu EMU, I didn't use IAT either (admittedly, I was using MAP/RPM rather than MAF as my input.)

I'm sure it'll work just fine, and you're right in that it's probably time for a circuit like this to exist, as working VAF sensors are going to start getting hard to find.
