Default New rear main seal gap

Hello,
I just installed a new OEM rear main seal using the Flyin Miata tool. The procedure went smoothly but the new seal has a gap between the outer lip and crank at 3 and 9 'o clock (see pic). Will this leak? Should I buy another seal? Thanks
Oculus Sinister is offline   Reply With Quote
Old 06-13-2013, 02:11 PM   #2
Newb
Thread Starter

Join Date: May 2013
Location: NOLA
Posts: 14
Total Cats: 0
Default

Sorry having trouble uploading pic
Oculus Sinister is offline   Reply With Quote
Old 06-13-2013, 02:21 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

that's not normal.
I wouldn't take a chance on something that takes that long to be replaced
18psi is offline   Reply With Quote
Old 06-13-2013, 02:51 PM   #4
Senior Member
iTrader: (2)

Join Date: Sep 2009
Location: Edmonton, AB, Canada
Posts: 1,177
Total Cats: 27
Default

You should at least send me the tool so I can test it for you. I'll return it.
Landrew is offline   Reply With Quote
Old 06-13-2013, 04:05 PM   #5
Newb
Thread Starter

Join Date: May 2013
Location: NOLA
Posts: 14
Total Cats: 0
Default

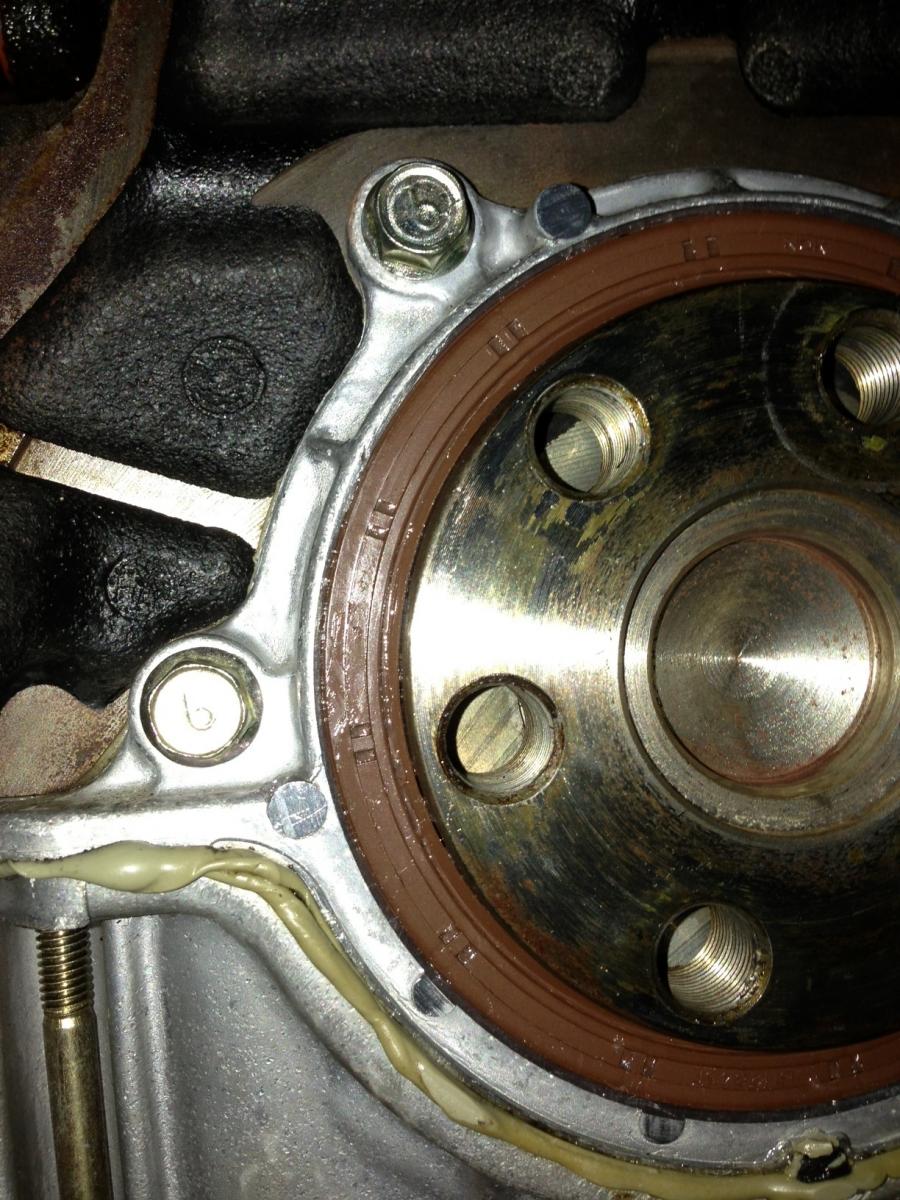

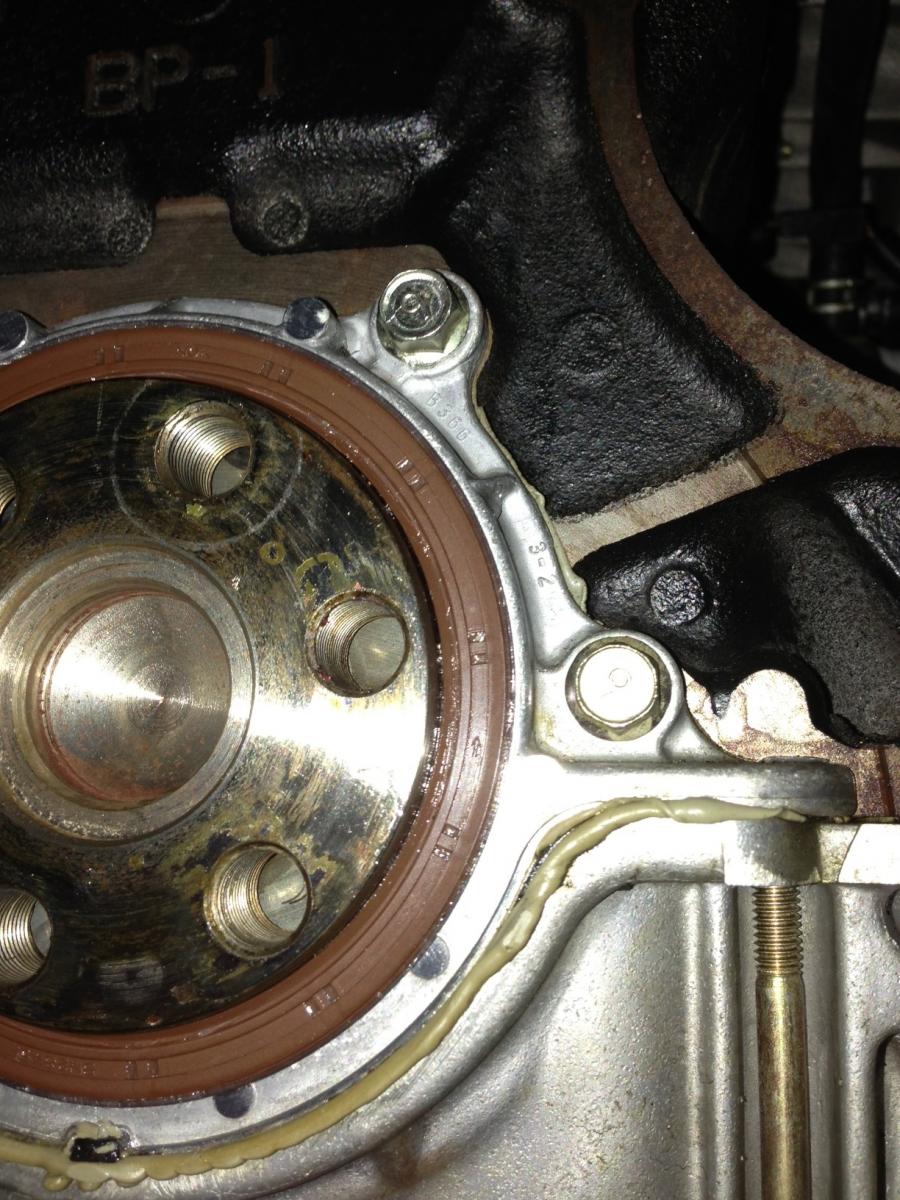

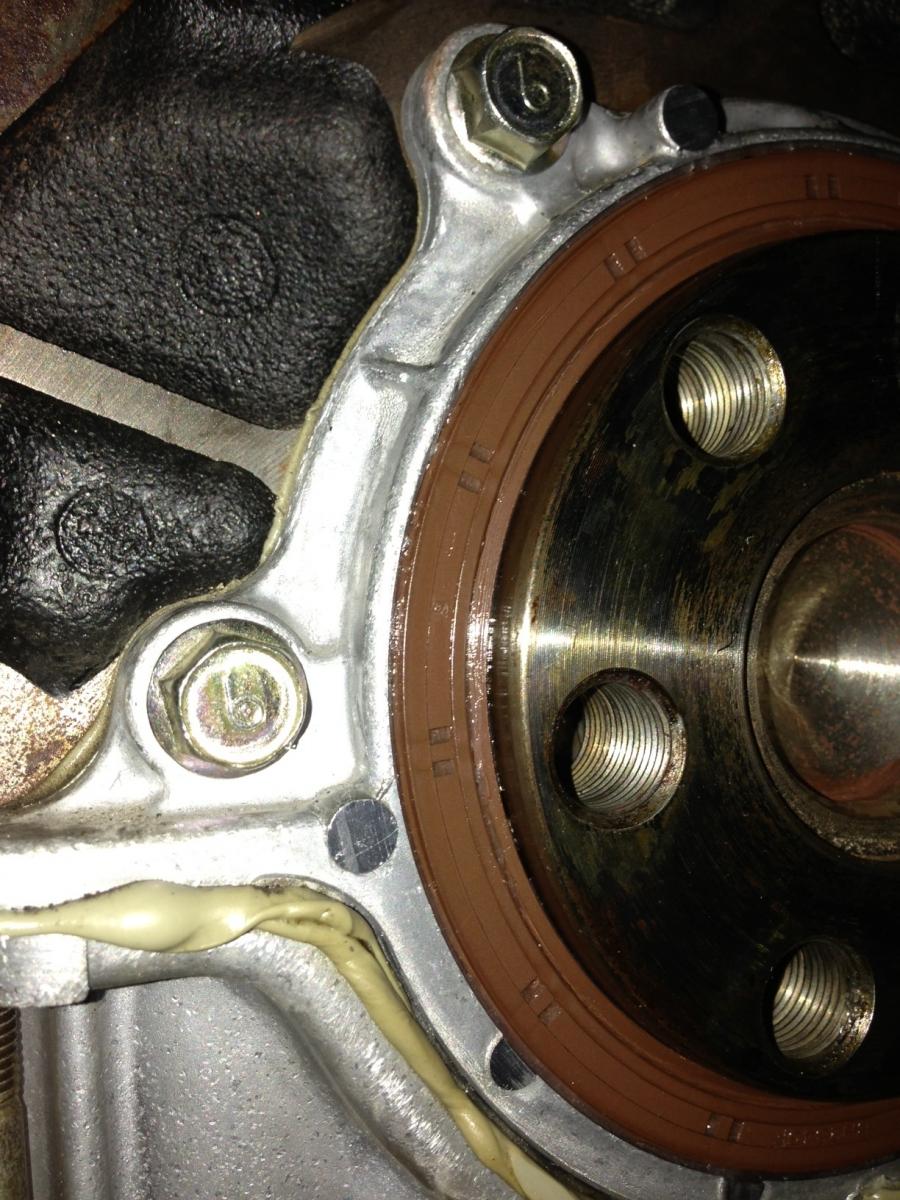

I have pics!
Attached Thumbnails
New rear main seal gap-photo3.jpg   New rear main seal gap-photo4.jpg   New rear main seal gap-photo5.jpg
Oculus Sinister is offline   Reply With Quote
Old 06-13-2013, 04:48 PM   #6
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Mine didn't have a gap like that. When I installed mine I didn't use a fancy tool either. I also turned the motor over a few rotations to "seat" it and make sure it was still even. maybe try that?
Fireindc is offline   Reply With Quote
Old 06-13-2013, 08:07 PM   #7
Newb
Thread Starter

Join Date: May 2013
Location: NOLA
Posts: 14
Total Cats: 0
Default

I spun the motor over a few times and it improved the gaps but they are not completely gone. I have ordered two more seals. Hopefully I will get a better fit, if the gaps continue I will run with it and keep my fingers crossed. Thanks for all the replies.
Oculus Sinister is offline   Reply With Quote
