Default New Splitter/Radiator scoop

Here's a teaser ... I'll get better pics tomorrow. It has an internal ramp into an RX7 oil cooler and the radiator and also has a plate behind the bottom radiator tank. I don't have it on currently because the oil cooler isn't on yet.

db84drteg is offline   Reply With Quote
Old 06-06-2008, 08:52 AM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

its a good thing it doesn't go all the way to the edges. :gay:
hustler is offline   Reply With Quote
Old 06-06-2008, 11:27 AM   #3
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Thumbs up cool

looking forward to updates is this prep for tracking?
m2cupcar is offline   Reply With Quote
Old 06-06-2008, 11:40 AM   #4
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

Nice, but why does it not portrude past the bumper? Would that not be better?
Zabac is offline   Reply With Quote
Old 06-06-2008, 12:14 PM   #5
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

Yes.
m2cupcar is offline   Reply With Quote
Old 06-06-2008, 12:44 PM   #6
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2004
Posts: 201
Total Cats: 1
Default

It's adjustable, forward and aft. It doesn't protrude to the edges because I want to have easier access to the oil filter (in front of the passenger front tire) and the intercooler pipe couplings in case I have a pipe blow off.
db84drteg is offline   Reply With Quote
Old 06-06-2008, 06:21 PM   #7
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2004
Posts: 201
Total Cats: 1
Default

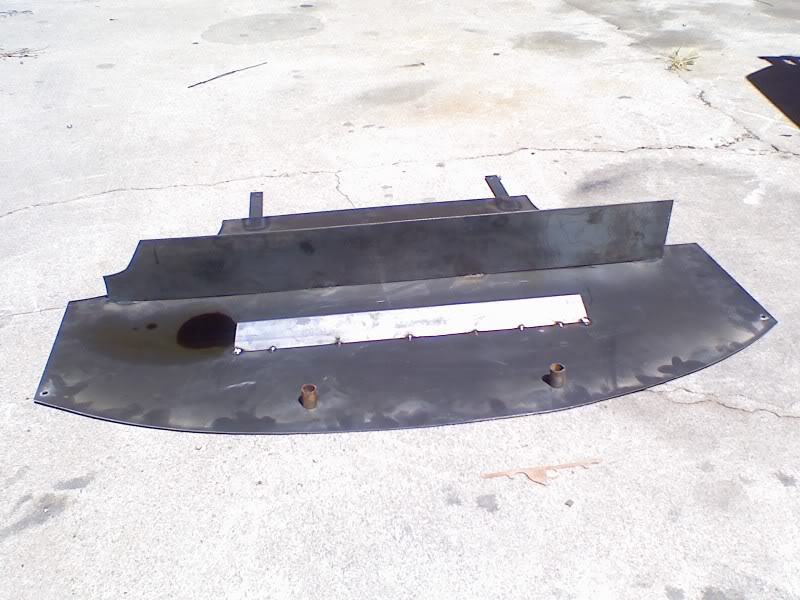

Here's an overall view ... don't mind the oil slick =P
Name:  0606081446.jpg
Views: 2
Size:  82.5 KB

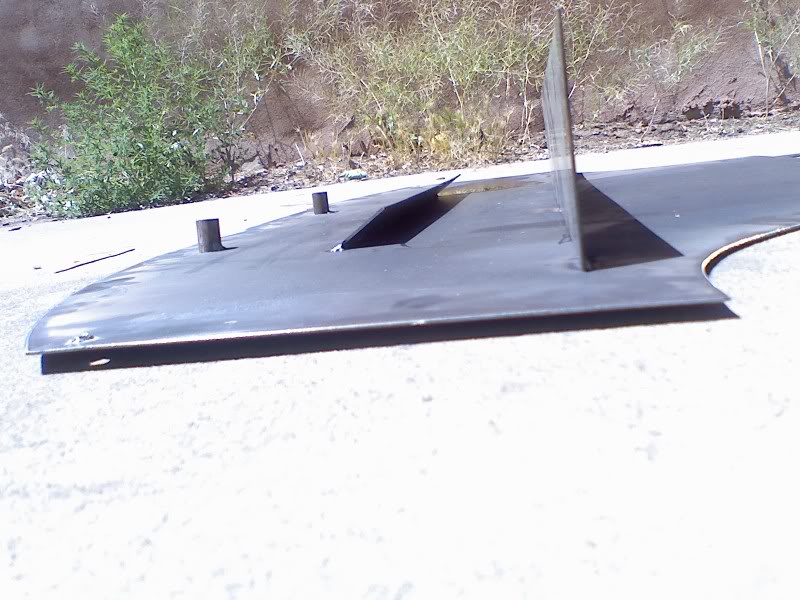

Here's a sideshot of the air ramp and block off plate
Name:  0606081446a.jpg
Views: 2
Size:  89.3 KB

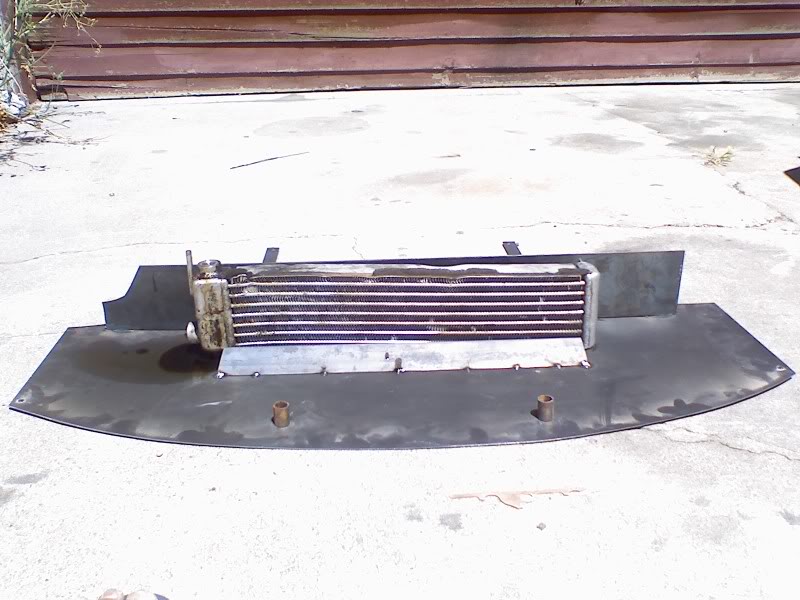

And here's how the oil cooler sits with respect to the plate. The blockoff plate goes in front of the radiator tank, not behind. My mistake.
Name:  0606081447.jpg
Views: 2
Size:  80.0 KB
db84drteg is offline   Reply With Quote
Old 06-06-2008, 06:35 PM   #8
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

What's the reason for the blockoff plate? Isn't that restricting the air flow through the cooler and or radiator?
BenR is offline   Reply With Quote
Old 06-06-2008, 06:42 PM   #9
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2004
Posts: 201
Total Cats: 1
Default

it's to keep air from escaping underneath the radiator. The oil cooler actually sits up about 2 inches above the plate, just above the ramp. The radiator core sits above 4 inches above the plate, just below the top of the block off plate.
db84drteg is offline   Reply With Quote
Old 06-06-2008, 06:43 PM   #10
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

i always pull the oil filter from the top.
wes65 is offline   Reply With Quote
Old 06-06-2008, 06:45 PM   #11
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2004
Posts: 201
Total Cats: 1
Default

I have a remote filter so I could add an oil cooler.
db84drteg is offline   Reply With Quote
Old 06-06-2008, 06:50 PM   #12
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Sounds good, is Andy building this?

Though it's bad for weight, I like the idea of a relatively thick metal plate to guard from foreign objects.
BenR is offline   Reply With Quote
Old 06-06-2008, 06:57 PM   #13
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2004
Posts: 201
Total Cats: 1
Default

Yeah, Andy took charge of the project.
db84drteg is offline   Reply With Quote
Old 06-07-2008, 08:09 AM   #14
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

block off plate = stupid idea. not only is it gonna restrict flow THROUGH the intercooler, radiator, and oil cooler and it's also gonna stop air from flowing down past that trans which is useful in helping cool it. And what the **** is that thing made of? 1/8" steel? Looks heavy as hell. Belongs on a 4Runner.
paul is offline   Reply With Quote
Old 06-07-2008, 11:33 AM   #15
Senior Member
iTrader: (8)

Join Date: Mar 2006
Location: Floriduh
Posts: 882
Total Cats: 0
Default

The plate behind the oil cooler is going to restrict airflow through the cooler.
soflarick is offline   Reply With Quote
Old 06-07-2008, 12:02 PM   #16
Junior Member
iTrader: (3)

Join Date: Dec 2007
Posts: 219
Total Cats: 0
Default

Thanks for posting this...giving me some good ideas (well I probably won't do the block off plate), but overall, thanks!
scottv is offline   Reply With Quote
Old 06-07-2008, 02:39 PM   #17
Junior Member
Thread Starter
iTrader: (2)

Join Date: Dec 2004
Posts: 201
Total Cats: 1
Default

Hmm, interesting ... I'll run with and without the plate and see what happens. Thanks for the input!
db84drteg is offline   Reply With Quote
Old 06-07-2008, 02:51 PM   #18
Elite Member
iTrader: (24)

Join Date: Jun 2007
Location: Sherman Oaks, CA
Posts: 4,481
Total Cats: 3
Default

yeah, you dont want that block-off plate there
UrbanSoot is offline   Reply With Quote
