Default nice/inexpensive in-car cam setup

Looks like the cheapie digi-video cams have come way up in quality. My pal built this for his E30 track car. Video looks great, and no moving parts. I've lost two camcorders to in-car video setups just from vibration (no impacts).

http://forum.miata.net/vb/showthread...02#post2360302
m2cupcar is offline   Reply With Quote
Old 03-26-2007, 11:00 AM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

a little on the expensive side, but all my racingh buddies use the I/O mount, has a poly bushing, no one had complained for far, videos always look great and stable.

http://www.hmsmotorsport.com/store/t...lbar-cam-mount
Braineack is offline   Reply With Quote
Old 03-26-2007, 11:10 AM   #3
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

I use the IOport mount also, works great. I use a normal small digicam with a wideangle and it takes quite acceptable footage. My only complaint is onboard mics suck... a clean audio input would be nice.
Splitime is offline   Reply With Quote
Old 03-26-2007, 11:15 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,793
Default

I personally use the "super clamp" and have no problems, but like Splitime I use a small camera:

http://www.bhphotovideo.com/bnh/cont...ughType=search

but mine does have a good bit a vibration and shock, so the idea of the top brace to support the camera is very interesting.
Braineack is offline   Reply With Quote
Old 03-26-2007, 11:19 AM   #5
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,245
Total Cats: 291
Default

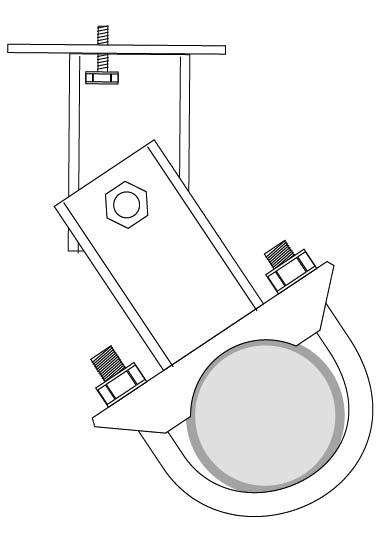

I've used the bushing type mounts and IMO solid mount works better with cams that have stabilization. Thought maybe it was the camera trying to manage the shock of the bump and the reaction of the bushing to the bump. Solid mount made for the cost of a muffler clamp and some scrap. Either way, both shook my vid cams to death after a few years (hi8 & dig). I've also used a similar tripod head setup.

I ran a mic under-hood back when showroom stock required a full OE exhaust just so I could hear my throttle inputs.
Attached Thumbnails
nice/inexpensive in-car cam setup-cammount.jpg
m2cupcar is offline   Reply With Quote
Old 03-26-2007, 03:40 PM   #6
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

would the IO fit on the stock cockpitbrace aswell?
Oscar is offline   Reply With Quote
Old 03-27-2007, 05:09 PM   #7
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,245
Total Cats: 291
Default

yeah- but you might want to wrap something around the brace first to keep it from damaging the cover/surface
m2cupcar is offline   Reply With Quote
Old 03-28-2007, 10:30 AM   #8
Junior Member

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

I took 2 exhaust clamps, some spare metal I had laying around, and bought a $30 tripod head. Pretty solid for less than $35, and the tripod head has a quick release too. http://faditara.smugmug.com/gallery/1328958#62658684. I do use a strap for track days to keep secured.

Video I took at VIR last year, you can see it was fairly stabil even when I had an 'off' http://video.google.com/videoplay?do...73&q=kluge+vir
MiaTurbo is offline   Reply With Quote
Old 03-28-2007, 10:42 AM   #9
Elite Member
Thread Starter
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,245
Total Cats: 291
Default

$35! that's outrageous- mine was $3. Actually that's an excellent "no weld" arrangement. I thought the view would suck from the brace, but it's quite nice. I call "cold tires!"
m2cupcar is offline   Reply With Quote
Old 03-29-2007, 08:31 AM   #10
Junior Member

Join Date: Jul 2005
Location: Alexandria, VA
Posts: 125
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
$35! that's outrageous- mine was $3. Actually that's an excellent "no weld" arrangement. I thought the view would suck from the brace, but it's quite nice. I call "cold tires!"
that's my story, and i'm sticking to it
MiaTurbo is offline   Reply With Quote
