Default Off the shelf canister for catch can

The older I get the less I feel like dealing with law enforcement so I'm looking to replace my breather set up with a proper catch can to satisfy MA emissions standards.

I've searching and searching I haven't found a catch can which satisfies my budget, scale, input/output, etc.

I've considered making own, however, we don't have any extrusions big enough at work and I'm not buying a 6' section at consumer prices.

Has anyone found a good off the shelf aluminum canister which can be drill and tapped for AN fittings?

I found a couple decent tea and 'herb' storage canisters which would be perfect, however, the wall thickness is a bit on the thin side though bulkhead fittings may work.

Any creative ideas or sources welcome, <$100 preferable

-Zach
thasac is offline   Reply With Quote
Old 09-23-2010, 12:16 AM   #2
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Use an old Miata power steering reservoir IF steel is ok. Or an old AC drier for aluminum.
m2cupcar is offline   Reply With Quote
Old 09-23-2010, 12:27 AM   #3
Newb

Join Date: Jul 2010
Location: Houston Texas
Posts: 39
Total Cats: 0
Default

What do you think about something like this:

http://www.modernperformance.com/cat...t4-p-2061.html

Anodized black, adjustable angle bracket. Its over your $100 price point though.
topsdrop is offline   Reply With Quote
Old 09-23-2010, 12:30 AM   #4
Senior Member
Thread Starter
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by topsdrop View Post
What do you think about something like this:

http://www.modernperformance.com/cat...t4-p-2061.html

Anodized black, adjustable angle bracket. Its over your $100 price point though.
I forgot to mention; I ******* hate the viewing tubes. I consider them just another potential failure point.

There's a dozen products I would have purchased by now had they not added that feature.

Thanks of the input though.

-Zach
thasac is offline   Reply With Quote
Old 09-23-2010, 12:59 AM   #5
Newb

Join Date: Jul 2010
Location: Houston Texas
Posts: 39
Total Cats: 0
Default

Quote:
Originally Posted by thasac View Post
I forgot to mention; I ******* hate the viewing tubes. I consider them just another potential failure point.

There's a dozen products I would have purchased by now had they not added that feature.

Thanks of the input though.

-Zach

Thats an easy fix. Just unplug the sights and use male threaded plugs to seal off the ports.

It will be extremely hard to find a catch can without a sight tube. Everyone Ive ever seen has had a sight tube.

http://www.mishimoto.com/mishimoto-a...catch-can.html

http://www.rx7store.net/product_p/gr...an%20(new).htm

Now, this might be of interest to you. Some of the low budget srt4 guys like to make their own catch cans out of supplies from hardware stores. These end up costing like $30 but dont have much of a reservoir for fluid.

They do NOT have the sight tubes that you hate so much.

Heres a thread discussing it:
http://www.chicagolandsrtclub.com/fo...Catch-Can(-20)
topsdrop is offline   Reply With Quote
Old 09-23-2010, 09:27 AM   #6
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

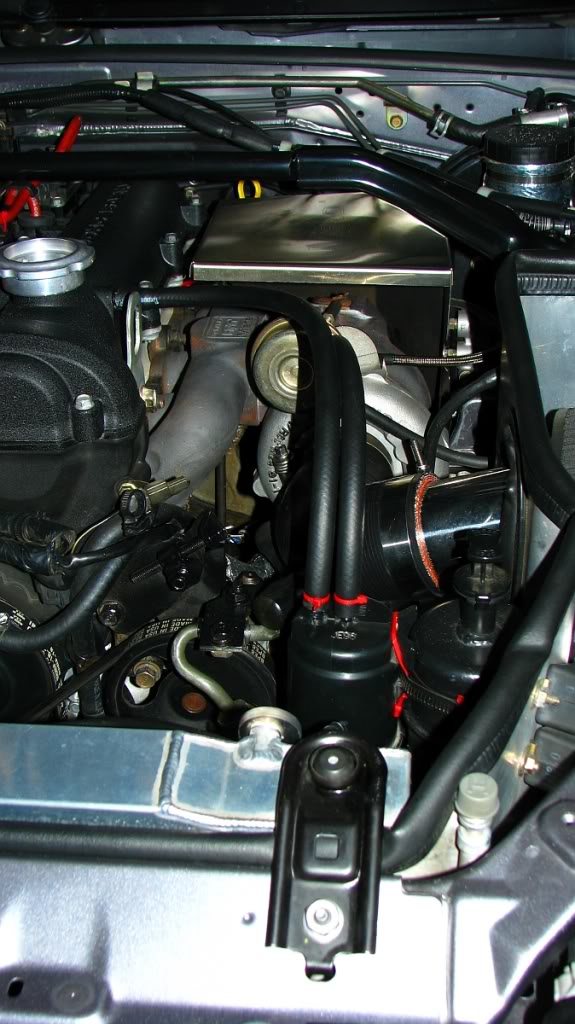

Use the evap canister from any NB. I did. Been on for a couple of weeks and I need to check it's contents and the inset of the inlet tube to see if it's effective or not. If it's not, I'll cut it in half, stuff it with a sctochbrite pad and use a small coupler to seal it back up/together. I'll also probably end up tapping the bottom of it for a drain valve.
Attached Thumbnails
Off the shelf canister for catch can-oilcatchcan.jpg
Doppelgänger is offline   Reply With Quote
Old 09-23-2010, 10:39 AM   #7
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Venom energy drinks come with pretty thick aluminum bottles. They are my new preferred overflow/catch can material starting points.
Splitime is offline   Reply With Quote
Old 09-24-2010, 03:42 AM   #8
Senior Member
iTrader: (1)

Join Date: May 2008
Location: south texas
Posts: 1,419
Total Cats: 9
Default

my friend used a coolant overflow for a hotrod. you can find them in jegs or summit racing. or related websites. his was a thin polished aluminum tube, worked great on his ae86. cheap too!
spoolin2bars is offline   Reply With Quote
Old 09-24-2010, 04:50 AM   #9
Newb

Join Date: May 2008
Location: NorCal
Posts: 30
Total Cats: 0
Default

About $30 total



CRYPTiC is offline   Reply With Quote
Old 09-24-2010, 10:35 AM   #10
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Quote:
Originally Posted by CRYPTiC View Post
About $30 total

Was your goal to create the worlds smallest and most frequently empty requiring catch can ever?
Splitime is offline   Reply With Quote
Old 09-24-2010, 11:10 AM   #11
Senior Member
Thread Starter
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Another question for you guys.

Are you getting a lot of condensation build up in the catch cans or is it only oil?

I'm contemplating whether I should vent from the nipple of the passenger side of the 1.6 block along with those on the cam cover. This would also let any collected oil to run back into the pan. It also means ANY fluid collected is running back into the pan so my concern is that I'd just be introducing water into my oil.

-Zach
thasac is offline   Reply With Quote
Old 09-24-2010, 11:12 AM   #12
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default

Quote:
Originally Posted by thasac View Post
Another question for you guys.

Are you getting a lot of condensation build up in the catch cans or is it only oil?

I'm contemplating whether I should vent from the nipple of the passenger side of the 1.6 block along with those on the cam cover. This would also let any collected oil to run back into the pan. It also means ANY fluid collected is running back into the pan so my concern is that I'd just be introducing water into my oil.

-Zach
Do not route back into pan. It gets gas fumes/oil/water mixing. You don't want that diluting the engine oil. Yes... it means you'll have to keep an eye on the catch can and empty it... but its worth the effort.
Splitime is offline   Reply With Quote
Old 09-24-2010, 11:51 AM   #13
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I make these all the time from left over plenum tubing when I build intakes, you can see mine in this ugly pic, its a 3", I have 4" as well, I can cap them and tap the holes. If enough people are interested Ill get a price together.
[IMG][/IMG]
Gotpsi? is offline   Reply With Quote
Old 09-24-2010, 11:52 AM   #14
Senior Member
iTrader: (5)

Join Date: Jan 2008
Location: Central, TX / Bay area, CA
Posts: 1,272
Total Cats: 3
Default

I was going to offer one for the vacuum pump set up that Im still working on.
Gotpsi? is offline   Reply With Quote
Old 09-24-2010, 12:07 PM   #15
Senior Member
iTrader: (6)

Join Date: Aug 2009
Location: Charlotte, NC
Posts: 924
Total Cats: 16
Default

id be interested.
Gryff is offline   Reply With Quote
Old 09-27-2010, 01:39 AM   #16
Senior Member
iTrader: (6)

Join Date: Mar 2005
Location: Sammamish, Washington
Posts: 1,396
Total Cats: 0
Default

http://www.mikenorrismotorsports.com...atch_Cans.html

This is one of the nicest I have seen. If you can stretch the budget slightly I think you would be pleased.
Kelly is offline   Reply With Quote
Old 09-27-2010, 02:54 AM   #17
Newb

Join Date: May 2008
Location: NorCal
Posts: 30
Total Cats: 0
Default

Quote:
Originally Posted by Splitime View Post
Was your goal to create the worlds smallest and most frequently empty requiring catch can ever?
How much blow-by are people getting in practice? I used an air compressor filter for several oil changes and barely caught anything. If I have to empty this one once every oil change, I'll be happy.
CRYPTiC is offline   Reply With Quote
