Default oh focking help me

On my initial turbo install I had a pretty bad time. It took much longer than I thought it would (weeks) and I ended up "notching" my frame rail a little too much to get my turbo in the car.

How the **** should I fix this?



The car hasn't folded in half yet and tire wear is ok so I think it's still straight.

Last edited by Faeflora; 12-09-2009 at 04:38 PM.
Faeflora is offline   Reply With Quote
Old 12-09-2009, 09:42 AM   #2
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

good god man! how big of a ****** turbo were you trying to put in?

id say cut out all the bad and weld in new!
WonTon is offline   Reply With Quote
Old 12-09-2009, 09:45 AM   #3
Elite Member
iTrader: (1)

NA6C-Guy's Avatar

Join Date: Feb 2008
Location: Birmingham Alabama
Posts: 8,038
Total Cats: 43
Default

Dear god! What did you do!? All you can do is cut out the mangled mess and weld some new metal over the hole.

What were you cutting with? A sledge hammer and a chisel?
NA6C-Guy is offline   Reply With Quote
Old 12-09-2009, 09:51 AM   #4
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Good god man!

I've done some ghetto **** and left it...but this takes the cake.

Clean up and refab...only way. Or you could just drill some holes and stitch it with zipties.
gospeed81 is offline   Reply With Quote
Old 12-09-2009, 10:16 AM   #5
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,818
Total Cats: 1,780
Default

zip ties?
Braineack is offline   Reply With Quote
Old 12-09-2009, 10:19 AM   #6
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Quote:
Originally Posted by Braineack View Post
zip ties?
As long as you put more than one you should be fine.


But on a serious note, +1 on cut out the old, in with the new
SKMetalworks is offline   Reply With Quote
Old 12-09-2009, 10:22 AM   #7
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by Braineack View Post
zip ties?
See zoom2zoom complains about R pack lip on cr.net
gospeed81 is offline   Reply With Quote
Old 12-09-2009, 10:25 AM   #8
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

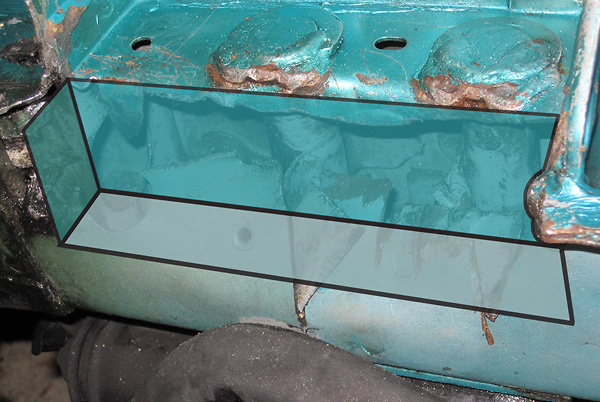

(like wonton said) Clean it up with some straight cuts so you can weld in a piece of 1/8" or 3/16" angle iron (L) and couple of flat pieces on the end. MightMouse did something (the clean up part) very similar in his build.

Just wondering if you were embarrassed to post that photo?
Attached Thumbnails
oh focking help me-notchcleanup.jpg
m2cupcar is offline   Reply With Quote
Old 12-09-2009, 10:31 AM   #9
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

What about using soam foam like ITW Foamseal's Automotive Aftermarket Page or "great stuff". I don't have a welder.
Faeflora is offline   Reply With Quote
Old 12-09-2009, 10:34 AM   #10
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,479
Total Cats: 248
Default

You can't fix it without a welder. Your best bet is to buy a new car and try again. Or leave it alone and see if it breaks in half. If it does hopefully no one gets hurt. Without a welder, the "fix" would just be cosmetic, and you already posted that hack job on the internet.

Good God man!
TurboTim is offline   Reply With Quote
Old 12-09-2009, 10:39 AM   #11
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

Wow... This is why some of us folks say "it's $45 just to turn the welder on".
Machismo is offline   Reply With Quote
Old 12-09-2009, 10:54 AM   #12
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

You can still clean up the mess with a grinder and some cutting wheels. Then use the same to cut some angle iron and the end pieces. Clean up all the edges to fresh metal. If you do the hard work, you'll keep the welder's work to a minimum. I can tell you right now that anybody who does this work for a living is going to charge you painfully well to clean up that mess. Now's your chance to "learn slowly" vs. being a "slow learner". Do all of the above and find somebody with a welder.
m2cupcar is offline   Reply With Quote
Old 12-09-2009, 11:29 AM   #13
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Holy hack job Batman!
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 12-09-2009, 11:34 AM   #14
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

it's very mean to laugh at someone's bad mistake.

but also very easy.

get a different manifold maybe.
y8s is offline   Reply With Quote
Old 12-09-2009, 12:04 PM   #15
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I can't believe he'd post that and not expect to get laughed at. I'll give him all the credit in the world for having the ***** to post it- exactly the reason I gave him a proper solution. That said, I can't imagine there weren't any thoughts like, "Man I focking up my car" or "Good God I making a huge mess" while this was going down. That's a lot of metal to hack up in there, I'm sure it took some elbow grease. It's really not that much worse structurally if it were clean cuts - just needs to finish it up. Don't you have a welder y8s?
m2cupcar is offline   Reply With Quote
Old 12-09-2009, 12:06 PM   #16
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

Wow, I'm having trouble visualizing where in the engine bay that picture was taken. What a train wreck.

This is what happens you add booze, a sawzall and a sledge hammer to your list of turbo install tools. I'm just waiting for someone to make a fail poster about this.
jayc72 is offline   Reply With Quote
Old 12-09-2009, 12:12 PM   #17
Senior Member
iTrader: (1)

Join Date: Jul 2008
Location: Granbury, TX.
Posts: 1,278
Total Cats: 1
Default

/\ Yes, just needs to be cleaned up. No worries. Too far from me however.
But, on a good note; it takes examples like these sometimes for one to learn and see what can become from something. I know I've had some butcher sessions early on when tinkerin' with VW's back in the day. I didn't have the luxury of seeing someone's mistake and then taking from it. I had to butcher, then figure out how to make it better over time.
Machismo is offline   Reply With Quote
Old 12-09-2009, 12:18 PM   #18
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Quote:
Originally Posted by jayc72 View Post
... make a fail poster about this.
Or a main page poster
m2cupcar is offline   Reply With Quote
Old 12-09-2009, 12:21 PM   #19
Elite Member
iTrader: (33)

RotorNutFD3S's Avatar

Join Date: Jan 2007
Location: Newnan, GA
Posts: 2,539
Total Cats: 29
Default

Quote:
Originally Posted by jayc72 View Post
Wow, I'm having trouble visualizing where in the engine bay that picture was taken. What a train wreck.
Next to the driver's side shock tower. This is typically what it looks like when you follow the directions of cutting and bending:

RotorNutFD3S is offline   Reply With Quote
Old 12-09-2009, 12:24 PM   #20
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default fix documented

Might Mouse's fix is mostly a perfect fit- just follow the pics:

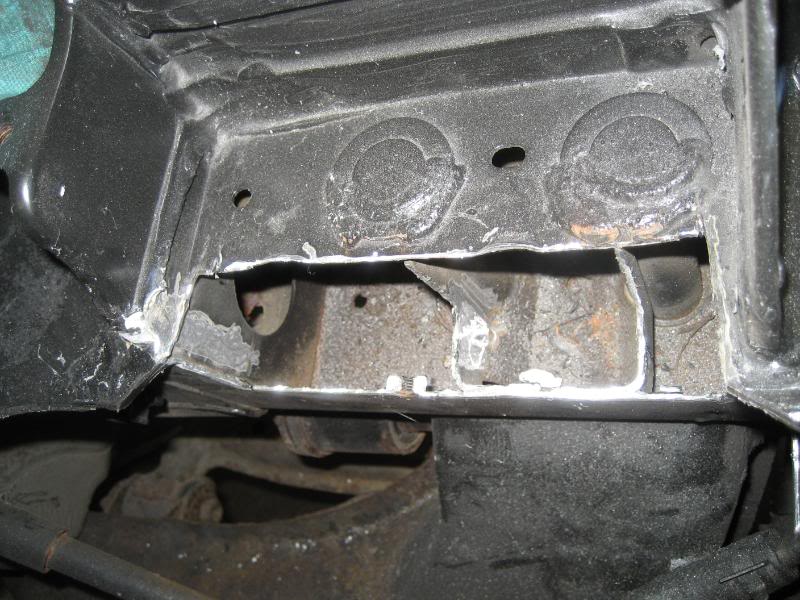

Name:  302.jpg
Views: 1
Size:  89.6 KB

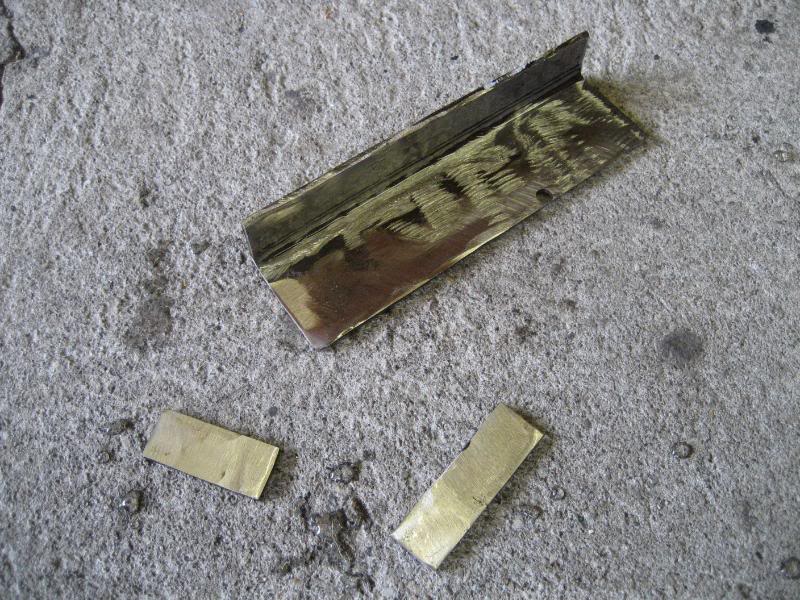

Name:  299.jpg
Views: 1
Size:  129.1 KB

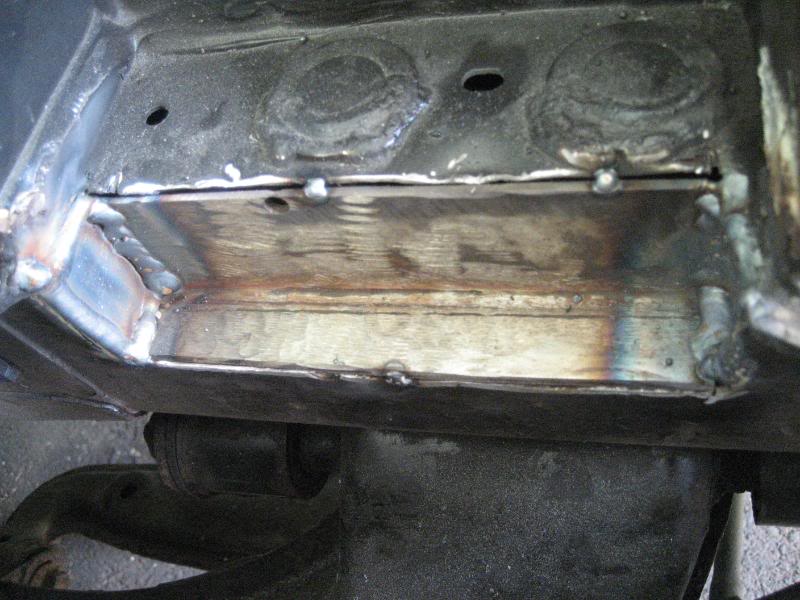

Name:  312.jpg
Views: 1
Size:  71.7 KB

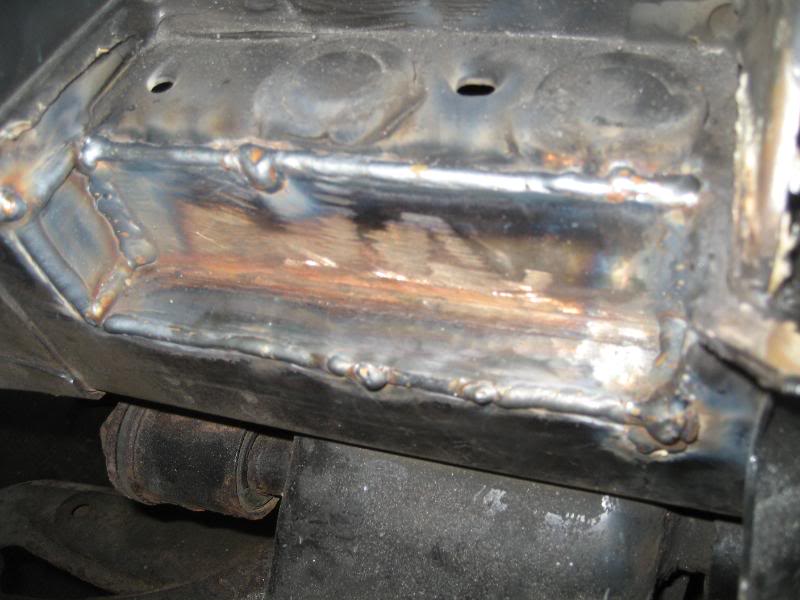

Name:  313.jpg
Views: 1
Size:  57.5 KB
