Default Oil leak. um this sucks

Iv been ignoring the fact that i have to change my cam seals. Its never been so bad where i have to add oil till today when i notice the dipstick didn't read full. I wonder what it takes to change the seals?

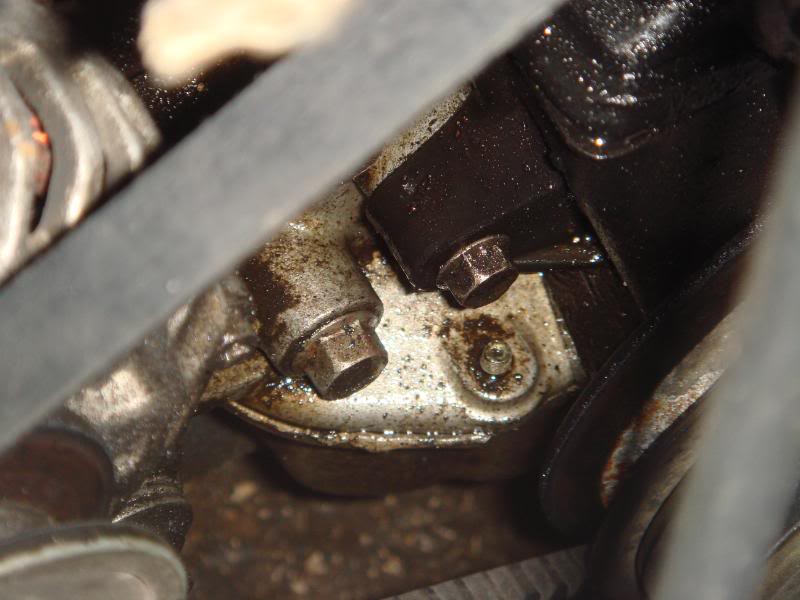

Name:  DSC00893.jpg
Views: 1
Size:  51.1 KB
Name:  DSC00896.jpg
Views: 1
Size:  54.7 KB

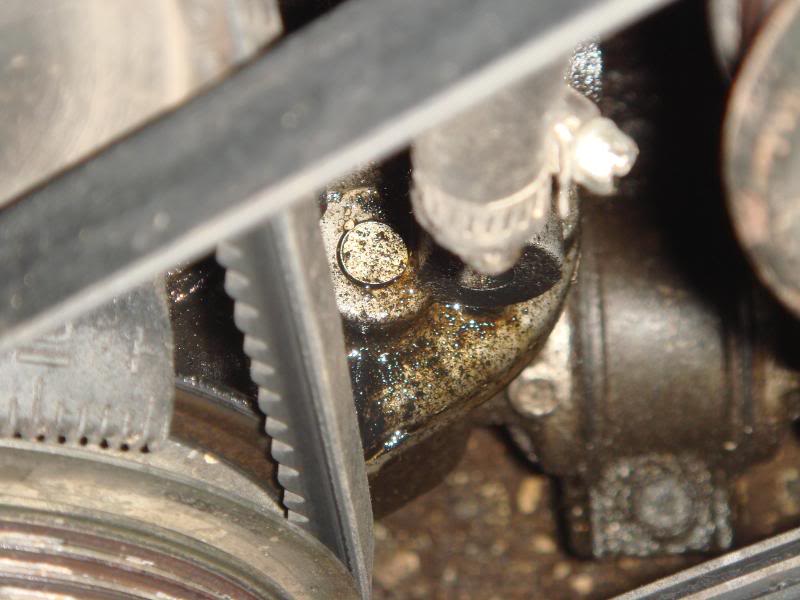

Name:  DSC00894.jpg
Views: 1
Size:  53.6 KB

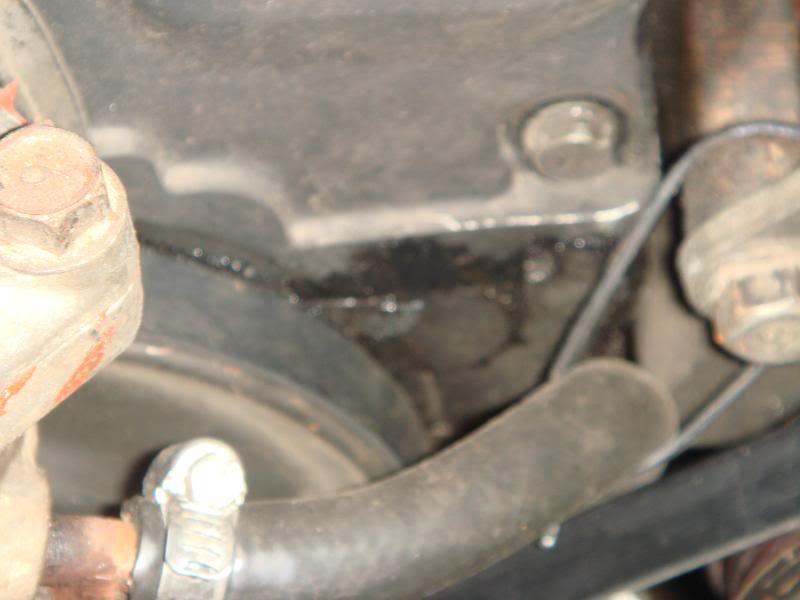

Name:  DSC00897.jpg
Views: 1
Size:  36.0 KB

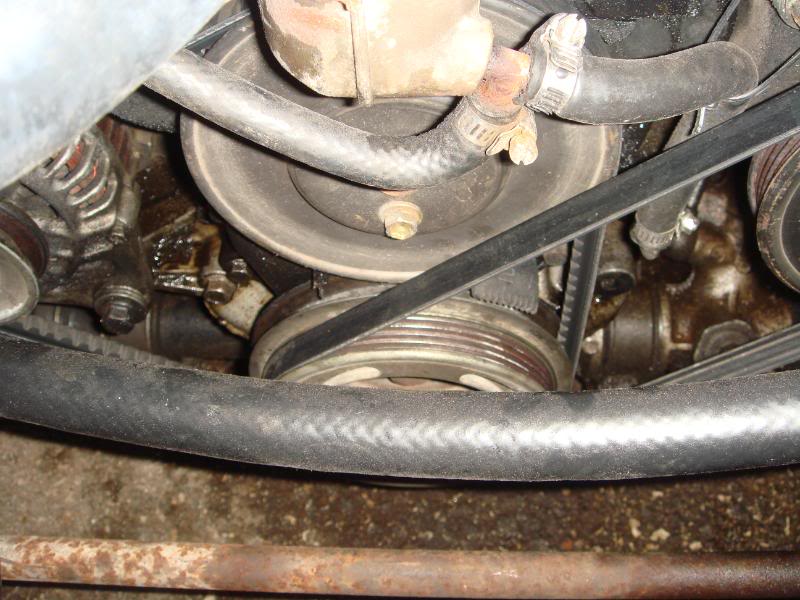

Name:  DSC00898.jpg
Views: 1
Size:  79.4 KB
mike_671 is offline   Reply With Quote
Old 05-22-2008, 08:11 AM   #2
Junior Member
iTrader: (2)

Join Date: Jul 2006
Posts: 482
Total Cats: 0
Default

join the club.
rappadan is offline   Reply With Quote
Old 05-22-2008, 09:28 AM   #3
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Removing the timing belt and cam gears.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 05-22-2008, 09:41 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by mike_671 View Post
I wonder what it takes to change the seals?
like 30 minutes of your time...
Braineack is offline   Reply With Quote
Old 05-22-2008, 10:30 AM   #5
Senior Member
iTrader: (10)

Join Date: Nov 2006
Location: Raleigh,NC
Posts: 912
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
like 30 minutes of your time...
You mean more like couple of hours. Change the water pump, while your at it.
supra441979 is offline   Reply With Quote
Old 05-22-2008, 11:59 PM   #6
Senior Member
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

Quote:
Originally Posted by supra441979 View Post
You mean more like couple of hours. Change the water pump, while your at it.
I changed my water pump all ready, even my timing belt. Thats when i saw that me seals were leaking .
mike_671 is offline   Reply With Quote
Old 05-22-2008, 11:59 PM   #7
Senior Member
Thread Starter
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

Quote:
Originally Posted by Braineack View Post
like 30 minutes of your time...
mike_671 is offline   Reply With Quote
Old 05-23-2008, 12:43 PM   #8
FHS
Senior Member
iTrader: (2)

Join Date: Oct 2004
Location: Los Angeles, Ca.
Posts: 502
Total Cats: 0
Default

You removed your timing belt, noticed the cam seals were leaking, didn't change them at the time, reinstalled the timing belt AND a new water pump, THEN posted here asking about what it takes to change the seals...in that order?

Well, the cam seals themselves aren't that hard to replace. You'll probably have to cut some of the plastic away and that takes a bit of effort to do without scoring the cams. Once they are out, you'll need to seat the new seals securely. Most people will use a pipe with the appropriate diameter, covered with tape, to press the seals into place.
FHS is offline   Reply With Quote
Old 05-23-2008, 01:09 PM   #9
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

30 minutes? I wouldn't try to go that fast on cam seals, that's pretty much rushing through the job. Better to take your time bro.

I used a socket to push my cam seals in, they were easy. It was the mother ****** crank seal that gave me hell. Scuffed it just a little, but enough to make it leak when I put everything back together. Did it again a day or two later and had to polish out the scuff.

You should have done the cam seals when you did the waterpump and timing belt man. In that case it would have been like 15 mins extra of your time!

P.S. Do yourself a favor and get a seal puller! Don't **** around with screwdrivers or picks.

Goodluck!

Vash-
Vashthestampede is offline   Reply With Quote
Old 05-23-2008, 01:14 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

Quote:
Originally Posted by mike_671 View Post
remove the valve cover, mark the TB, remove the plastic cover, remove the gears, pull the seals....

replace seals, replace gears, replace belt in relation to marks, replace plastic cover, replace valve cover. presto.
Braineack is offline   Reply With Quote
Old 05-23-2008, 01:18 PM   #11
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

^Yah, but you can yank the tranny in 44minutes. It takes me 44minutes just to jack the car up.
samnavy is offline   Reply With Quote
Old 05-23-2008, 01:28 PM   #12
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by Vashthestampede View Post

P.S. Do yourself a favor and get a seal puller! Don't **** around with screwdrivers or picks.


+1

Get a good one from sears too. Don't bother with a mickey mouse bullshit one from HF.
BenR is offline   Reply With Quote
Old 05-23-2008, 01:54 PM   #13
FHS
Senior Member
iTrader: (2)

Join Date: Oct 2004
Location: Los Angeles, Ca.
Posts: 502
Total Cats: 0
Default

Quote:
P.S. Do yourself a favor and get a seal puller! Don't **** around with screwdrivers or picks.
Yup yup.

The cam seals aren't that tough, really. It took me probably 15 minutes total for each seal with a pair of needle nose pliers and a razor blade. The crank seal, though, was a true beeotch. After 2 hours over two days, I finally gave up and had my car towed to a shop. The guy whipped out a seal puller and had the old seal out in under a minute. I'd like to think that it was all my work that made his job easier, but no.
FHS is offline   Reply With Quote
Old 05-23-2008, 01:56 PM   #14
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,915
Default

Quote:
Originally Posted by Braineack View Post
remove the valve cover, mark the TB, remove the plastic cover, remove the gears, pull the seals....

replace seals, replace gears, replace belt in relation to marks, replace plastic cover, replace valve cover. presto.
This you do without removing the accessory belts and crank and WP pulleys?
Joe Perez is offline   Reply With Quote
Old 05-23-2008, 05:27 PM   #15
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

I think it took me an hour start to finish last time... that includes the time to drain the coolant and refill/burp the coolant afterwards. After you pull the timing belt 4-5 times it get's pretty damned easy.
Arkmage is offline   Reply With Quote
Old 05-23-2008, 07:12 PM   #16
Senior Member
iTrader: (10)

Join Date: Nov 2006
Location: Raleigh,NC
Posts: 912
Total Cats: 0
Default

Alternator belt and Power Steering/AC belt also need to be remove as well.
supra441979 is offline   Reply With Quote
Old 05-23-2008, 09:04 PM   #17
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

try getting a bolt to put on the front of the engine right to the driver's side of the crank pulley, that's where my oil leak was:

kotomile is offline   Reply With Quote
Old 05-23-2008, 09:17 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

we are talking cam seals here right?!!
