Default Oil pan drilled, tapped, maybe fucked....

Well, I have been out to the hardware stores to get my tap, drill bit, mineral spirits, etc. I got all set to get a shitload of work done on the turbo install today, and the oil return was the start of it. I read and re-read everything posted on this forum about tapping the oil pan. The location to drill, drill bit and tap sizes, how to grease the bit, etc. I even just read today about someone hitting the oil pickup shield and was 100% confident that I would not have this nor any other issues. Wrong!

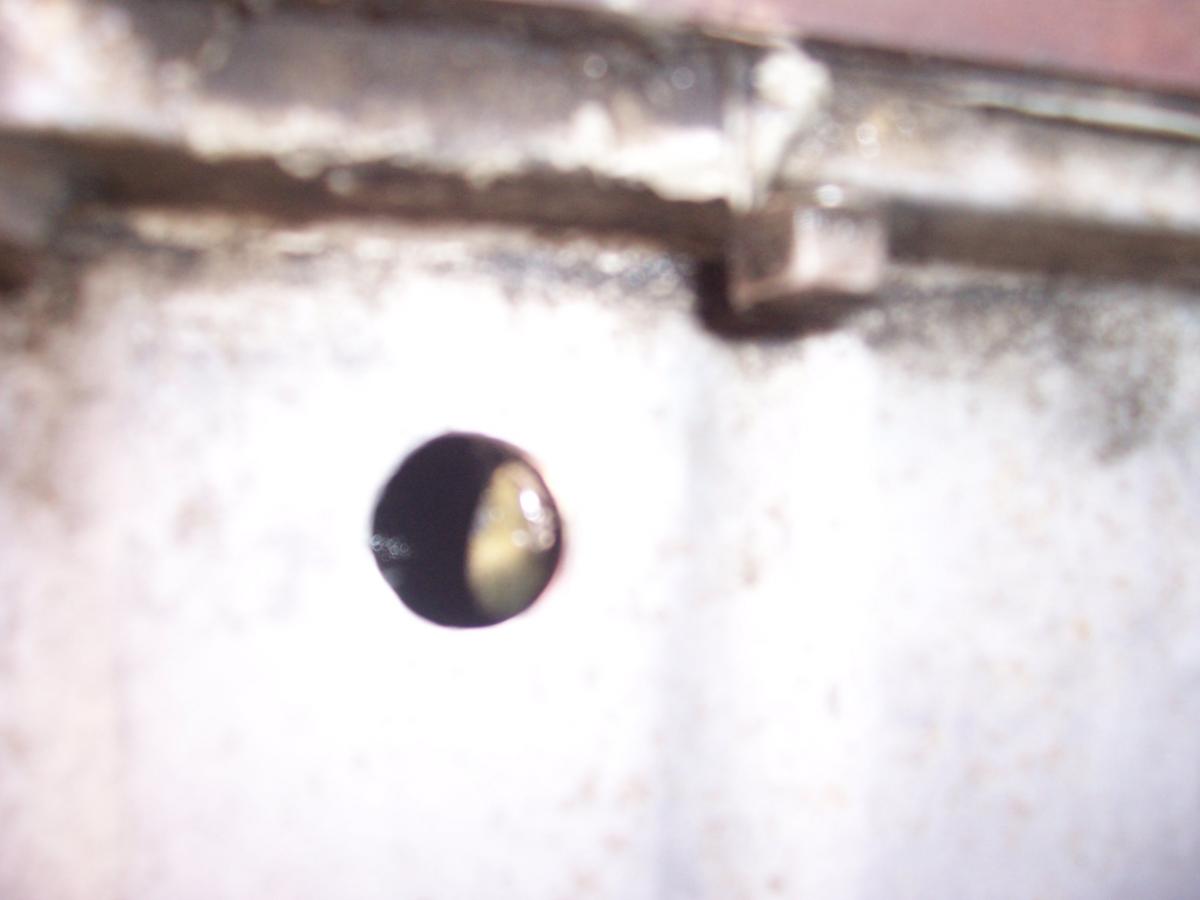

WTF....really. I drilled slow, wiped the shavings, and right when I broke the skin I greased the bit. Then I see this ******* brass colored shield looking right ******* at me! Are you ******* serious! Well, I was contemplating on just smashing my face with the hammer, or to say **** it and just tap the hole anyways. I decided to just tap the hole.

My question is, should I be ok? If I had to answer my own question, I would say yes. It seems others have grazed the oil pickup shield before, and that the pickup itself is not where I am seeing the brass color through the hole I drilled. I just want to ask others before I go on with everything else. So the hole is drilled and tapped, and I hope to just locktite the fitting in, then JB weld around it. I just wonder if that little bit of shield right that is enough of a restriction to **** anything up with oil flow. And how much metal might have fallen in the pan. I'm going out now to drain it and clear it with some mineral spirits.

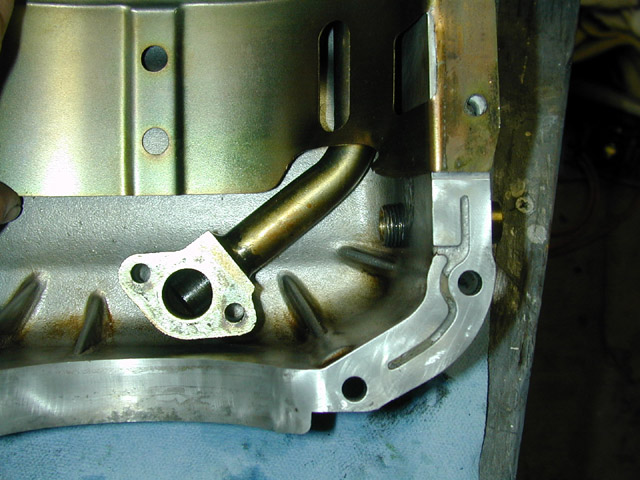

What do you guys think? The pictures of the pan on the car is me, the other one I stole from one of Brain's posts to use as a reference to where the pickup tube is located.

Vash-
Attached Thumbnails

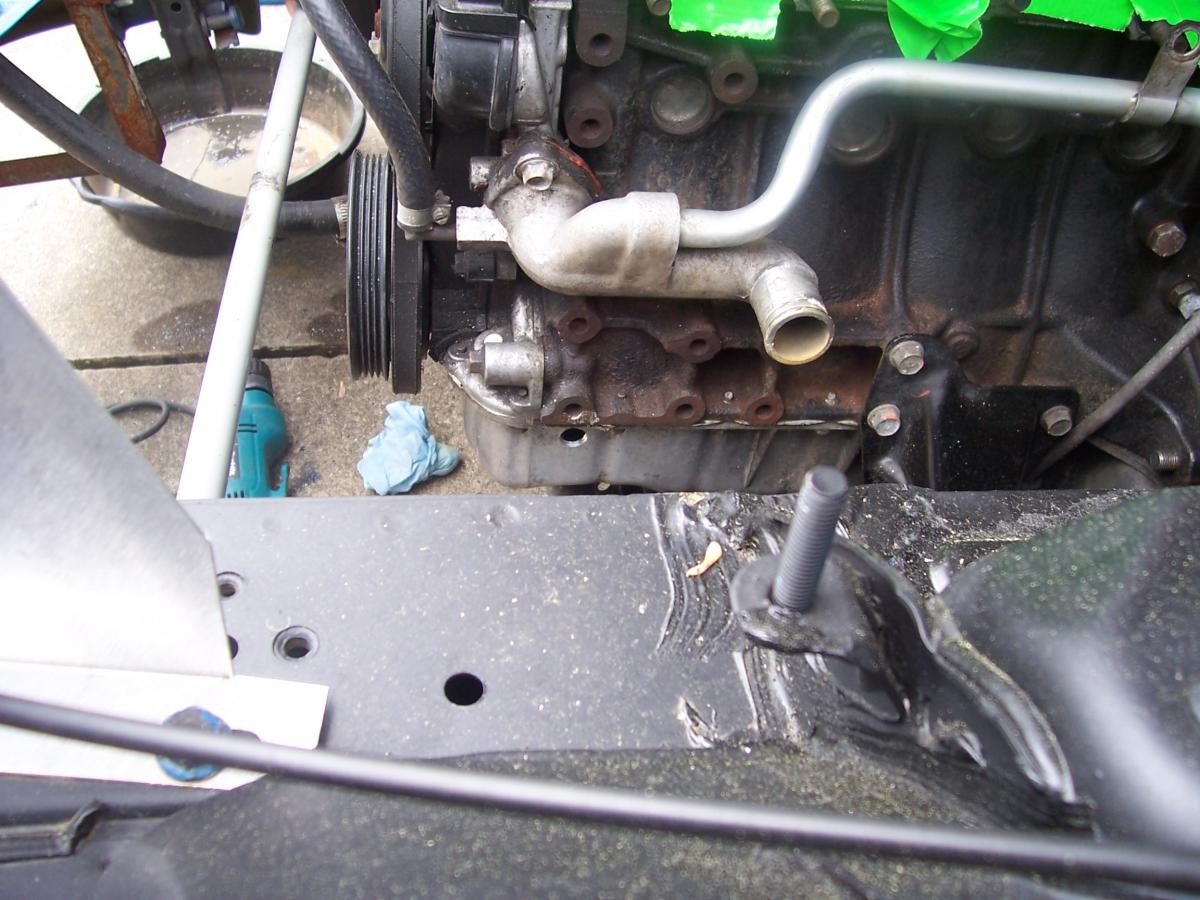

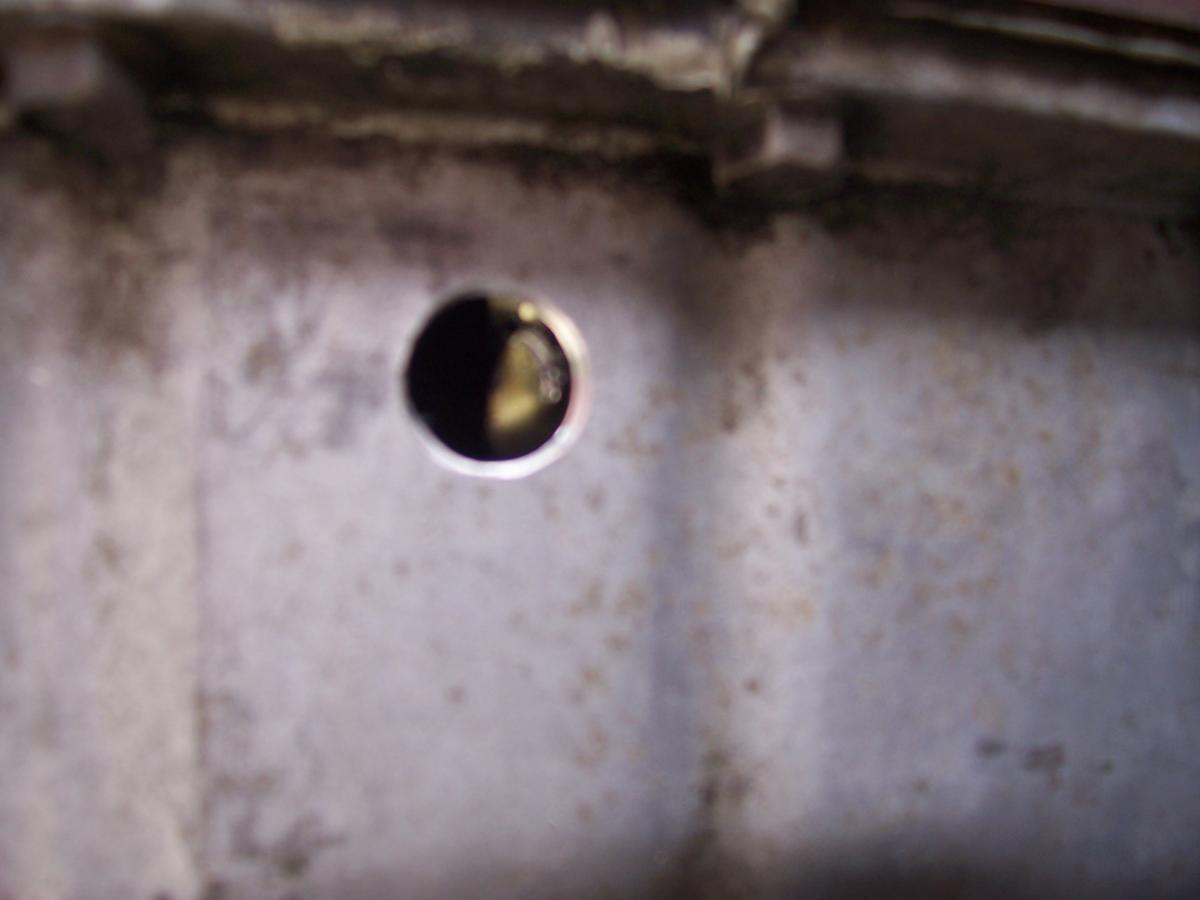

Oil pan drilled, tapped, maybe fucked....-112_1647.jpg   Oil pan drilled, tapped, maybe fucked....-112_1648.jpg   Oil pan drilled, tapped, maybe fucked....-112_1649.jpg   Oil pan drilled, tapped, maybe fucked....-oil-pan.jpg
Vashthestampede is offline   Reply With Quote
Old 05-21-2008, 02:32 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

if it were me, i'd just bend it out of the way.


you really live up to your smilie dont you?
Braineack is offline   Reply With Quote
Old 05-21-2008, 02:33 PM   #3
Junior Member
iTrader: (4)

Join Date: Dec 2006
Location: Charlotte , nc
Posts: 325
Total Cats: 1
Default

I would go ahead with it... Looking at where you put your hole. Little high and a little far back... However, its just a drain and the damage is already done. Tap it. and seal it well, JB WELD is your friend.

Goodluck
jedduh01 is offline   Reply With Quote
Old 05-21-2008, 02:40 PM   #4
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

You apparently didnt do all the homework you claim. Compare where you drill and the picture you posted? Does it look like the same place? no.

Just tap it and be done with it, as long as you didnt hit the pickup youre ok.
Saml01 is offline   Reply With Quote
Old 05-21-2008, 02:45 PM   #5
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

i guess thats one reason why it's good to have A/C. It forces you to drill the hole farther foward.
wes65 is offline   Reply With Quote
Old 05-21-2008, 02:55 PM   #6
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

if you didnt' puncture the pickup tube, it's fine.
y8s is offline   Reply With Quote
Old 05-21-2008, 02:59 PM   #7
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Well seeing the tap is tapered, I had to go in a little more. I put a flat head on the shielding and hammered it away from the hole (gently). I tapped the hole again and got the fitting to screw in. I marked the fitting and counted 3.5 turns into the pan. To me, that seems like enough.

I did PLENTY of homework Sam, I just was kinda in a rush to get **** done. I didn't have any printouts with me outside, only what I remembered reading lastnight when I was stoned.

I wanted to go closer to the front of the car, but my god damn hands just went where they wanted to. So I guess as long as the pickup wasn't hit, and there's not a junkyard load of metal in the pan, I should be fine? lol.

Thanks guys for the fast response! I love you guys, I always know I can count on everyone to be there to help!

Now I need to undo my old Greddy oil return line on the other side of the motor. I have been waiting to get rid of this 4ft oil line since the day I put it on.

Vash-
Attached Thumbnails

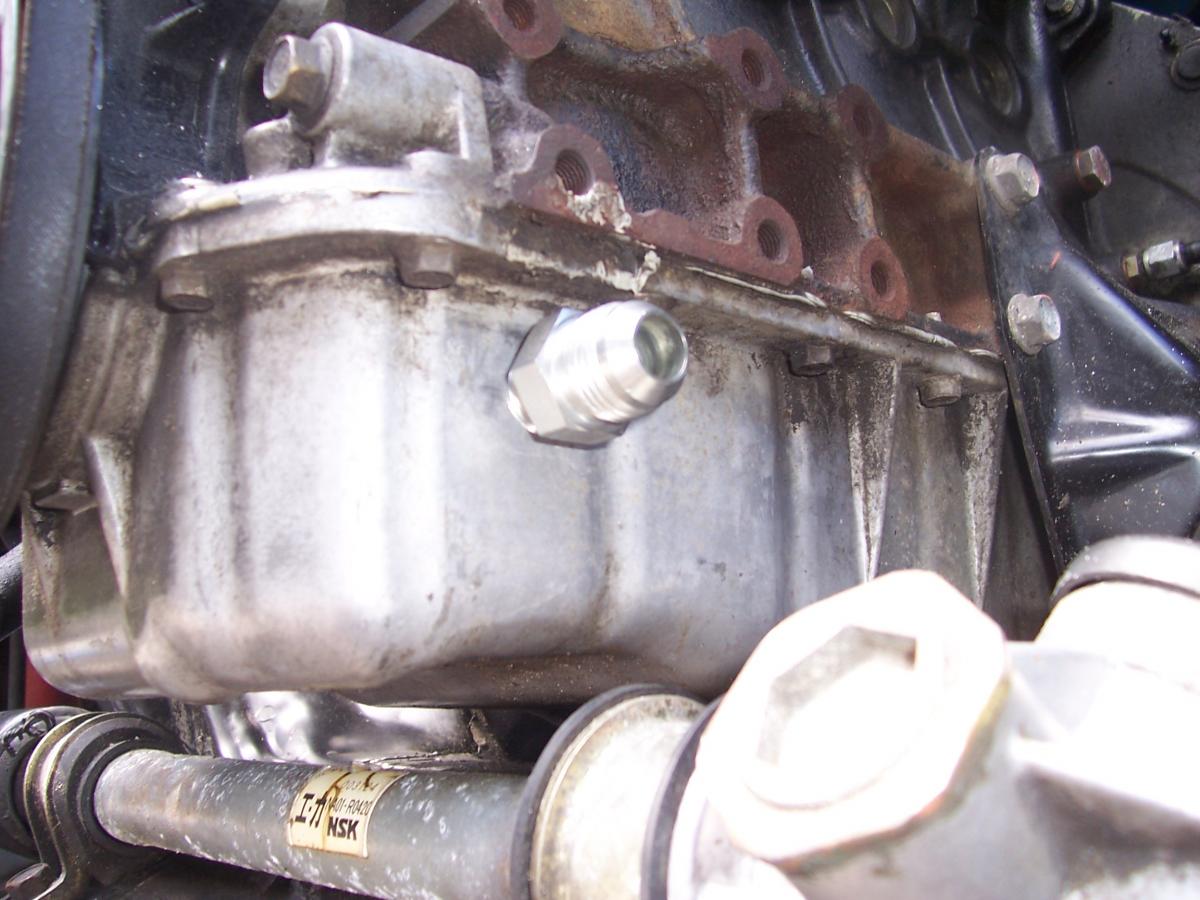

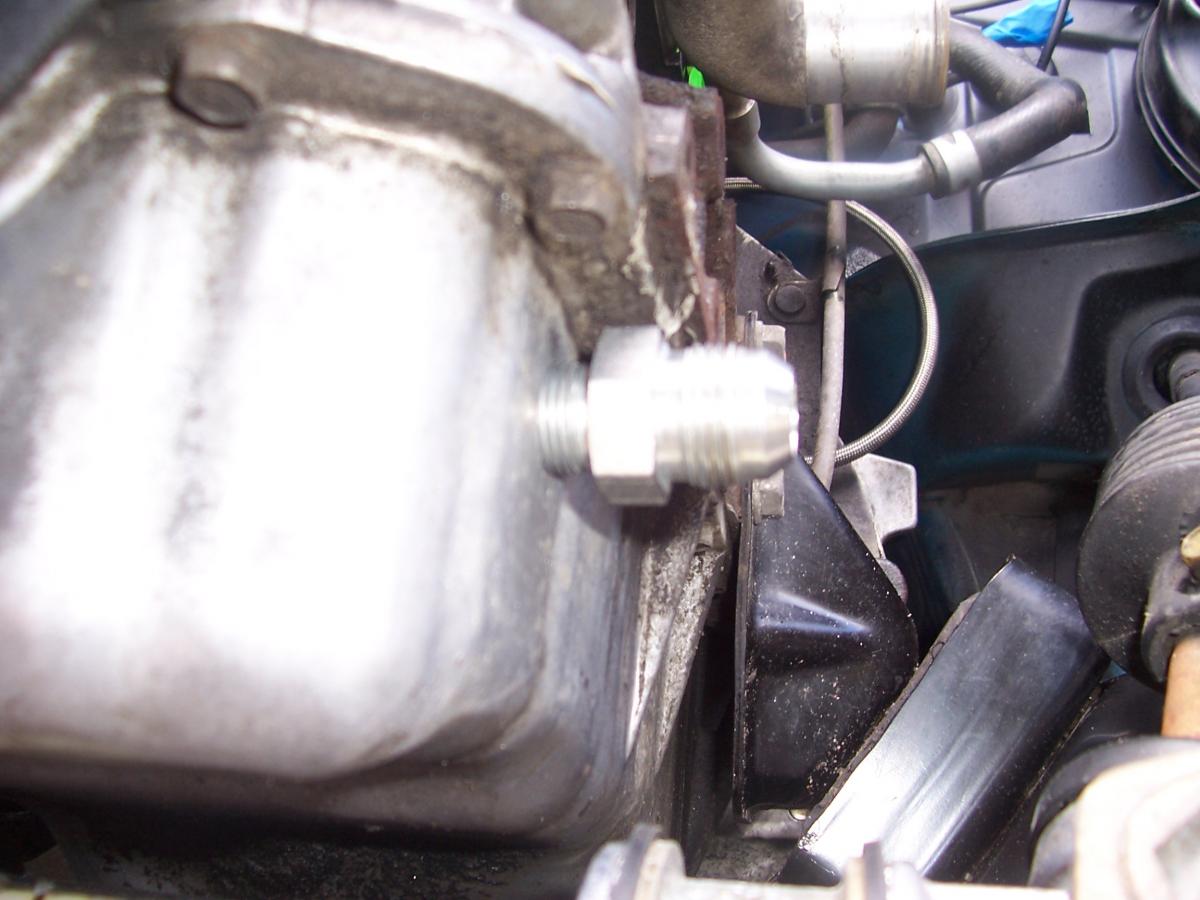

Oil pan drilled, tapped, maybe fucked....-112_1650.jpg   Oil pan drilled, tapped, maybe fucked....-112_1651.jpg
Vashthestampede is offline   Reply With Quote
Old 05-21-2008, 03:07 PM   #8
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by Vashthestampede View Post

I did PLENTY of homework Sam, I just was kinda in a rush to get **** done. I didn't have any printouts with me outside, only what I remembered reading lastnight when I was stoned.
*****. Huge *****.
Saml01 is offline   Reply With Quote
Old 05-21-2008, 03:07 PM   #9
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,328
Total Cats: 1,926
Default

If it genuinely is the baffle you hit then there's no problem. If you're concerned about it blocking the drain, then plug the hole you just drilled and make a new one in the correct location- it looks like you've got enough space.

If it's the pickup tube, and you only grazed it, you're still fine. My pickup tube has tap-marks on the side of it.

If you punctured the pickup tube, it's time to pull the pan off.

BTW, your camera has a macro function. Learn to use it. It's absolutely impossible to see anything from those pictures.
Joe Perez is online now   Reply With Quote
Old 05-21-2008, 03:08 PM   #10
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

If possible, before you put that fitting on, take some Q-tips, bend them at a 90* angle, and fish around the bottom of the pan inside the hole. I promise you did get a small amount of shavings in there... no way to avoid all of them. Q-tips will allow you to get 90% of what fell. The rest won't be a factor.
samnavy is offline   Reply With Quote
Old 05-21-2008, 03:13 PM   #11
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Thank god I drilled my return before installing the oil pan. :( Good luck, mang!
elesjuan is offline   Reply With Quote
Old 05-21-2008, 03:15 PM   #12
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by Saml01 View Post
*****. Huge *****.
?

Quote:
Originally Posted by Joe Perez View Post
If it genuinely is the baffle you hit then there's no problem. If you're concerned about it blocking the drain, then plug the hole you just drilled and make a new one in the correct location- it looks like you've got enough space.

If it's the pickup tube, and you only grazed it, you're still fine. My pickup tube has tap-marks on the side of it.

If you punctured the pickup tube, it's time to pull the pan off.

BTW, your camera has a macro function. Learn to use it. It's absolutely impossible to see anything from those pictures.
I think I'm going to just bend the rest of the baffle out of the way and stick with this hole. lol, yea my bad on this garbage pictures, I forget about the setting with the flower on it all the time! I'm going to take one more on macro right up in that ****.

Quote:
Originally Posted by samnavy View Post
If possible, before you put that fitting on, take some Q-tips, bend them at a 90* angle, and fish around the bottom of the pan inside the hole. I promise you did get a small amount of shavings in there... no way to avoid all of them. Q-tips will allow you to get 90% of what fell. The rest won't be a factor.
That's a good idea, I'm going to poke around in there now while the oil drains.

Thanks again guys!

Vash-
Vashthestampede is offline   Reply With Quote
Old 05-21-2008, 08:36 PM   #13
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

All is well in oil pan land. The ******* fitting fits perfect, no leaks, and no restriction when draining. I tested it by pouring some oil in the turbo drain line and watching underneath the car it coming right out of the drain hole.

I always hated my Greddy oil drain setup with a passion. The ******* tube was about 3ft long and wrapped around the engine. **** THAT. I wish I did the drill and tap alot sooner.

Now alot is making sense to me. When I took off my TD04 and removed the oil line, I remembered noticing alot of oil coming out of the line when I let it drop. As if it was backed up in the line, rather than draining into the block. Then I started to think, if the oil isn't draining, but is still being fed, where did he go? Now I think I understand why I had oil in my IC pipes. It must have to go somewhere, and mine went the wrong way.

I'm glad this is my second go around at all of this. This time I can do everything right and take my time. Rather than rush and throw together a turbo miata halfassed.

Today started bad, but ended well. So I clipped the baffle in the oil pan, I still have my eyes!

Vash-
Attached Thumbnails

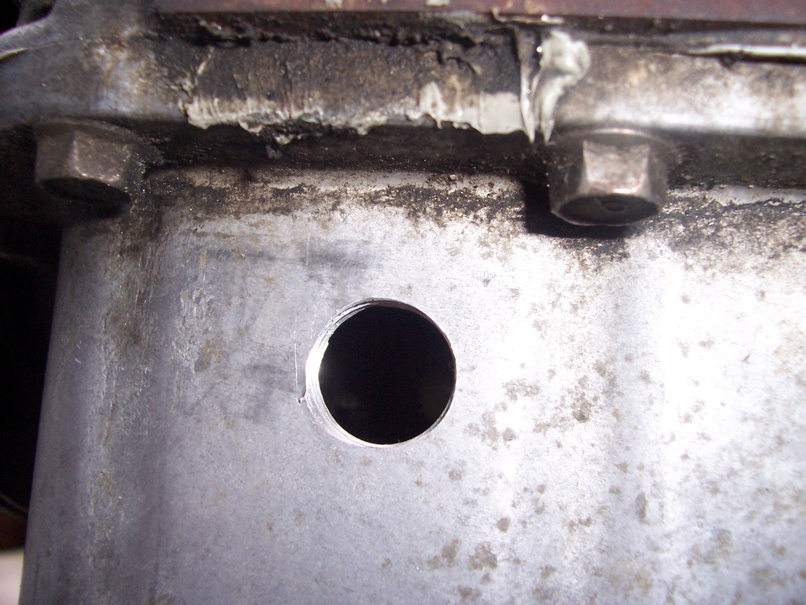

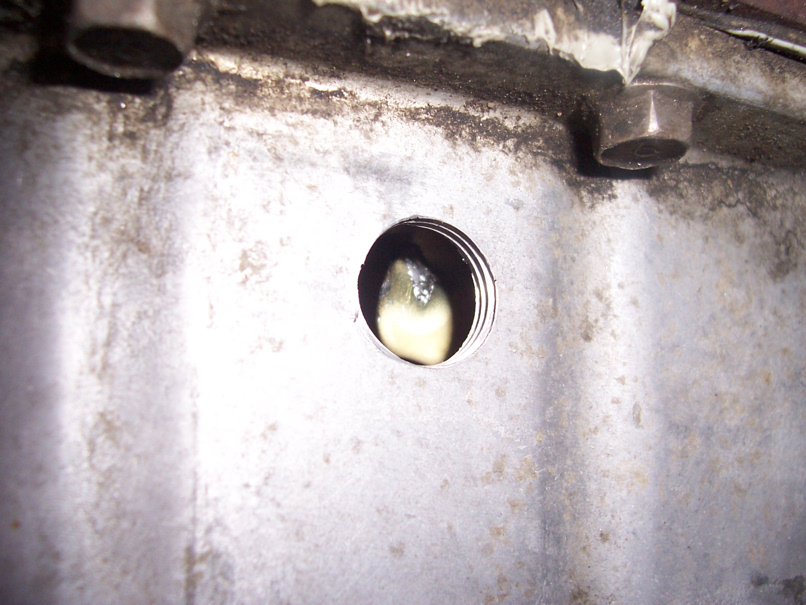

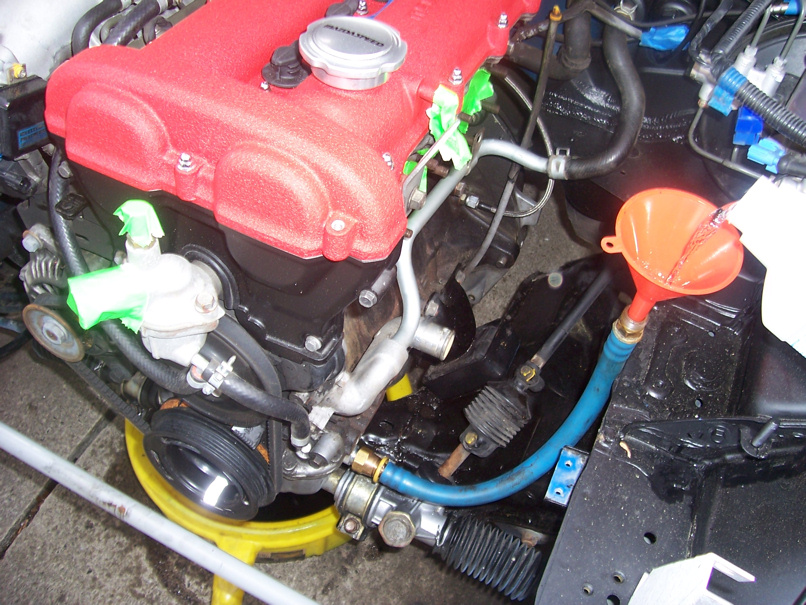

Oil pan drilled, tapped, maybe fucked....-112_1652-2-.jpg   Oil pan drilled, tapped, maybe fucked....-112_1654-2-.jpg   Oil pan drilled, tapped, maybe fucked....-112_1656-2-.jpg
Vashthestampede is offline   Reply With Quote
Old 05-21-2008, 09:21 PM   #14
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Cleaning out the pan was a waste of time, I didnt even change the oil in my car after drilling/tapping the pan. Oh yea, and I wasnt stoned if youre curious
Saml01 is offline   Reply With Quote
Old 05-21-2008, 09:28 PM   #15
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

Quote:
Originally Posted by Saml01 View Post
Cleaning out the pan was a waste of time, I didnt even change the oil in my car after drilling/tapping the pan. Oh yea, and I wasnt stoned if youre curious
Whether it was a **** up on me, or it's common, about 20 little shavings ended up in the container after flushing the pan. I wasn't in a rush to go anywhere, I would rather make sure no shavings were floating around in my oil.

Vash-
Vashthestampede is offline   Reply With Quote
Old 05-21-2008, 09:52 PM   #16
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

Looks to me like you have a f'ed up bolt in the pan right in fromt of that hole you tapped. Might want to replace it now while you've got stuff apart anyway.
rleete is online now   Reply With Quote
Old 05-22-2008, 12:53 AM   #17
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Congrats Vash.


Curious, where did your other turbo drain to before????
elesjuan is offline   Reply With Quote
Old 05-22-2008, 01:09 AM   #18
Junior Member
iTrader: (1)

Join Date: Feb 2008
Location: Mid Tenn
Posts: 198
Total Cats: 0
Default

Jesus christ now i'm irritated with my 4ft return line. Thanks. Now i'm glad I kept that stupid huge nipple cover.
talusfan is offline   Reply With Quote
Old 05-22-2008, 03:40 AM   #19
Antisaint
Thread Starter
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

The oil drain on my Greddy setup went to a stock location on the block. Next to the oil filter, right behind the alternator. Once again, alot easier to work in this area with the intake manifold bracket removed. Black nipple and a clamp come off, oil drain line slips on. Only problem is it's on the other side of the engine. So now your oil drain line is 7ft long and makes 4 circles before it gets there. **** THAT!

In case anyone wanted to do the same and get rid of their horrible Greddy oil return, do yourself a favor. Get the parts/tools, take the time, and don't hit your baffle. For an hours work I was very happy.

Nipple part# - B660-10-328 ($6.85)
Clamp part# - 9928-62-200P (2.83)

I got the part numbers from Mazmart (thanks Ben) and picked them up locally.

Anyone that has the stock oil drain location still, should try this. Taking the old 12ft oil drain hose out feels ******* GREAT! I was so stoked after I tapped it, that I skated our pool now that its drained. That's how good this will make you feel!

PICTURE: Green is oil line going to block.

Vash-
Attached Thumbnails

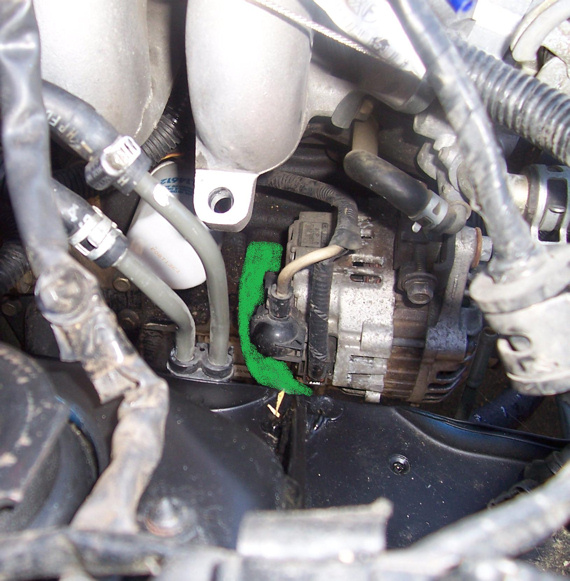

Oil pan drilled, tapped, maybe fucked....-oil-line-green.jpg
Vashthestampede is offline   Reply With Quote
