Default Painting My **** Thread

Hopefully within the next week or so the miata will be a different color. I can't really afford or have time yet to finish the turbo build, so I'm going to get around to something that has needed to be done for a while.

I'm just going the door jambs, and trunk/hood jambs. I'm not to worried about the trunk, and I'll do the engine bay when I pull the motor...which will hopefully be next year.

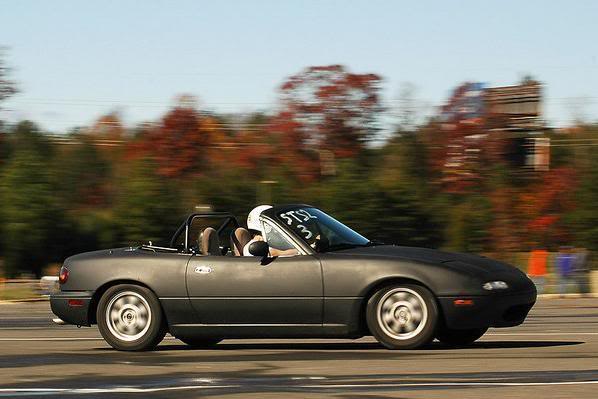

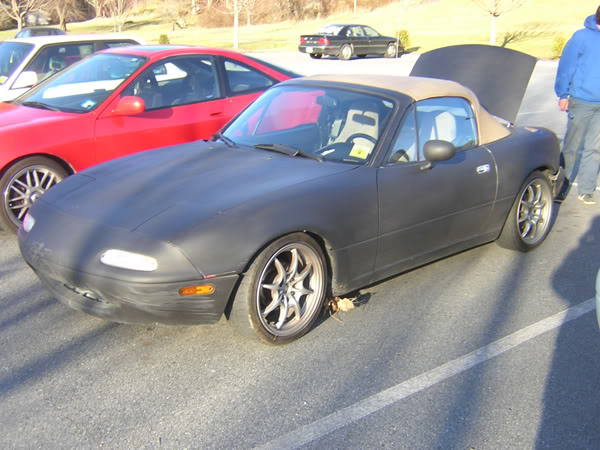

Right now she looks like this:

Name:  meknightsnov9.jpg
Views: 1
Size:  34.2 KB

Name:  3.jpg
Views: 1
Size:  66.5 KB

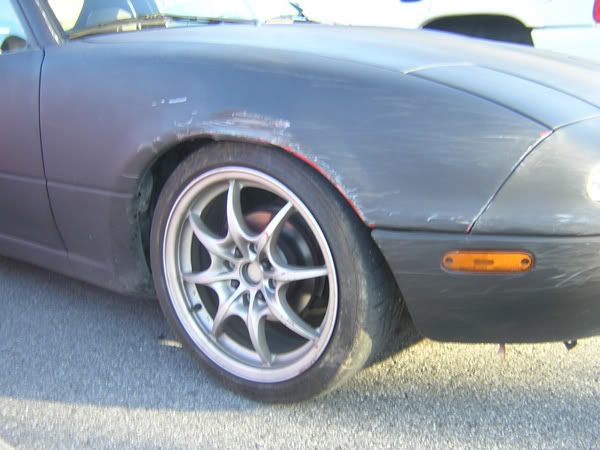

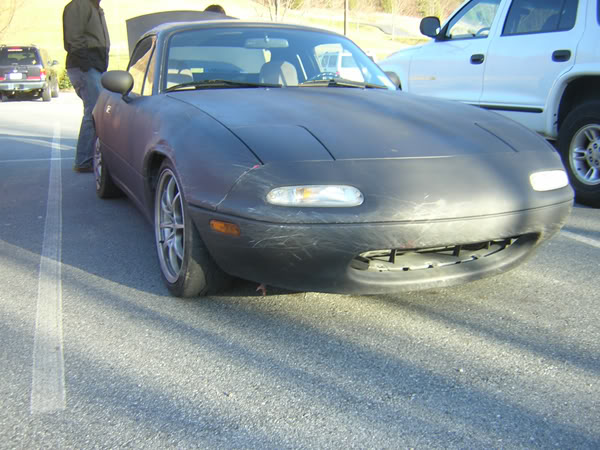

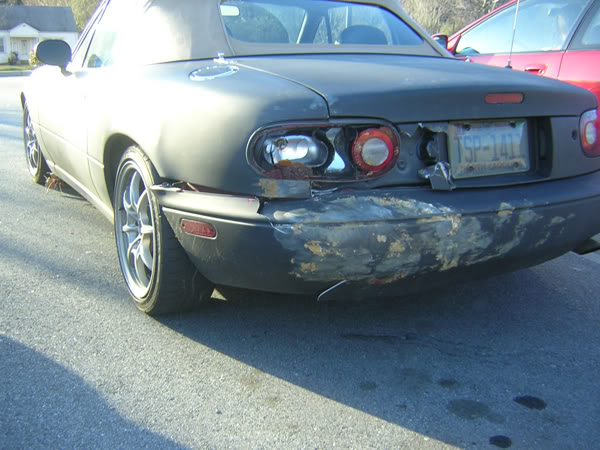

Why it needs paint...:
Name:  4.jpg
Views: 1
Size:  62.5 KB

Name:  2.jpg
Views: 1
Size:  69.5 KB

Name:  1.jpg
Views: 1
Size:  51.5 KB

I've got those Rota circuit 8s off the car and stipped and I am in the process of painting them a dark bronze...two are done, two to go. I'll try to take before, during, and after shots of the whole process.

I'll be using a friends spare garage, 2 NICE compressors w/ DAs to sand and a fairly nice gun to paint with. My friend is 16 but has been painting his legends cars for a few years now among other small projects and is pretty damn good, plus I figure anything is better than what it is now and I'll learn how to paint.

I am missing a finish panel and I need a new left taillight because the stocker is cracked (the one that is broken was a mint one...so pissed), but I've got some extra paint so I will paint that when I can find one in decent shape.

Anybody have any advice, warnings,heads-up about how to paint her? Things to watch out for and such?

So fair I've spent about $400 on paper, paint, clear, primer, hardener, and reducer plus the rattle cans for the wheels. They aren't perfect, but they are turning out decently.


I'll let you guys takes some guesses on the color choice.
miatamania is offline   Reply With Quote
Old 06-19-2007, 04:46 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

cant buff it out?


seriously...I wish you were roller painting it.
Braineack is offline   Reply With Quote
Old 06-19-2007, 04:48 PM   #3
Elite Member
Thread Starter
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

I really thought about it, but with access to a gun, booth, etc. I want to know how to do it.
miatamania is offline   Reply With Quote
Old 06-19-2007, 05:17 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,860
Total Cats: 1,788
Default

true dat.
Braineack is offline   Reply With Quote
Old 06-19-2007, 06:57 PM   #5
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

you can make it look all rusty like that guy on M.net

oh wait no
Pitlab77 is offline   Reply With Quote
Old 06-19-2007, 07:35 PM   #6
Newb

Join Date: Apr 2007
Posts: 43
Total Cats: 0
Default

Quote:
Originally Posted by Pitlab77 View Post
you can make it look all rusty like that guy on M.net

oh wait no
You mean clubroadster
Paint's just like *****, you can find at least 1 guy that would get into anything he can... and love it too.
JustJake is offline   Reply With Quote
Old 06-19-2007, 11:59 PM   #7
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I really like spraying cars. Only did one. Don't stop midpanel no matter how long it may be even if it is a chevy longbed which is like 7-8ft long. Learned that the hard way with my base coat.
cjernigan is offline   Reply With Quote
Old 06-20-2007, 12:03 AM   #8
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

yeah, and always spray from one end of a part to the other. nothing sucks more than overspray on stuff you already painted.
y8s is offline   Reply With Quote
Old 06-20-2007, 12:05 AM   #9
Elite Member
Thread Starter
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

So this ought to be a bitch and a half huh?
miatamania is offline   Reply With Quote
Old 06-20-2007, 12:19 AM   #10
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Just sand your head off and when you think you're satisfied, check it again i bet you find something that needs more sanding or cleaning. Dust and bugs are you enemy.
cjernigan is offline   Reply With Quote
Old 06-20-2007, 11:08 AM   #11
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

Sanding isn't so bad. Just pay attention to your grits. Generally you want to use the coarsest grit as short a time as you need to and move up. I usually go with the doubling method. Start at 3-400 then go to 800, 1500, and 3000 if you want. or if you got some ugly *** bondo, 150 or even 80.

Also the best way to know your panels are smooth is to get multiple colors of primer. when you're ready to prime, do several coats with a light color and then two more coats with a dark color for example. (the FIRST color should be contrasting your FINAL color) Use the 400 or 800 to cut through the outer primer color and any places that stay dark are low spots you need to fill--either with high build primer or super lightweight body filler/skim coat.

smoov.
y8s is offline   Reply With Quote
Old 06-20-2007, 05:02 PM   #12
Elite Member
Thread Starter
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

hmmmm...multiple color primers I don't have...I'm going to go over it with like a 180-220 to get through the MULTIPLE layers of paint...(Thank you previous owner...)

would 800-1000 be good for a final sand? It doesn't need to be show quality, just...nicer.
miatamania is offline   Reply With Quote
Old 06-21-2007, 11:42 PM   #13
I'm Miserable!

Join Date: Jun 2007
Posts: 22
Total Cats: 0
Default

hmmmm
dedonderosa is offline   Reply With Quote
Old 06-26-2007, 12:56 AM   #14
Elite Member
Thread Starter
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Well, finished the other day, no pics because the car needs to be wet sanded and I think we may just reclear it.

We did it in a garage so when I post pics, don't laugh but I think it turned out pretty good.

I ended up going with 50th Anniversary Corvette Burgandy and painting the rota c8s dark bronze. I have a tan top Pics as soon as this stupid camera wants to work with my computer.
miatamania is offline   Reply With Quote
Old 08-14-2007, 06:50 PM   #15
Elite Member
Thread Starter
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

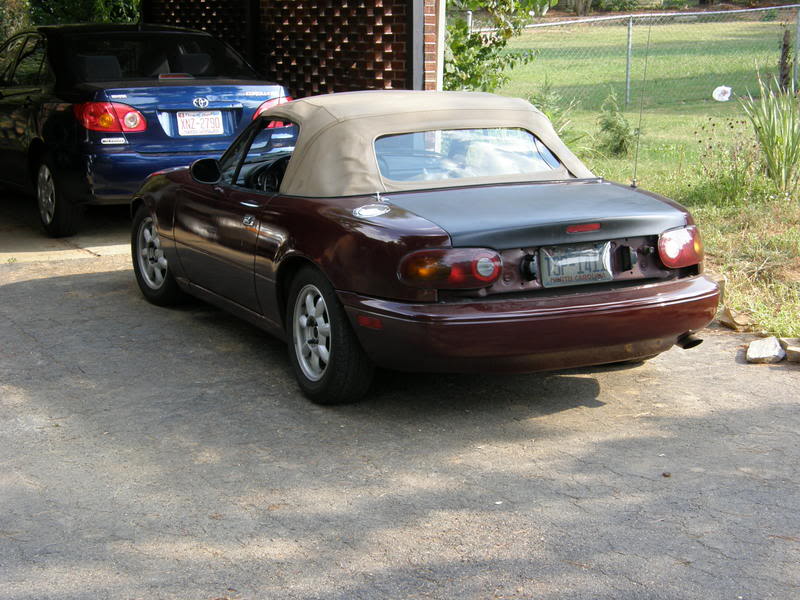

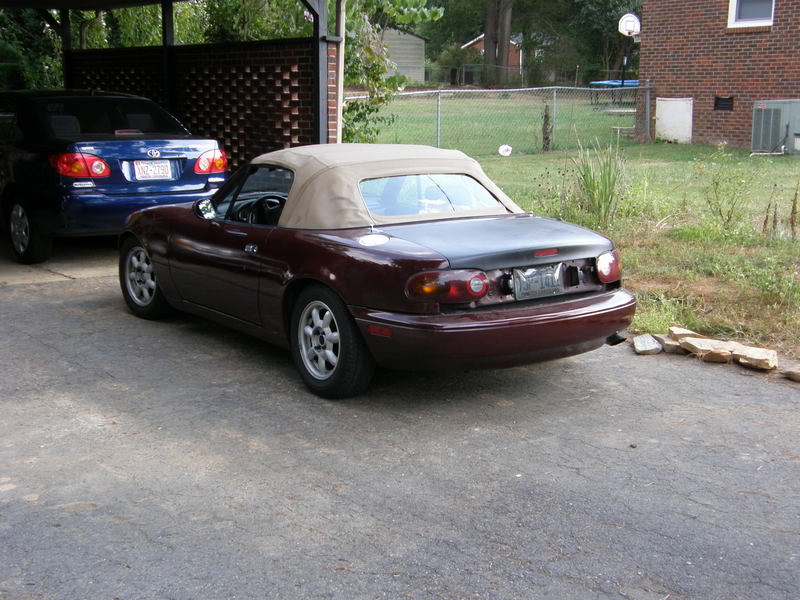

Here ya go guys. She still needs to be wet sanded and parts added, but its better than primer
The black trunk lid is from a mistake...it will be painted body color...but I kinda like it black lol.
Name:  P8100003.jpg
Views: 1
Size:  92.8 KB
Name:  P8100002.jpg
Views: 1
Size:  95.9 KB
Name:  P8100001.jpg
Views: 1
Size:  93.2 KB




I painted it in a garage...so I'm happy with the results. Over christmas break I should have all of my body parts and might respray it...we shall see.
miatamania is offline   Reply With Quote
Old 08-14-2007, 09:06 PM   #16
Junior Member

Join Date: Oct 2006
Posts: 257
Total Cats: 0
Default

looks good. almost thought it was a stock m-edition. lol
shinobix is offline   Reply With Quote
Old 08-14-2007, 09:31 PM   #17
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

The ricers will think the trunk lid is CF when you drive by. Vette anniversary color is nice. You gotta like a paint that a major manufacturer spent a lot of time and money in R & D for a special edition car.
cueball1 is offline   Reply With Quote
Old 08-14-2007, 09:49 PM   #18
Elite Member
Thread Starter
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,173
Total Cats: 5
Default

Quote:
Originally Posted by shinobix View Post
looks good. almost thought it was a stock m-edition. lol
Yeah, I didn't mean for it to come out so close. With clear its less plum than the M...but I really love the color in the sunlight. I have set of 16x7 Rota C8s that I just painted bronze that I'm waiting for tires to come back in stock so I think that'll help it stand out a bit. but yeah it looks like a slammed M.

As for the trunk, yeah...and we all know ricers make the baby jesus cry, but I'm missing a finish panel...so...yeah.
miatamania is offline   Reply With Quote
