Default Patsmx5's Mazda Millenia COPs Install

Ok, I'm gonna catch hell for this. I've stood behind the idea that nobody needs to upgrade to COPs forever. Well, they probably don't...

I had hell getting MS2 to read my stock sensors. I switched to a 36-1 trigger wheel setup and a Ford EDIS4 ignition system because I was tired of having stupid ignition system problems. I just wanted something that worked and worked well. Well, EDIS is working, but I have a ******* miss. I loose spark sometimes on 2 different cylinders, but those two are NOT a pair. I've replaced every piece of the ignition system to no avail.

So I'm upgrading to COPs and I'm gonna let MS fire them instead of the EDIS4 module. I'll still keep the trigger wheel setup as MS2 can read that and it's better than the stock input stuff. If I have a miss after this I'm selling the car.

Now yes I could have bought some toyota COPs but these are Mazda, which is cool in its own way. Plus these came off of the Millenia S, which was SC'd to 14PSI stock, so you know these will work with a boosted motor. And their is not much demand for these so they are usually easy to find.

A while back I bought 4 millenia COPs but never got around to installing them. They are the correct length and fit pretty good. I ended up selling them to Magnamx-5 and he's been running them on his car for a while.

Well I took some measurements and designed the plate that will hold the COPs in place. I made a hold down plate out of cardboard to test fit the design before making on out of aluminum. Now I'm working on making an aluminum version. Oh yeah, and I only have 2 COPs so I can't make the switch till I get two more. Working on that.

Pics of progress.

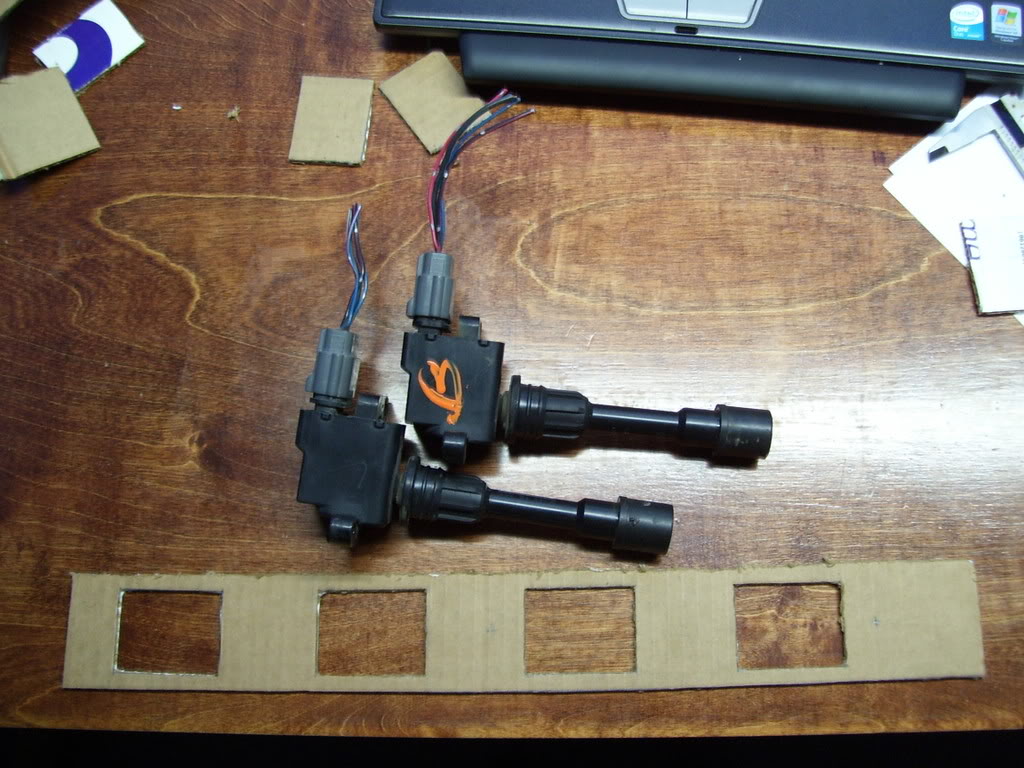

Name:  100_1344.jpg
Views: 4
Size:  146.1 KB

Name:  100_1345.jpg
Views: 4
Size:  52.1 KB

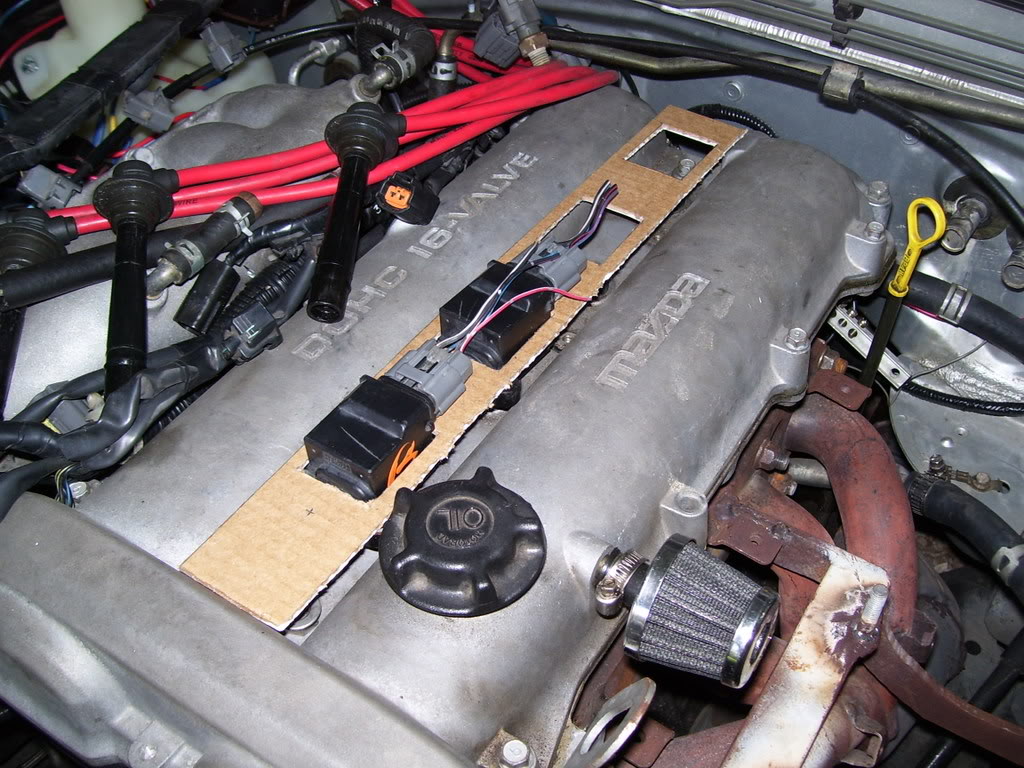

Name:  100_1347.jpg
Views: 4
Size:  177.7 KB

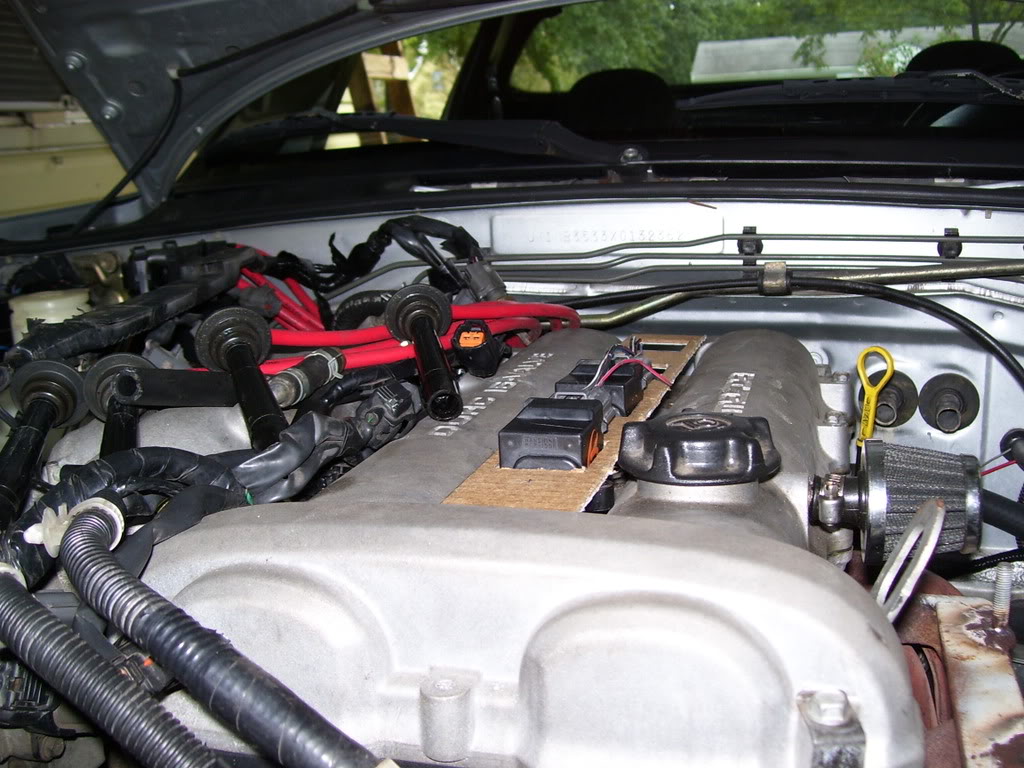

Name:  100_1348.jpg
Views: 5
Size:  149.5 KB

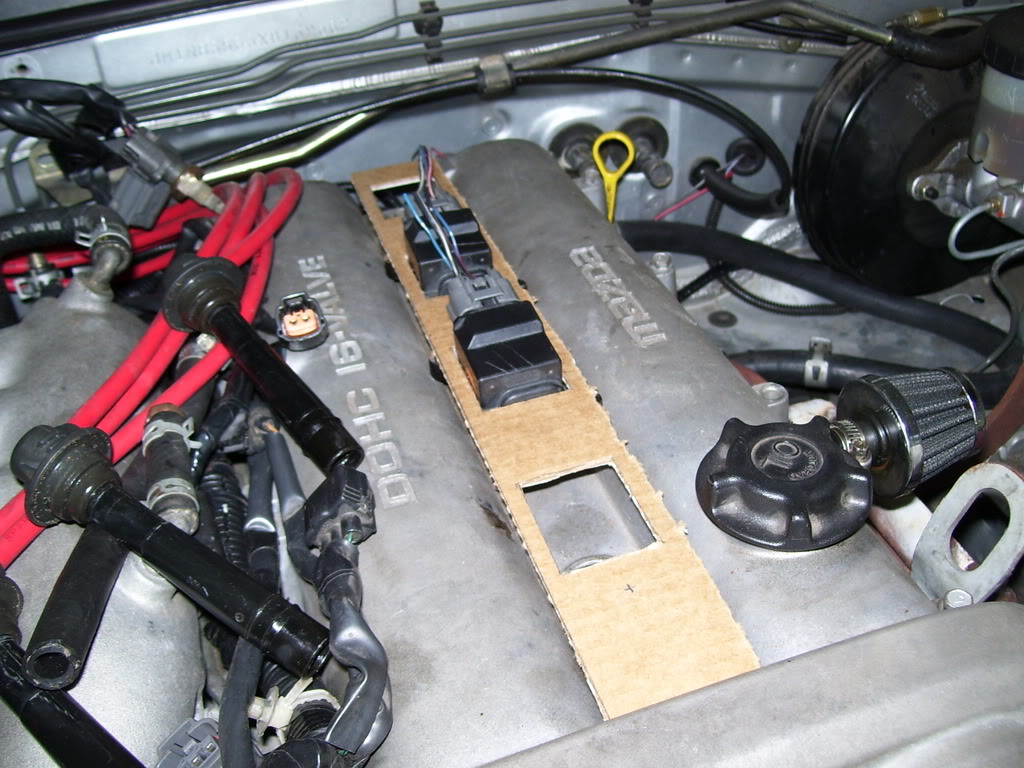

Name:  100_1353.jpg
Views: 4
Size:  151.2 KB

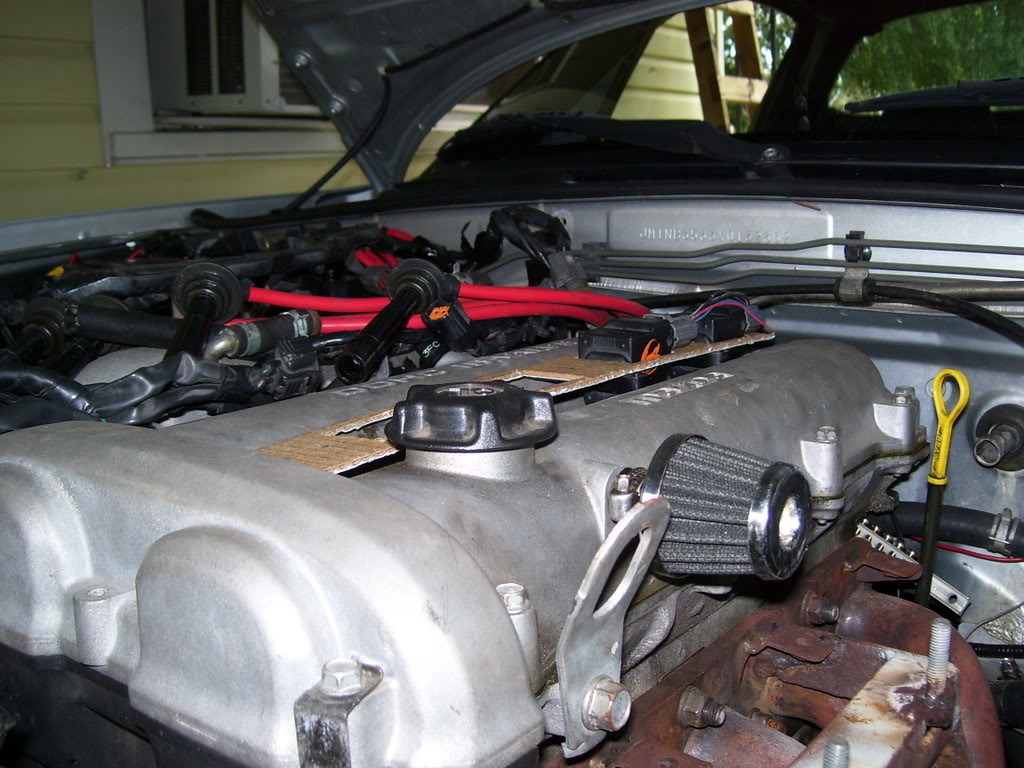

Name:  100_1357.jpg
Views: 4
Size:  142.9 KB
patsmx5 is offline   Reply With Quote
Old 09-05-2008, 08:24 PM   #2
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

good stuff... looks great.

May I also suggest a new coat of high gloss black on the tops of them?
Arkmage is offline   Reply With Quote
Old 09-05-2008, 08:29 PM   #3
Senior Member
iTrader: (7)

Join Date: Mar 2005
Location: VT
Posts: 939
Total Cats: 0
Default

You know that if your only using two that 2-3 fire together, right??? car might run better using 1,3 or 2,4.

Props for converting the BP to a two cylinder, what kind of MPG's are shooting for?

Personally I would have painted the brackets red or black, brown looks so out of place.

Hope you find your miss...
Jefe is offline   Reply With Quote
Old 09-05-2008, 08:58 PM   #4
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

how long do you think the cardboard will last?
Stealth97 is offline   Reply With Quote
Old 09-05-2008, 09:07 PM   #5
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Arkmage View Post
good stuff... looks great.

May I also suggest a new coat of high gloss black on the tops of them?
You're saying paint the coilpacks? I was planning on painting the bracket black when I got it done. Guess I could paint the coils to match. Hmm... Oh, and I'd like to one day paint the valve cover crinkle red, like the MSM motor. Wonder how crinkle red and gloss black would look? I dunno.
patsmx5 is offline   Reply With Quote
Old 09-05-2008, 09:14 PM   #6
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Jefe View Post
You know that if your only using two that 2-3 fire together, right??? car might run better using 1,3 or 2,4.

Props for converting the BP to a two cylinder, what kind of MPG's are shooting for?

Personally I would have painted the brackets red or black, brown looks so out of place.

Hope you find your miss...
Look Jefe, I don't want to discuss this right now. I've told you a thousand times firing cylinders 2&3 only would be better. So far it's getting pretty bad mileage. And it SMOKES. I might have to try removing the other two fuel injectors since I'm not sparking those cylinders. And you know brown's my favorite color.

I hypothesize that my custom MSD low ohm sparkplug wires are the cause of my misfire. I really don't know, but changing everything else didn't fix it, so that's kinda all that's left. But overall I'm not satisfied with EDIS as I can't set a rev limiter, or have launch control or flatshift. Sucks. I miss launch control.

Dunno how well the cardboard will hold up, but it did fine for insulating header.
patsmx5 is offline   Reply With Quote
Old 09-05-2008, 11:58 PM   #7
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

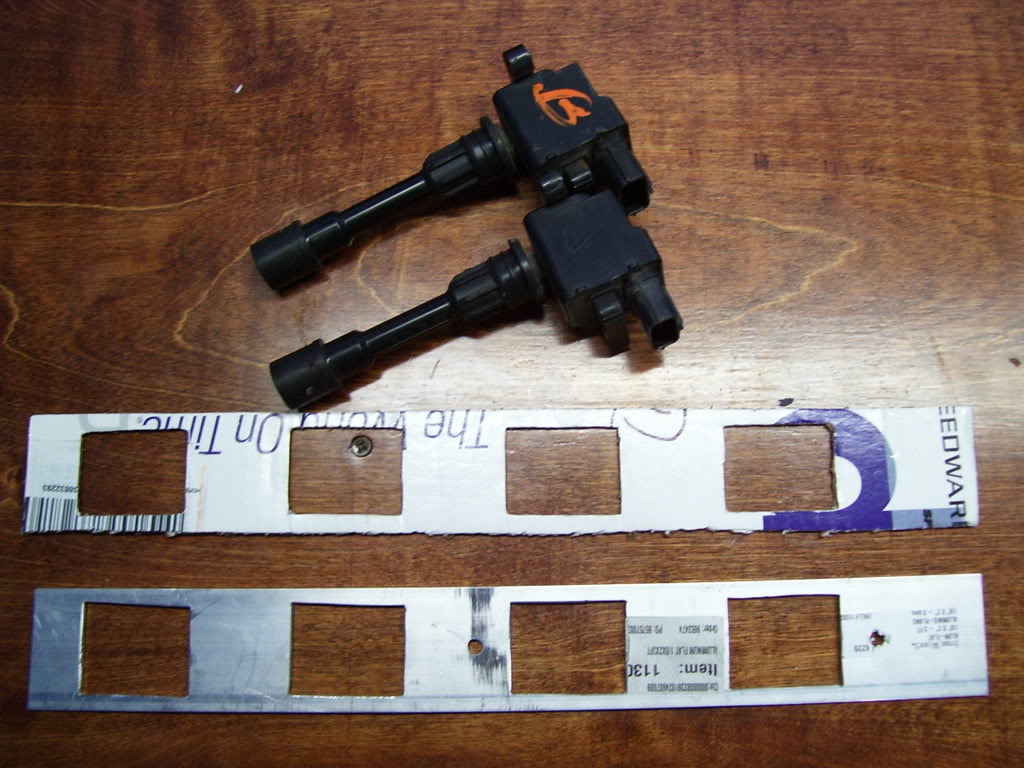

Got the aluminum thing made. Took forever. I wanted to make it from 3" x 1/8 aluminum bar stock, 2" was the widest lowes had. So I bought that. What sucks is it's only got a 1/4" of meat on either side where the coils are. But it will probably work. It doesn't do **** really, just sits there and looks good. Well, it didn't turn out pretty so scratch the last part. Oh well, maybe it will look better when I don't have a miss.

Name:  100_1360.jpg
Views: 4
Size:  143.2 KB

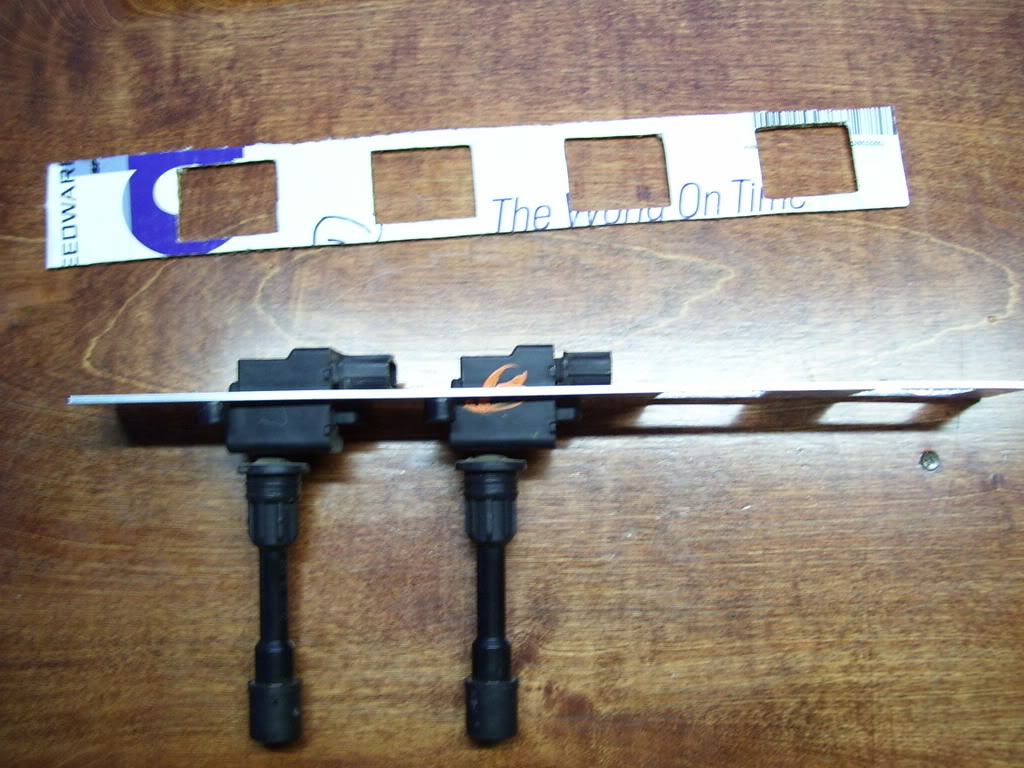

Name:  100_1359.jpg
Views: 4
Size:  141.4 KB

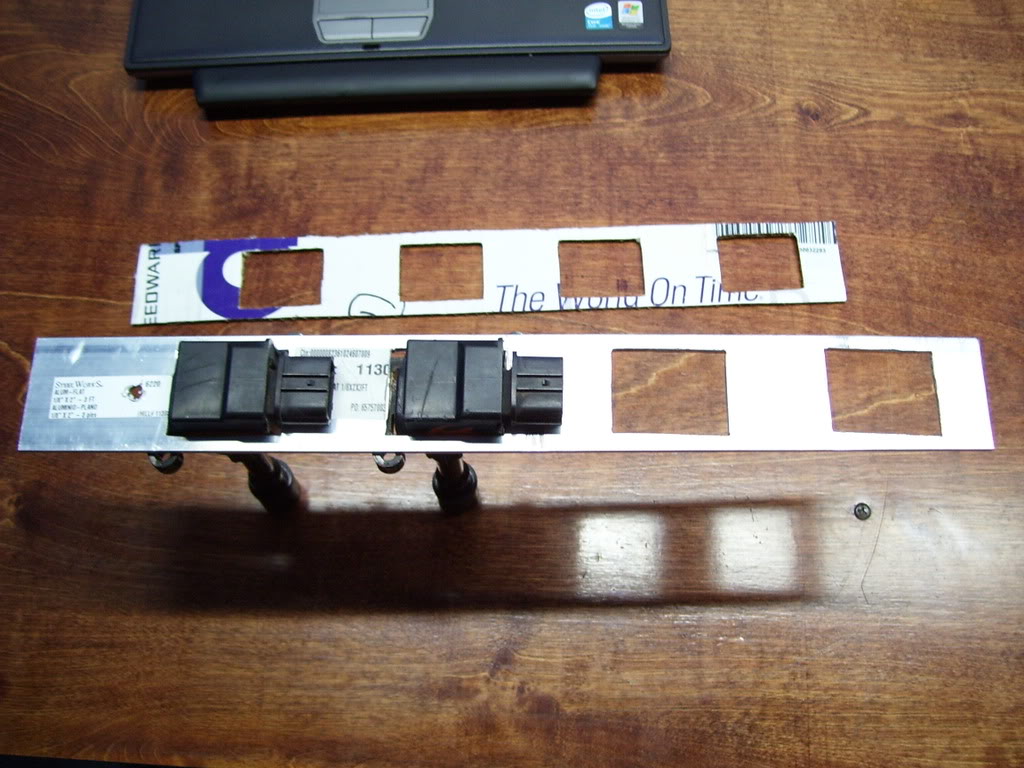

Name:  100_1358.jpg
Views: 4
Size:  133.2 KB
patsmx5 is offline   Reply With Quote
Old 09-06-2008, 12:04 AM   #8
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

I used a 3/8" drill bit and a jig saw to cut those squares out. Had the work clamped to my desk they are sitting on. Poor desk. I'm definitely gonna make one from 3" eventually. Needs to be bigger I think. Anyone know where to pick up 3" wide aluminum barstock? I know I could buy it on ebay, but hate to.
patsmx5 is offline   Reply With Quote
Old 09-06-2008, 02:34 PM   #9
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Opinions needed: I'm not liking the bracket I made that's pictured above. I could make one from 3" , even that would look dumb IMO. I would rather, and am considering, putting 8 standoffs on the valve cover, drill and tap them, and bolt the coil packs down like they were fastened OEM.

Problem is, like most, I am TIGless. So maybe I could get a welder to do it, but that would be money and I'm trying not to spend a lot of that. So does anyone have any ideas how to mount these things using standoffs?

My thinking is use some 1/2" aluminum square stock. I'll have to cut it into .825" lengths so that the coil packs sits right when bolted to it. Since I don't have a welder, I'm thinking about JB Welding it. I know, ghetto. But it will probably work. What I'm thinking is to JB it, sand it down smooth, so that the shape of looks like it was cast that way, and prime and paint the VC. Then, if done right, it might look OEM, like it was meant to be there. Thoughts?
patsmx5 is offline   Reply With Quote
Old 09-06-2008, 03:05 PM   #10
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

Why not just drill & tap the valve cover, then thread the hardware down into it? Use a jam nut technique at the bottom and it should not come undone.
Joe Perez is offline   Reply With Quote
Old 09-06-2008, 03:11 PM   #11
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

What's the stock dwell for these cops?

Can we get a side-by-side comparison shot of the millenia cop and a miata plug wire (same section) to see the relation of well depth?
m2cupcar is offline   Reply With Quote
Old 09-06-2008, 03:53 PM   #12
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Here's some pics I just took too answer M2cupcar's questions. (what's your name?) I don't know about the dwell aspect. Wait, I think I read these automatically adjust dwell. I think I read that. Let me look it up. FWIW magnamx-5 has been running these on his 1.6 with no problems.

Joe, I thought about that. I dismissed that idea because those 8 threaded holes could leak oil. However, it's looking like dealing with a potential oil leak will be much much easier than making standoffs. Lowes has no square stock.

I don't understand exactly what you were saying though. Are you saying put studs and have them thread in and use a jam nut to keep them from coming out?

Hell, I could do this several ways.

  • Drill a hole, tap it, screw in a stud, jam nut it, drop COP on, use nuts to fasten it.
  • Drill a hole, tap it, drop the COP on and screw in a bolt to fasten it.
  • Drill a hole, flip the valve cover over and install a bolt so that the threaded part of the bolt sticks up. Then use a washer/jam nut to keep the bolt in place, drop COP on, install nuts to fasten it.
  • Drill a hole, tap it, screw in a bolt from the bottom side so that the threaded part of the bolt sticks up, Then screw on a washer/jam nut to keep the bolt in place, drop COP on, install nuts to fasten it.
Threading the hole would definitely be the way to go most likely, though I may only get a few threads out of the valve cover cause it's likely pretty thin. Still, that would help keep oil from leaking. Perhaps a combination of threading the holes and using Teflon or a thread locker designed to seal oil ( I know they make this, there's the answer) would be the best approach.

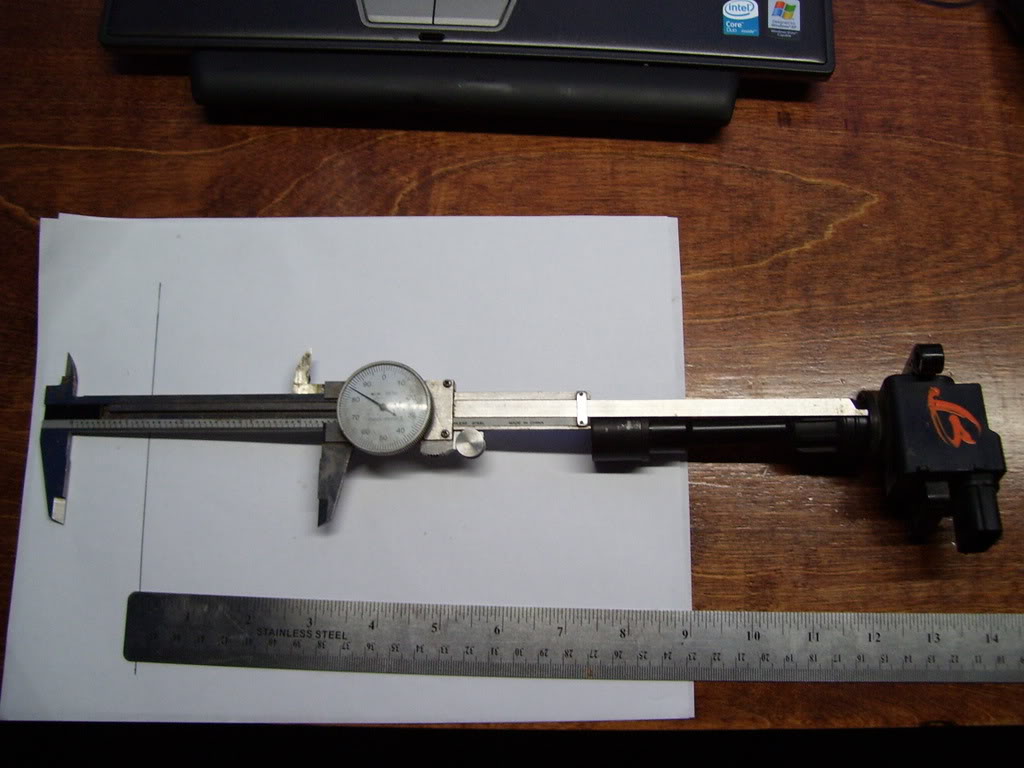

Millenia COP
Name:  100_1361.jpg
Views: 4
Size:  98.2 KB

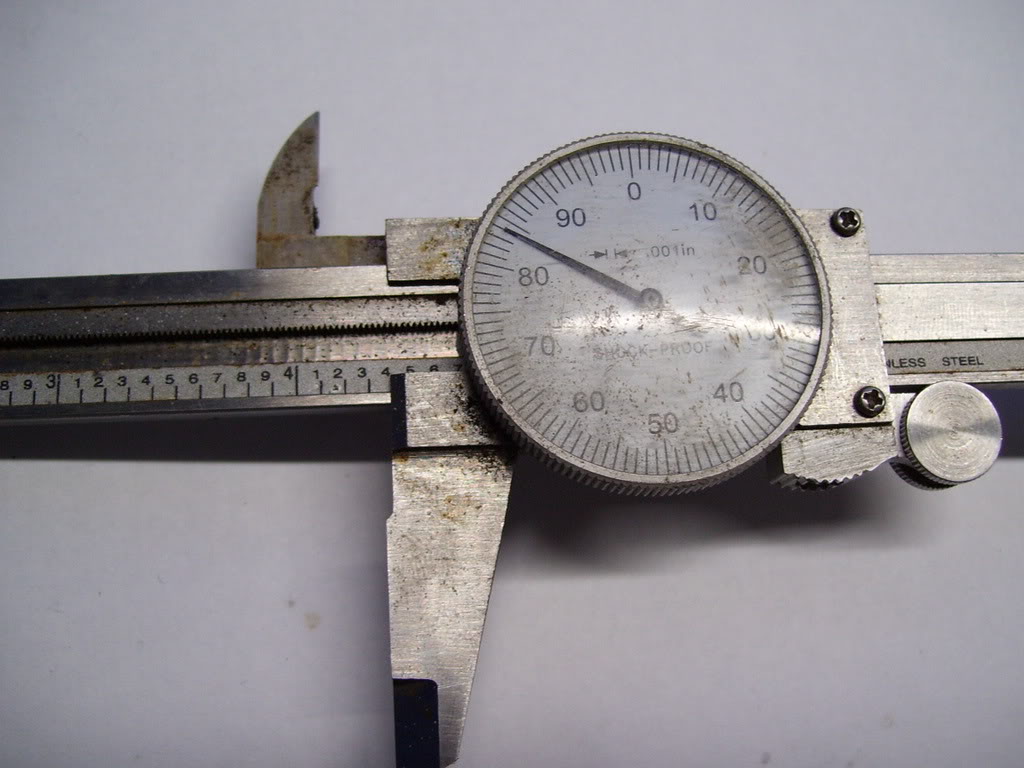

Millenia COP depth
Name:  100_1363.jpg
Views: 4
Size:  101.9 KB

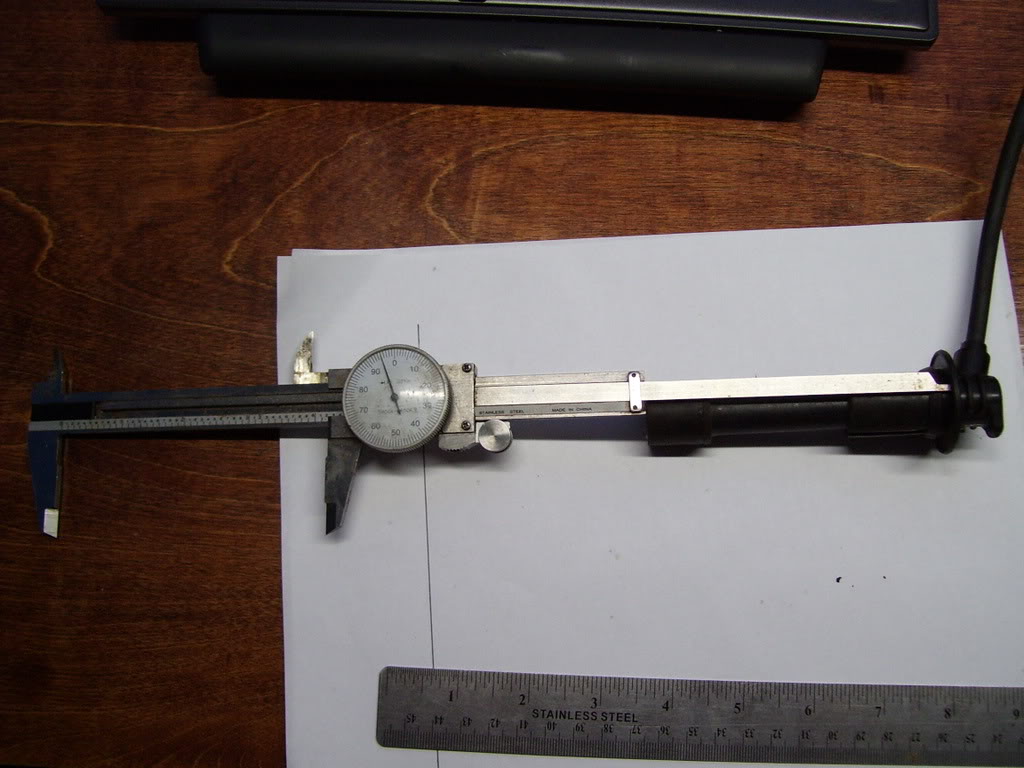

Miata plug
Name:  100_1366.jpg
Views: 4
Size:  100.7 KB

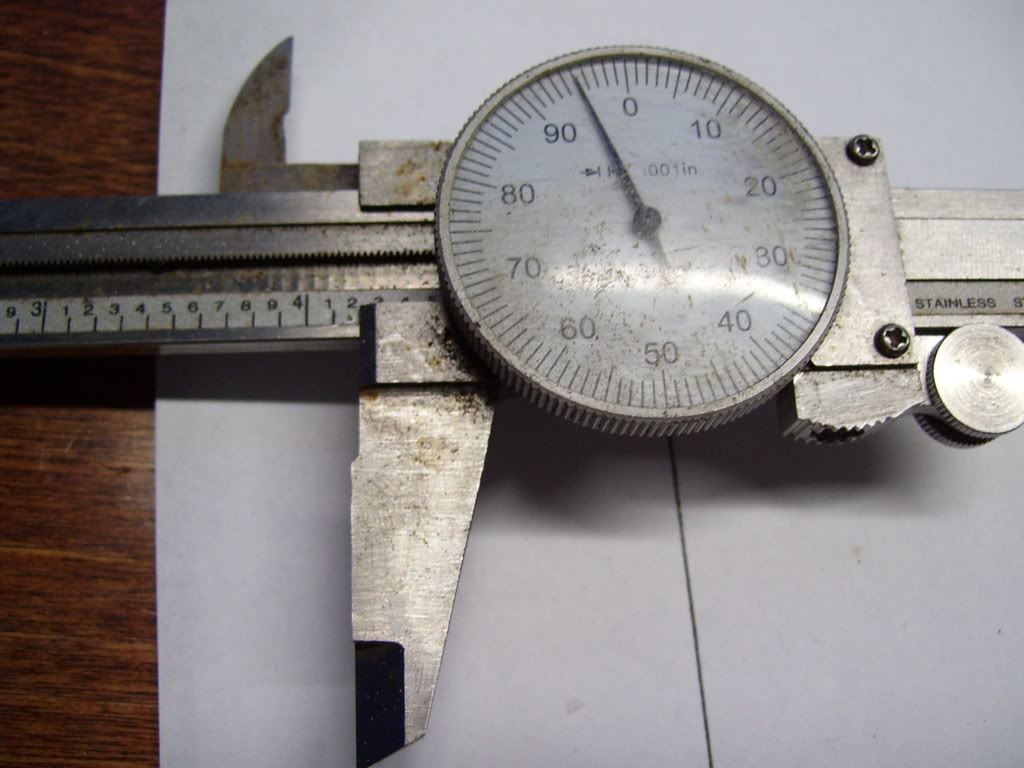

Miata plug depth
Name:  100_1367.jpg
Views: 4
Size:  93.5 KB

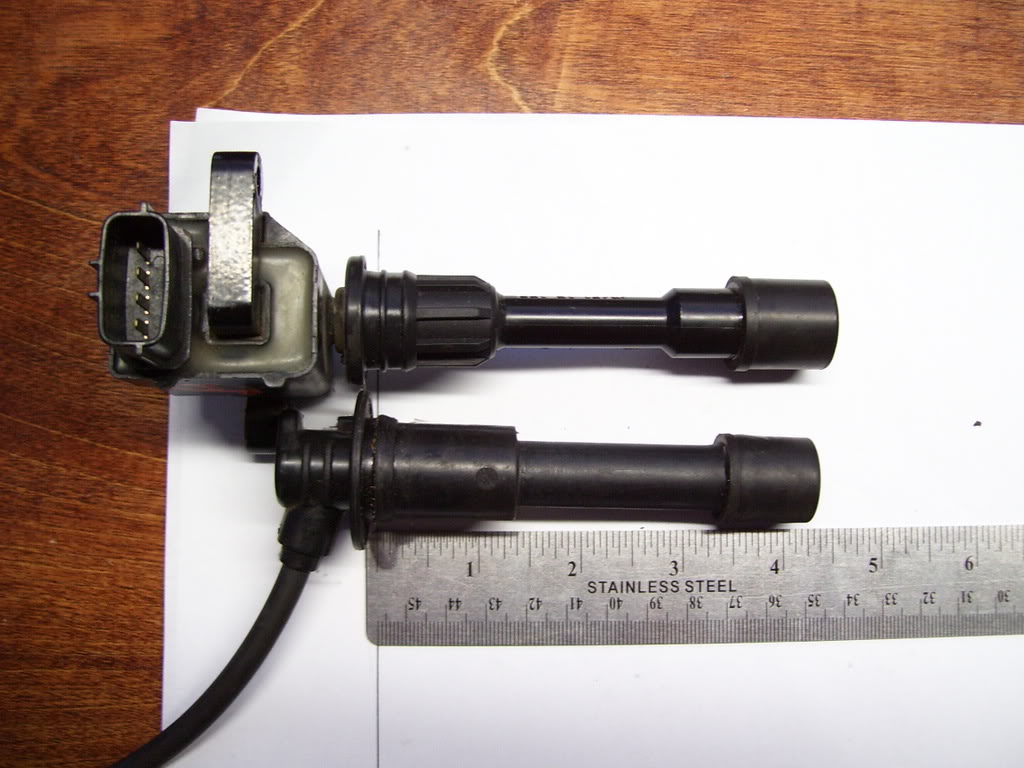

Side by side
Name:  100_1368.jpg
Views: 4
Size:  117.8 KB

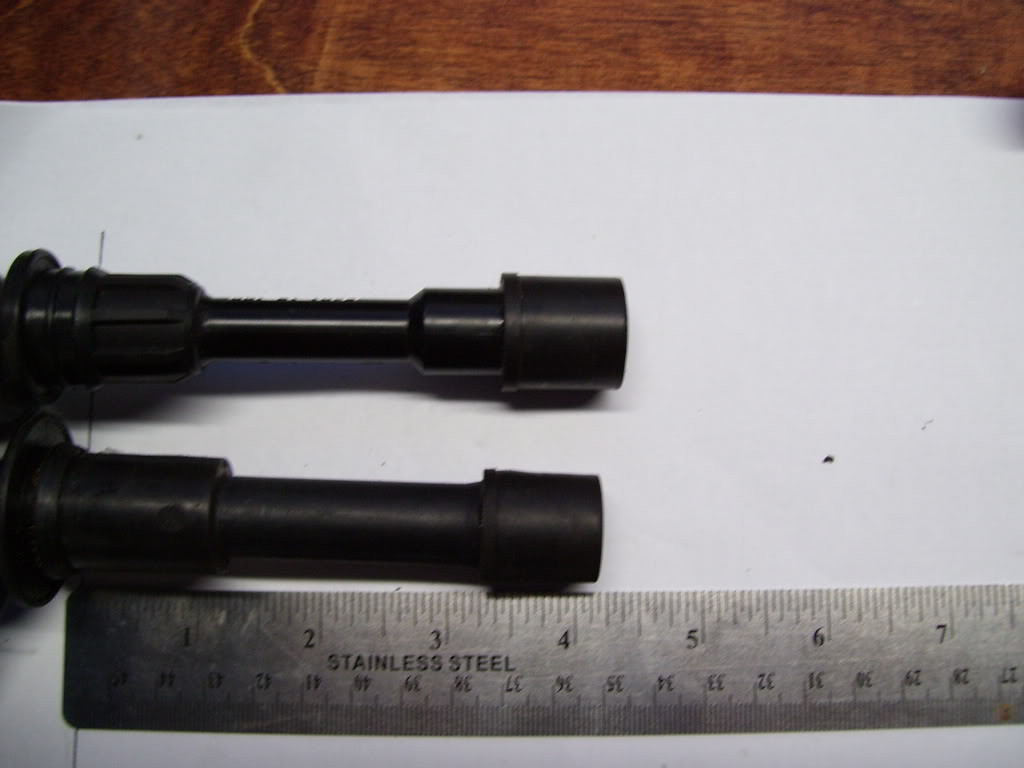

Side by side
Name:  100_1369.jpg
Views: 4
Size:  61.8 KB
patsmx5 is offline   Reply With Quote
Old 09-06-2008, 04:15 PM   #13
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Ok, the dwell is NOT automatically controlled by the COP. The ECU on the millenia controlled dwell. But I don't know what numbers it used.
patsmx5 is offline   Reply With Quote
Old 09-06-2008, 04:37 PM   #14
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

jesus christ clean your calipers
curly is offline   Reply With Quote
Old 09-06-2008, 04:44 PM   #15
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Yeah, it's pretty bad. Need to clean it up. It's only 2 years old. It's had a rough life.

The holes in the COPs for the bolts to pass through measure .253" So a 1/4 x 20 stud would work.
patsmx5 is offline   Reply With Quote
Old 09-06-2008, 04:58 PM   #16
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

Quote:
Originally Posted by patsmx5 View Post
I used a 3/8" drill bit and a jig saw to cut those squares out. Had the work clamped to my desk they are sitting on. Poor desk. I'm definitely gonna make one from 3" eventually. Needs to be bigger I think. Anyone know where to pick up 3" wide aluminum barstock? I know I could buy it on ebay, but hate to.
How long, and how thick? I may be able to pull a piece from the scrap bin at work.

If aluminum isn't available, would you like stainless? I'm pretty sure there's some .06 or .08 thick ss pieces. A bit harder to work with, but it'll polish up real pretty.
rleete is offline   Reply With Quote
Old 09-06-2008, 05:03 PM   #17
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by rleete View Post
How long, and how thick? I may be able to pull a piece from the scrap bin at work.

If aluminum isn't available, would you like stainless? I'm pretty sure there's some .06 or .08 thick ss pieces. A bit harder to work with, but it'll polish up real pretty.
1/8" x3" x16" would work. SS would work, but definitely harder to work with. Oh, I hate cutting SS. I'm gonna try bolting them I do believe, but if that doesn't work I may need some 3" stock. Thanks!
patsmx5 is offline   Reply With Quote
Old 09-06-2008, 05:08 PM   #18
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 560
Default

I'll see what I can find. I'm not going in until monday, so remind me if you haven't heard in a couple of days. PM me your shipping address.
rleete is offline   Reply With Quote
Old 09-07-2008, 01:58 PM   #19
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

"Heeeyyy Joe. I heard you shot your old lady down. Shot her down-to-the-ground."

Hey Joe, you think the stud idea will work? Wanna elaborate on what you said earlier?
patsmx5 is offline   Reply With Quote
Old 09-07-2008, 02:50 PM   #20
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Delicious and Moist.
Posts: 26,327
Total Cats: 1,926
Default

I was trying to find a picture that showed that part of it... I can't find any "in-process" pics from my install. But I didn't drill the VC itself.

What I did was to take a piece of aluminum flat stock, about 1.25" wide x 3/16" thick. I got it from Lowes. I drilled out large circular holes for each plug, and then three smaller holes to match the three long bolts that hold the VC onto the head in the center galley.

Ok, now I drilled one small hole beside each plug hole, and then countersunk it from the bottom. Upwards through each hole I ran a 1/4-20 bolt, with a countrsunk socket head. Back on top, two low-profile 1/4-20 nuts hold it in place. Now, the coil slides down over the bolt, and one nut on top locks it in place.

I'll try to draw a picture when I'm back at the big computer. Can't draw for **** on this laptop. This is what it looks like from the top:




Take a look here: https://www.miataturbo.net/forum/sho...&postcount=153 It's basically identical to mine, except I didn't have the capacity to press-fit the stud, hence the bolt and countersink.
