Old 01-13-2009, 08:47 PM   #21
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

pats,

1) What pigtail does this thing use?

2) Send me one coil, I'll measure its required dwell vs. battery voltage, as well as its output energy/voltage.
JasonC SBB is offline   Reply With Quote
Old 01-13-2009, 09:45 PM   #22
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

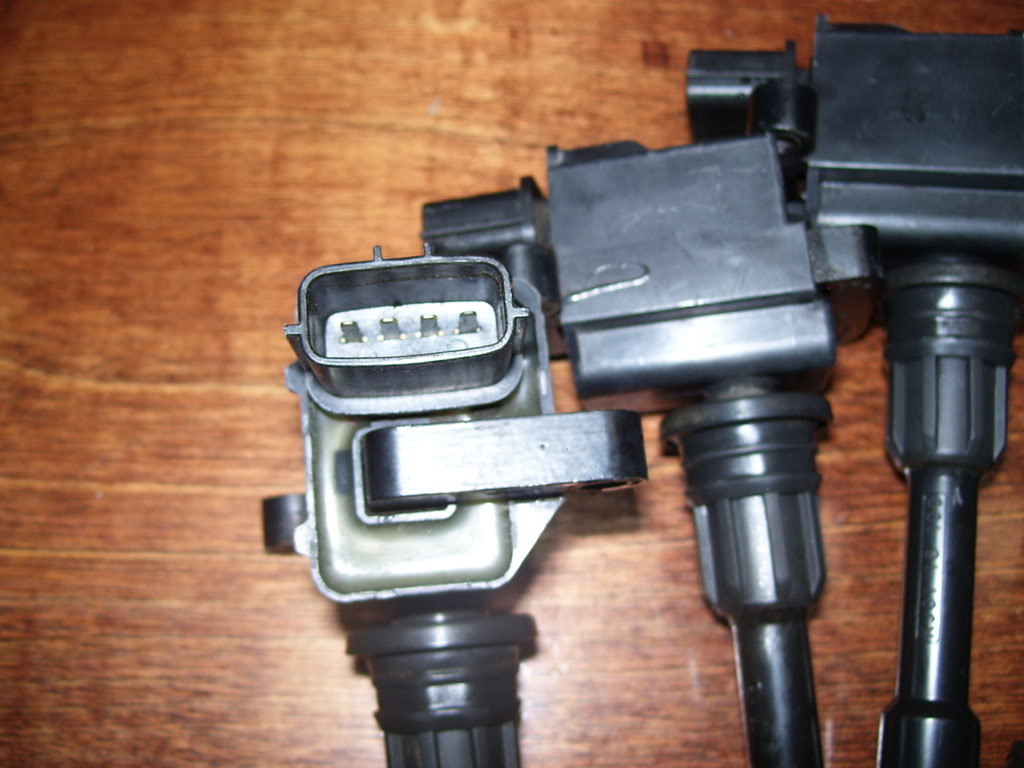

Got 5 more coils and 4 more plugs. Here's a few pics Jason. I dunno what kind of plug it is, but here's what it looks like. I'll definitely take you up on that offer.

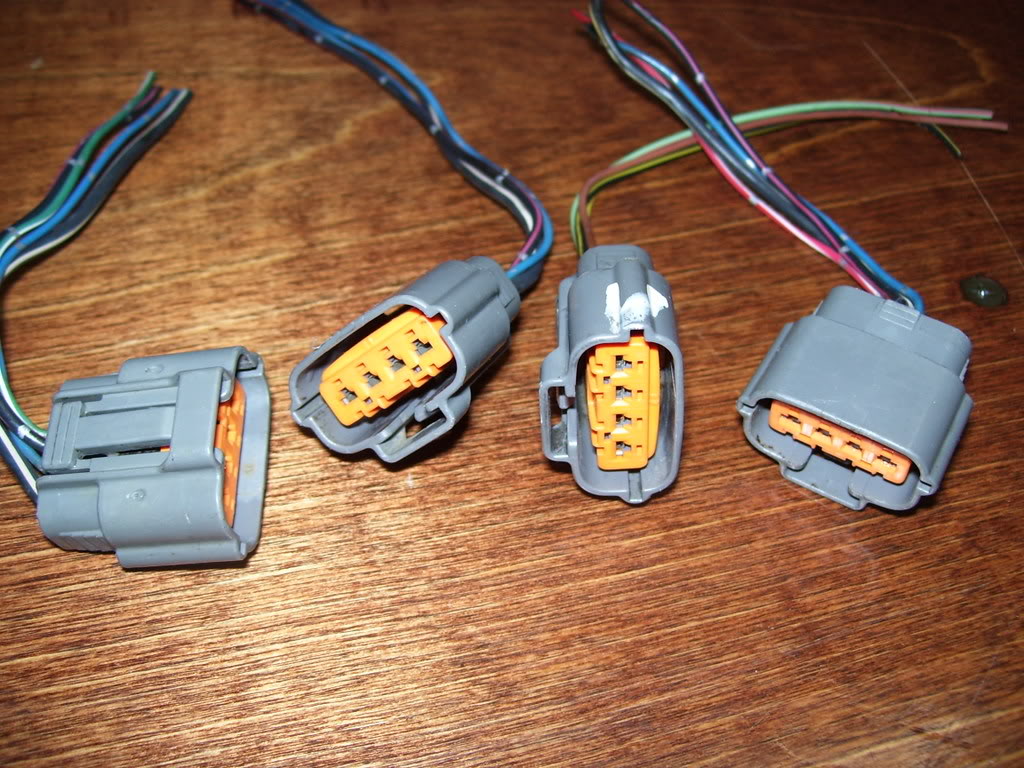

Name:  100_2037.jpg
Views: 3
Size:  176.1 KB

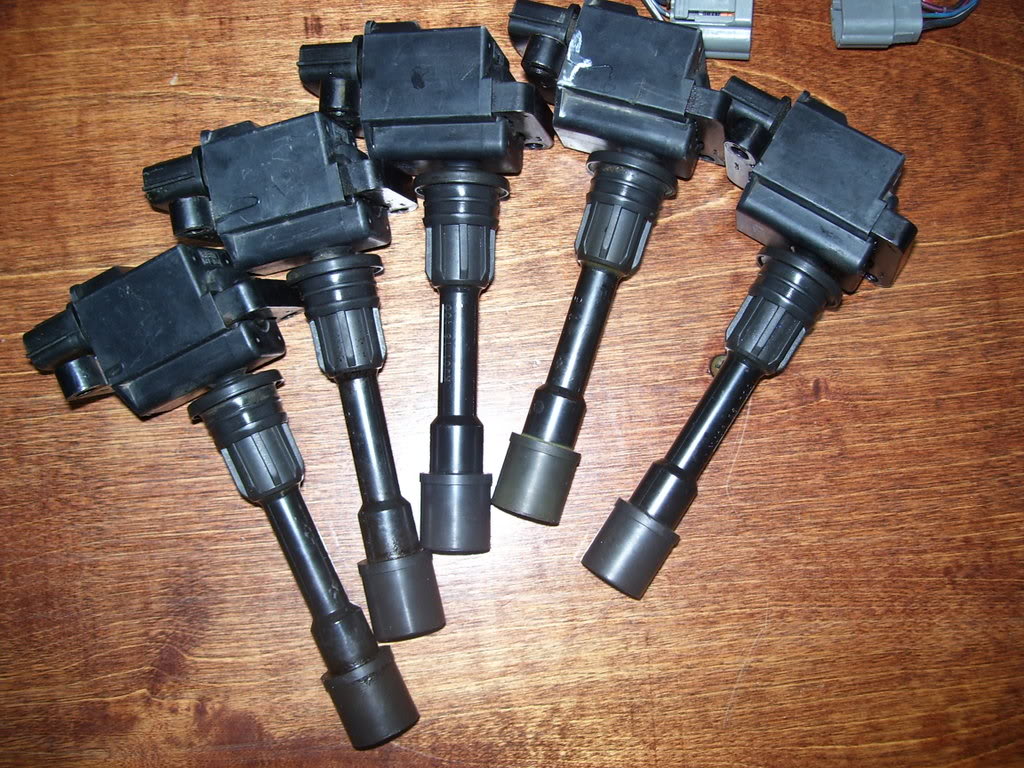

Name:  100_2038.jpg
Views: 4
Size:  199.9 KB

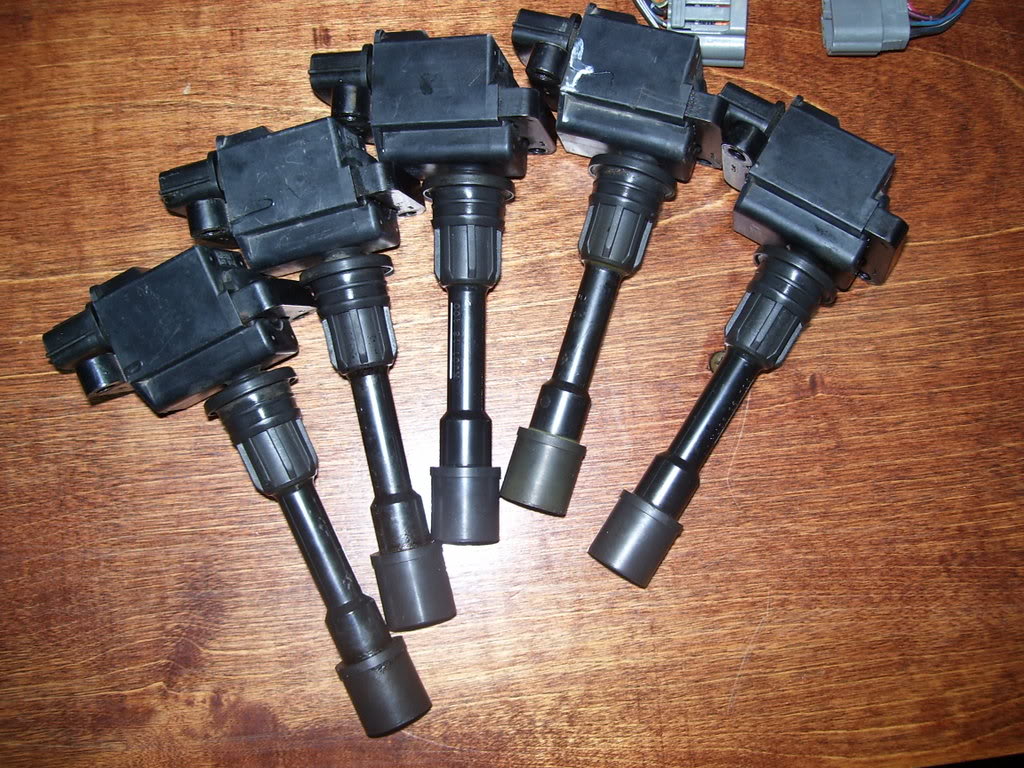

Name:  100_2039.jpg
Views: 3
Size:  201.7 KB

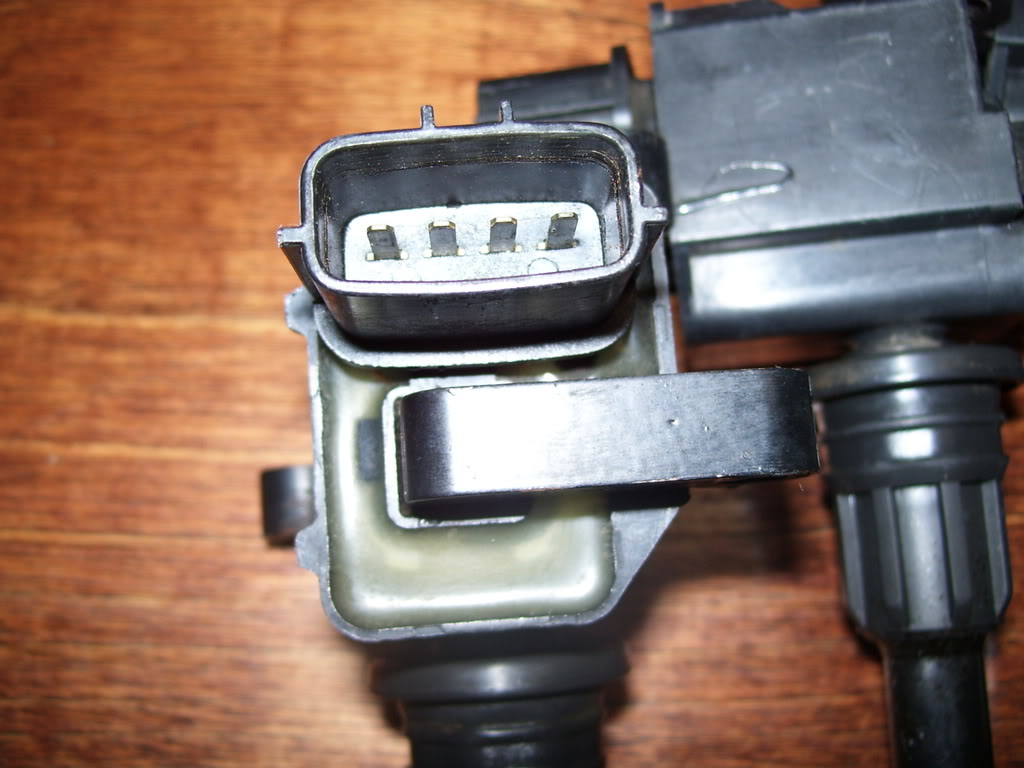

Name:  100_2040.jpg
Views: 3
Size:  92.3 KB

Name:  100_2041.jpg
Views: 3
Size:  88.1 KB
patsmx5 is offline   Reply With Quote
Old 01-13-2009, 09:51 PM   #23
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

If you send me a coil include the pigtail and give me the pinout.
JasonC SBB is offline   Reply With Quote
Old 01-14-2009, 12:07 AM   #24
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

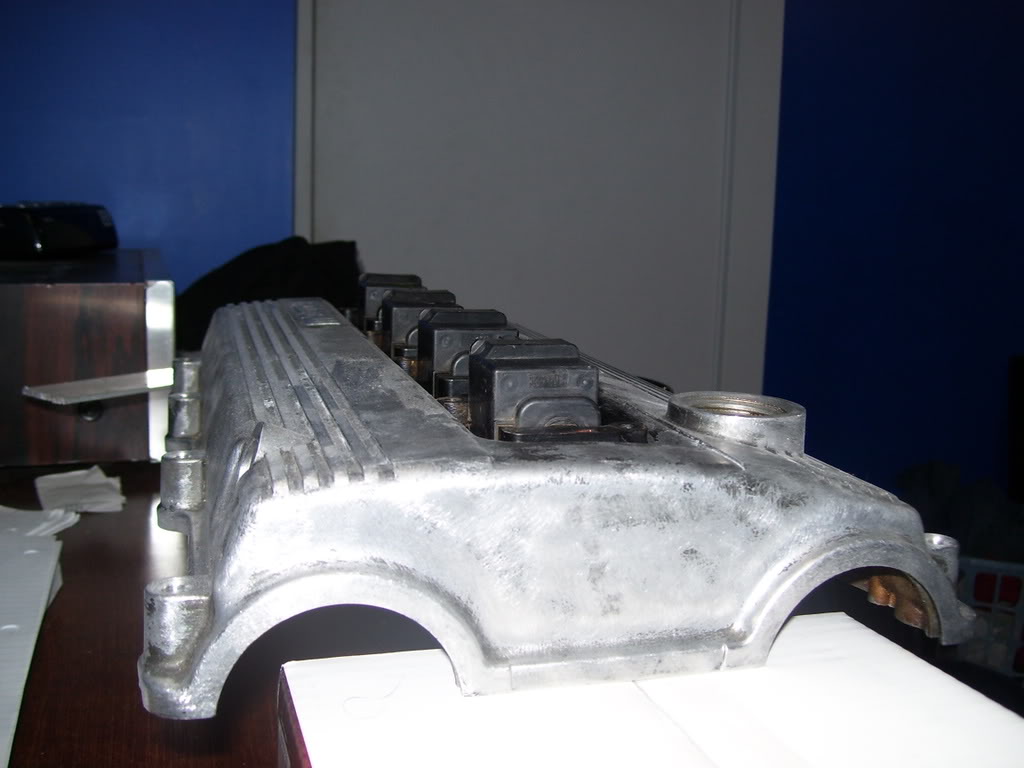

Might use this valve cover:

Name:  100_2047.jpg
Views: 3
Size:  76.4 KB

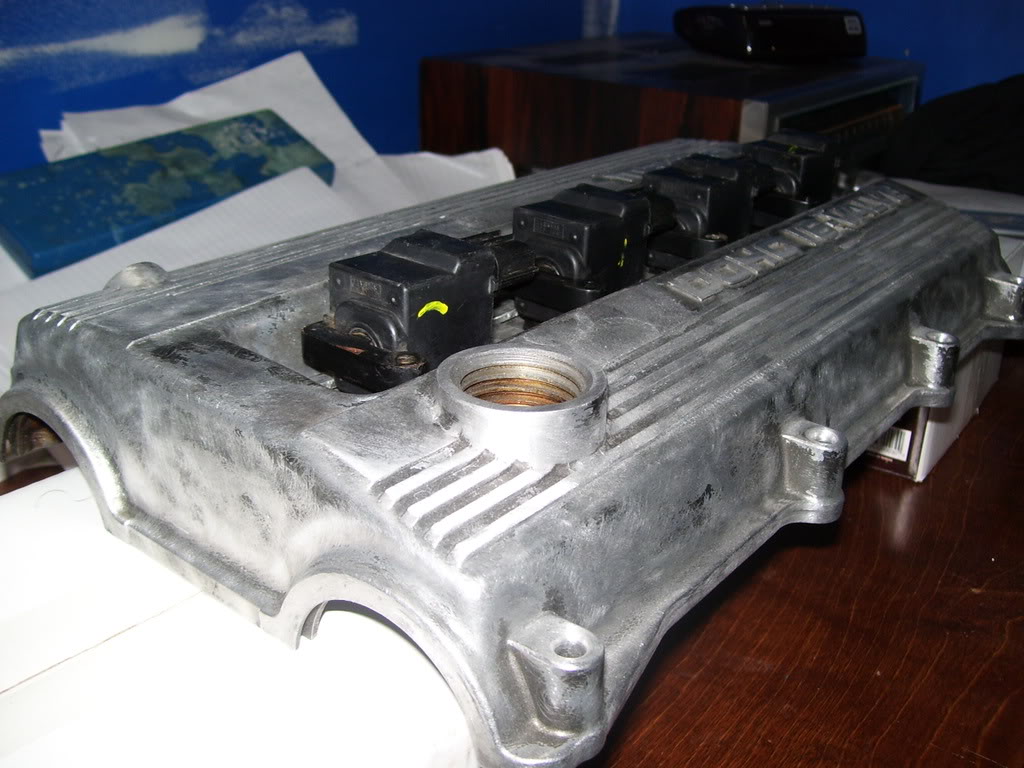

Name:  100_2057.jpg
Views: 3
Size:  125.9 KB

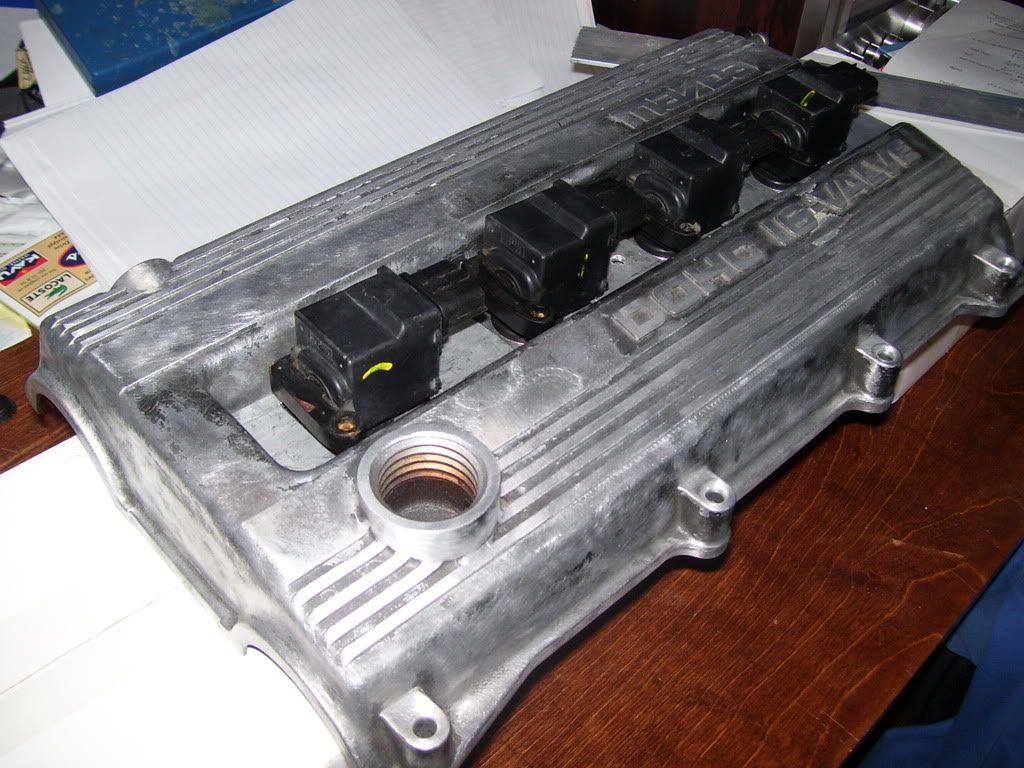

Name:  100_2058.jpg
Views: 4
Size:  155.9 KB
patsmx5 is offline   Reply With Quote
Old 01-14-2009, 10:54 AM   #25
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

If I was in your shoes I would just drill the valve cover for mounting studs.
Saml01 is offline   Reply With Quote
Old 01-14-2009, 11:53 AM   #26
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Saml01 View Post
If I was in your shoes I would just drill the valve cover for mounting studs.
I may. If I turn them more at an angle that could easily be done. Only thing I worry about is it leaking oil. But it would probably be fine.
patsmx5 is offline   Reply With Quote
Old 01-17-2009, 12:48 AM   #27
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Saml01 View Post
If I was in your shoes I would just drill the valve cover for mounting studs.

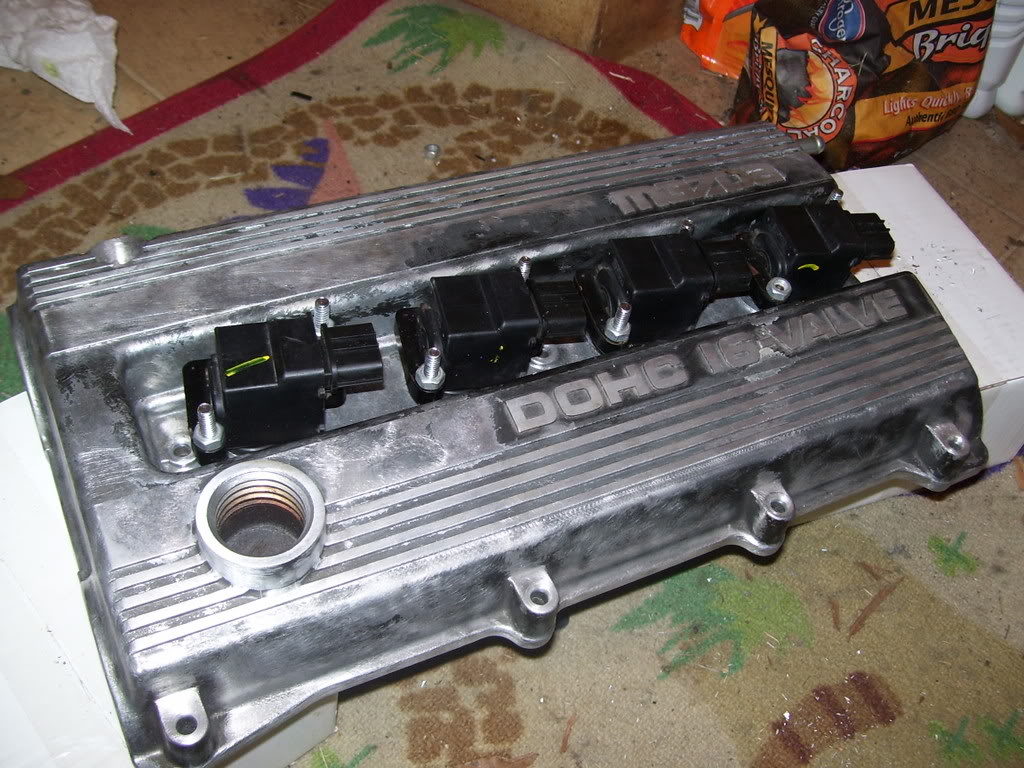

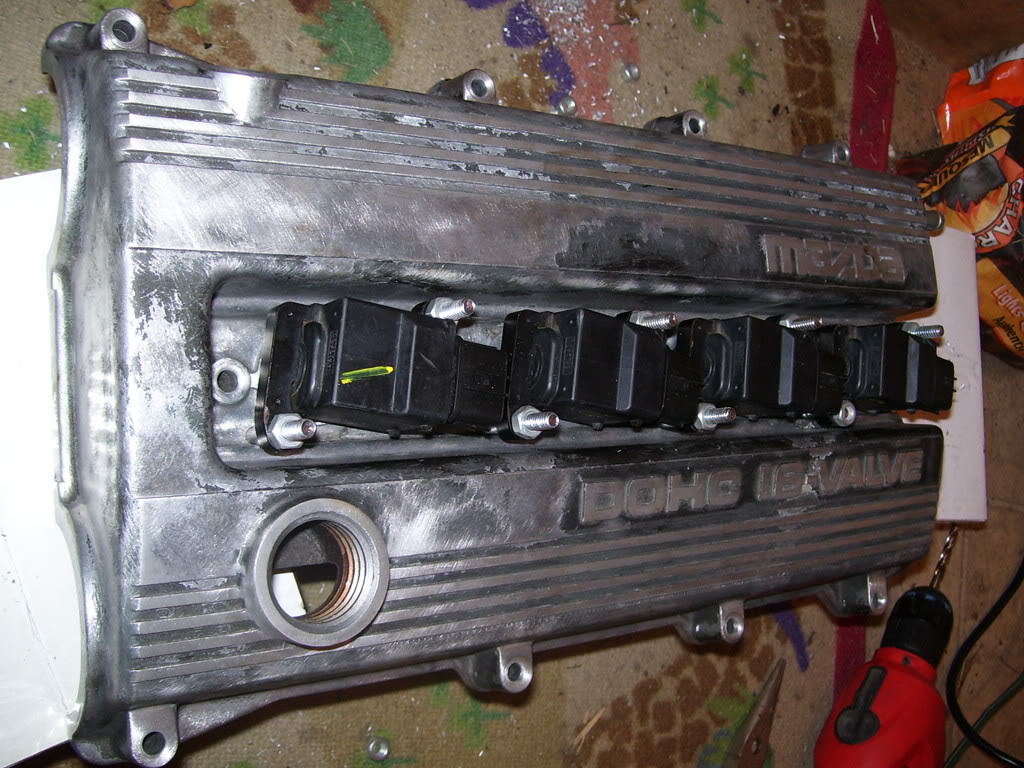

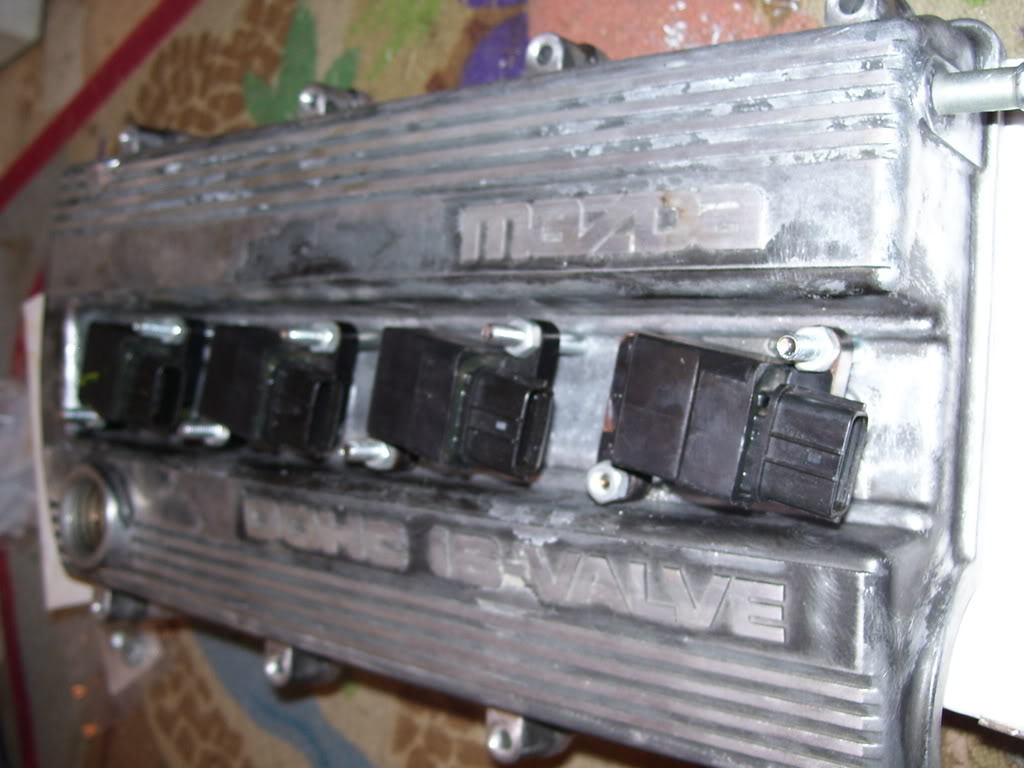

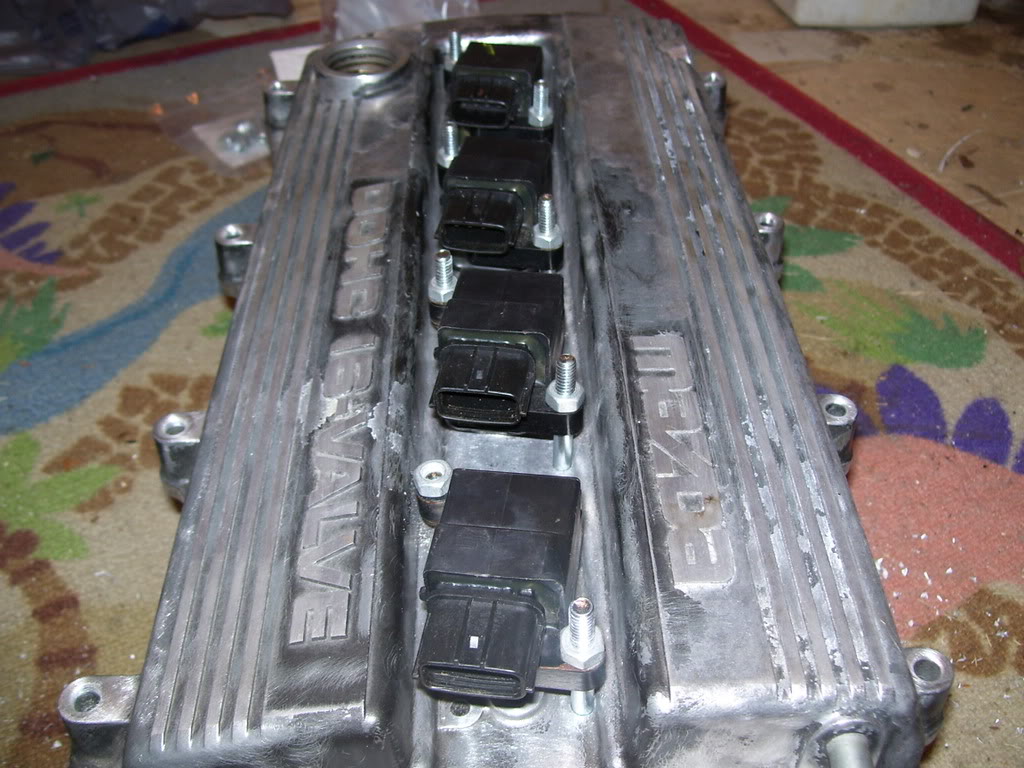

Good idea.

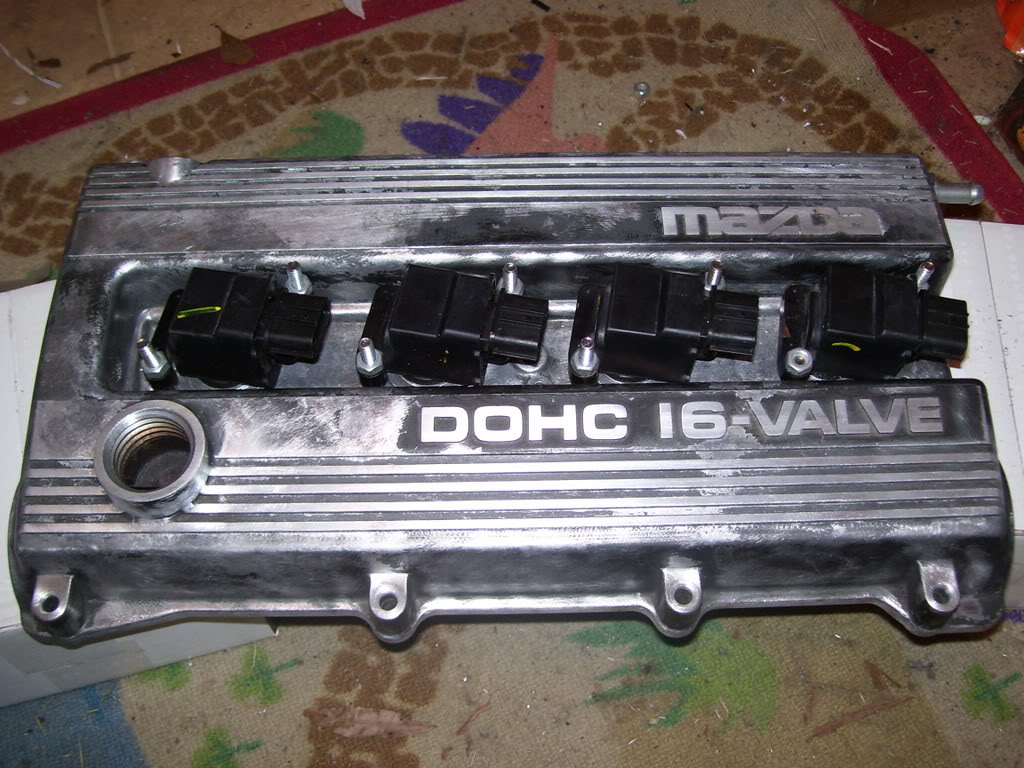

Name:  100_2069.jpg
Views: 4
Size:  165.1 KB

Name:  100_2070.jpg
Views: 4
Size:  174.4 KB

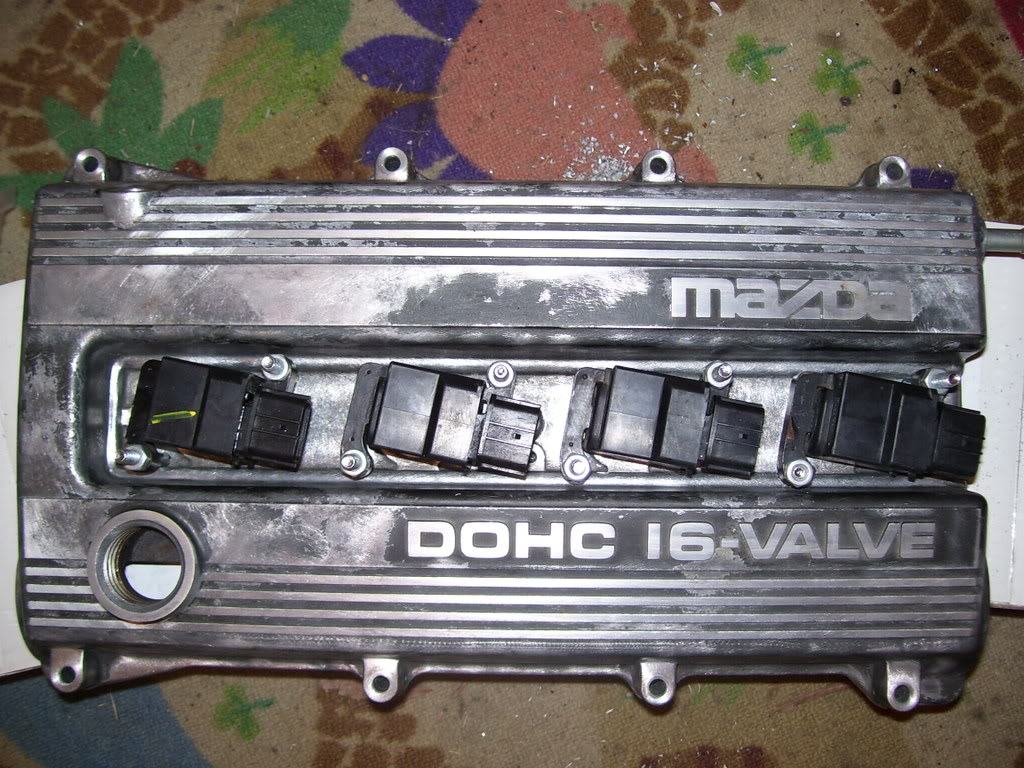

Name:  100_2076.jpg
Views: 3
Size:  184.3 KB

Name:  100_2073.jpg
Views: 3
Size:  93.7 KB

Name:  100_2072.jpg
Views: 3
Size:  147.4 KB

Name:  100_2077.jpg
Views: 4
Size:  170.9 KB
patsmx5 is offline   Reply With Quote
Old 01-17-2009, 01:12 AM   #28
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Pat, Did you drill/tap for studs or throw bolts from the bottom up to the top. Looks nice either way!
thesnowboarder is offline   Reply With Quote
Old 01-17-2009, 01:14 AM   #29
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Looks great, except for the fact that you have one bolt that is not the same length as the others.
Saml01 is offline   Reply With Quote
Old 01-17-2009, 01:17 AM   #30
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Yeah they are bolts. They're actually all the same length, but that one catches something on the bottom and needs to be longer to match the others. Problem is the bolts aren't gonna "stay" when I take the nuts off, so I'm gonna have to do something to.... convince them to.

Where's the JB-Weld.....
patsmx5 is offline   Reply With Quote
Old 01-17-2009, 01:20 AM   #31
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Quote:
Originally Posted by patsmx5 View Post
Yeah they are bolts. They're actually all the same length, but that one catches something on the bottom and needs to be longer to match the others. Problem is the bolts aren't gonna "stay" when I take the nuts off, so I'm gonna have to do something to.... convince them to.

Where's the JB-Weld.....
Just dab a little JBweld at the bottom of the stud and thread on another nut. Done.
Saml01 is offline   Reply With Quote
Old 01-17-2009, 01:23 AM   #32
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

could put a nut on the top of the valve cover but below the jb weld to hold the nut still. Then put the cop onto the bolt/stud and another nut on top to hold the cop down.
thesnowboarder is offline   Reply With Quote
Old 01-17-2009, 01:23 AM   #33
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Saml01 View Post
Just dab a little JBweld at the bottom of the stud and thread on another nut. Done.
Sounds good, but it won't work because of the weird shape of the valve cover. For now, I'm gonna JB them from the top and bottom. Probably do the tops twice to get it built up, then sand it down to blend the studs into the cover. With sanding and paint, it will appear to be a casting with a stud pressed into it. We'll see. If it sucks, I've lost nothing. It's not going on the car till this summer at the soonest.
patsmx5 is offline   Reply With Quote
Old 01-17-2009, 01:31 AM   #34
Elite Member
iTrader: (9)

Saml01's Avatar

Join Date: Jul 2007
Location: NYC
Posts: 5,730
Total Cats: 2
Default

Dont make more work from yourself, jbweld them from the bottom and forget about it. Once the cop is bolted it on, you can forget about it. The only reason you need to JBweld it is so it doesnt fall under the valve cover if you take the cops off, not to contend with the awesome load of holding a cop down.
Saml01 is offline   Reply With Quote
Old 01-17-2009, 01:33 AM   #35
Elite Member
Thread Starter
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Quote:
Originally Posted by Saml01 View Post
Dont make more work from yourself, jbweld them from the bottom and forget about it. Once the cop is bolted it on, you can forget about it. The only reason you need to JBweld it is so it doesnt fall under the valve cover if you take the cops off, not to contend with the awesome load of holding a cop down.
Yeah, I could try that easy enough. JB one from the bottom and let it cure, then remove the cop and see how tough they are. If I can't break them twisting and pulling on the cop with 1 bolt in it, then it will probably be fine.
patsmx5 is offline   Reply With Quote
Old 01-17-2009, 05:45 PM   #36
Senior Member

Join Date: Sep 2007
Location: Alamo City, Tejas
Posts: 774
Total Cats: 1
Default

Have you considered a retention washer from your local hardware store? (Something similar to what they use on seatbelt components...)

- L
l_bader is offline   Reply With Quote
