Default pic reuest! turbo manifolds

i have bought a gt2876r turbo to replace my t25 that came as part of the hks kit asi have been havin a few problems with it it has a t25 flange so i could just bolt is straight to my hks cast manifold which seems to be great but i fancy a bit more bling

could you post picture up of you turbo exhaust manifolds so i could get some ideas ideally want top mount but do like underslung turbos
ill even make one if i have too

pic, manufacturer and approx cost would be great


thanks lee
madmalc is offline   Reply With Quote
Old 07-21-2008, 06:41 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

I so highly doubt a 2876 will fit on a hks manifold....well, it will fit, but not with the hood shut.

this will be your best example...top mounted 2876 :

http://gallery.y8s.com/miata/turbo/

Braineack is offline   Reply With Quote
Old 07-21-2008, 06:42 PM   #3
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default



I'd recommend this one!

You can purchase it at http://m-tuned.com/miata3.html
M-Tuned is offline   Reply With Quote
Old 07-21-2008, 06:50 PM   #4
Junior Member
Thread Starter

Join Date: Jul 2007
Posts: 107
Total Cats: 0
Default

r these turbos good the only reason i say this as it doesnt have 'garrett' on it
GT2876R TURBO CHARGER (spec copied just waiting for it to arrive)

Turbo spec :

compressor spec :

4" compressor inlet

inducer : 52.7mm

exducer : 76.0mm

trim :48

ar 0.70

Turbine spec :

wheel diameter :53.8mm

trim : 76

ar : 0.64

25 psi max

-t25 flange

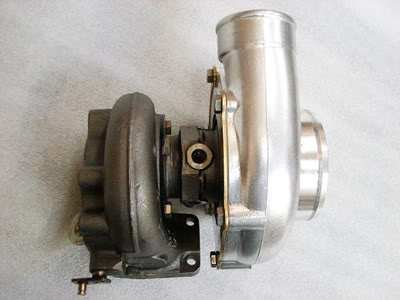

Name:  UD_TURBO_T2876R_4.jpg
Views: 8
Size:  20.4 KB

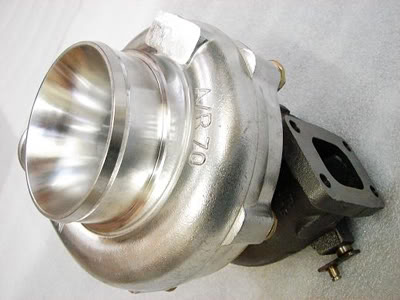

Name:  UD_TURBO_T2876R_5.jpg
Views: 6
Size:  23.6 KB
madmalc is offline   Reply With Quote
Old 07-21-2008, 06:58 PM   #5
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

that isn't a Garrett GT2876R.

this is:

http://www.turbobygarrett.com/turbob...R_705330_2.htm







y8s is offline   Reply With Quote
Old 07-21-2008, 07:03 PM   #6
Junior Member
Thread Starter

Join Date: Jul 2007
Posts: 107
Total Cats: 0
Default

thats what im sayin will it still be a good turbo even though it isnt from what i can see made my garrett
madmalc is offline   Reply With Quote
Old 07-21-2008, 07:10 PM   #7
Senior Member
iTrader: (1)

Join Date: Apr 2007
Location: North Jersey
Posts: 721
Total Cats: 0
Default

madmalc: please use punctuation, you're making my head hurt. thanks.
budget racer is offline   Reply With Quote
Old 07-21-2008, 07:24 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

Quote:
Originally Posted by madmalc View Post
thats what im sayin will it still be a good turbo even though it isnt from what i can see made my garrett


most likely yes, if the wheels are really the same.
Braineack is offline   Reply With Quote
Old 07-21-2008, 08:46 PM   #9
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default



Offset top mount. We'll see how well it works, I haven't even test fitted it yet. Good ole' weld-els.
elesjuan is offline   Reply With Quote
Old 07-21-2008, 11:19 PM   #10
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default



That's what I'm going to be running with a GT2560 as soon as Tim's done making it.
ArtieParty is offline   Reply With Quote
Old 07-22-2008, 10:14 AM   #11
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

heh...



That 2876 looks BIG!
TurboTim is offline   Reply With Quote
Old 07-22-2008, 10:52 AM   #12
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

tim: you know you want one.

by the way, are you working on V8s now?
y8s is offline   Reply With Quote
Old 07-22-2008, 11:00 AM   #13
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

I've always worked on V8's
TurboTim is offline   Reply With Quote
Old 07-22-2008, 11:07 AM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

SSA BP (mounted to an FE) - don't know if it's a ripoff or not, it's been around a long time. btw- Tim, can you copy a manifold with it in hand? more or less work than doing the work from ground zero?



Last edited by m2cupcar; 07-22-2008 at 12:18 PM.
m2cupcar is offline   Reply With Quote
Old 07-22-2008, 11:51 AM   #15
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by m2cupcar View Post
btw- Tim, can you copy a manifold with it in hand? more or less work that doing the work from ground zero?
I'll reply via PM to keep my hijack count low.
TurboTim is offline   Reply With Quote
Old 07-22-2008, 12:15 PM   #16
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
SSA BP (mounted to an FE) - don't know if it's a ripoff or not, it's been around a long time. btw- Tim, can you copy a manifold with it in hand? more or less work that doing the work from ground zero?


That manifold was a knock-off of the Original ETD Racing Miata Long Tube Turbo Manifold. I believe Y8S might have the ETD version on his car.
M-Tuned is offline   Reply With Quote
Old 07-22-2008, 12:17 PM   #17
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

yep y8s manifold posted above is the real ETD version.
Braineack is offline   Reply With Quote
Old 07-22-2008, 12:20 PM   #18
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

so SSA can't take credit for the #4 ewg mount?
m2cupcar is offline   Reply With Quote
Old 07-22-2008, 01:21 PM   #19
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 407
Default

I wonder if the SSA wg mount will actually let you mount a WG.



bare-ish manifold:

y8s is offline   Reply With Quote
Old 07-22-2008, 01:24 PM   #20
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

why dont you pick a bigger wasgate?
Braineack is offline   Reply With Quote
