Default pinout for a 97 Diagnostic connector

I decided unpin the diagnostic connector on my 97 Miata during the wire tuck.
I have now lost the sheet where I wrote down the wire colors and their position.

Any help on figuring out the position of these wires would be much appreciated.

The wires are

Black with dark green stripe
Black with light green stripe
Black with white stripe
Green with yellow stripe
White with red stripe
White with black stripe
Attached Thumbnails

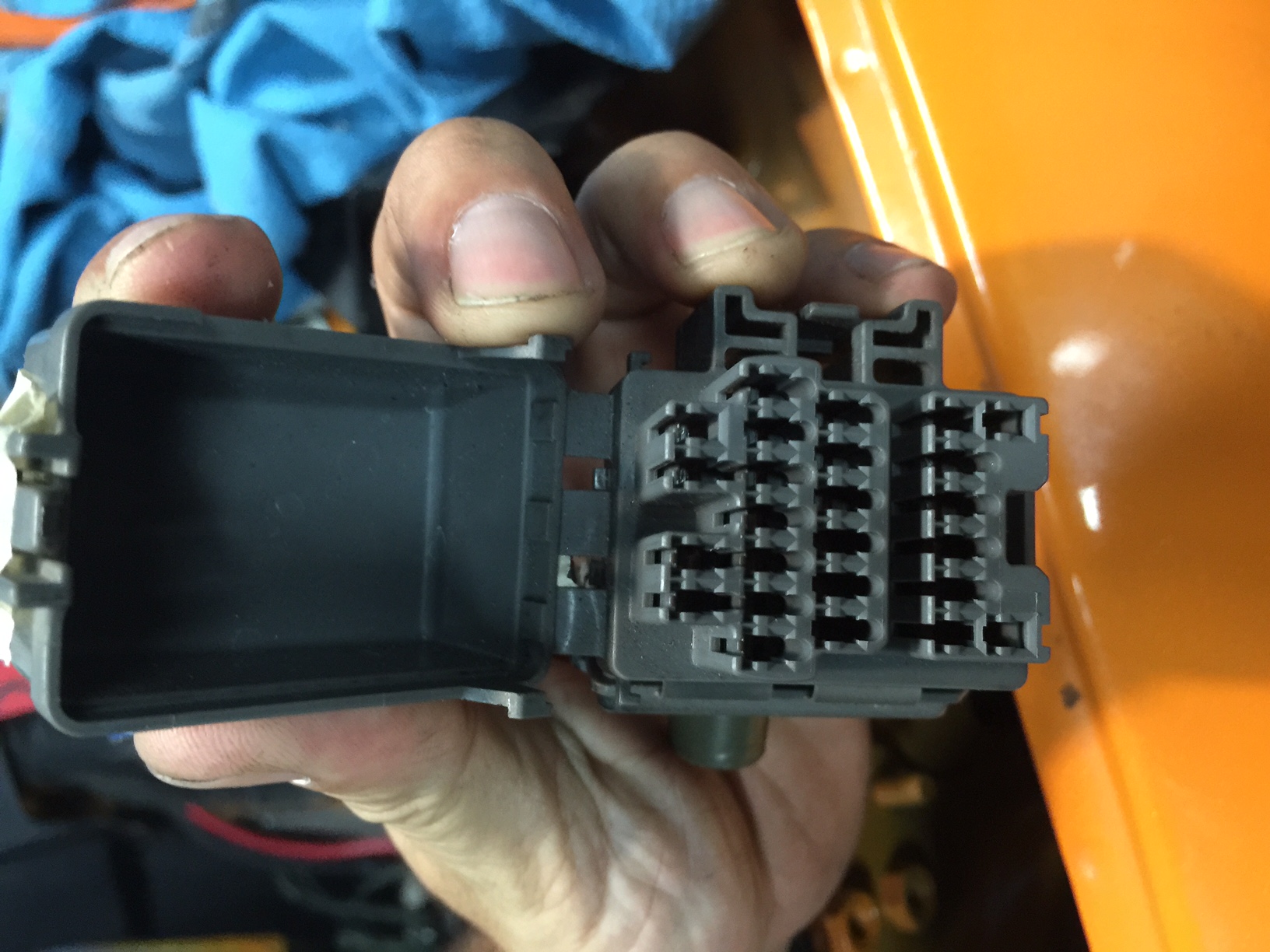

pinout for a 97 Diagnostic connector-img_0222.jpg
orlmiata is offline   Reply With Quote
Old 11-06-2015, 09:30 AM   #2
I haz no trubo
iTrader: (2)
Oscar's Avatar
Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114

How's this for starters?

Attached Thumbnails
pinout for a 97 Diagnostic connector-80-data_link_connector_wiring_diagram_of_1994_mazda_rx_7_b681c0b2440e11ffb530f6c727b878e8a9b70f5.jpg
Oscar is offline   Reply With Quote
