Default Please help me not blow up my miata!!

Sorry for the long post, but please read.



I am getting to the point that I just want to blow it up!!! So some of you guys may remember back in Feb I over heated my motor and warped the head. ClubRoadster.net I had gotten that all fixed and the car running then one of the little coolant hose going to the throttle body blew and the car over heated yet again. Added bonus it happened the 2nd time driving the car after fixing it. So at that point I decided to just do a stock rebuild on the other 99 motor I had in the garage that had 147,XXX miles on it and keep the motor NA, til I get a daily and house I am trying to buy.



That gets us up to the point I am a now. I took out the other motor and put the new one in. I connected everything, got all new hose, M-tune coolant reroute, big aluminum rad, new plugs, and wires. Then when I tried to start the car, NOTHING. So I checked to see if I had fuel going to the motor. I did an injector pulse test and fuel pressure test, both came out fine. Then I went to spark, I tested to see if I had any spark coming from the wires with the good old screw driver test and that was fine the first time I tested it. The car still wouldn't start. Checked the engine for codes and P1345 came up. So I checked to see if I had power/signal go to the cam sensor and the crank sensor, both came out fine. Car still wouldn't start! So I decided to get a new cam sensor. Still nothing. I did another test. Took off the cam sensor and put a tester at the end of spark plug wire #1, had someone trying to start the car while I waved a wrench in front of the sensor, I got spark!! So now I have no clue of what could be happening. PLEASE if anyone has any clue or ideas of what it could be please post.



Thanks

Rudy
Rudes333 is offline   Reply With Quote
Old 09-16-2009, 06:45 PM   #2
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

number one mistake when building an engine is putting the timing belt on wrong.
wayne_curr is offline   Reply With Quote
Old 09-16-2009, 06:58 PM   #3
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Posts: 197
Total Cats: 1
Default

true. I doubled checked it. It seems right, plus I would still aleast be getting spark
Rudes333 is offline   Reply With Quote
Old 09-16-2009, 07:03 PM   #4
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Posts: 197
Total Cats: 1
Default

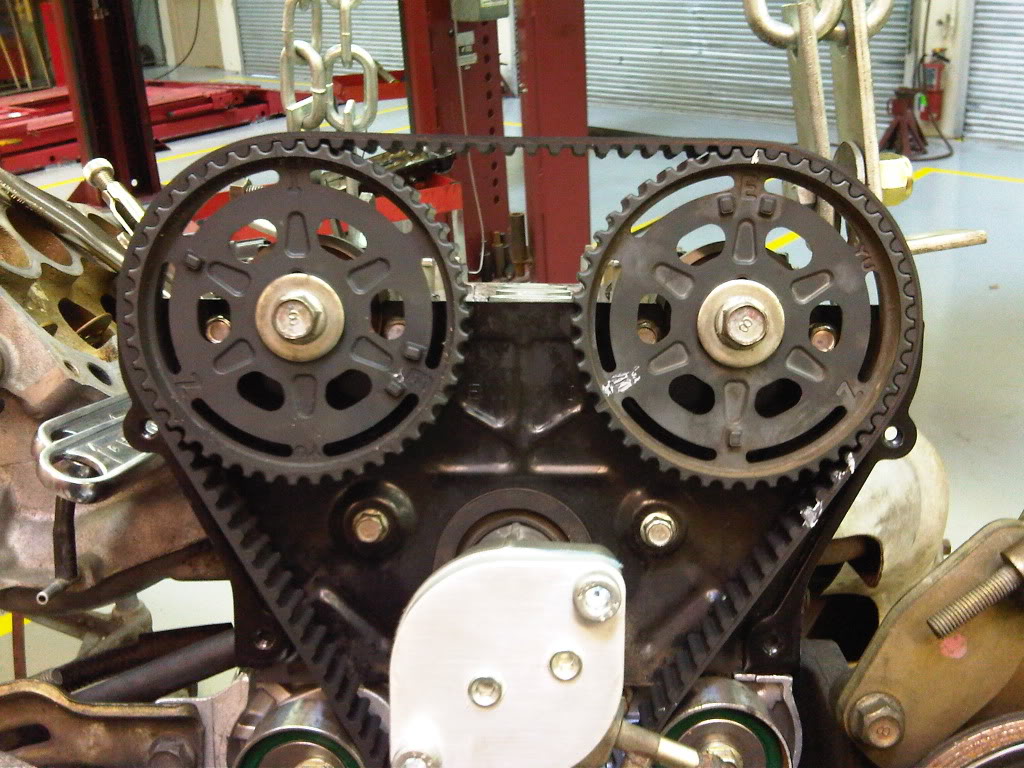

here is a pic of it. The 2 front lobs are pointing out too.
Name:  IMG00203-20090909-1636.jpg
Views: 1
Size:  168.5 KB
Rudes333 is offline   Reply With Quote
Old 09-16-2009, 07:29 PM   #5
Senior Member
iTrader: (7)

Join Date: Jul 2007
Location: Milpitas, CA
Posts: 1,057
Total Cats: 1
Default

is it safe to say you have an NB car? It's easier if you tell us all the details of the car rather than us having to assume.
Marc D is offline   Reply With Quote
Old 09-16-2009, 07:30 PM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

i count 20 teeth between marks = wrong.
Braineack is offline   Reply With Quote
Old 09-16-2009, 07:31 PM   #7
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Posts: 197
Total Cats: 1
Default

yes its a 99AE
Rudes333 is offline   Reply With Quote
Old 09-16-2009, 07:32 PM   #8
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Posts: 197
Total Cats: 1
Default

Quote:
Originally Posted by Braineack View Post
i count 20 teeth between marks = wrong.
I have never heard about that. What do you mean?
Rudes333 is offline   Reply With Quote
Old 09-16-2009, 07:33 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Braineack is offline   Reply With Quote
Old 09-16-2009, 07:36 PM   #10
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

There are supposed to be 19 teeth between the two marks that are at 12 o'clock, your picture shows 20. I THINK it'd start if a cam or the crank sprocket were off a tooth, or at least sputter a little bit. There were two slots in my cam sprockets behind the washer, and I had forgotten to mark which way they went on. Of course I installed them incorrectly, and it wouldn't start at all.
curly is offline   Reply With Quote
Old 09-16-2009, 07:39 PM   #11
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Posts: 197
Total Cats: 1
Default

I will fix that, but I don't think that should stop the car from starting. Maybe just from running right?
Rudes333 is offline   Reply With Quote
Old 09-17-2009, 01:27 PM   #12
Elite Member
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,764
Total Cats: 18
Default

Quote:
Originally Posted by Rudes333 View Post
Sorry for the long post, but please read.

That gets us up to the point I am a now. I took out the other motor and put the new one in. I connected everything, got all new hose, M-tune coolant reroute, big aluminum rad, new plugs, and wires.

Then when I tried to start the car, NOTHING.
What is NOTHING? No cranking, no starting...?

So I checked to see if I had fuel going to the motor. I did an injector pulse test and fuel pressure test, both came out fine. Then I went to spark, I tested to see if I had any spark coming from the wires with the good old screw driver test and that was fine the first time I tested it.

You have spark the "first time"? When did it stop having spark, and what did you do just before that?

The car still wouldn't start. Checked the engine for codes and P1345 came up. So I checked to see if I had power/signal go to the cam sensor and the crank sensor, both came out fine. Car still wouldn't start! So I decided to get a new cam sensor.

Why?

Still nothing. I did another test. Took off the cam sensor and put a tester at the end of spark plug wire #1, had someone trying to start the car while I waved a wrench in front of the sensor, I got spark!! So now I have no clue of what could be happening. PLEASE if anyone has any clue or ideas of what it could be please post.

Rudy

Seems to me you need to steep back and check out one problem at a time. You don' have spark "the first time" than look for a problem where the spark went? WTF, we need better details.

PS: it will run with 20 teeth between cam gears, when I bought my car it was that way.
IcantDo55 is offline   Reply With Quote
Old 09-17-2009, 03:37 PM   #13
Elite Member

Join Date: Feb 2008
Location: Victoria, BC
Posts: 2,322
Total Cats: 12
Default

I'm not familiar with the NB's, but have you tried moving the Cam angle sensor around and see if it starts then? If a car is out of timing at the belt, and out of timing at the sensor, it won't start.

Oh and check your engine grounds as well.
dustinb is offline   Reply With Quote
Old 09-17-2009, 05:10 PM   #14
Senior Member

steelrat's Avatar

Join Date: Jul 2005
Posts: 514
Total Cats: 0
Default

One more stupid thing.... check all your connectors. It's really easy, to forget to plug a plug back together when doing the motor swap....

Starter is working? Turning over, just no catching?

Grounds?

Sounds like something simple. Triple check all of it....

Dave,
steelrat is offline   Reply With Quote
Old 09-17-2009, 09:42 PM   #15
Junior Member
Thread Starter
iTrader: (4)

Join Date: Dec 2007
Posts: 197
Total Cats: 1
Default

can it be the timing plate behind the crank pully being backwards?
