Old 11-04-2008, 01:19 PM   #21
Junior Member
Thread Starter

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

Quote:
Originally Posted by olderguy View Post
Is it at all possible that you put the clutch disc in backwards? The fingers in the picture look very depressed.
In the picture you can see the springs, on the other side it was labeled "Flywheel side"

When i bled the clutch it never got too low on fluid level. The Slave cylinder wasn't pushing far enough and i was running out of ideas so last night i replaced it with a new kit.

The spring on the old one was too weak to push the piston back out, it was only working with the fluid that pushed it.

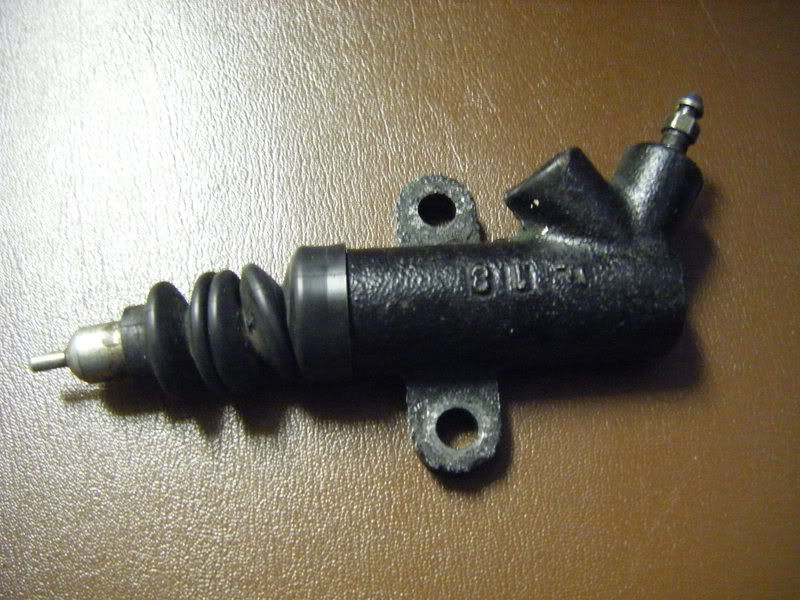

Name:  clutchengagement2001.jpg
Views: 1
Size:  99.4 KB
without fluid going into it the piston would stay back in there

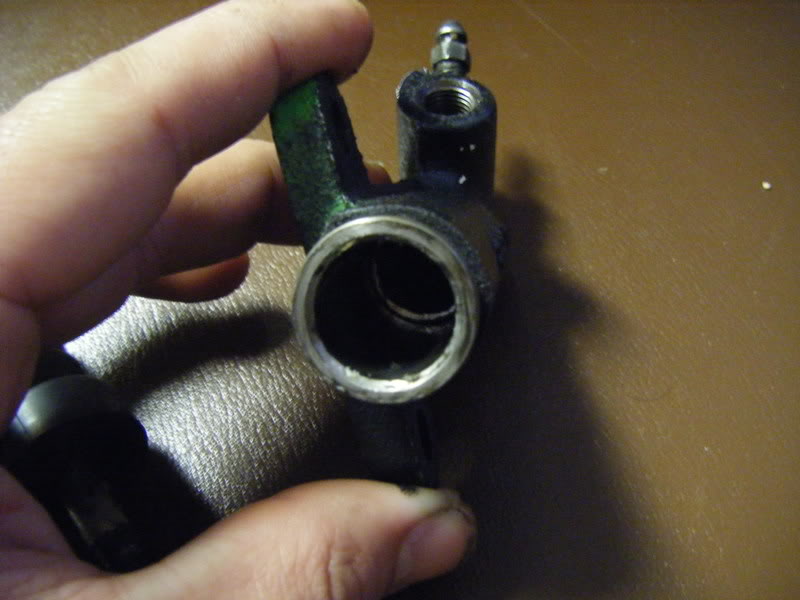

Name:  clutchengagement2002.jpg
Views: 1
Size:  54.9 KB

the new cylinder you can push it in and the spring with make the piston come back out.

This helped a little bit with shifting but it still hasn't solved the problem. I took the car out again last night and although i was able to go into 1st gear smoother, i still had problems with a couple of gears and the timing on the car is too low.

I still haven't fixed one problem and i think i'm about to face another one, as i was jacking up the car last night when replacing the slave, i jacked the driver side front tire and something in the driver rear tire area snapped. I still haven't found anything broken but i figured it was either the swaybar bolts or something into the hub assembly, car drove fine.
Mouglie is offline   Reply With Quote
Old 11-04-2008, 01:52 PM   #22
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,797
Total Cats: 248
Default

Bench bleed the master cylinder anyways. I bet it got some air in it one way or another and that's all this is. Do that and then if it still isn't right adjust the clutch pedal.
patsmx5 is offline   Reply With Quote
Old 11-04-2008, 01:58 PM   #23
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Quote:
Originally Posted by patsmx5 View Post
Bench bleed the master cylinder anyways. I bet it got some air in it one way or another and that's all this is. Do that and then if it still isn't right adjust the clutch pedal.
+1, any money says this is where your problem is.

On a side note...you didn't put rad stop leak in the clutch fluid did you?
KPLAFIN is offline   Reply With Quote
Old 11-04-2008, 03:37 PM   #24
Junior Member
Thread Starter

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

do you mean like rebuilding the Master cylinder? I've bled the whole system a ridiculously amount of times already, i'm conviced there is not a single bubble of air in the lines or the whole system.
Mouglie is offline   Reply With Quote
Old 11-04-2008, 03:44 PM   #25
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Quote:
Originally Posted by Mouglie View Post
do you mean like rebuilding the Master cylinder? I've bled the whole system a ridiculously amount of times already, i'm conviced there is not a single bubble of air in the lines or the whole system.
You've gotta bleed the master cylinder out of the car. I believe there is a write-up in the m.net garage.
KPLAFIN is offline   Reply With Quote
Old 11-04-2008, 04:30 PM   #26
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Clutch Slave Rebuild

There you go, enjoy your reading.
KPLAFIN is offline   Reply With Quote
Old 11-04-2008, 05:36 PM   #27
Junior Member
Thread Starter

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

thanks for the help guys, i will post results as soon as i get the master cylinder rebuilt and bled...
Mouglie is offline   Reply With Quote
Old 11-04-2008, 05:44 PM   #28
Elite Member
iTrader: (6)

Join Date: Sep 2007
Location: CA
Posts: 1,990
Total Cats: 9
Default

I rebuilt my master. Kit sucked. Did it again. Kit sucked. First time the plunger was super tight, next time it was super loose. Bought a new one w/ lifetime warranty at Vatozone. Things are ok now.
kenzo42 is offline   Reply With Quote
Old 11-04-2008, 06:52 PM   #29
Junior Member
Thread Starter

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

hahaa... what do new ones run for? about $50? I paid $30 some bucks for the slave cylinder...
Mouglie is offline   Reply With Quote
Old 11-04-2008, 06:56 PM   #30
Elite Member
iTrader: (46)

Stein's Avatar

Join Date: Dec 2007
Location: Nebraska
Posts: 4,812
Total Cats: 138
Default

I've never had a problem with the Advance Auto rebuild kits. Unfortunately, I have had to rebuild the MC and SC on every Miata that I have had on the road. (3 this year). I keep one of each kit on hand now.
Stein is offline   Reply With Quote
Old 11-04-2008, 07:03 PM   #31
Junior Member
Thread Starter

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

Clutch Master Cylinder

$43.99 O'Reily's
$49.99 Autozone
$50.49 Napa
$59.99 Advance Auto Parts
Mouglie is offline   Reply With Quote
Old 11-04-2008, 07:16 PM   #32
Junior Member
Thread Starter

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

i won't have any results until Friday, nobody has it on hand they gotta order it and no rush delivery.
I will edit first post after i figure out what the problem is for reference to other members having the same problem...
Mouglie is offline   Reply With Quote
Old 11-04-2008, 07:36 PM   #33
Elite Member
iTrader: (1)

Join Date: Jun 2007
Location: VA, Germany, Afghanistan
Posts: 2,967
Total Cats: 3
Default

Quote:
Originally Posted by Mouglie View Post
i won't have any results until Friday, nobody has it on hand they gotta order it and no rush delivery.
I will edit first post after i figure out what the problem is for reference to other members having the same problem...
Advance should be able to "PDQ" it and have it there at 7:30 in the morning as long as you order it before 8p.m otherwise it ill be there at 7:30 the following morning.
KPLAFIN is offline   Reply With Quote
Old 11-04-2008, 07:59 PM   #34
Junior Member
iTrader: (1)

Join Date: Jun 2008
Location: Southern Oregon
Posts: 93
Total Cats: 0
Default

Did you remove the flywheel.....if so what did you torque the bolts to???
mad0953 is offline   Reply With Quote
Old 11-04-2008, 10:30 PM   #35
Junior Member
Thread Starter

Join Date: Aug 2005
Location: Iowa
Posts: 338
Total Cats: 0
Default

flywheel is at 72 ft./lbs...
Mouglie is offline   Reply With Quote
