Old 11-10-2015, 07:25 PM   #101
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Bicycle lights aren't exactly legal.

The problem with leds is the emitter is directly visible from the front, even if you are outside the spot angle.

It's excruciatingly bright. Torture test, sit in your dark garage then stare them puppies down. You'll be seeing spots from a few seconds exposure, especially if you let your eyes adjust to the dark.

Don't be that guy...
deezums is offline   Reply With Quote
Old 11-10-2015, 07:26 PM   #102
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

Very true. One reason this thread exists and isn't called "LEDs in turn signals".

I wanted real light output.
aidandj is offline   Reply With Quote
Old 11-10-2015, 11:42 PM   #103
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

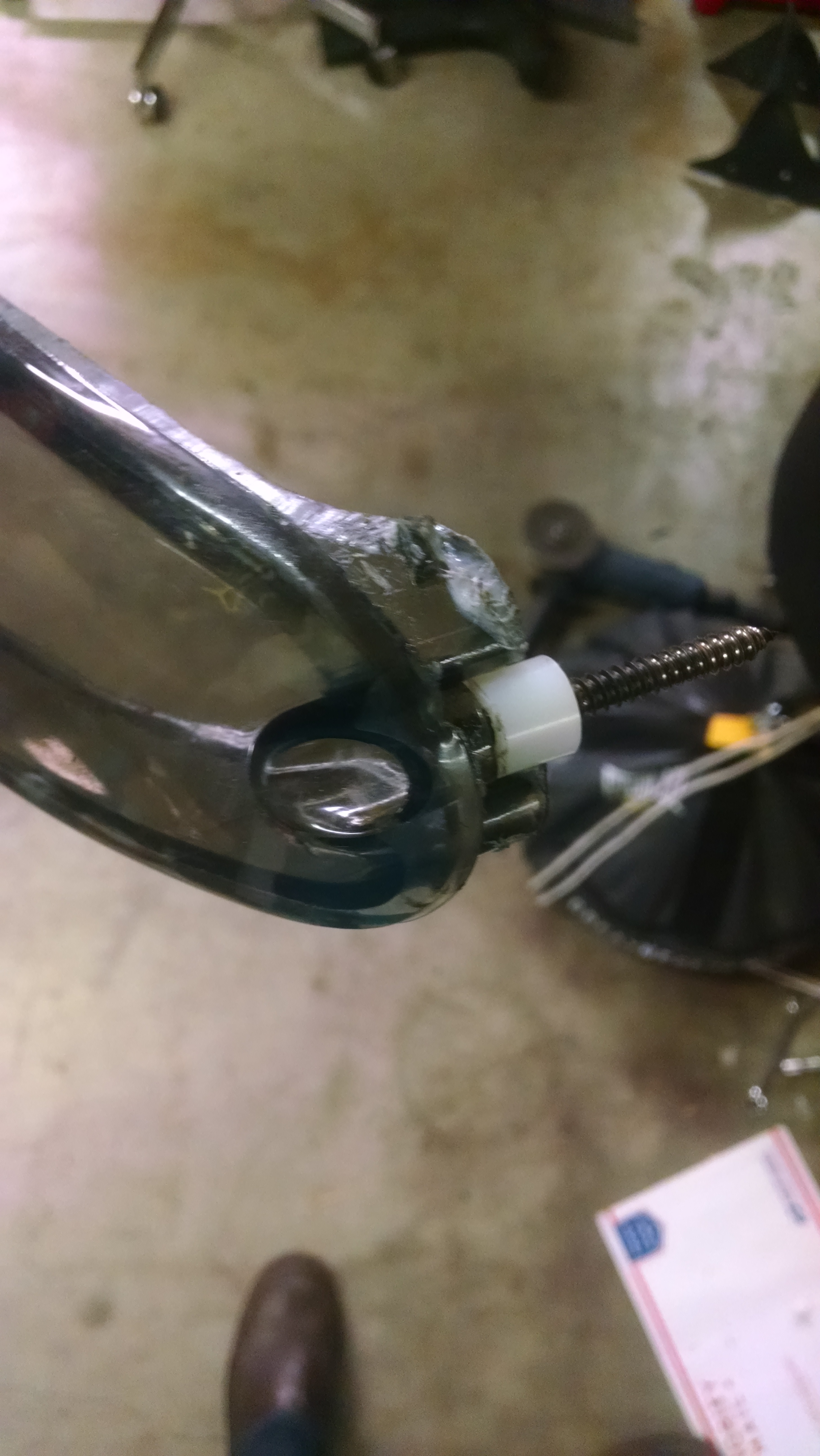

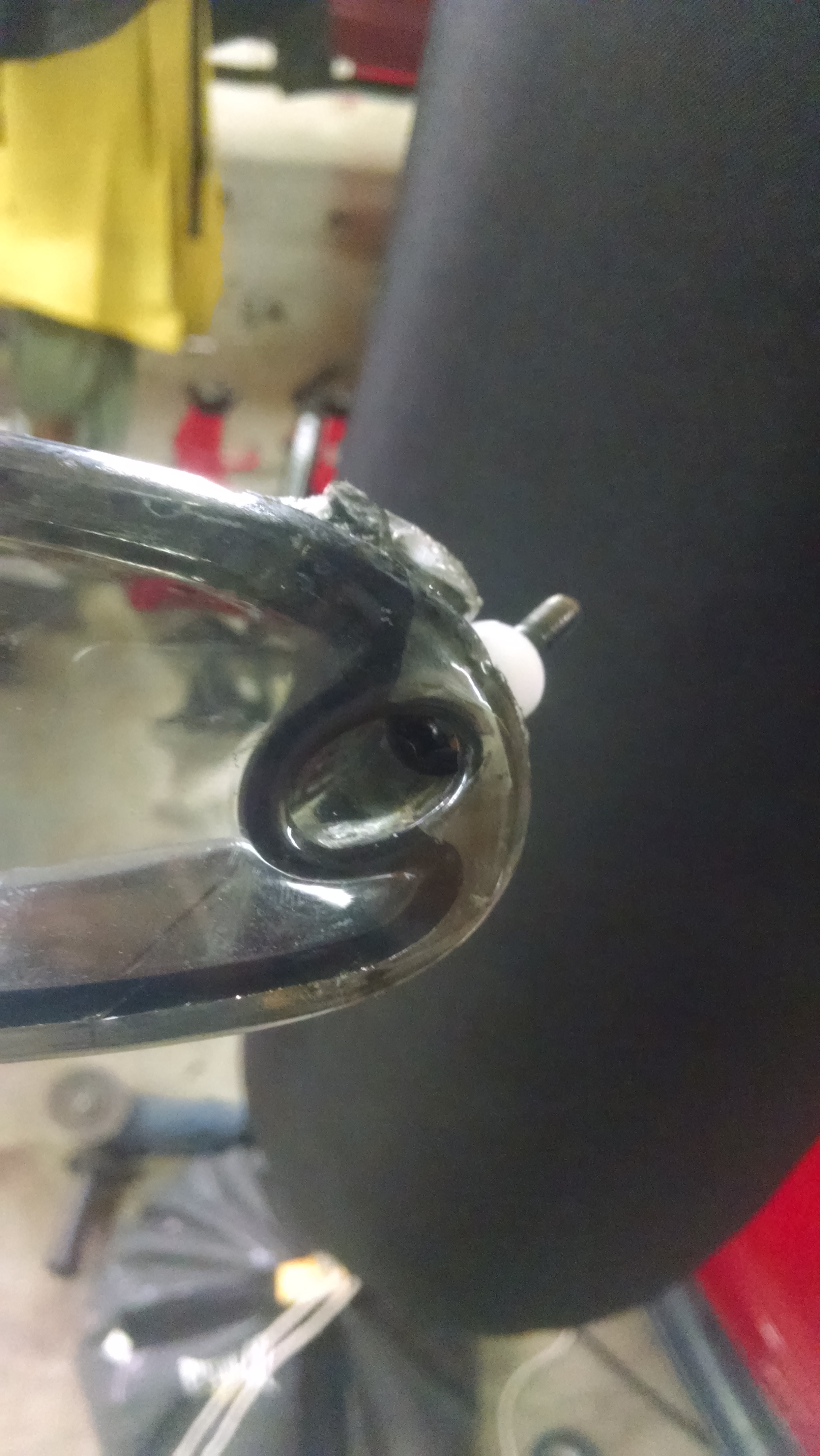

Last piece of the puzzle. Spacers to mount the lenses correctly in the bumper

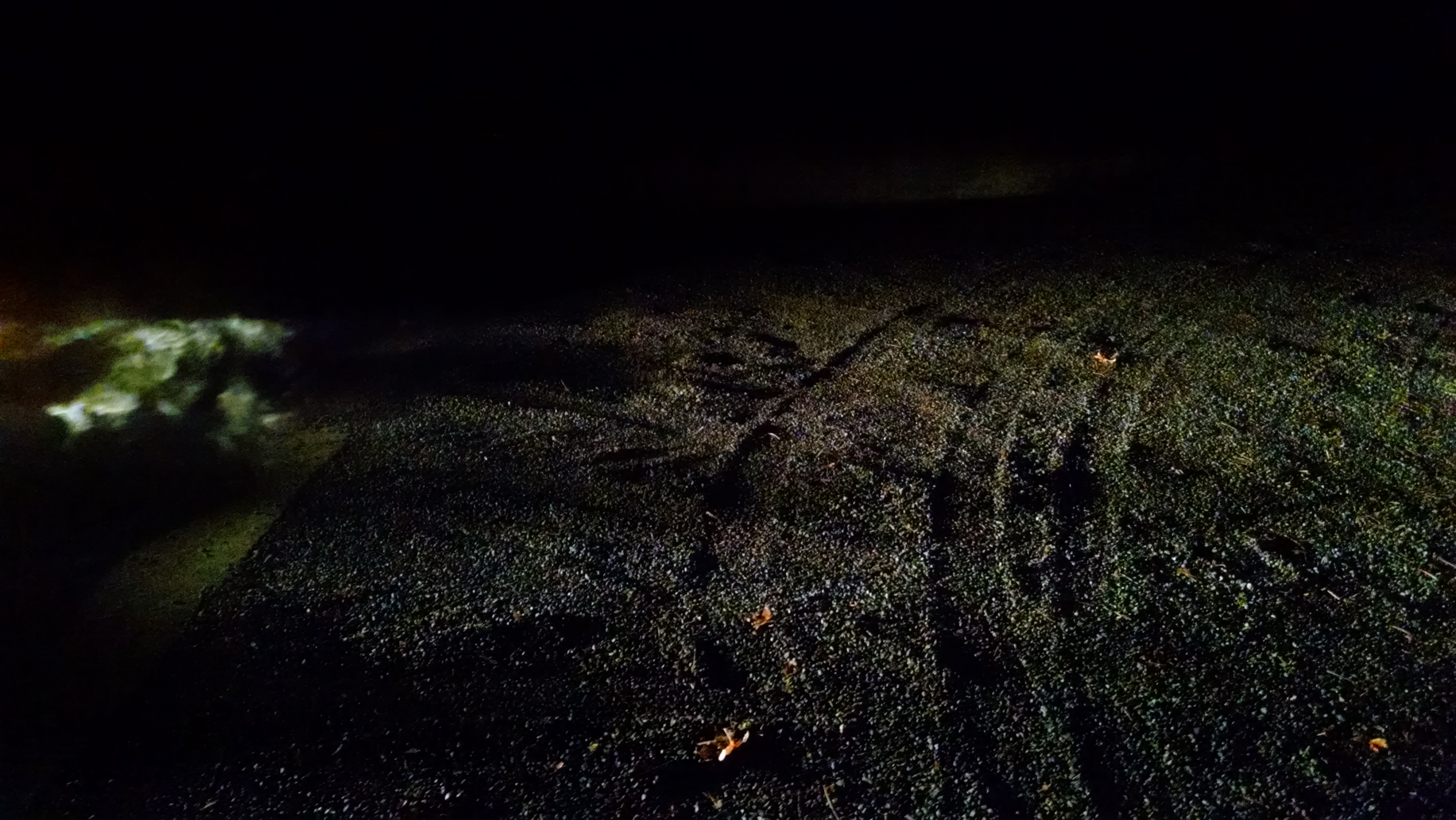

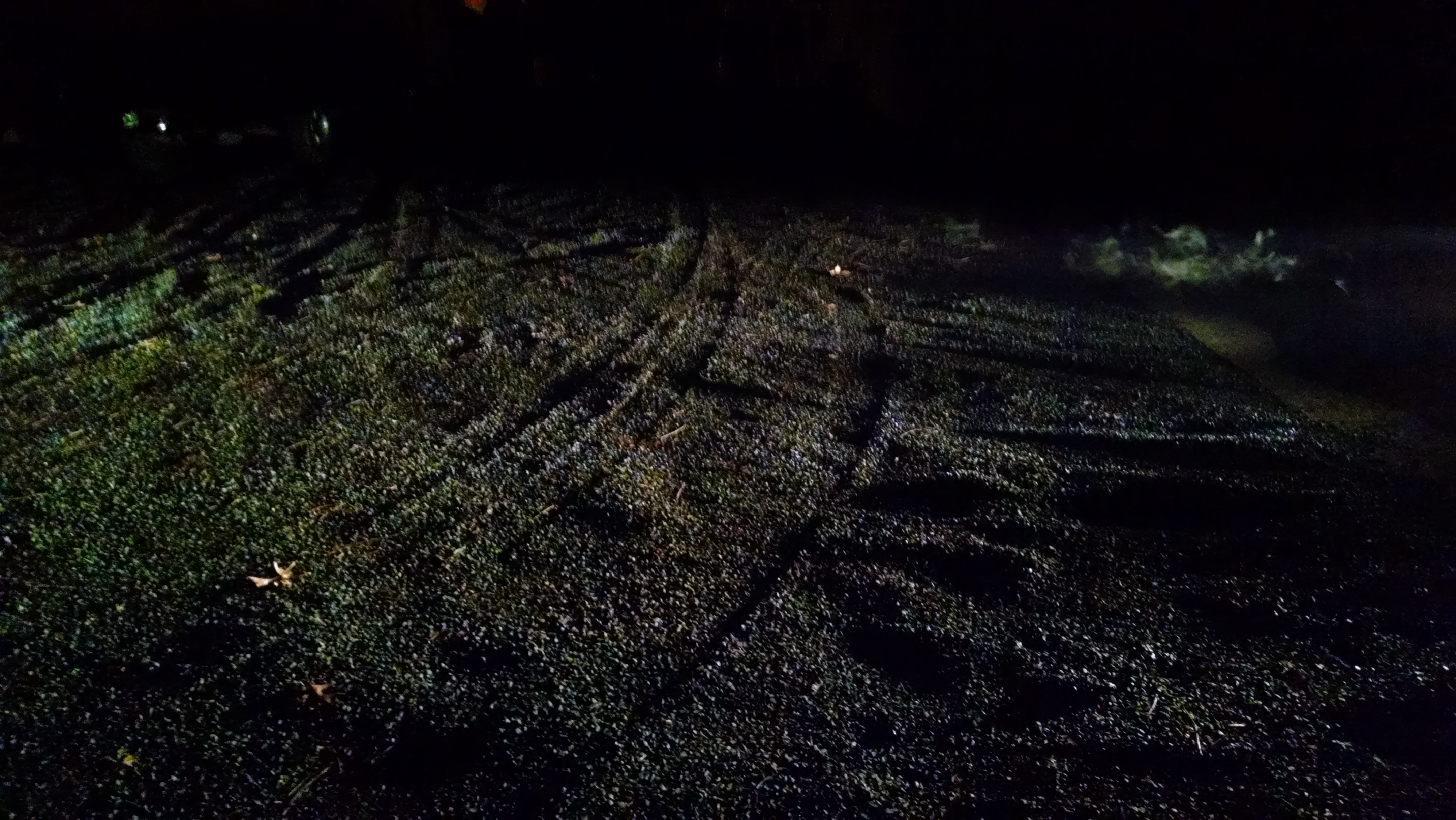

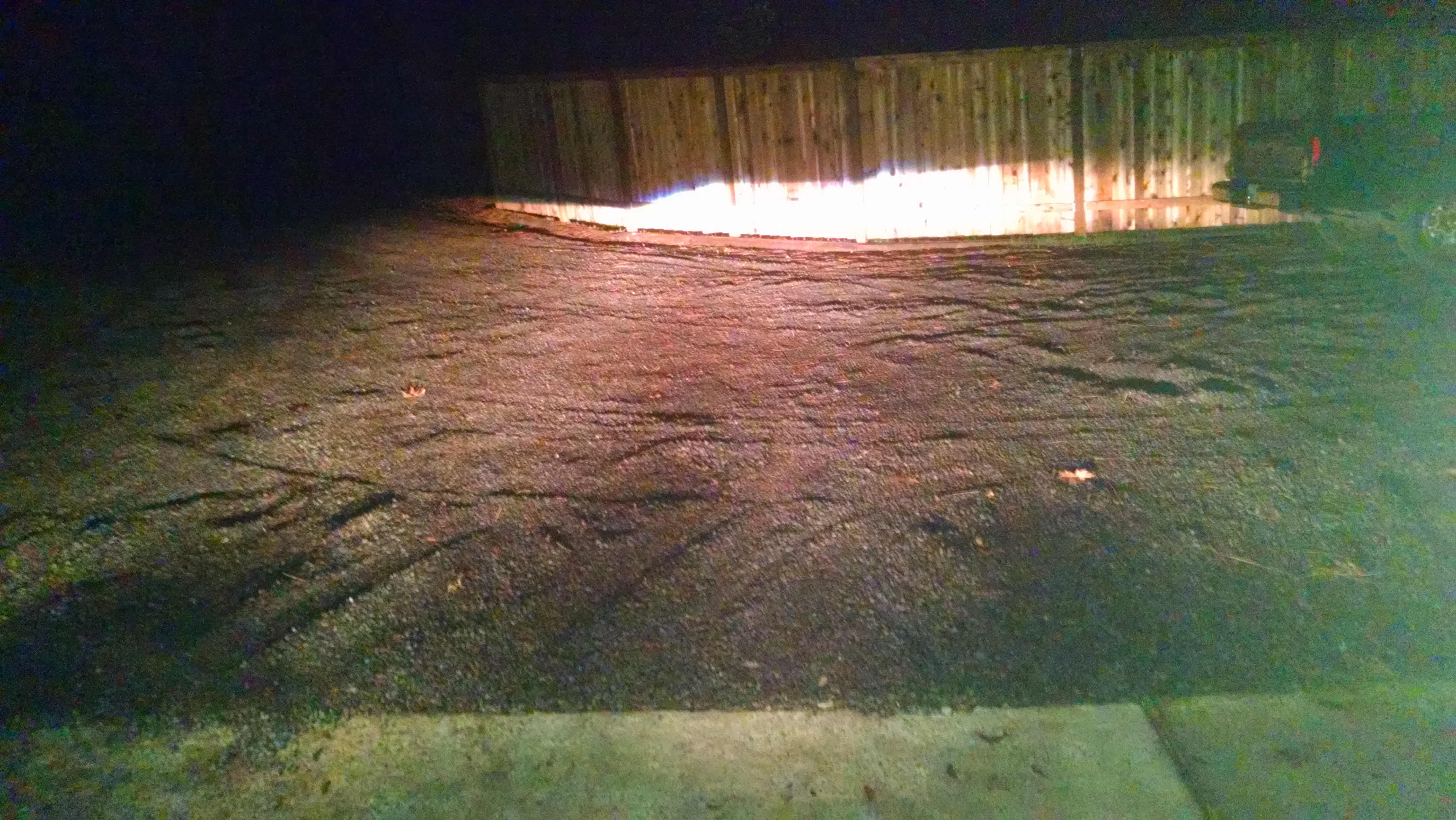

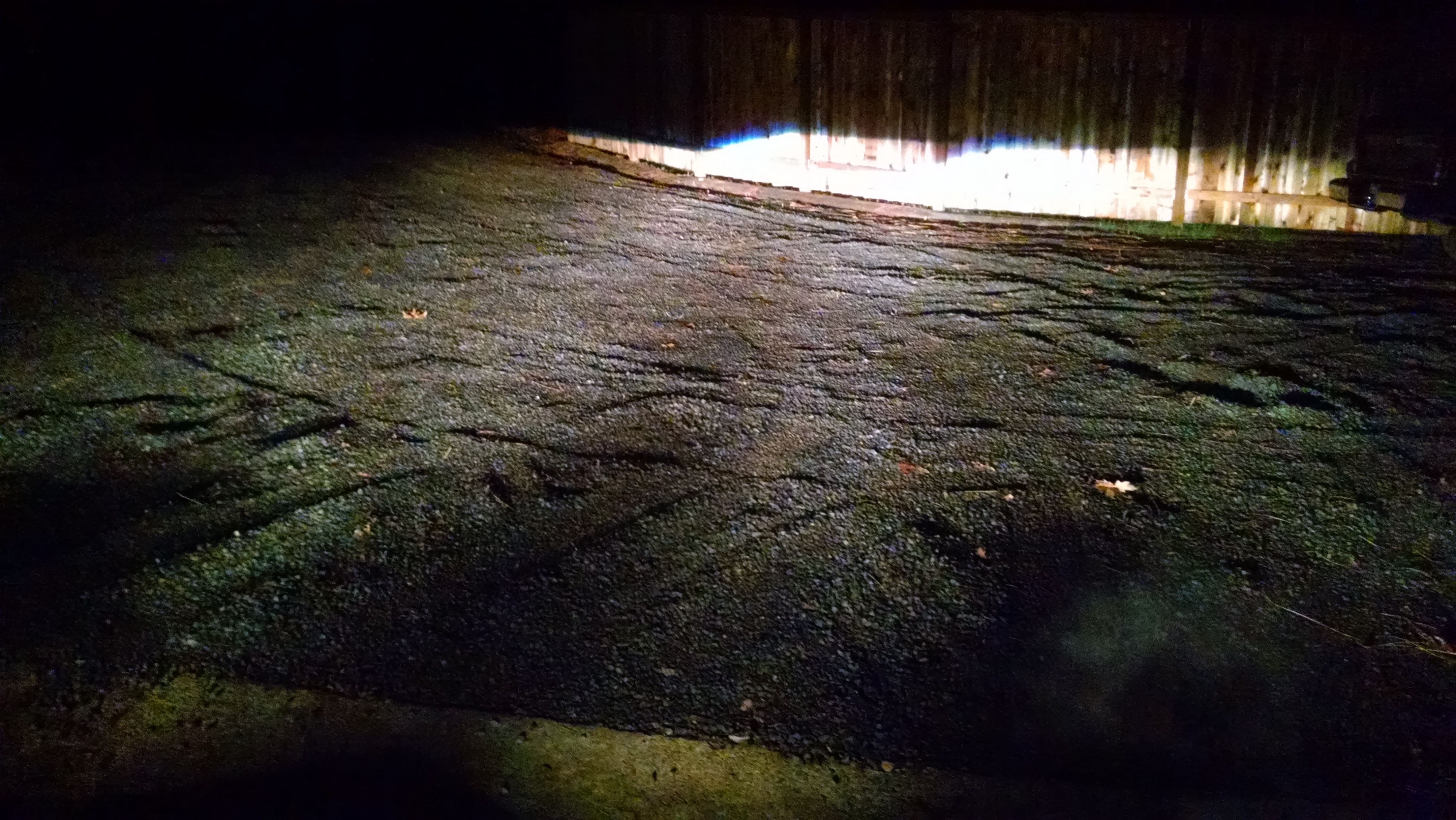

Light output. Its awesome. If it doesn't looks awesome its because my camera sucks.








Attached Thumbnails
Projectors in turn signals. A shitty DIY guide.-4kdidnf.jpg   Projectors in turn signals. A shitty DIY guide.-y3bdmia.jpg   Projectors in turn signals. A shitty DIY guide.-ujvawqu.jpg   Projectors in turn signals. A shitty DIY guide.-qjzeriq.jpg   Projectors in turn signals. A shitty DIY guide.-du2iqaq.jpg

Projectors in turn signals. A shitty DIY guide.-gadytto.jpg   Projectors in turn signals. A shitty DIY guide.-p6deb5z.jpg   Projectors in turn signals. A shitty DIY guide.-sncqjp4.jpg   Projectors in turn signals. A shitty DIY guide.-5pcztkb.jpg   Projectors in turn signals. A shitty DIY guide.-zcbj5op.jpg

aidandj is offline   Reply With Quote
Old 11-13-2015, 07:44 PM   #104
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

I ended up ordering the 60mm projectors. I had wanted to go with LED partly for the lower electrical load but the actual usable light per watt seems to be better with these.

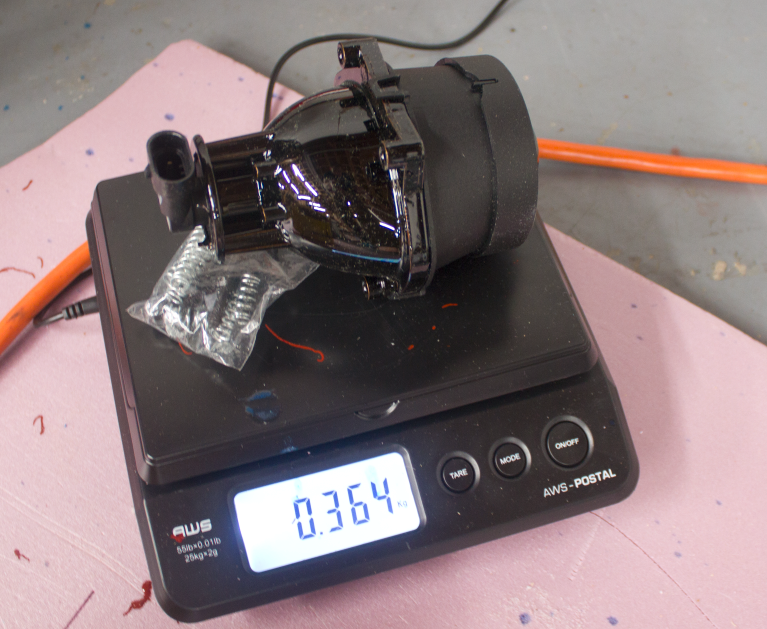

Also, because I was curious, they are .8lb each (with mounting hardware):




What was the reason for ordering those relays? The stock low beams draw similar power and are already on one?
Attached Thumbnails
Projectors in turn signals. A shitty DIY guide.-80-vasn3d2_1fd614d5a61824aa63eabaf7f1da494fc1a9e51b.png
asmasm is offline   Reply With Quote
Old 11-13-2015, 07:48 PM   #105
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

HIDs. One of the big ones. Actually, let's make it two.
aidandj is offline   Reply With Quote
Old 11-13-2015, 08:16 PM   #106
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

Why, did you buy 55w hids? They generally use less watts on high beams than halogens.

I did not use relays, dont think it's necessary.
deezums is offline   Reply With Quote
Old 11-13-2015, 08:31 PM   #107
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

I like relays. I had it wired for a relay already. Relays are cool. Relays are cheap. I bought 55w and 35w. I've never tried 55w and now that I have a projector housing I kind of want to try.

The other set will go on CL for more than i paid for it sadly.
aidandj is offline   Reply With Quote
Old 11-13-2015, 08:37 PM   #108
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

55W halogen = 55W HID kit > 35W hid kit.

Relay not required, at least for 35w hids IMO.
deezums is offline   Reply With Quote
Old 11-13-2015, 08:37 PM   #109
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

Which is why i stated that if you wanted to ball out you would get relays. Peasants can live the non relay life.

Not required though.
aidandj is offline   Reply With Quote
Old 11-17-2015, 09:48 PM   #110
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

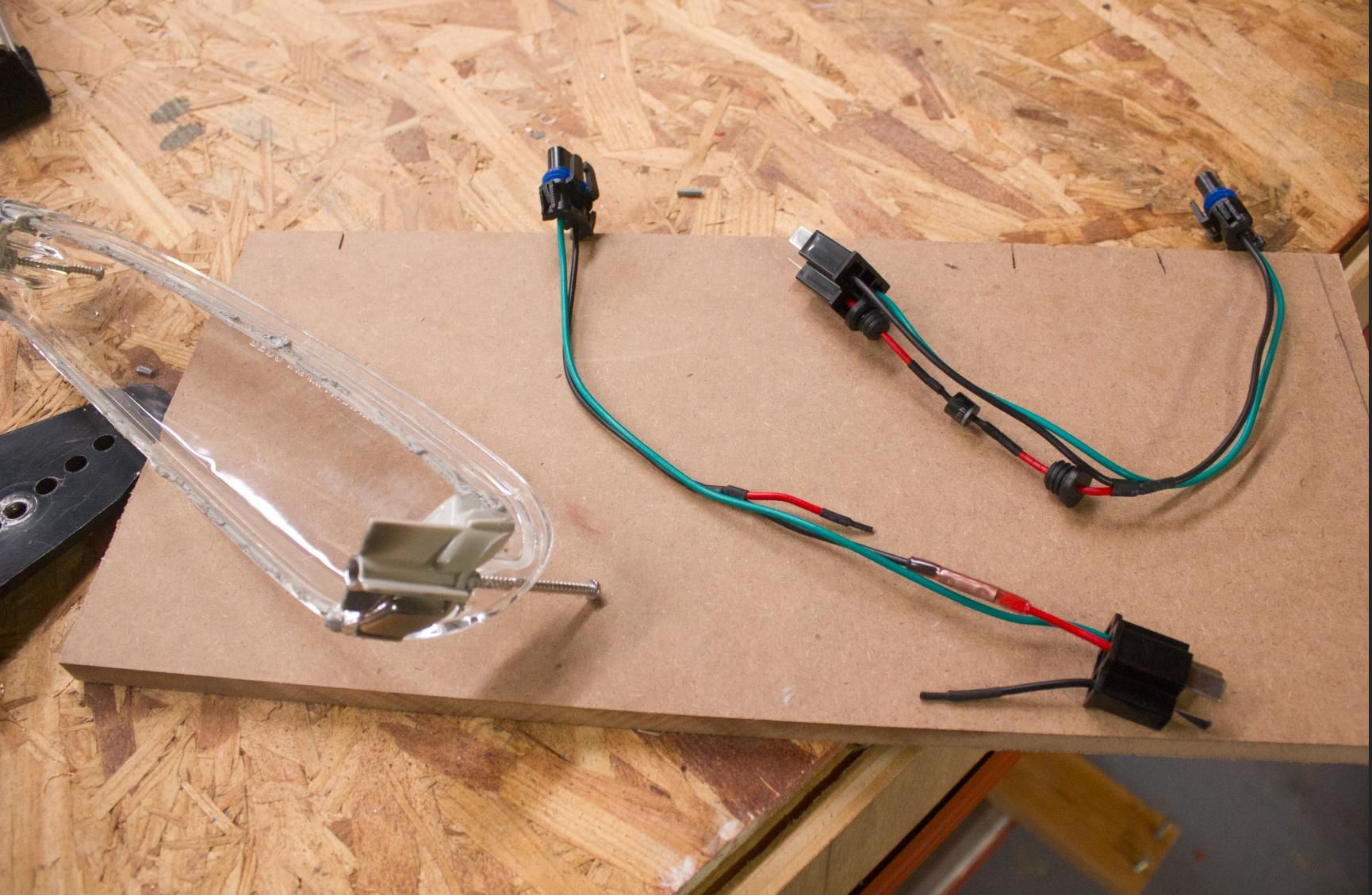

Instead of delrin spacers I cut up the reflector housing and used the adhesive + tabs to hold them in place. Also, I ordered a 9005 to h4 conversion harness (9005 to H4 headlight adapter harness). The low beam ended up having a 1ohm resistor wired into it so I cut that out. In retrospect I should have ordered the high beam only and then de-pinned that connection and moved it to the low beam spot.

http://i.imgur.com/ddq6qdx.jpg
Attached Thumbnails
Projectors in turn signals. A shitty DIY guide.-80-ddq6qdx_7cc12e9f1e47ff96545e740615f1a51c05cd26e0.jpg
asmasm is offline   Reply With Quote
Old 11-17-2015, 09:50 PM   #111
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

I just stuck a spade connector in there. HIDs came with the 9005 plug. Its just a standard AMP connector I believe.

Haha. I have a reflector housing I started cutting just like that, I might do that instead eventually.
aidandj is offline   Reply With Quote
Old 12-04-2015, 01:46 AM   #112
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

Update: Sold the headlight motors for $100, and the hella h4 housings for 60. So I'm officially in the black for this project.
aidandj is offline   Reply With Quote
Old 12-04-2015, 12:10 PM   #113
Junior Member

Join Date: Jul 2015
Location: Bremerton, WA
Posts: 429
Total Cats: 30
Default

Nice. You still happy with how they perform? Better/same/worse than Hellas? You still shootin' through tinted lenses?
Itty is offline   Reply With Quote
Old 12-04-2015, 12:26 PM   #114
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,462
Default

Quote:
Originally Posted by Itty View Post
Nice. You still happy with how they perform? Better/same/worse than Hellas? You still shootin' through tinted lenses?
Yes better yes. 55w HID. Performance would be significantly better with clears. I'll get some eventually.
aidandj is offline   Reply With Quote
Old 12-04-2015, 12:45 PM   #115
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

I have 35w HIDs going into mine and I am coming from stock lights. I expect there will be an improvement.
asmasm is offline   Reply With Quote
Old 03-24-2016, 06:47 PM   #116
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

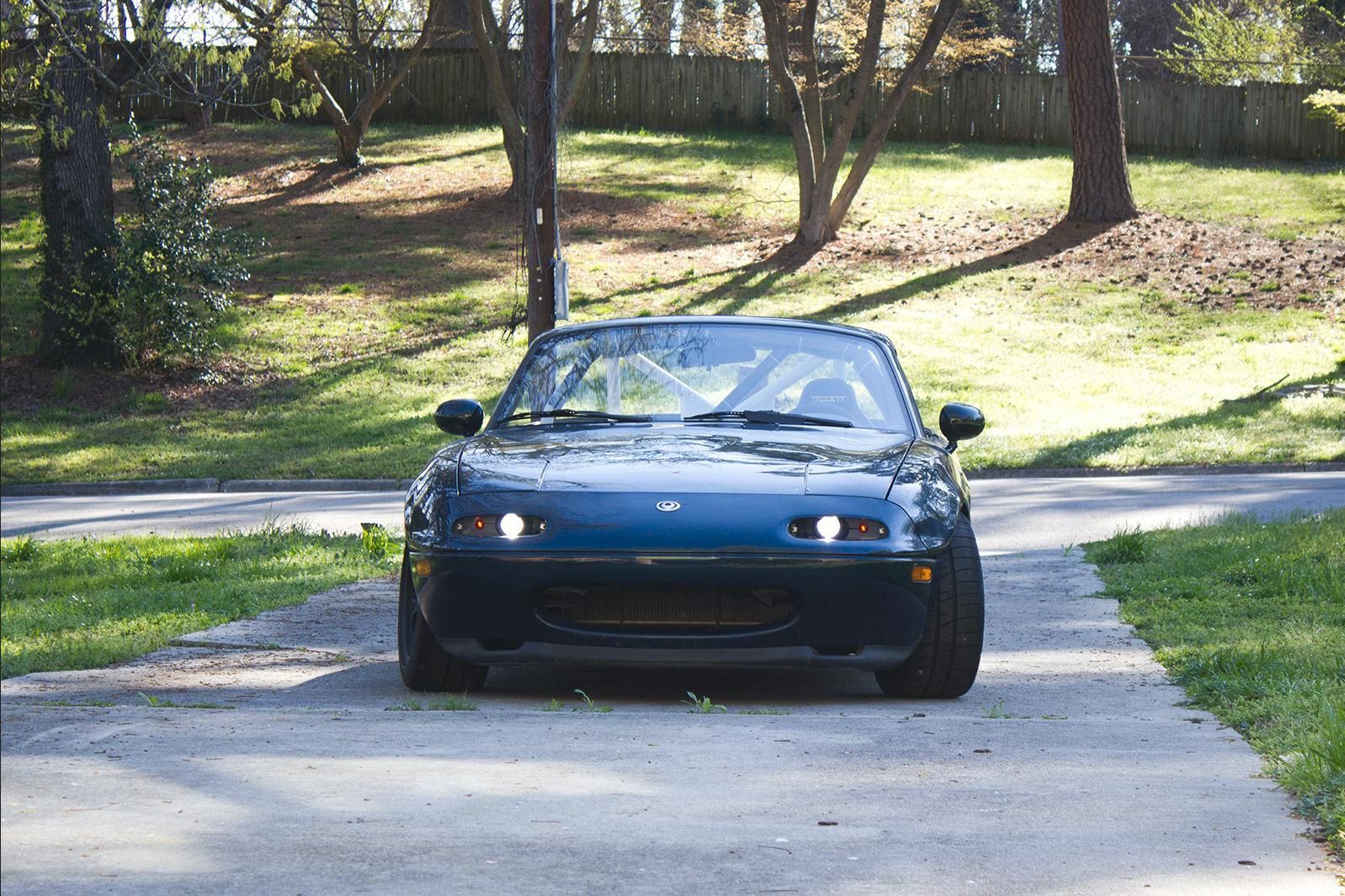

I wanted to follow up and post what I did for my install.

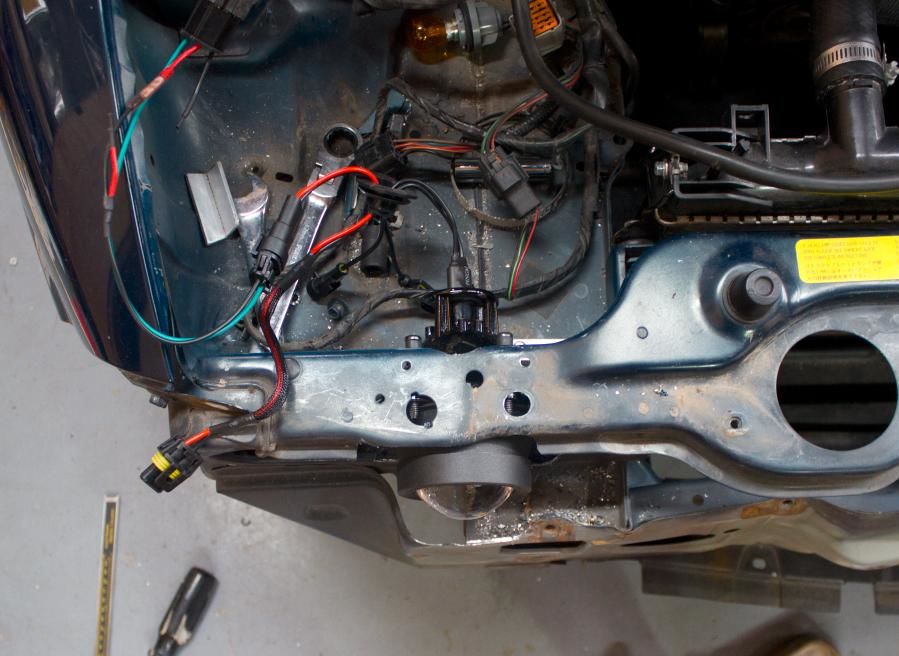

I installed my lights forward of the front crash beam (I copied this from OneTwo). The adjustment screw is pointing threads forward so there is no need for a nut and the projector ends up closer to the covers. The only thing I wish I had done better was keep the lights clocked level. My drivers side light is rotated a few degrees. I might try and oval the mounting hole and the fill the side in with some weld to get it back to perfectly straight.



I tried several styles of turn signals and have settled on these inexpensive LED strips attached to the upper edge of the headlight cover with clear RTV:
Amazon.com: Cutequeen 24cm LED Car Flexible Waterproof Light Strip Yellow (pack of 4): Automotive Amazon.com: Cutequeen 24cm LED Car Flexible Waterproof Light Strip Yellow (pack of 4): Automotive
The little 3/4" led light pictured above wasn't bright enough and it was too recessed to see well from different angles.

The only downside with these is that the wiring so thin and cheap that it's difficult to make a crimp onto it with any common butt splices. You do get 4 of them in a pack for $5.

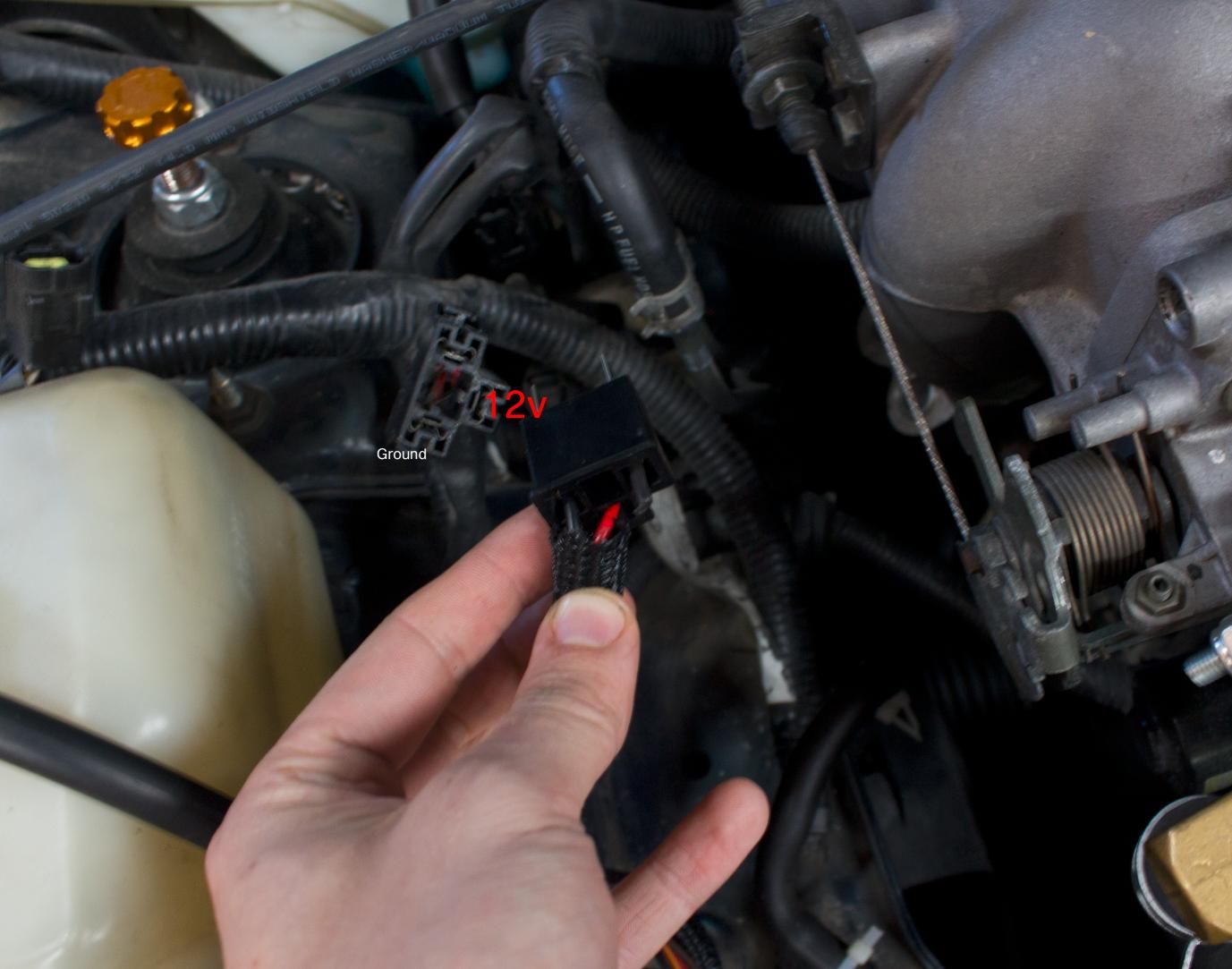

12v and ground supply for the projectors is here:

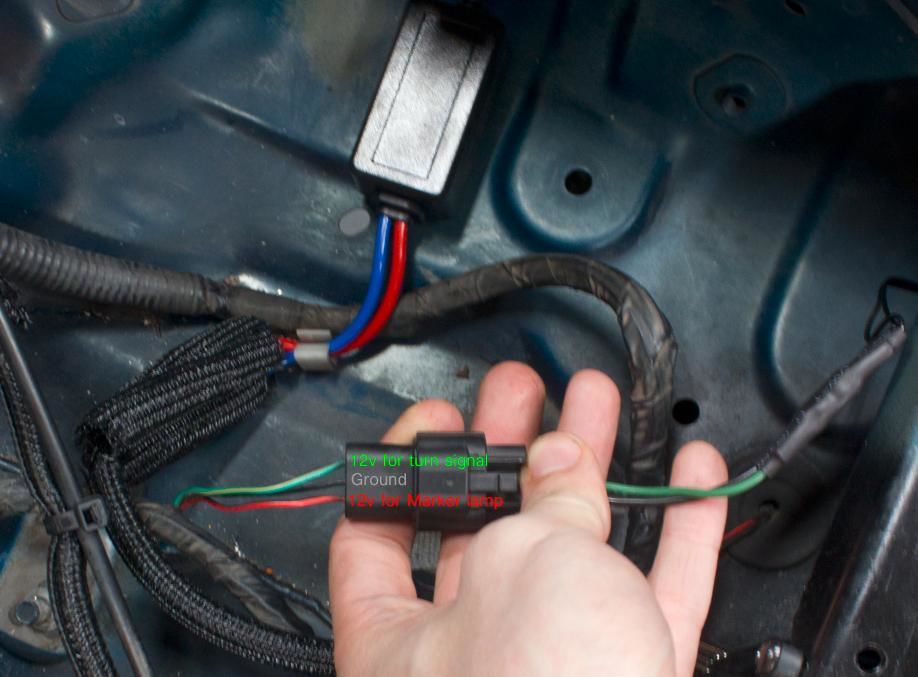

wiring for the turn signals. I don't have anything wired in for a marker lamp:




Lastly, Not including the weight of the Singular Motorsports headlight lid brackets or the steel cut out of the crash bar, the headlight retrofit saved 14.5lb. The light out of my 35w hids is better than stock both for visibility and lighting cutoff.
Attached Thumbnails
Projectors in turn signals. A shitty DIY guide.-80-166176_prepping_my_95_track_80_fwlouy8_8f4baffce61df51c178e0ac04b595a47760e7f9c_743d823d52223.jpg   Projectors in turn signals. A shitty DIY guide.-80-bwbhw1s_9e9bd634678816f252f321ee2386b4a3da1bdcfb.jpg   Projectors in turn signals. A shitty DIY guide.-80-jaodgqg_e157ebee644015558d0971083ab2cffbc68f1c0e.jpg   Projectors in turn signals. A shitty DIY guide.-80-qu4bvbh_f551f9323a60a07a46f8a4f7383fdc053929c251.jpg   Projectors in turn signals. A shitty DIY guide.-80-166176_prepping_my_95_track_80_fwlouy8_8f4baffce61df51c178e0ac04b595a47760e7f9c_743d823d52223.jpg

Projectors in turn signals. A shitty DIY guide.-80-bwbhw1s_9e9bd634678816f252f321ee2386b4a3da1bdcfb.jpg   Projectors in turn signals. A shitty DIY guide.-80-jaodgqg_e157ebee644015558d0971083ab2cffbc68f1c0e.jpg   Projectors in turn signals. A shitty DIY guide.-80-qu4bvbh_f551f9323a60a07a46f8a4f7383fdc053929c251.jpg
asmasm is offline   Reply With Quote
Old 06-10-2016, 11:09 AM   #117
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

I'm thinking about doing this, but with some low wattage bulbs so I can be seen - not so much as to see the road. Do you guys think there is enough clearance to run the 60mm projectors and pop ups?
Stealth97 is offline   Reply With Quote
Old 06-10-2016, 11:37 AM   #118
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

I think your popups would occupy some of the space where the projectors need to sit. I currently have two projectors per side but if It might be possible to fit a third smaller unit if I had placed things differently. That would allow for a low beam, high beam, and DRL.
asmasm is offline   Reply With Quote
Old 06-10-2016, 12:00 PM   #119
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

Thanks for the quick answer. I have several turn signals I can sacrifice, I may experiment with adding Led strips into the main housing. I have awesome projectors in my moss low pro kit and don't want to loose those. Short term I can just pop them up and leave low beams on.. Or they may just fit with lo pros... Hmm
Stealth97 is offline   Reply With Quote
Old 06-10-2016, 02:13 PM   #120
Senior Member
iTrader: (1)

Join Date: Jul 2012
Location: durham NC
Posts: 767
Total Cats: 115
Default

LED strip attached to the inside of the turn signal housing with clear RTV make really good turn signals and would be just as good for DRLs with stock lights.
asmasm is offline   Reply With Quote
