Default protege 1.8 oil pumps gears VS miata pumps gears

I have what i believe to be a protege 1.8 block with what i assume is a protege oil pump and everything attached to the block. The problem i have is that the gears are different sizes and im looking to install the billet oil pump gears.

So my question is:

Are the protege oil pumps interchangeable with the miata oil pumps?

Anyone have a miata longnose oil pump?
thesnowboarder is offline   Reply With Quote
Old 11-02-2008, 11:17 PM   #2
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

i have one from a 94 motor. are you looking for one just to compare or to use?
paul is offline   Reply With Quote
Old 11-02-2008, 11:22 PM   #3
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by paul View Post
i have one from a 94 motor. are you looking for one just to compare or to use?
Well, i guess both. If its the right fitment and will work on my protege block then ill need one. PM me with a price if your willing to get rid of it please.
thesnowboarder is offline   Reply With Quote
Old 11-02-2008, 11:45 PM   #4
Elite Member
iTrader: (21)

paul's Avatar

Join Date: Jun 2006
Location: Point Pleasant, NJ
Posts: 2,957
Total Cats: 2
Default

This one isn't suitable for use. I pulled it out a motor I killed a few years ago.
paul is offline   Reply With Quote
Old 11-02-2008, 11:56 PM   #5
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

So ill help answer my question, partially.

The crank on my protege block is about 1 cm smaller than the longnose crank on a busted 1.6 i have in my garage. Now to test it on a 1.8. Anyone know if the oil pumps are different on the 1.6 and 1.8's? Im assuming they are the same since the group buy on the oil pump gears were "all longnose cranks"
thesnowboarder is offline   Reply With Quote
Old 11-03-2008, 12:00 AM   #6
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Your protege possibly has a shortnose crank in it i guess.
neogenesis2004 is offline   Reply With Quote
Old 11-03-2008, 12:03 AM   #7
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Any idea's on identifying a long-nose from a short-nose crank?
thesnowboarder is offline   Reply With Quote
Old 11-03-2008, 01:53 AM   #8
Senior Member
iTrader: (7)

Join Date: Aug 2007
Location: Southern Indiana
Posts: 1,371
Total Cats: -1
Default

Miata Crankshafts

does that help?
wes65 is offline   Reply With Quote
Old 11-03-2008, 02:14 AM   #9
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Yeah the Protege Oil pump and water pump differ from Miata.
elesjuan is offline   Reply With Quote
Old 11-03-2008, 02:54 AM   #10
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Anyone know if the protege and miata crank and oil pumps are interchangeable?
thesnowboarder is offline   Reply With Quote
Old 11-03-2008, 03:22 AM   #11
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Well.. I have an Escort block in my Miata with the Miata 1.8 Crankshaft and oil pump.. Not sure what kind of interchange you're asking. IIRC the 1.6 and 1.8 Miata oil pumps are the same, but the protege uses a smaller diameter crank and isn't the same as either of the miata motors... I could be incorrect about that, just best I remember.

Also the Protege/Escort uses a hybrid belt system.. V-Belt alternator and water pump, other accys are micro-v.
elesjuan is offline   Reply With Quote
Old 11-03-2008, 11:19 AM   #12
Junior Member

Join Date: Sep 2008
Location: Head Wound City, CT
Posts: 215
Total Cats: 0
Default

96 Escort uses the same belt setup as the Miata.
MattEGTR is offline   Reply With Quote
Old 11-03-2008, 12:42 PM   #13
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

I can't remember the user, but a user had pm'd me and said he had interchanged just the pumps between the motors without problems. If the pumps are different, I believe I can still accommodate you as long as its not a huge difference in design.
TravisR is offline   Reply With Quote
Old 11-03-2008, 03:45 PM   #14
Elite Member
Thread Starter
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Travis, its not your fault i had ordered the wrong gears for my application without knowing what i was getting into. Here are some pictures to show the differences.

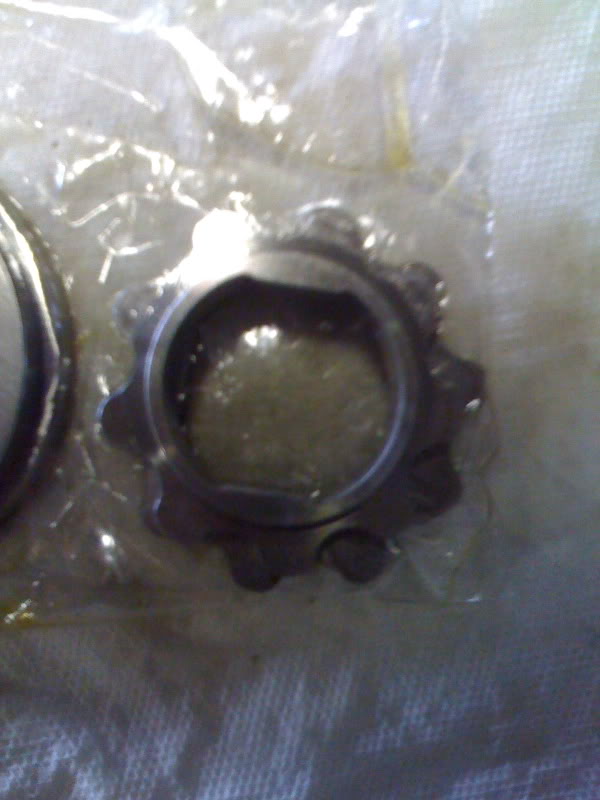

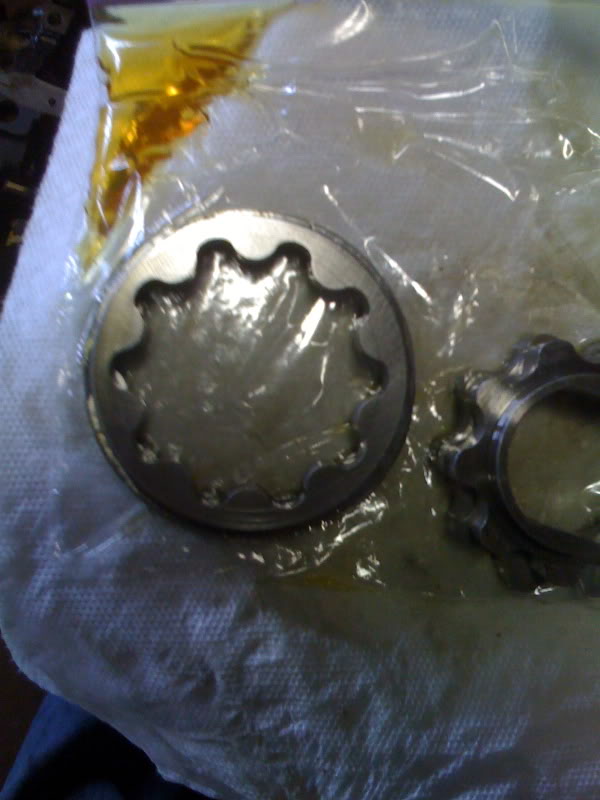

miata gears in ziplock bag after a bit of sanding... with protege gears ontop:
Name:  IMG_0317.jpg
Views: 7
Size:  52.2 KB
Name:  IMG_0318.jpg
Views: 13
Size:  58.7 KB
Name:  IMG_0319.jpg
Views: 25
Size:  67.5 KB

Now im wondering if i can swap a 1.8 longnose crank and oil pump over to my protege block.. This could work after all.
thesnowboarder is offline   Reply With Quote
Old 11-04-2008, 01:15 AM   #15
Elite Member
iTrader: (9)

Join Date: Jun 2008
Location: Houston, TX
Posts: 1,583
Total Cats: 8
Default

Well, I want to help if I can. So if you end up in a position where you can't use the gears, get a hold of me and I'll try to work something out.
