Default PS depower sucks?

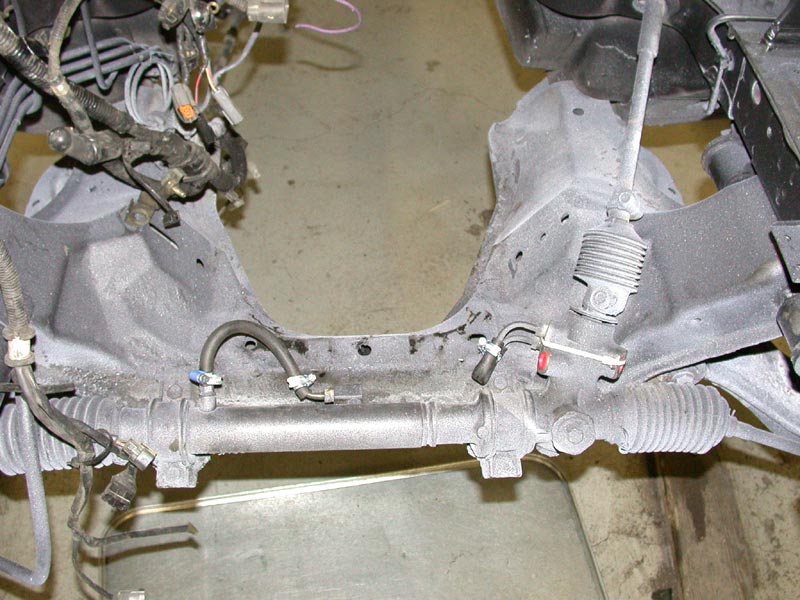

So last night i decided to do the looped depower, as i want it out of the way for my bottom mount and it had such high praise on this site. I did it like this picture basically, with the two red caps looped as well. the only difference is the loop on the left is much longer. It is still pretty tough to turn at high speeds.
My main guess is that there is still to much fluid in the system? the way i emptied it was taking off all the hoses and steering the wheel both ways a couple times.
Anyone else have similar problems? I dont think its cause i'm a ***** lol.
Attached Thumbnails
PS depower sucks?-otc_steering_rack.jpg
wittyworks is offline   Reply With Quote
Old 01-06-2010, 11:47 AM   #2
Senior Member
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

You should have just removed the seal while it was out like that. I have mine VTA right now as I plan on removing the seal when the new motor goes in. Try just VTA for a quick run and see if that helps. It is going to be tougher on tight turns, but normal driving should be very little difference. Your other option is to adjust your caster.
TrickerZ is offline   Reply With Quote
Old 01-06-2010, 12:17 PM   #3
Senior Member
iTrader: (3)

Join Date: Mar 2007
Posts: 567
Total Cats: 1
Default

just make sure all the fluid is out, then next time you pull the engine depower the rack properly grease it and remove the inner seal.
slutz4 is offline   Reply With Quote
Old 01-06-2010, 07:01 PM   #4
Senior Member
Thread Starter
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

The engine was never out, that picture is just from fm's website. I'm gonna go try to get some more fluid out now and report back later.
wittyworks is offline   Reply With Quote
Old 01-06-2010, 09:03 PM   #5
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

well when I did it, I took the rack apart and took out the piston and everything. I only notice it when below like 3 mph, other than that it just feels tighter, not harder.
cardriverx is offline   Reply With Quote
Old 01-06-2010, 09:10 PM   #6
Elite Member
iTrader: (7)

Join Date: Jan 2007
Location: Renton Washington
Posts: 1,742
Total Cats: 3
Default

Im too lazy to pull it out.
SKMetalworks is offline   Reply With Quote
Old 01-06-2010, 09:18 PM   #7
Junior Member
iTrader: (2)

Join Date: Dec 2009
Location: Louisville, KY
Posts: 232
Total Cats: 0
Default

Quote:
Originally Posted by sbkcocker499 View Post
Im too lazy to pull it out.
That's the way I am. I am thinking about looping the lines, but I don't feel like pulling the rack out. If it is real bad, I might just leave PS in
AutoFreak57 is offline   Reply With Quote
Old 01-06-2010, 09:23 PM   #8
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

I yanked my **** out and looped the lines, and have never looked back......the only time my wheel is hard to turn is at a dead stop, even then its not that bad....i think your just weak!
WonTon is offline   Reply With Quote
Old 01-06-2010, 09:24 PM   #9
Junior Member
iTrader: (5)

Join Date: May 2006
Location: San Francisco Bay area
Posts: 359
Total Cats: -1
Default

it's not hard to pull out PS rack. Do it the right way first time to save you some headaches later.
aznDragonX is offline   Reply With Quote
Old 01-06-2010, 09:38 PM   #10
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by WonTon View Post
I yanked my **** out and looped the lines, and have never looked back......the only time my wheel is hard to turn is at a dead stop, even then its not that bad....i think your just weak!


What he^^ said. I looped mine and I have no issues. What size/weight wheels do you have?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-06-2010, 10:07 PM   #11
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by levnubhin View Post
What he^^ said. I looped mine and I have no issues. What size/weight wheels do you have?
yeh what are ya running?


im running 16x8 0 offset xxr 513

WonTon is offline   Reply With Quote
Old 01-06-2010, 10:43 PM   #12
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

You have to pull the rack and remove the piston ring inside it...


IMHO, the depowered rack really sucks... but I'm gonna do it anyway. *shrug*
elesjuan is offline   Reply With Quote
Old 01-06-2010, 10:58 PM   #13
Senior Member
iTrader: (6)

Join Date: Sep 2007
Posts: 1,085
Total Cats: 30
Default

HTFU you big vag
albumleaf is offline   Reply With Quote
Old 01-06-2010, 11:17 PM   #14
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,323
Default

Back your caster off. 5+ degrees is great for power steering, but horrible for manual. Get the car aligned, set it to around 3.5 degrees. I noticed a huge improvement in the weight of the steering at high speed.

Small steering wheels won't help, either - I still use a 350mm wheel for a reason.
Savington is offline   Reply With Quote
Old 01-07-2010, 12:18 AM   #15
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Heh, my wheel is smaller than stock and I run around 5.5* caster.
kotomile is offline   Reply With Quote
Old 01-07-2010, 12:18 AM   #16
Senior Member
iTrader: (6)

Join Date: Jul 2007
Location: Cocoa Beach, FL
Posts: 808
Total Cats: 3
Default

Quote:
Originally Posted by sbkcocker499 View Post
Im too lazy to pull it out.
TrickerZ is offline   Reply With Quote
Old 01-07-2010, 12:36 AM   #17
Senior Member
Thread Starter
iTrader: (6)

Join Date: May 2009
Location: San Francisco
Posts: 989
Total Cats: 23
Default

I have stock size wheels and steering wheel. Advice on trying the full depower with the engine still in or impossible?
wittyworks is offline   Reply With Quote
Old 01-07-2010, 12:53 AM   #18
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Quote:
Originally Posted by wittyworks View Post
I have stock size wheels and steering wheel. Advice on trying the full depower with the engine still in or impossible?
Unbolt rack from car and follow directions in here:

Flyin' Miata : Tech: 1.8 conversion
elesjuan is offline   Reply With Quote
Old 01-07-2010, 08:49 AM   #19
Elite Member
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Sheeeet... I jsut cut my lines off, pulled the pump and turned the wheel a couple times to get the excess fluid. Never looked back...and I was running a 320mm steering wheel. Never bothered me...maybe it's becuase I have manly arms with muscle That was on my 96, I have not felt the need to ditch it on my 02 becuase it doesn't have the dead spots or suck at quick transistions like my 96 did.
Doppelgänger is offline   Reply With Quote
Old 01-07-2010, 09:46 AM   #20
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Manual rack ftw. That is the real "proper way".

I love it. But I only drive my car on the street so idk about track.
