Unhappy replaced power TR unit now car wont start

i replaced my power TR unit on a 1990 miata, when i was done it started right up. when i came back to the car it would no longer start. im running megasquirt pnp and i didnt disconnect the battery when replacing the power TR unit. i have spark and fuel, but the injectors are not firing. any ideas? im stomped
pman is offline   Reply With Quote
Old 08-05-2011, 01:46 PM   #2
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

power TR?
Braineack is offline   Reply With Quote
Old 08-05-2011, 01:53 PM   #3
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Power Transistor, aka igniter module.
Reverant is offline   Reply With Quote
Old 08-05-2011, 02:04 PM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

if you have spark and fuel, the ignitor is working.
Braineack is offline   Reply With Quote
Old 08-05-2011, 02:08 PM   #5
Newb
Thread Starter

Join Date: Oct 2010
Posts: 21
Total Cats: 0
Default

i have fuel to the fuel rail, but the injectors are not firing
pman is offline   Reply With Quote
Old 08-05-2011, 02:09 PM   #6
Newb
Thread Starter

Join Date: Oct 2010
Posts: 21
Total Cats: 0
Default

and it was right after replacing it, the car wouldn't start.
pman is offline   Reply With Quote
Old 08-05-2011, 02:15 PM   #7
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by Braineack View Post
if you have spark and fuel, the ignitor is working.
Ftfy.
Reverant is offline   Reply With Quote
Old 08-05-2011, 02:23 PM   #8
Newb
Thread Starter

Join Date: Oct 2010
Posts: 21
Total Cats: 0
Default

i replaced the injector relay also. any ideas on what could go bad, that would prevent the injectors from opening.
pman is offline   Reply With Quote
Old 08-05-2011, 02:32 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

are they getting 12v on the white/red wires?

otherwise the MS grounds them. Fuel pump running?
Braineack is offline   Reply With Quote
Old 08-05-2011, 02:34 PM   #10
Newb
Thread Starter

Join Date: Oct 2010
Posts: 21
Total Cats: 0
Default

could i have fried something in megasquirt
pman is offline   Reply With Quote
Old 08-05-2011, 02:35 PM   #11
Newb
Thread Starter

Join Date: Oct 2010
Posts: 21
Total Cats: 0
Default

yes the fuel pump it running
pman is offline   Reply With Quote
Old 08-05-2011, 02:36 PM   #12
Newb
Thread Starter

Join Date: Oct 2010
Posts: 21
Total Cats: 0
Default

im going to check right now, the wires to the injectors?
pman is offline   Reply With Quote
Old 08-05-2011, 02:49 PM   #13
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,317
Total Cats: 1,914
Default

The wiring of the fuel system is fairly simple:



+12 volts comes out of the Main Relay on the white/red wire when the key is on. The voltage then goes to the fuel injector harness (still red/white) and hits one side of each injector.

The other side of each injector goes back to the ECU- they're wired in pairs, so two wires, one yellow, the other yellow/black. The ECU closes those wires to ground, completing the current path through the injectors, when it wants them to fire.

We know the Main Relay is working, as the same white/red wire also supplies power to the ECU and several other things.

Look at the injector duration on the Megasquirt, either by logging it while you crank it or by setting one of the Megatune gauges to read Pulse Width 1. Is the MS even trying to squirt? Also, in MegaTune, do you see a believable coolant temperature reading when the system is on? It should read somewhere near ambient.

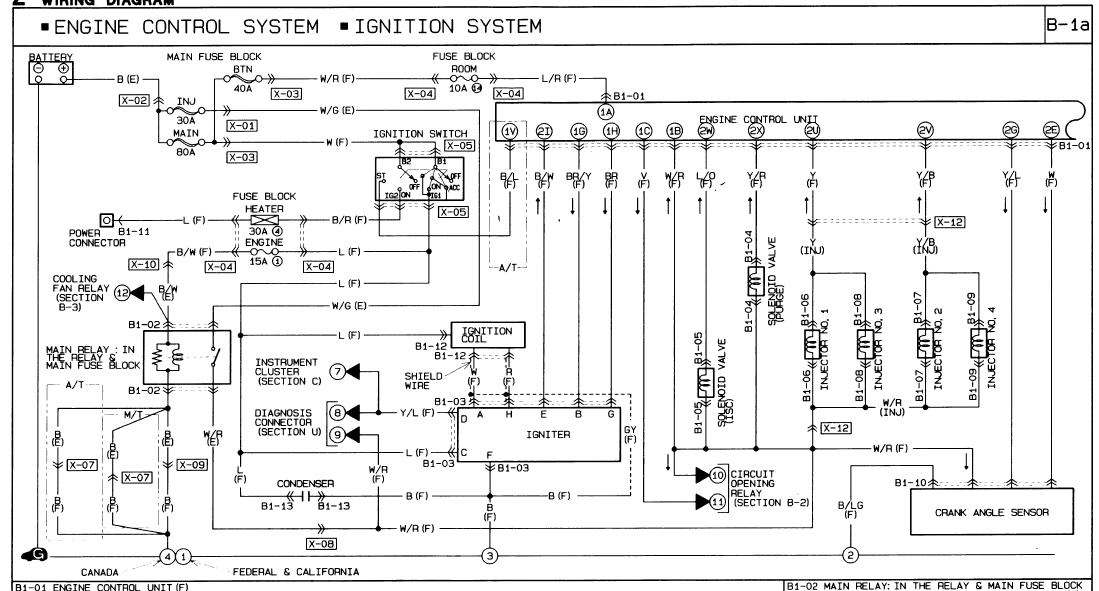

Attached Thumbnails
replaced power TR unit now car wont start-t4jrw.gif
Joe Perez is online now   Reply With Quote
Old 08-05-2011, 03:43 PM   #14
Newb
Thread Starter

Join Date: Oct 2010
Posts: 21
Total Cats: 0
Default

ok, i tested the red/white wire. it has 11.4v, also have full fuel presser. i was able to start it with brake cleaner, which tells me im not getting fuel.
pman is offline   Reply With Quote
Old 08-05-2011, 04:02 PM   #15
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

take a log while cranking, post.
Braineack is offline   Reply With Quote
Old 08-05-2011, 05:01 PM   #16
Newb
Thread Starter

Join Date: Oct 2010
Posts: 21
Total Cats: 0
Default

im having trouble connecting to megasquirt, ill have my tuner try and log it for me, would a bad cam angle sensor stop the injectors?
pman is offline   Reply With Quote
Old 08-05-2011, 05:27 PM   #17
Newb

Join Date: Apr 2011
Posts: 13
Total Cats: 0
Default

I'd like to add that we accidentally put fuse in the ST connector a few weeks ago and blew the Q5 transistor, pman ordered a new one from diyautotune & I installed it last night so the fuel pump turns on now - data log coming in 30 minutes I'm gong over to his house with my netbook to log the cranking, we just went and got it connected and datalogged cranking so the info is coming shortly

Last edited by zvonkorp; 08-05-2011 at 06:55 PM.
zvonkorp is offline   Reply With Quote
Old 08-05-2011, 06:58 PM   #18
Newb

Join Date: Apr 2011
Posts: 13
Total Cats: 0
Default

I attached a trigger log & datalog of our cranking from just a few hours ago, any insight ?
Attached Files
File Type: msl triggerlogs.msl (21.9 KB, 138 views)
File Type: csv augusttroubleshooting2.csv (55.2 KB, 88 views)
zvonkorp is offline   Reply With Quote
Old 08-06-2011, 04:42 PM   #19
Newb

Join Date: Apr 2011
Posts: 13
Total Cats: 0
Default

Any ideas?
zvonkorp is offline   Reply With Quote
Old 08-06-2011, 05:21 PM   #20
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Is the map loaded inside the ECU ok? I see from your log that your cranking pulsewidth is about 1.5ms - that doesn't seem right.
Reverant is offline   Reply With Quote
