Default Reroute hose solution to add clearance for I/C piping

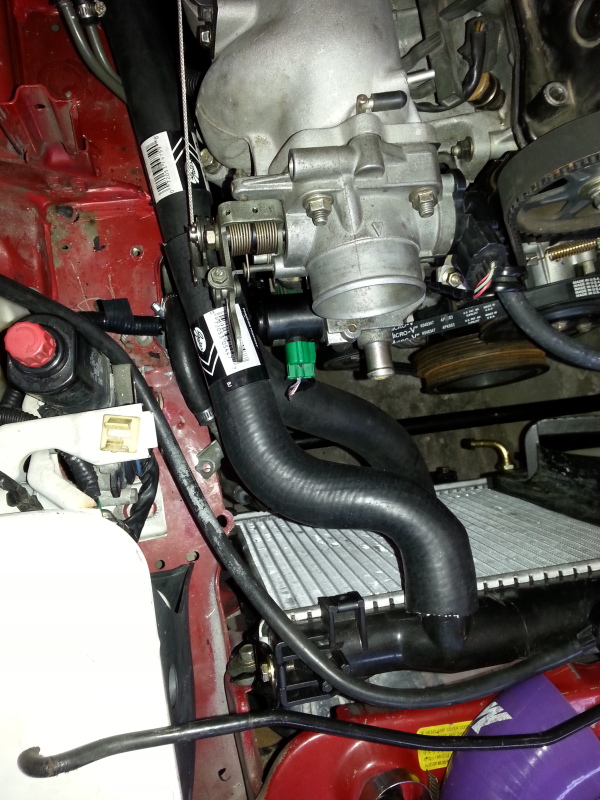

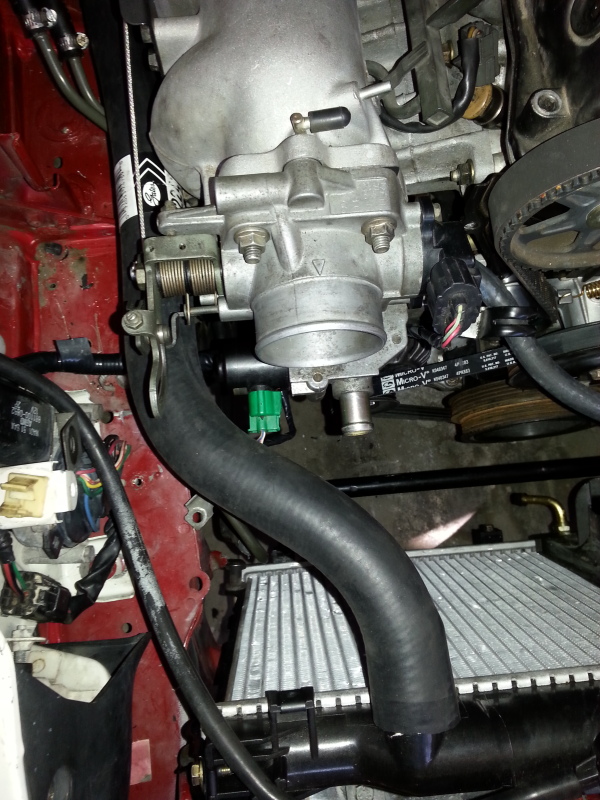

I wanted to add this information to the thread that mentions using the GM hose for the reroute but I didn't have permission to post in that thread. When using the GM hose (Gates part #22436) the hose is the right length and has the right bends to meet up with the radiator, but because it comes at the radiator at ~45 degree angle it can cause some clearance issues with your intercooler piping coupler right off the throttle body. I work at a parts store so I went and dug through hoses for a while until I found one that makes 2 tight 90 degree bends and and then meets up to the GM hose. Since you'll have to use a joiner in the straight section anyway, you can use a 1.25" pipe anywhere from 3 inches to 20 inches long. It might not give you enough clearance for a really fat radiator, but it does give a much needed extra inch or two. The hose is Gates part #21025, this thing fits a lot of cars like camry, corolla, pathfinder, etc. so it should be easy to find. Just thought this might be useful to some.

Attached Thumbnails
Reroute hose solution to add clearance for I/C piping-1390417119.jpg   Reroute hose solution to add clearance for I/C piping-1390417124.jpg
6strngs is offline   Reply With Quote
Old 01-23-2014, 10:10 AM   #2
Senior Member
iTrader: (10)
Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4

awesome info! Thanks
