Default Rollbar Dimension Survey (or, Please Get Out Your Tape Measures and Yardsticks)

I've been trying to figure out why my rollbar limits my seating position so much. I'm not a tall guy (5'10"), and I don't generally drive in a "laid-back" or severely reclined position. And yet I feel like I have to position my seat uncomfortably forward and upright to avoid putting my head on the rollbar.

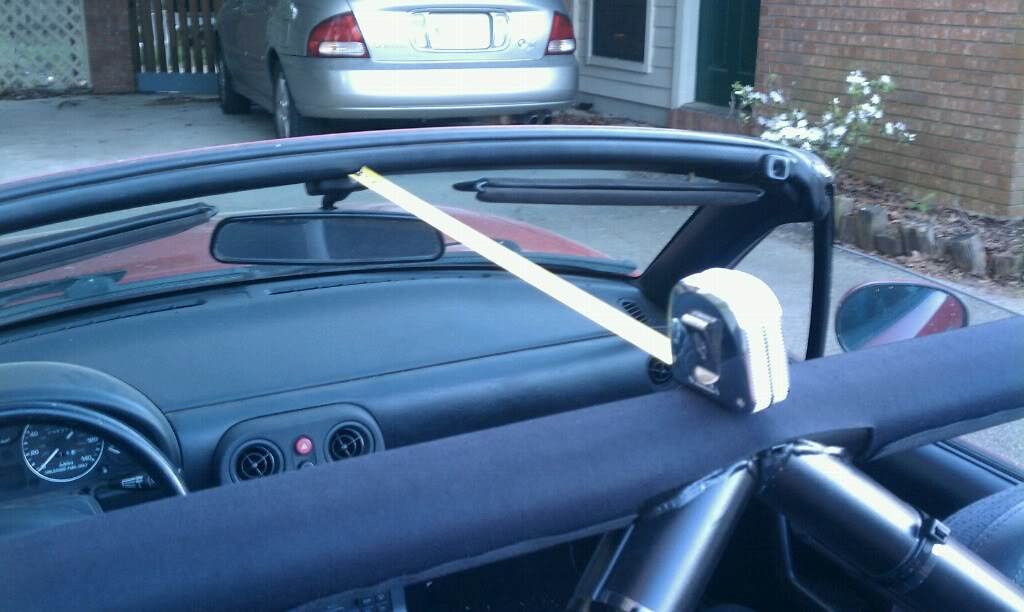

I decided to see how my Kirk Racing bar compares to the more common Hard Dog and Bull Frog bars. I figure the most easily measured (and most pertinent) dimension would be the distance from the center of the windshield header to the top cross tube of the rollbar.

Name:  13010128963820.jpg
Views: 15
Size:  110.4 KB

Name:  13010129166861.jpg
Views: 10
Size:  85.5 KB

Name:  13010129369632.jpg
Views: 3
Size:  60.1 KB

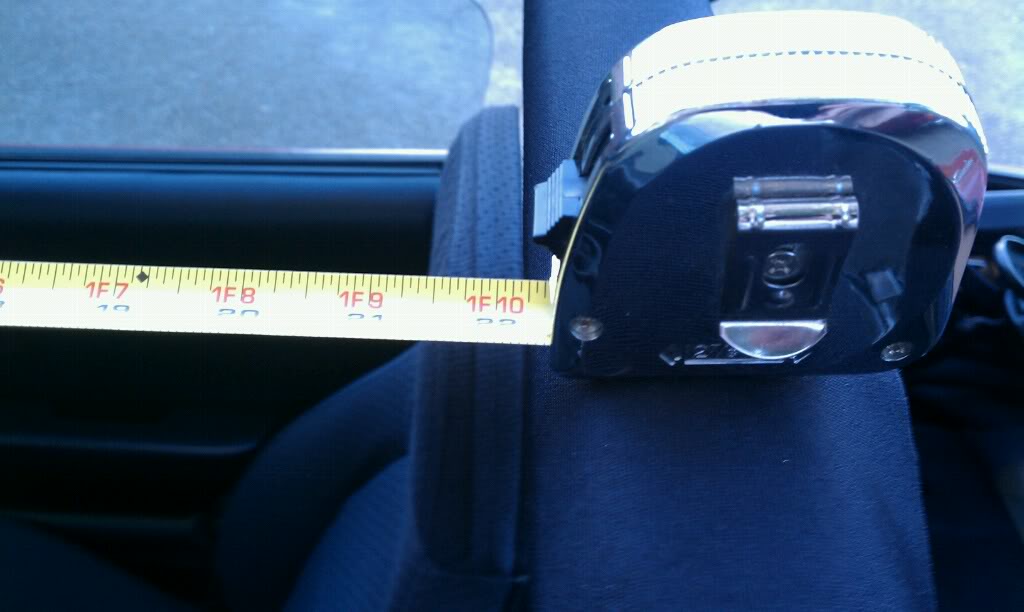

The numbers are hard to read, but mine measures out just a bit over 22" using this admittedly-imprecise method. Call it 22 and a quarter inches. I measured it with the padding in place, not the tube itself.

Anyone who has a rollbar, I'd be very grateful if you are willing to take a tape measure and 5 minutes to measure as shown in my pics and report here with the distance, what brand and model rollbar you have, and whether you measured to the actual tube or to the outer layer of padding.
