Default Running heater without the original blower

I removed the Dash so that i can relocate my ECU to the Glove box. While I have it open I thought about taking out the OEM blower, blend/mode doors, and the climate control switches. I want to keep my heater so I was thinking about attaching a 12 volt fan to the heater core. The fan will blow the air across the heater core to the defrost ducts. the fan will have an on/off switch, and i will try to use aluminum foil/sheets to direct the air to the ducts. Please give feedback on the Idea or any suggestions.
Baker99miata is offline   Reply With Quote
Old 12-09-2014, 01:33 AM   #2
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jun 2013
Location: Dallas TX
Posts: 149
Total Cats: -3
Default

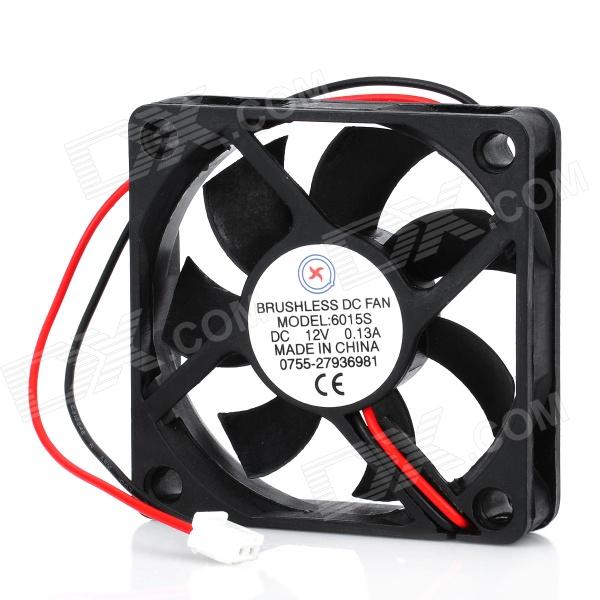

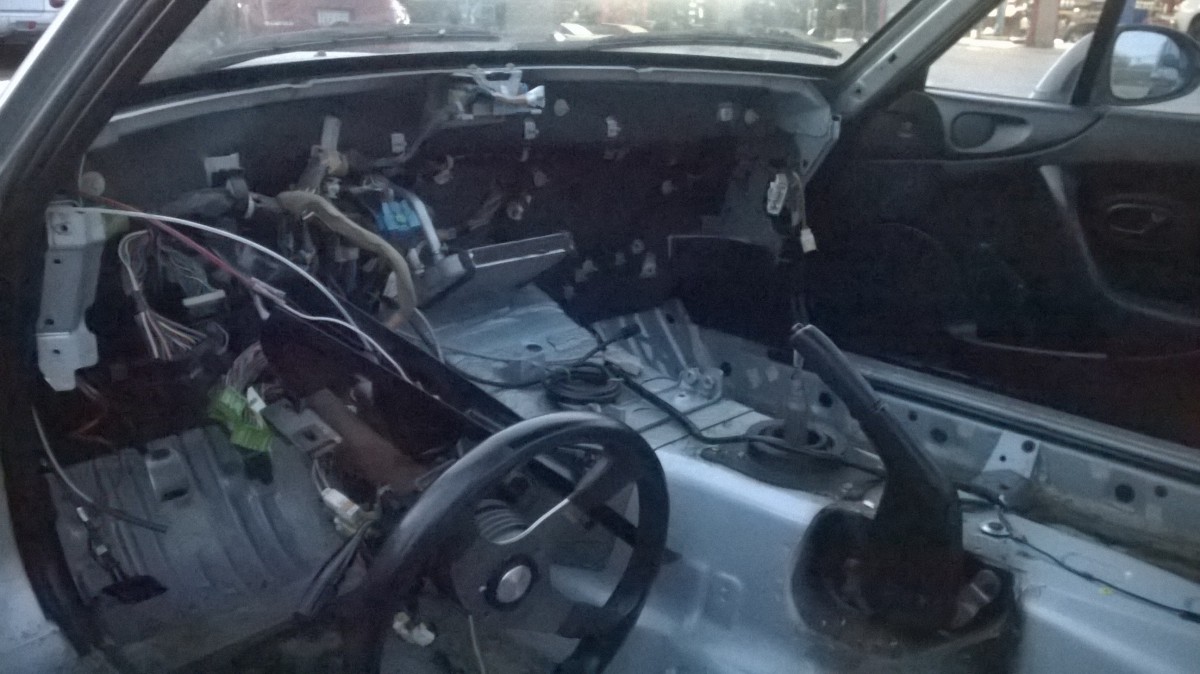

This is what my car looks like now and generic picture of the fan
Attached Thumbnails
Running heater without the original blower-sku_138608_1.jpg   Running heater without the original blower-wp_20141208_003-.jpg
Baker99miata is offline   Reply With Quote
Old 12-09-2014, 05:12 AM   #3
Junior Member

Join Date: Jan 2014
Location: San Diego, CA
Posts: 61
Total Cats: 1
Default

Your going to need a MUCH more powerful fan than that to do anything noteworthy and defrost/warm up the car.
JesseTheNoob is offline   Reply With Quote
Old 12-09-2014, 08:57 AM   #4
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

In just to see what (if any) suggestions come through.

I've deleted the A/C on my car and have even gutted the plenum chamber where the heat exchanger used to live, but that's a big, bulky piece of plastic between the squirrel-cage fan and the heater core that I'd like to eliminate. I'm tempted to just try some air ducting from Lowes and see how that works, but I'm interested to see if anyone has some solid experience to go from.
rwyatt365 is offline   Reply With Quote
Old 12-09-2014, 09:55 AM   #5
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jun 2013
Location: Dallas TX
Posts: 149
Total Cats: -3
Default

I want to order a fan, or decide if i want to use my OEM blower. how about this fan Bitfenix Spectre Pro 200mm Case Fan - Black at Xoxide! its flow rate is 148.72 CFM 10%.
Baker99miata is offline   Reply With Quote
Old 12-09-2014, 10:06 AM   #6
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

order the OEM box and fan...
Braineack is offline   Reply With Quote
Old 12-10-2014, 02:21 PM   #7
Junior Member

Join Date: Nov 2014
Posts: 55
Total Cats: -2
Default

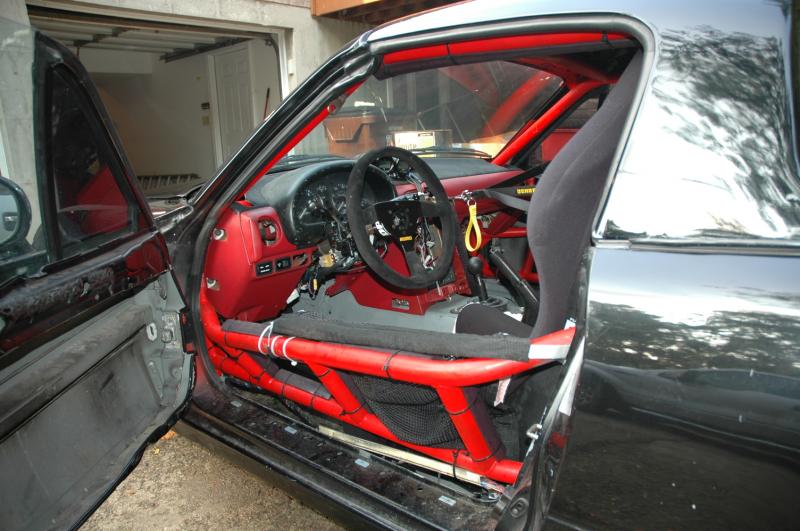

My miatacage doesn't play well the stock heater box, so i'm looking for ideas too.

Attached Thumbnails
Running heater without the original blower-skillicorn-turbo-miata-roll-bar-cage_zps9c242110.jpg

Last edited by loudes13; 12-10-2014 at 08:40 PM.
loudes13 is offline   Reply With Quote
Old 12-10-2014, 03:01 PM   #8
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

IF you plan to test with computer fans, use 2-3 in series to get some flow with the back pressure.

3" marine engine bay fans have been known to work (the same that work well for brake duct hoses and other tricky cooling locations).

Also, don't forget to use cold external (dryer) air to make defogging work well (especially if running with windows).
Making it work as stock-like as possible reduce the number of brain-farts.
NiklasFalk is offline   Reply With Quote
Old 12-10-2014, 10:00 PM   #9
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jun 2013
Location: Dallas TX
Posts: 149
Total Cats: -3
Default

I'm now trying to use OEM blower but eliminate the Blend/mode doors. I will let you guys know how it works out. I didn't think about the external door, thanks for pointing it out
Baker99miata is offline   Reply With Quote
Old 12-11-2014, 11:35 AM   #10
Senior Member

Join Date: Dec 2007
Location: ATL
Posts: 728
Total Cats: 48
Default

Quote:
Originally Posted by rwyatt365 View Post
In just to see what (if any) suggestions come through.

I've deleted the A/C on my car and have even gutted the plenum chamber where the heat exchanger used to live, but that's a big, bulky piece of plastic between the squirrel-cage fan and the heater core that I'd like to eliminate. I'm tempted to just try some air ducting from Lowes and see how that works, but I'm interested to see if anyone has some solid experience to go from.
This is the OEM part from Mazda that goes between the stock squirrel cage and the heater core;

It think that's the way I'm going.
Attached Thumbnails
Running heater without the original blower-5933bfaa5af03cb53670aec981721cfd__51403_std.jpg
rwyatt365 is offline   Reply With Quote
Old 12-11-2014, 08:39 PM   #11
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jun 2013
Location: Dallas TX
Posts: 149
Total Cats: -3
Default

Quote:
Originally Posted by rwyatt365 View Post
This is the OEM part from Mazda that goes between the stock squirrel cage and the heater core;
It think that's the way I'm going.
Wow I'm a little late, I wish if I knew that earlier. Didn't even cross my mind.
My coworker is building a custom heater box with ducts. I love the part number you have.
Baker99miata is offline   Reply With Quote
Old 12-11-2014, 08:48 PM   #12
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jun 2013
Location: Dallas TX
Posts: 149
Total Cats: -3
Default Here are some pics

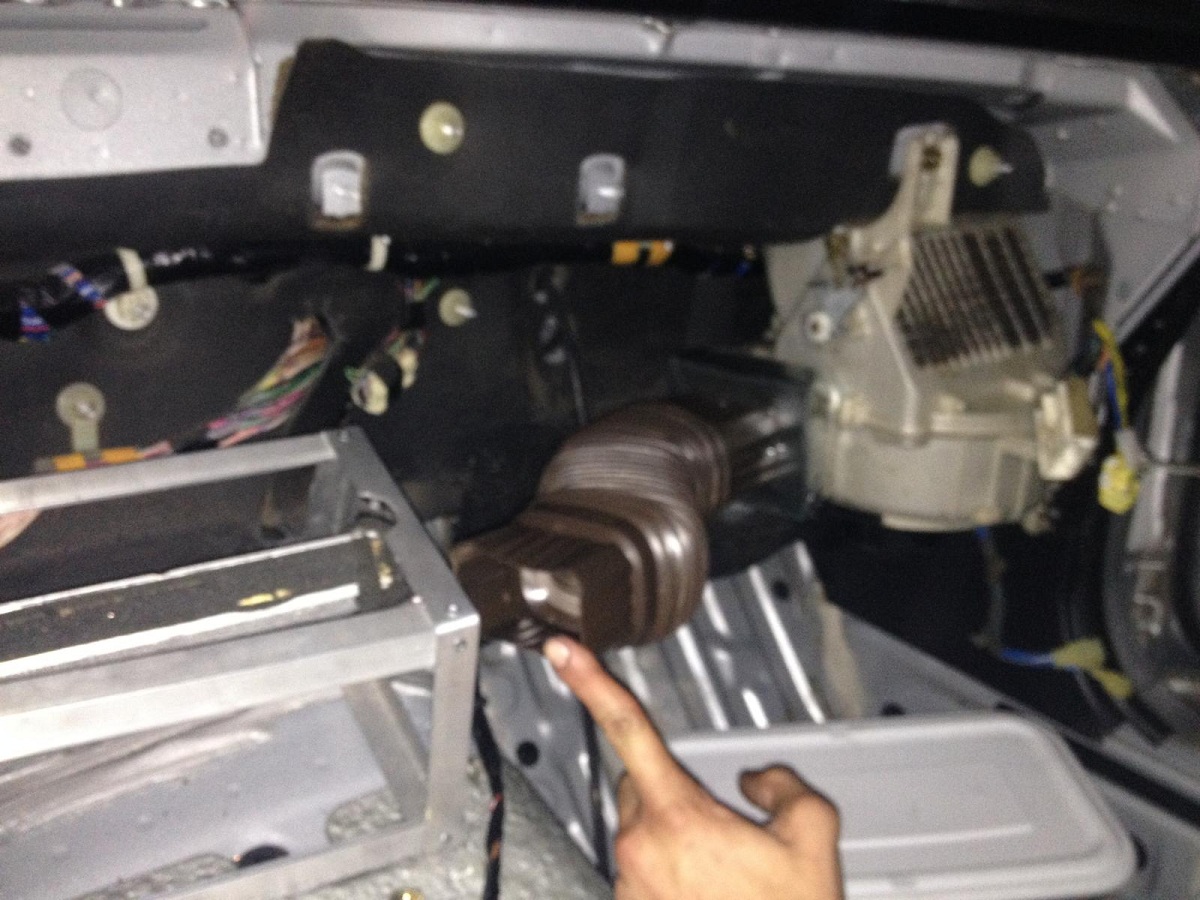

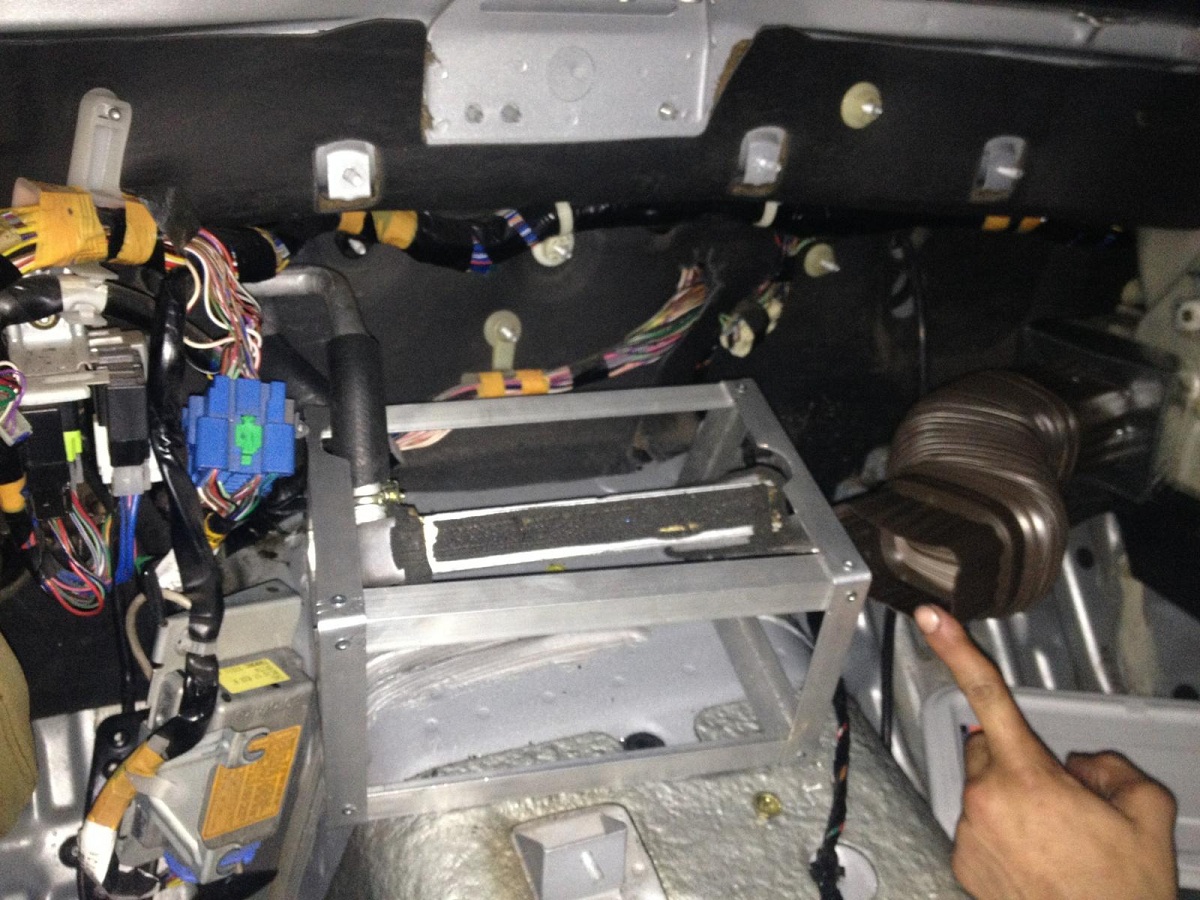

Here is how far he got, What do you guys think.
Attached Thumbnails
Running heater without the original blower-v__9fb1.jpg   Running heater without the original blower-v__98a0.jpg
Baker99miata is offline   Reply With Quote
Old 12-12-2014, 06:55 PM   #13
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Baker99miata View Post
Here is how far he got, What do you guys think.
Is... Is that part of a down spout for gutters?
Leafy is offline   Reply With Quote
Old 12-12-2014, 07:10 PM   #14
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

This is a fan my FSAE team has used for a radiator in the past. It's about the right size and seems to move alot of CFM.

https://advancedsportvehicles.com/sp...-a101-83a.html
cyotani is offline   Reply With Quote
Old 12-13-2014, 09:50 AM   #15
Junior Member
Thread Starter
iTrader: (4)

Join Date: Jun 2013
Location: Dallas TX
Posts: 149
Total Cats: -3
Default

Quote:
Originally Posted by Leafy View Post
Is... Is that part of a down spout for gutters?
yes it is, $3 at home depot.

I hope it all going to work, It's all very light except for the OEM blower motor. The main reason I kept the Oem Blower is to have outside air. This weight reduction has done very little to the weight in the Dash. the dash is still the heaviest part and can't seem to be able to take much of the weight out
Baker99miata is offline   Reply With Quote
Old 12-13-2014, 09:04 PM   #16
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

is ET pointing at the ducting?
