We had a request for spherical bearings in locations other than the upper rear outer.

Because we already have all the dimensions we will draw up designs for all the locations.

They will be special order though because we are all too poverty to run them there, and we believe most other people will be too.

Contact us for pricing.
aidandj is offline   Reply With Quote
Old 02-09-2016, 08:47 AM   #24
Junior Member
iTrader: (1)

Join Date: Jun 2010
Location: Westover, Md
Posts: 231
Total Cats: 10
Default

I know this is a long shot but any chance you guys would do non miata fabrication?





I went to a local machine shop and they quoted 400 per side. The guy that made those said he could do a set for under 300 but hes really backed up for like 6 months. There are a few other festiva guys that want a set also. Could maybe get a group buy going on them.
Attached Thumbnails

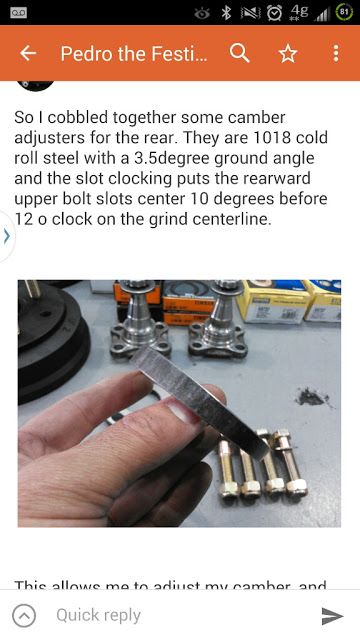

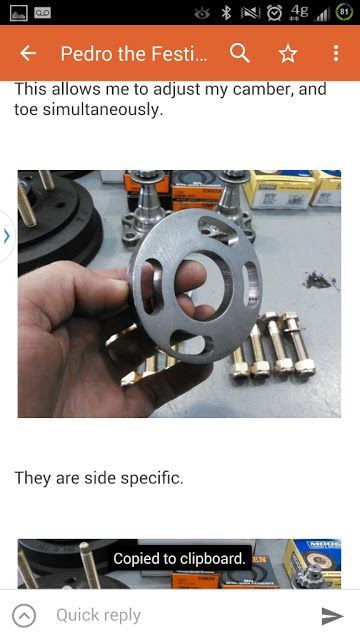

SADFab Into Thread-80-upload_1_jpg_jpeg_a4281b50039b52aad4425a5beaf9ca8aa0f77b96.jpg   SADFab Into Thread-80-upload_1_jpg_jpeg_4571dcb32cf2fbaa45fd7601ec462408c2f697ca.jpg
B6Tfastiva is offline   Reply With Quote
Old 02-09-2016, 09:06 AM   #25
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

Whoa, that's interesting. Have a pic of the entire assembly and where this is placed?
psyber_0ptix is offline   Reply With Quote
Old 02-09-2016, 09:29 AM   #26
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 610
Default

Quote:
Originally Posted by psyber_0ptix View Post
Whoa, that's interesting. Have a pic of the entire assembly and where this is placed?
They go between the spindle and knuckle(spindle is 4 bolt flange that bolts to the knuckle), so they actually point the spindle up or forward/backwards for more camber and toe.

Quote:
Originally Posted by B6Tfastiva View Post
I know this is a long shot but any chance you guys would do non miata fabrication?

fiestiva stuff

I went to a local machine shop and they quoted 400 per side. The guy that made those said he could do a set for under 300 but hes really backed up for like 6 months. There are a few other festiva guys that want a set also. Could maybe get a group buy going on them.
Need a drawing or at least decent dimensions.
hi_im_sean is offline   Reply With Quote
Old 02-09-2016, 09:34 AM   #27
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,701
Total Cats: 319
Default

They won't slide with enough force and vibration, or is there a knurl that's put on the surface or anything?
psyber_0ptix is offline   Reply With Quote
Old 02-09-2016, 09:39 AM   #28
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 610
Default

Quote:
Originally Posted by psyber_0ptix View Post
They won't slide with enough force and vibration, or is there a knurl that's put on the surface or anything?
4 large blots clamp it together, also retained in all directions except rotation by the slots, and im guessing that center bore registers on a shoulder on the knuckle or spindle.

My only concern is that it forces the bolts to clamps non parallel surfaces, which is really bad, especially for something that holds your wheel and hub assy. on the car. I hope they use spherical(self leveling) washers with those.
hi_im_sean is offline   Reply With Quote
Old 02-09-2016, 09:47 AM   #29
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 610
Default

The Effect on the Fatigue Life of Bolts of Joint Face Angularity

Follow the fatigue life graph to 3.5 degrees Im not sure how much of an issue this is in practice though, since im sure these are already being used somewhere.
hi_im_sean is offline   Reply With Quote
Old 02-09-2016, 10:59 AM   #30
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Are you talking about something similar to these?

https://www.paypal.com/us/cgi-bin/we...3a1a700ced90ae

Kinda a slammed thing, but could be put to use. Rear camber on a FWD car shouldn't really be the priority IMO though...
curly is offline   Reply With Quote
Old 02-09-2016, 11:01 AM   #31
SADFab Destructive Testing Engineer
Thread Starter
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,992
Total Cats: 1,457
Default

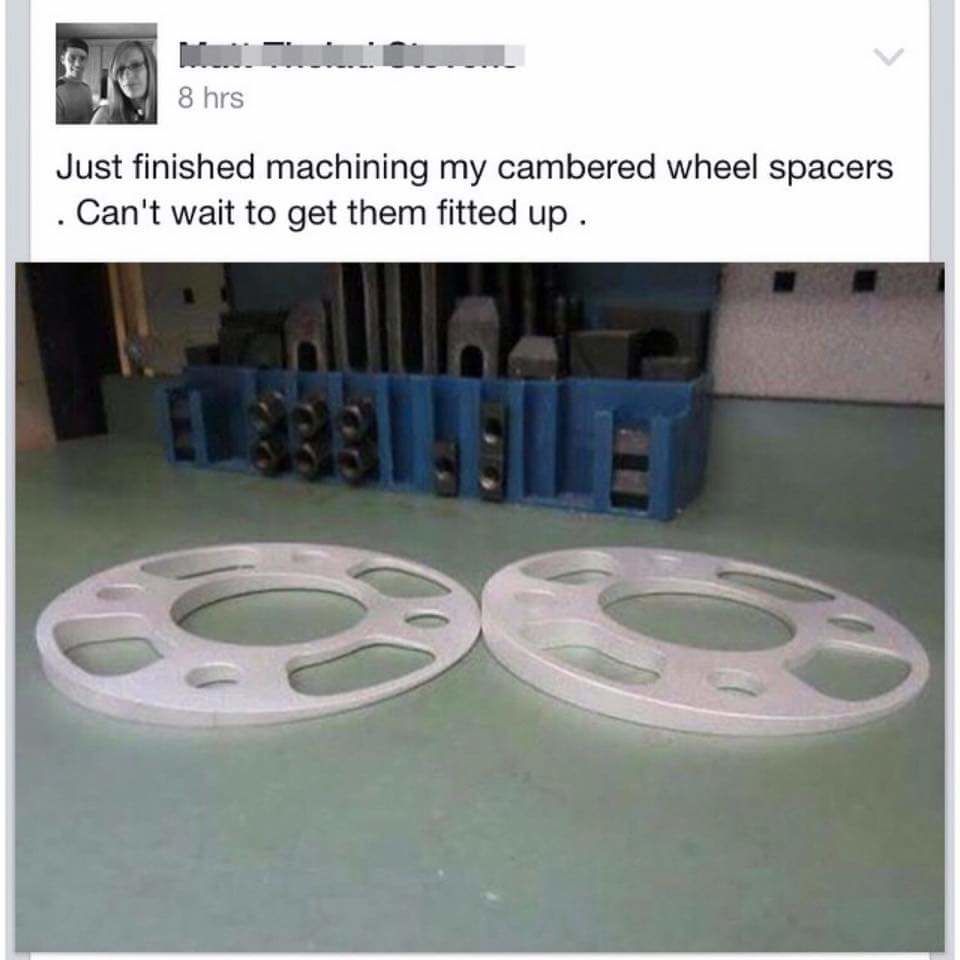

I thought you were trolling when I first saw the picture.


Attached Thumbnails
SADFab Into Thread-80-fb_img_1435115806785_558a216bd3a83_a256e6ad92ddbf6015e7e96ac8c4942b69bfaaec.jpg
aidandj is offline   Reply With Quote
Old 02-09-2016, 11:02 AM   #32
Elite Member
iTrader: (7)

bahurd's Avatar

Join Date: Apr 2013
Location: Ohio
Posts: 2,124
Total Cats: 144
Default

Quote:
Originally Posted by curly View Post
Are you talking about something similar to these?

https://www.paypal.com/us/cgi-bin/we...3a1a700ced90ae

Kinda a slammed thing, but could be put to use. Rear camber on a FWD car shouldn't really be the priority IMO though...
Your link goes to a Paypal checkout.
bahurd is offline   Reply With Quote
Old 02-09-2016, 12:00 PM   #33
Junior Member
iTrader: (1)

Join Date: Jun 2010
Location: Westover, Md
Posts: 231
Total Cats: 10
Default

advancedynamix (I think he's a member on here also) has made several sets of these and tracks his car regularly with no problems. The spindles get reamed and tapped for 7/16 hardware so the bolt size is increased also. These cars only weigh 1800ish and roughly 60 of the weight is up front.


I'll try to come up with a drawing with measurements. I could also just send you a spindle to pull dimensions off of if that would be easier.
B6Tfastiva is offline   Reply With Quote
Old 02-09-2016, 12:14 PM   #34
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

dem cambered spaecers doe

I could totally see them working too, since the cars they will go on will never successfully run
18psi is offline   Reply With Quote
Old 02-09-2016, 01:22 PM   #35
Newb
iTrader: (2)

Join Date: Jan 2016
Posts: 35
Total Cats: 1
Default

sadfab - Are you guys machining these components In-house or outsourcing designs?
spec is offline   Reply With Quote
Old 02-09-2016, 02:43 PM   #36
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 610
Default

Quote:
Originally Posted by spec View Post
sadfab - Are you guys machining these components In-house or outsourcing designs?
Both
hi_im_sean is offline   Reply With Quote
Old 02-12-2016, 09:32 AM   #37
Junior Member
iTrader: (1)

Join Date: Jun 2010
Location: Westover, Md
Posts: 231
Total Cats: 10
Default

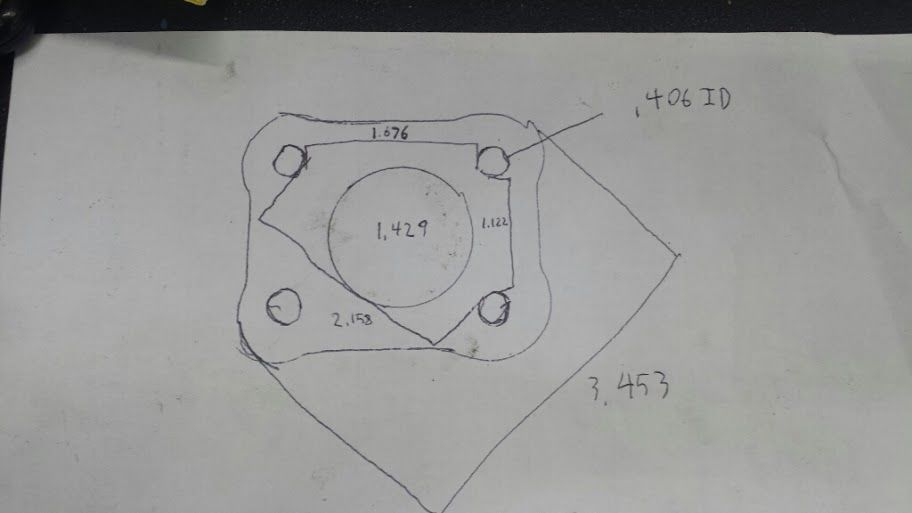

I know my drawing sucks but here's the dimensions I pulled off my spindle.



Just needs to be 3/8in thick then put a 3.5* grind on it according to my first post.
Attached Thumbnails
SADFab Into Thread-80-upload_1_jpg_jpeg_a16ca3b3979ac24825a2071064a138f5fcf9a421.jpg
B6Tfastiva is offline   Reply With Quote
Old 02-12-2016, 04:06 PM   #38
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,903
Total Cats: 610
Default

Are the festivas metric, or that faggy measuring system?

On center the pattern comes out to 1.528"x2.082" which is 38.8112mm x 52.8828mm, which I take to be 29x53mm..... sounds about right?
hi_im_sean is offline   Reply With Quote
Old 02-15-2016, 10:35 AM   #39
Junior Member
iTrader: (1)

Join Date: Jun 2010
Location: Westover, Md
Posts: 231
Total Cats: 10
Default

Quote:
Originally Posted by hi_im_sean View Post
Are the festivas metric, or that faggy measuring system?

On center the pattern comes out to 1.528"x2.082" which is 38.8112mm x 52.8828mm, which I take to be 29x53mm..... sounds about right?
You mean 39x53? Yeah they're metric. I remeasured in mm and its coming out closer to 38.5x52.5. I'm measuring 28x42.05 with 10.43 holes. Center is 36.14
B6Tfastiva is offline   Reply With Quote
Old 02-15-2016, 05:56 PM   #40
Sadfab Union President
iTrader: (3)

Join Date: May 2014
Location: Kansas
Posts: 2,690
Total Cats: 113
Default

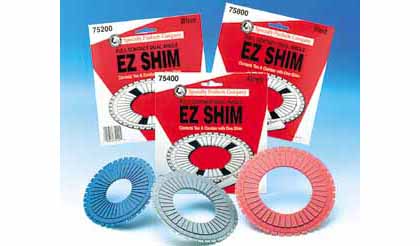

You know about ez shims, right? Do they not make festiva size?
