Default Shell weight?

Picking up a 99 shell later this week that's been completely stripped. Any idea what the weight of it will be? Since it's not a rolling chassis I need to plan ahead to be able to move it around the garage.
JayL is offline   Reply With Quote
Old 01-11-2011, 05:01 PM   #2
I'm Miserable!
iTrader: (11)

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

No clue, I would guess 1700 depending on how stripped it is. Also if no one knows roll that bitch on a truck scale. Oh and since it is stripped do this,

http://flyinmiata.com/tech/seamweld.php
chicksdigmiatas is offline   Reply With Quote
Old 01-11-2011, 05:02 PM   #3
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,578
Default

Highly doubt it will be 1700 since there is no engine/drivetrain/suspension/or anything.

Completely stripped 800-1100lbs imo
18psi is offline   Reply With Quote
Old 01-11-2011, 05:13 PM   #4
Elite Member
iTrader: (10)

Join Date: Oct 2008
Location: Seattle, Wa
Posts: 1,780
Total Cats: 30
Default

Please, do it for the children.

Jeff_Ciesielski is offline   Reply With Quote
Old 01-11-2011, 05:20 PM   #5
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

It's just a bare shell. Only the unibody with quarter panels, windshield and the gas tank.
JayL is offline   Reply With Quote
Old 01-11-2011, 06:00 PM   #6
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

800lbs or less
jacob300zx is offline   Reply With Quote
Old 01-11-2011, 07:15 PM   #7
Senior Member

Join Date: Aug 2010
Location: San Luis Obispo, CA
Posts: 505
Total Cats: 0
Default

Rumor has it that the '99 shell is lighter than the '89/'90 shell.
scottyd is offline   Reply With Quote
Old 01-11-2011, 08:10 PM   #8
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

**** it. 300 pounds.
Faeflora is offline   Reply With Quote
Old 01-11-2011, 08:11 PM   #9
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

There's gotta be a way to turn an engine hoist into a scale
Faeflora is offline   Reply With Quote
Old 01-11-2011, 08:13 PM   #10
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

You can easily move one around on a couple of furniture dollies.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 01-11-2011, 08:14 PM   #11
Senior Member

Join Date: Aug 2010
Location: San Luis Obispo, CA
Posts: 505
Total Cats: 0
Default

Quote:
Originally Posted by levnubhin View Post
You can easily move one around on a couple of furniture dollies.
Exhibit A:
scottyd is offline   Reply With Quote
Old 01-11-2011, 08:51 PM   #12
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by jacob300zx View Post
800lbs or less
I think it is still less than that. When mine was stripped with all the glass doors and trunk lid still on it I could still lift half of it pretty easy. Two or three guys could carry it around without too much trouble.

It might come down to your definition of stripped shell however.

Bob
bbundy is offline   Reply With Quote
Old 01-11-2011, 09:42 PM   #13
Elite Member

Join Date: Jul 2007
Location: Little Rock, AR
Posts: 3,110
Total Cats: 127
Default

lol, yup if we were betting cash I think I would go for 400 if the diff/susp/engine/trans/no doors/fenders/glass
jacob300zx is offline   Reply With Quote
Old 01-11-2011, 09:50 PM   #14
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by Faeflora View Post
There's gotta be a way to turn an engine hoist into a scale
You can by using a strain gauge.


My guess on the empty shell is 600lbs...but Rob Harris is the one to ask there.
gospeed81 is offline   Reply With Quote
Old 01-12-2011, 12:09 AM   #15
Junior Member
iTrader: (2)

Join Date: Sep 2009
Location: Chicago, IL
Posts: 250
Total Cats: 0
Default

4-500. You could probably walk it around with three people. Our project evo's shell is light enough that three people can lift it on and off of the moving dollies and it's a 4 door so..
saedrin is offline   Reply With Quote
Old 01-15-2011, 11:18 PM   #16
Senior Member
iTrader: (9)

Join Date: Oct 2006
Location: Lexington SC
Posts: 1,003
Total Cats: 14
Default

I moved a completely stripped shell onto a car trailer with one other guy. All we had were 2 small moving dolies to roll the rear end around on. If I had to guess I would say 350lb, 400 at max.
Rallas is offline   Reply With Quote
Old 01-16-2011, 12:01 AM   #17
Elite Member
Thread Starter
iTrader: (12)

Join Date: May 2007
Location: Austin, TX
Posts: 1,923
Total Cats: 0
Default

A few of us were able to lift it off the trailer and into the garage without any issues. Much easier than we thought it was going to be. Thanks.
JayL is offline   Reply With Quote
Old 01-16-2011, 01:03 AM   #18
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Last shell that was taken down to the scrap yard weighed 400ish with absolutely nothing in it. No doors, subframes, wiring, panels etc. It was in a wreck in the front but that just moved some stuff around and didn't really mess with the weight too much. Still had the windshield though.
rharris19 is offline   Reply With Quote
Old 01-16-2011, 01:50 AM   #19
Junior Member
iTrader: (1)

Join Date: Aug 2006
Location: Dallas, TX
Posts: 220
Total Cats: 1
Default

Quote:
Originally Posted by rharris19 View Post
Last shell that was taken down to the scrap yard weighed 400ish with absolutely nothing in it. No doors, subframes, wiring, panels etc. It was in a wreck in the front but that just moved some stuff around and didn't really mess with the weight too much. Still had the windshield though.

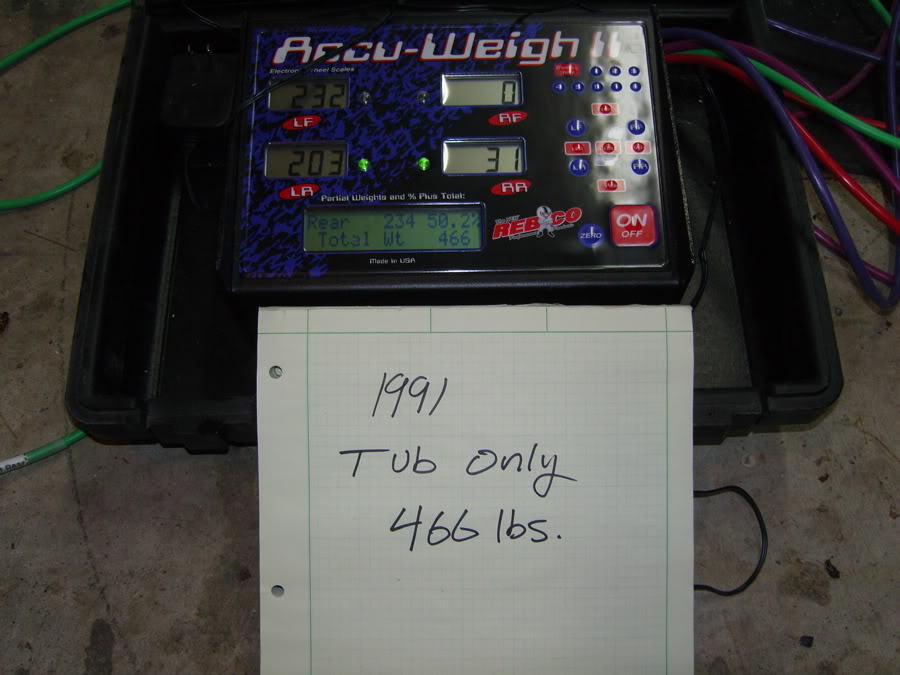

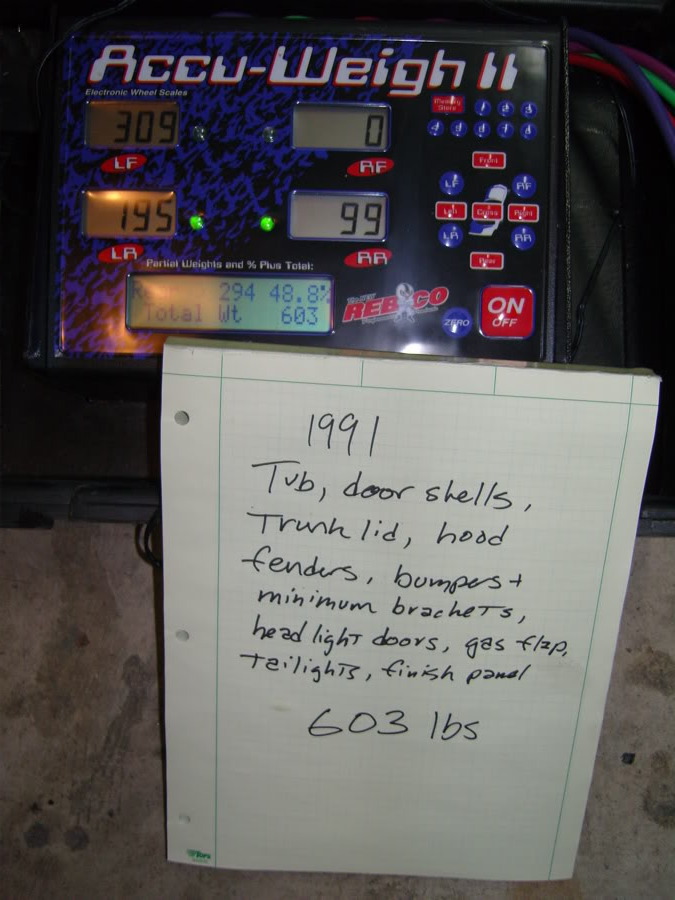

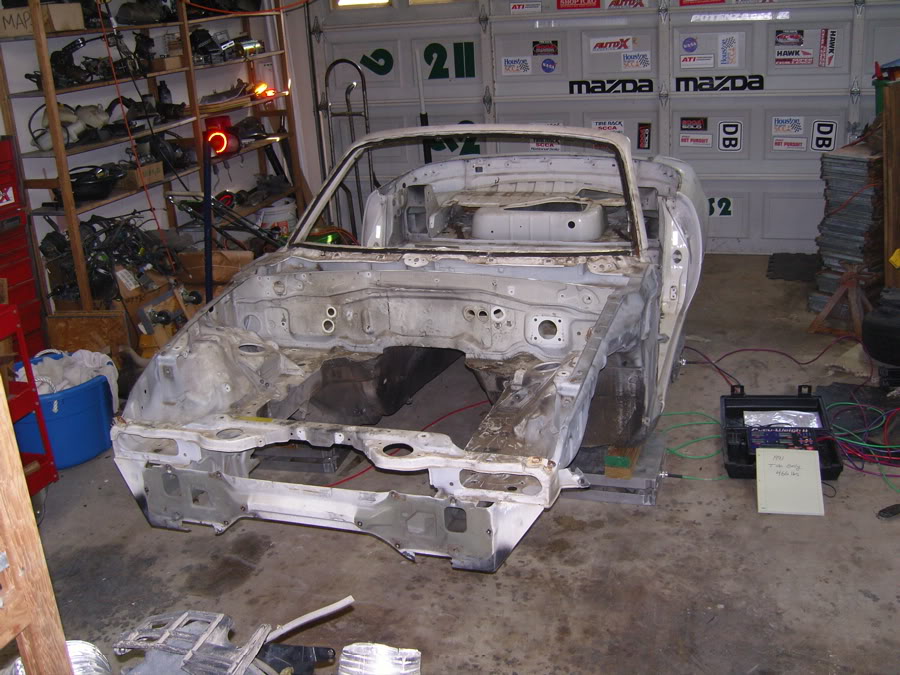

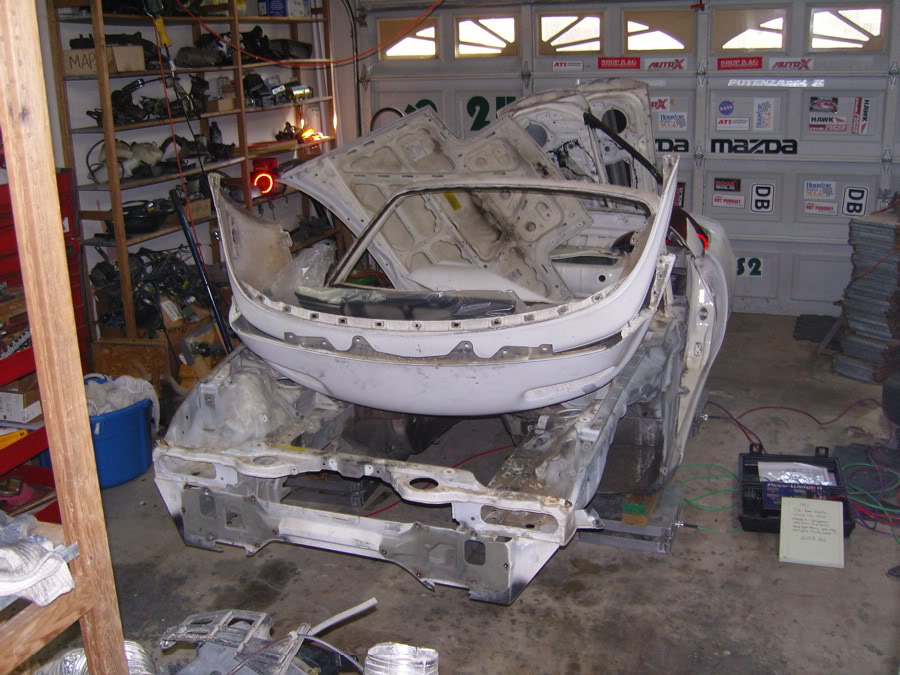

My '91 bare tub without a windshield weighed 466. With enough body parts to complete the outer perimeter of the body including uncut doors it was 603.

Name:  SNC10869.jpg
Views: 108
Size:  80.1 KB

Name:  SNC10870.jpg
Views: 249
Size:  134.4 KB

Name:  SNC10871.jpg
Views: 112
Size:  129.4 KB

Name:  SNC10872.jpg
Views: 112
Size:  129.3 KB
modernbeat is offline   Reply With Quote
Old 01-16-2011, 02:11 AM   #20
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

Very interesting. My stuff is always hauled off by a local scrap guy that drives around all day looking for metal. He just said it was around 400, so kudos to you for more exact figure. That is really interesting to see with the body pieces with it as well. Thanks for taking the time to post all that up.
rharris19 is offline   Reply With Quote
