Default Simple coolant reroute

Hi guys.. after looking for the most simple way for Reroute, I had done the following please feel free to comment. Not sure, by moving the rear ECU temp sensor from the back to the front will affect anything much? Please chime in about that.

Parts:
- Acura Integra silicon water hose (all bents fits perfectly to the contour around the engine under the intake manifold) $40
- 12 inch of 32mm steel pipe $5
- CNC machined plate and tapped 2 sensor hole. Fan sensor and ECU sensor. $25
- 2 new gasket. $5
- 1x Screw 1.5m to close up front therm. state cover sensor hole. $1


I choose to eliminate heater core, coz there isn't much of winter in Hong Kong.
Attached Thumbnails

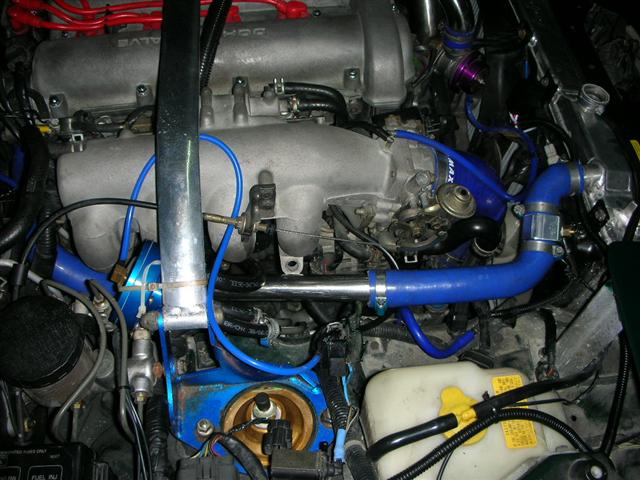

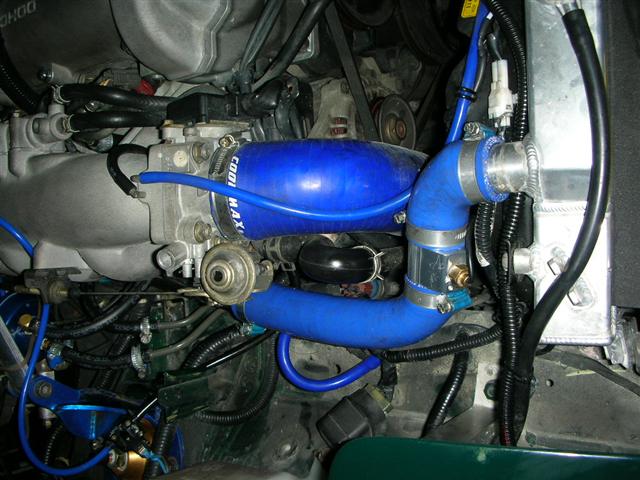

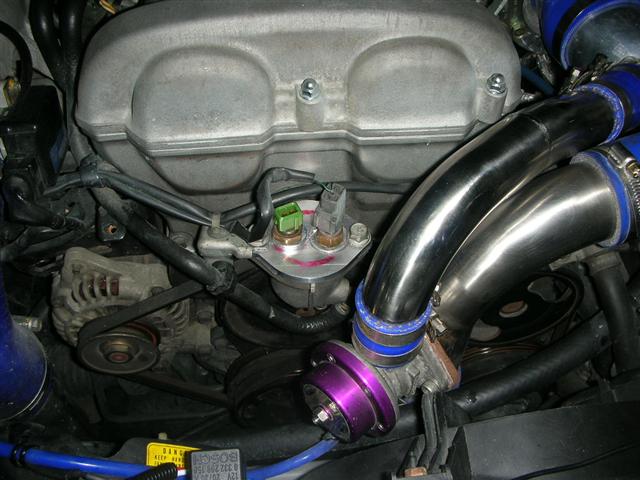

Simple coolant reroute-dscn2512-small-.jpg   Simple coolant reroute-dscn2513-small-.jpg   Simple coolant reroute-dscn2515-small-.jpg
Mimime is offline   Reply With Quote
Old 06-04-2008, 12:19 PM   #2
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

thanks for posting the money shot of the backside of the head.
hustler is offline   Reply With Quote
Old 06-04-2008, 12:26 PM   #3
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Sorry huslter... ! since I didn't have any spacer nor keep the heater core. It was just slapping on the T-stat and new gasket.. and just bolt up the front 1.6 front Tstat housing.

But I couldnt stress how well the Integra DC2 TypeR water host fitted. Even with the clutch cylinder in the way, it had just the right bent to make it all fit.

Last edited by Mimime; 06-04-2008 at 12:51 PM.
Mimime is offline   Reply With Quote
Old 06-04-2008, 12:50 PM   #4
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Doop... just missed out one process I need to do! Totally forgot to drill a small hole on the Tstat flange. Hustler looks like I'll have another chance to redeem those photos!

The OEM Tstat already has a tiny little hole... i guess that's not enough to get circulration of water flowing out.
Mimime is offline   Reply With Quote
Old 06-04-2008, 01:23 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I still don't know how to install my begi reroute. I looked at it last weekend, and not really sure what they intended.
hustler is offline   Reply With Quote
Old 06-04-2008, 01:29 PM   #6
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Do you have the standard reroute kit, or the "Racer" reroute kit? I have done the standard one and it is pretty easy.
ZX-Tex is offline   Reply With Quote
Old 06-04-2008, 01:35 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by ZX-Tex View Post
Do you have the standard reroute kit, or the "Racer" reroute kit? I have done the standard one and it is pretty easy.
I requested the one that only dumps out the back of the head, which I believe was specified as "race." However, I don't know if I should use the t-stat housing part from the front of the head, keep the one at the back of the head (which makes more sense), but then where do I install the front temp sensor? It will probably make more sense when I get the motor in the car, but then its not as easy to work on.
hustler is offline   Reply With Quote
Old 06-04-2008, 01:43 PM   #8
Junior Member

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

use the one at the front of the head because the one in the back is blocked off half way and has a smaller output
highroller101 is offline   Reply With Quote
Old 06-04-2008, 02:05 PM   #9
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by highroller101 View Post
use the one at the front of the head because the one in the back is blocked off half way and has a smaller output
I assume I should use the 1" "T" fitting on a hose from both of these. What about the front water temp sensor?
hustler is offline   Reply With Quote
Old 06-04-2008, 02:35 PM   #10
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Have you tried calling BEGI?
ZX-Tex is offline   Reply With Quote
Old 06-04-2008, 02:52 PM   #11
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

"Have you tried calling BEGI?"


That would have been the logical 1st approach. Of course he didn't! Wasting endless hours trying to find answers that could be solved with a 2 minute phone call is what the internet is all about!
cueball1 is offline   Reply With Quote
Old 06-04-2008, 03:04 PM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Have you tried calling BEGI?
hustler is offline   Reply With Quote
Old 06-04-2008, 03:11 PM   #13
Elite Member
iTrader: (15)

Join Date: Dec 2007
Location: San Antonio, Texas
Posts: 4,889
Total Cats: 28
Default

Yeah. Usually they call back, eventually, if they cannot get to the phone. If they do not, keep calling. I think their call back messages fall through the cracks sometimes.
ZX-Tex is offline   Reply With Quote
Old 06-05-2008, 11:45 AM   #14
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

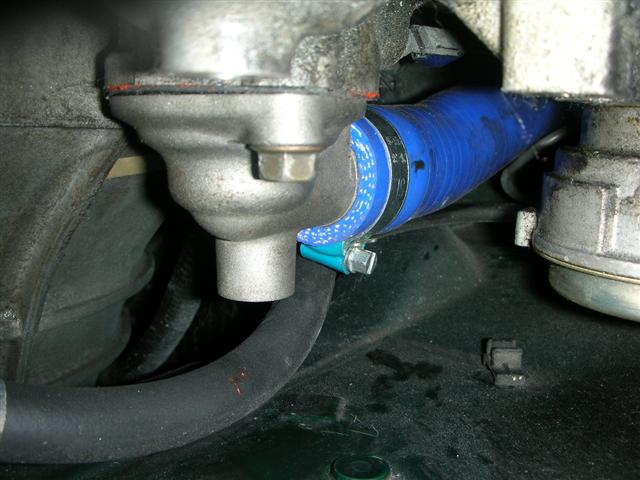

Huslter, here are those money shoot! You made me disassemble the whole reroute to take photos for ya! haha... .

No... if you see closely.. I over tighten the Tstat cover and broke it! Lucikly I had another one handy.

I put everything back together, and resulted was mix feelings about the reroute.

- The Main Fan turns on about 3-4 deg. C. later then what it was before. Since the Fan sensor location has little flow of water.

I still need to find the right plug to cap the heater core outlets. So, no road test yet.
Attached Thumbnails

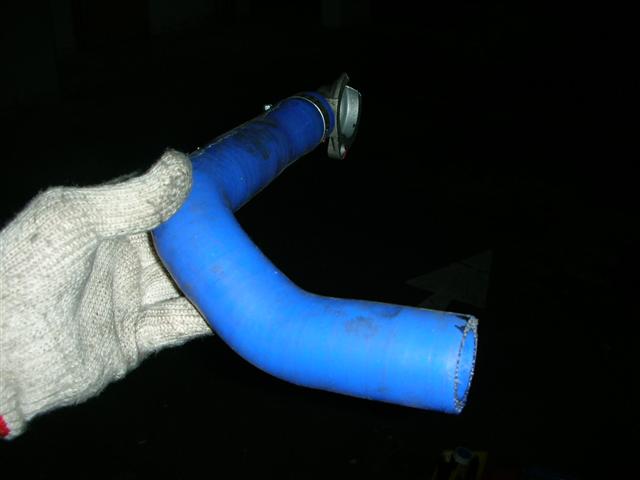

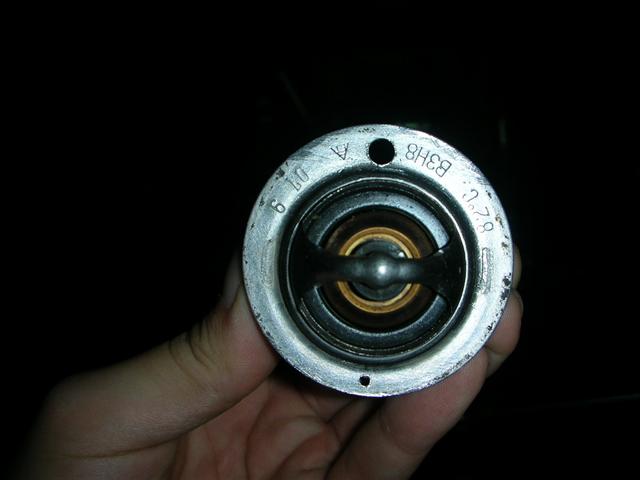

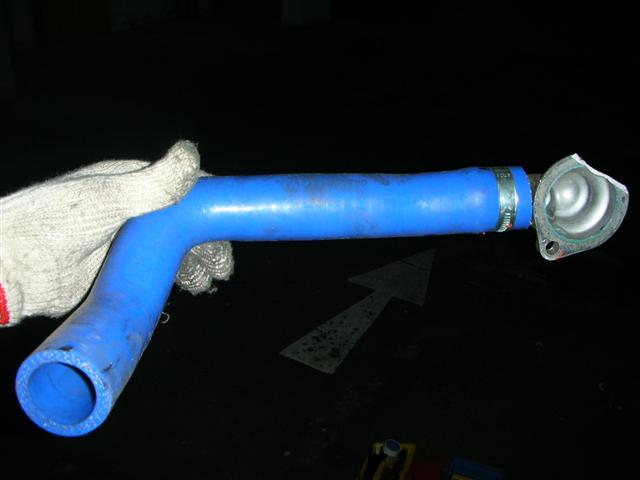

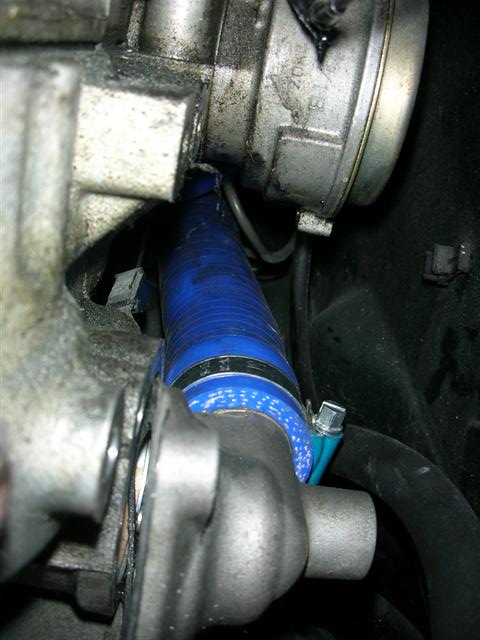

Simple coolant reroute-dscn2518-small-.jpg   Simple coolant reroute-dscn2520-small-.jpg   Simple coolant reroute-dscn2521-small-.jpg   Simple coolant reroute-dscn2523-small-.jpg   Simple coolant reroute-dscn2524-small-.jpg

Mimime is offline   Reply With Quote
Old 06-05-2008, 01:10 PM   #15
Elite Member
iTrader: (39)

Zabac's Avatar

Join Date: Sep 2007
Location: High Point NC
Posts: 4,854
Total Cats: 8
Default

You wear gloves Wearing gloves means you don't feel as much, kinda like a condom, and you tend to go to hard and break things.
Show your heterosexuality! Don't wear gloves! lol j/k

Instead of capping that hole in the neck, why not insert a fitting for the heatecore feed there? It could work.
Zabac is offline   Reply With Quote
Old 06-05-2008, 01:43 PM   #16
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Quote:
Originally Posted by Zabac View Post
You wear gloves Wearing gloves means you don't feel as much, kinda like a condom, and you tend to go to hard and break things.
Show your heterosexuality! Don't wear gloves! lol j/k

Instead of capping that hole in the neck, why not insert a fitting for the heatecore feed there? It could work.
haha... the glove was to disguise all the bruse and cut I got from working on the car when I took the photo!

Acutallly I was looking to find a cap/plug to close up the hardline 5/8" under the exhaust manifold that goes back to the mixing manifold. Any suggestion?
Mimime is offline   Reply With Quote
Old 06-09-2008, 07:51 PM   #17
Junior Member
iTrader: (1)

Join Date: Oct 2004
Location: Haarlem ,the Netherlands
Posts: 453
Total Cats: 0
Default

What are the threat size off the thermosensors???
Going to create a coolant reroute under the exhaust manifold.
Using the blocks 12x1.25 water suply to feed the turbo.
greddymx5 is offline   Reply With Quote
Old 06-10-2008, 01:26 AM   #18
Junior Member

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

Greddy, DONT DO IT!!! lol, I went cold side on mine to avoid As much heat AS POSSIBLE! The plug was an odd size, it was something like 5/8-14 or something, the temp sensor I think... dont take my word for it check first was something of the same nature.
highroller101 is offline   Reply With Quote
Old 06-10-2008, 05:46 AM   #19
Senior Member
Thread Starter
iTrader: (1)

Join Date: Sep 2006
Location: Hong Kong
Posts: 523
Total Cats: 0
Default

Greddy, I found it much easier to route water line to the COLD side, being said that I still have retained A/C and P/S.

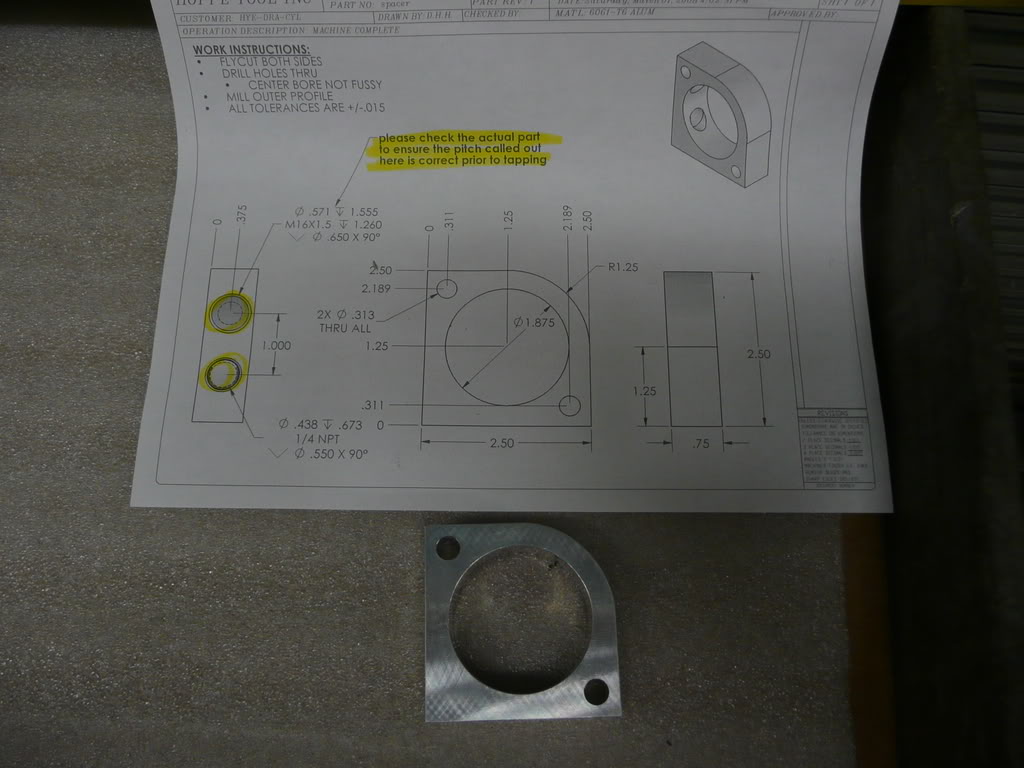

Picture below by Highroller, provided the measurement of the ECU Thermostat size thread in yellow.. Not sure exaclty if its the top or botton one tho. Highroller might want to chime in.

Name:  P1010061.jpg
Views: 1
Size:  100.6 KB
Mimime is offline   Reply With Quote
Old 06-10-2008, 11:18 PM   #20
Junior Member

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

The one on the TOP, the one on the bottom was for a fitting (homedepot) to reduce the size of the 5/8" hose to a 1/4" NPT fitting. The top was for the temp sensor. The grey sensor PS.
