Old 07-23-2012, 10:03 AM   #21
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 455
Total Cats: 18
Default

in olde timey speedos the cable spun a magnetised disk and a spring loaded other magnetised disk holding the pointer would be dragged around the face. The faster the spin, the more it was dragged. My guess is that your spring is toast.
BarbyCar is offline   Reply With Quote
Old 07-23-2012, 10:07 AM   #22
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 598
Default

Quote:
Originally Posted by BarbyCar View Post
in olde timey speedos the cable spun a magnetised disk and a spring loaded other magnetised disk holding the pointer would be dragged around the face. The faster the spin, the more it was dragged. My guess is that your spring is toast.

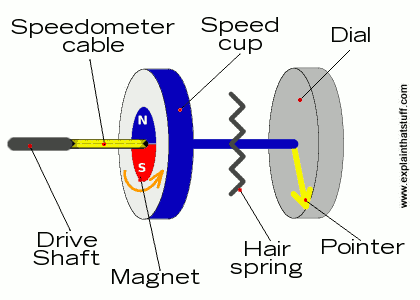

Attached Thumbnails
speedometer reads 140mph when im going 70mph?-how-speedometer-works.gif
triple88a is offline   Reply With Quote
Old 07-23-2012, 10:13 AM   #23
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

the FSM says if the cable turns easily by hand, then to replace the speedometer.

the digital singal I spoke of only appears to be sent back out to the A/T module.
Braineack is offline   Reply With Quote
Old 07-23-2012, 10:17 AM   #24
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Braineack View Post
yeah, which is why my speedo bounces, because the cable is fubared. but I was able to smooth out the routing of it and got it to at least not make any noise.
Mine barfed gear oil on my legs in the turbo car.
hustler is offline   Reply With Quote
Old 07-23-2012, 10:18 AM   #25
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 598
Default

"if the cable easily by hand" What?
triple88a is offline   Reply With Quote
Old 07-23-2012, 10:21 AM   #26
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

turns.


the FSM pretty much says, if the speedo is off and the cable appears to be in good shape, replace the speedometer itself in the cluster.
Braineack is offline   Reply With Quote
Old 07-23-2012, 01:36 PM   #27
Newb
Thread Starter

Join Date: Feb 2011
Location: Ft Hood, Texas
Posts: 37
Total Cats: -8
Default

i tried to spin the peg it doesnt so i dont think its the cable. ya my cable barfed in my face and on my camera. I'm starting to think the gauge cluster is fubar because i noticed the steering column had once been removed and the cluster hood cover is cracked and glued as if it was removed once before too. It still was never connected all the way and yet to test drive since i cleaned the goop and secured it tightly, i have to register the car today so i will let you know if the problem is fixed if not I leaning torwards having to buy a new gauge cluster.
brokenspoon420 is offline   Reply With Quote
Old 07-23-2012, 01:38 PM   #28
Newb
Thread Starter

Join Date: Feb 2011
Location: Ft Hood, Texas
Posts: 37
Total Cats: -8
Default

Quote:
Originally Posted by triple88a View Post
nice pic by the way, very helpful on these work
brokenspoon420 is offline   Reply With Quote
Old 07-23-2012, 02:00 PM   #29
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

and by new you mean used for like $10, right?
Braineack is offline   Reply With Quote
Old 07-23-2012, 03:16 PM   #30
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,994
Total Cats: 13
Default

Quote:
Originally Posted by brokenspoon420 View Post
i tried to spin the peg it doesnt so i dont think its the cable. ya my cable barfed in my face and on my camera. I'm starting to think the gauge cluster is fubar because i noticed the steering column had once been removed and the cluster hood cover is cracked and glued as if it was removed once before too. It still was never connected all the way and yet to test drive since i cleaned the goop and secured it tightly, i have to register the car today so i will let you know if the problem is fixed if not I leaning torwards having to buy a new gauge cluster.
It's connected by a gear in the transmission, so you won't be able to turn it if that end is still connected.
skidude is offline   Reply With Quote
Old 07-23-2012, 03:22 PM   #31
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

that makes a bit of sense
Braineack is offline   Reply With Quote
Old 07-23-2012, 08:01 PM   #32
Newb
Thread Starter

Join Date: Feb 2011
Location: Ft Hood, Texas
Posts: 37
Total Cats: -8
Default

i knew that, but trying to turn it and it proving to not rotate would clearly prove that it was still connected at the tranny and that the cable wasn't internally broke or barely intact inside the cable sleeve plastic thingy...lol whatever its called. I am convinced its the gauge cluster for sure
brokenspoon420 is offline   Reply With Quote
Old 07-23-2012, 09:16 PM   #33
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

I'll trade your cluster. I think I have one laying around (from a 91).

140 @ 70 sounds good to me.
soviet is offline   Reply With Quote
Old 07-24-2012, 08:24 PM   #34
Newb
Thread Starter

Join Date: Feb 2011
Location: Ft Hood, Texas
Posts: 37
Total Cats: -8
Default

sure up for trades, odometer only reads 73k miles too!
brokenspoon420 is offline   Reply With Quote
Old 07-24-2012, 08:30 PM   #35
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

you can (and should) take out the odometer...
Braineack is offline   Reply With Quote
Old 07-27-2012, 05:05 AM   #36
Newb

Join Date: Mar 2012
Posts: 2
Total Cats: 0
Default

Just to be thorough, disconnect the cable at both ends and make sure the cable turns smoothly. I think you'll find it does. I know in years past (yeah, I'm an old fart) with Mercedes cable driven speedos, I had seen several that went wild like this and it was indeed in the speed head.
bluesracer is offline   Reply With Quote
Old 07-27-2012, 05:06 AM   #37
Newb

Join Date: Mar 2012
Posts: 2
Total Cats: 0
Default

ooops, I meant to say speedo head. Not awake yet.
bluesracer is offline   Reply With Quote
Old 07-27-2012, 06:51 PM   #38
Newb
Thread Starter

Join Date: Feb 2011
Location: Ft Hood, Texas
Posts: 37
Total Cats: -8
Default

well the odometer registers accurately every time when the speedometer is working and when its not. so it has to be the gauge magnetic/spring. I think you guys helped out a lot with this topic. I will be changing out both the cable and gauge cluster just because it is a old car now and could use both newer or low mileage parts.
brokenspoon420 is offline   Reply With Quote
Old 07-27-2012, 07:10 PM   #39
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

Please take video.
concealer404 is offline   Reply With Quote
Old 07-27-2012, 10:34 PM   #40
Newb
Thread Starter

Join Date: Feb 2011
Location: Ft Hood, Texas
Posts: 37
Total Cats: -8
Default

its really not worth taking a video IMO.
brokenspoon420 is offline   Reply With Quote
