Old 11-19-2006, 09:42 PM   #1
Newb
Thread Starter

Join Date: Nov 2006
Posts: 2
Total Cats: 0
Default sr20det in a mx5?

anybody have any info on this. i have been searching and i would really like to do a swap like this. any input ??
racerx17x is offline   Reply With Quote
Old 11-19-2006, 09:49 PM   #2
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

I don't have any info nor have I seen one. I do know that the sr20det redtops make what 220 HP stock? You could do that with a 1.8 miata engine pretty easily and you wouldn't be dealing with all the problems that come with the motorswap. Heck if 1badmx5 can make over 500hp on his 1.8 i'm pretty sure you could build a 1.8 that is satisfactorily power happy.
But if you're stuck on the motorswap, I'd be excited to see how you go about it. Though i'm more than happy enough with my bored over 1.8. Could be an interesting thread.
cjernigan is offline   Reply With Quote
Old 11-19-2006, 09:54 PM   #3
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

i have pictures of a sr in a miata ill upload them later.
turbopezz is offline   Reply With Quote
Old 11-19-2006, 10:16 PM   #4
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

Nice that should be cool.

Turbopezz: Do you have a website of your own with pictures of your car? Or could you make up a VBgarage, i'm just curious to see your setup.
cjernigan is offline   Reply With Quote
Old 11-19-2006, 10:29 PM   #5
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,252
Total Cats: 7
Default

http://www.myspace.com/siege_a

That guy says he's putting one in, he already has the vinyls on his car, so maybe it's done already. He might have info on how to do it though.
SamS is offline   Reply With Quote
Old 11-19-2006, 10:41 PM   #6
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Two of them were documented start-to-finish on the M.net engine conversions forums. Probably about a year ago. Both done in Florida. I think one was in some fast and furious rag not long after.
bripab007 is offline   Reply With Quote
Old 11-19-2006, 11:07 PM   #7
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

Here is some pictures of a shop that did one:
http://filebox.vt.edu/users/cjuckett/miata/

Here is a bolt in motor mounting kit they sell:
http://www.speedworks.com.au/mx5.htm

miata.net (even though a gay site) has a lot of info on the swap.
getsidewaysd1 is offline   Reply With Quote
Old 11-19-2006, 11:30 PM   #8
I'm Miserable!

Join Date: Sep 2006
Posts: 30
Total Cats: 0
Default

Bottom line, for the cost you can get the same results out of a BP. Plus the SR20DET is slightly too tall to clear the hood, so I guess it gives you a reason to have a hood prop kit.
ultimateforce is offline   Reply With Quote
Old 11-20-2006, 12:10 AM   #9
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

If i was going to swap something into a miata (which I wouldn't), it would be something a little more capable than an SR20. You could have WAY more power putting the money you'd be spending on the SR swap into the BP.
Al Hounos is offline   Reply With Quote
Old 11-20-2006, 01:45 AM   #10
mxv
Senior Member
iTrader: (4)

Join Date: Oct 2005
Location: South Carolina
Posts: 582
Total Cats: 0
Default

to put in an sr couldnt you just make two mounts and get a driveshaft made and put in a megasquirt?
mxv is offline   Reply With Quote
Old 11-20-2006, 09:59 AM   #11
Senior Member

Join Date: Dec 2004
Posts: 1,450
Total Cats: -1
Default

Well, you'd need motor mounts, some sort of tranny mount or you could attempt to adapt the PPF, custom driveshaft, custom oilpan, custom radiator/coolant hoses, custom intake tract, custom charge piping/intercooler setup, possibly take out some hood ribbing/bracing, etc.
bripab007 is offline   Reply With Quote
Old 11-20-2006, 12:08 PM   #12
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

Just curious- why the sr20det? displacement? strength? cool factor?
m2cupcar is offline   Reply With Quote
Old 11-20-2006, 12:12 PM   #13
Senior Member

Join Date: Apr 2005
Location: NAS Oceana/VA
Posts: 759
Total Cats: 0
Default

Quote:
Originally Posted by m2cupcar View Post
Just curious- why the sr20det? displacement? strength? cool factor?
There just really cheap motors and you can make some really mad power out of them with not much money. Plus they can handle like 400 - 500 hp on stock internals.
getsidewaysd1 is offline   Reply With Quote
Old 11-20-2006, 12:40 PM   #14
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

What's cheap- not much money? Just curious. It just seems that if a mazda motor could do the same, then the extra work would be worth it, unless one wanted to be unique or just had a fascination/passion for the Sr20det. Are there really sr20dets running 400+hp on stock internals?

There's no doubt the sr20 is a sweet engine- it's never been anything but quick in every car it showed up in. I loved my buddy's SEr sentra- and an NX2000 just won the ARRC in ITA- car was a rocket!
m2cupcar is offline   Reply With Quote
Old 11-20-2006, 01:09 PM   #15
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

clear up the confuison i didnt put a sr in a miata,i have the same pictures as getsidewaysd1.i was thinking about putting a sr in the miata because my cheap miata had 200,000 miles and was a smoker.so i was going to have to put in a different motor.but put back in a a bp because it makes a good boosted motor.sr also have a alumionum block and i ive barely seen them go past 400hp built.
Attached Thumbnails

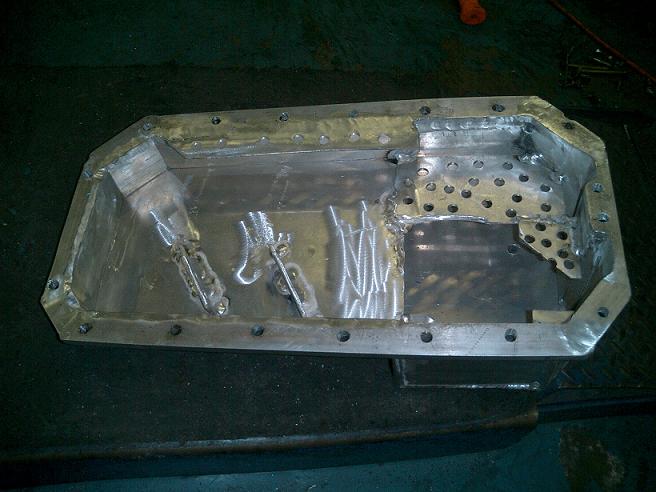

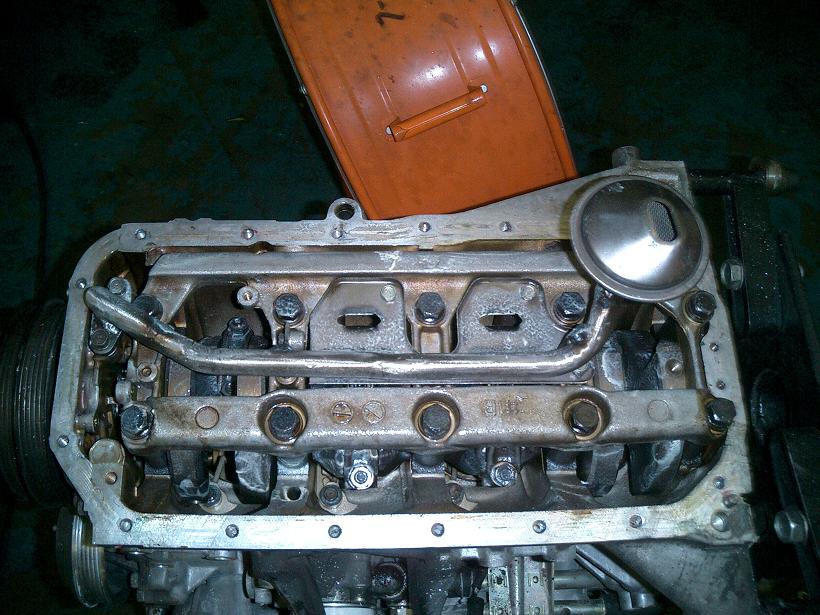

sr20det in a mx5?-93_3.jpg   sr20det in a mx5?-oilpan7.jpg   sr20det in a mx5?-oilpan1.jpg   sr20det in a mx5?-oilpickup.jpg
turbopezz is offline   Reply With Quote
Old 11-20-2006, 01:11 PM   #16
Senior Member

Join Date: Dec 2005
Posts: 865
Total Cats: 0
Default

the nice parts of the sr is you wouldnt have to worry about blowing a tranny,leave the stock boost and fuel youll be around 240hp and im pretty sure its lighter.
turbopezz is offline   Reply With Quote
Old 11-20-2006, 01:15 PM   #17
Elite Member
iTrader: (3)

Join Date: Dec 2004
Location: Houston
Posts: 2,904
Total Cats: 4
Default

Quote:
Originally Posted by getsidewaysd1 View Post
There just really cheap motors and you can make some really mad power out of them with not much money. Plus they can handle like 400 - 500 hp on stock internals.
people always say that, but I never see examples of all htese 400-500hp stock sr motors.

i see around the same level as miata motors 200~300 on stock
Pitlab77 is offline   Reply With Quote
Old 11-20-2006, 03:24 PM   #18
Senior Member

Join Date: Oct 2005
Location: Knoxville
Posts: 1,168
Total Cats: 0
Default

Yeah, SR20's are great... if they came in your car. Otherwise don't bother. You could have a 400hp BP with the money you spent on swapping a 200hp SR in.
Al Hounos is offline   Reply With Quote
Old 11-20-2006, 04:14 PM   #19
Elite Member
iTrader: (7)

samnavy's Avatar

Join Date: Apr 2006
Location: VIRGINIA BEACH, VA
Posts: 6,020
Total Cats: 175
Default

Quote:
Originally Posted by Al Hounos View Post
Yeah, SR20's are great... if they came in your car. Otherwise don't bother. You could have a 400hp BP with the money you spent on swapping a 200hp SR in.
And that's the point. Unless you've got a big hard-on for a project, just build FM's 2.0 stroker and run 15psi through it... would be easier and about the same price as a "stock" SR20det I would think.
samnavy is offline   Reply With Quote
Old 11-20-2006, 05:20 PM   #20
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

I think when talking big 4 cylinder swaps, we're talking about guys who are doing the fabrication themselves. So the expense really comes down to the engine and supplies. My guess is the goal with these swaps is one or a combination of the following: do something unique, get a stronger engine w/o the FM price tag, build a mega powerful engine (something that require displacement beyond the physical parameters of the smaller motor). Though I'm not sure how credible the last is now that we've seen an FM stroker do 600+hp and 500hp on a daily driver. - rob
m2cupcar is offline   Reply With Quote
