Default Stiff Schnitzel Boost Control Silk Igloo Snugglespace

Despite referencing my MBC signal from after the throttle body, I get about 5psi of dick I mean boost sag from 25psi down to 20ishpsi at redline. Fail.

I have a functional EBC but it spools 500RPM later than my MBC and with my GT3071, the difference is noticeable.

I'm thinking that by combining the MBC and EBC I should be able to get a nice and stable 25psi.

Ideas on how to set this up? I am a little boggled on the logic of it.
Faeflora is offline   Reply With Quote
Old 07-14-2011, 02:40 AM   #2
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

SEARCH NOOB

Hybrid boost control has been done by a few on here and also very common in the subaru community. works well if set up correctly. IIRC there are even diagrams posted about it here. ill try to find em tomorrow if I'm bored and you still haven't figured this **** out.
18psi is offline   Reply With Quote
Old 07-14-2011, 02:45 AM   #3
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by 18psi View Post
SEARCH NOOB

Hybrid boost control has been done by a few on here and also very common in the subaru community. works well if set up correctly. IIRC there are even diagrams posted about it here. ill try to find em tomorrow if I'm bored and you still haven't figured this **** out.
Yeah Fae I agree look at this NASIOC ****

http://forums.nasioc.com/forums/showthread.php?t=602674
Faeflora is offline   Reply With Quote
Old 07-14-2011, 03:07 AM   #4
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by Faeflora View Post
Yeah Fae I agree look at this NASIOC ****

http://forums.nasioc.com/forums/showthread.php?t=602674
It doesn't make sense to me :(
Faeflora is offline   Reply With Quote
Old 07-14-2011, 09:28 AM   #5
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

If you can't get your EBC spooling like your MBC, there is something wrong with your EBC. Fix that and go from there. Adding a larger fucked up, complex mess to your currently smaller fucked, up complex mess will leave you with a fucked up, complex mess in the end.

I'm not being a smart ***, you just need to start simplifying stuff to fix it. The hybrid setup won't fix your problem. Look at the first page in the thread you linked. Then read all 20 pages. You want to fix a problem, not introduce more like a lot of the people in that thread.

As for your sag, maybe you have a mechanical (flow) issue that is not allowing you to hold boost with your big turbo? Head, cams, etc. Or a boost leak that occurs at high pressure?
fmowry is offline   Reply With Quote
Old 07-14-2011, 10:29 AM   #6
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Hmm ok let me take a look at the mechanical issues- I don't really understand why I wouldn't be able to hold pressure though even with a boost leak since boost control is a closed loop system. The head should be good to go, I have no idea about cams. I should order a boost leak tester though.

I'll mess with my EBC some more too.

Oh BTW while googling I found this on a D series forum. Is this Joe Perez? Or a Joe Perez content thief?

http://www.d-series.org/forums/force...fancy-ebc.html
Faeflora is offline   Reply With Quote
Old 07-14-2011, 10:36 AM   #7
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

He copy and pasted Joe's post.
Braineack is offline   Reply With Quote
Old 07-14-2011, 10:41 AM   #8
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

why cant you get your ebc to replicate MBC?

0 % duty until it hits 15psi-20% until 25psi and then 80-90% from then on out or wtv holds your boost. unless you have some funked up ebc routing.

EBC based on engine rpm with barometric pressure compensation is best.
shlammed is offline   Reply With Quote
Old 07-14-2011, 12:58 PM   #9
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

thread title rule fail.
y8s is offline   Reply With Quote
Old 07-14-2011, 04:50 PM   #10
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by shlammed View Post
why cant you get your ebc to replicate MBC?

0 % duty until it hits 15psi-20% until 25psi and then 80-90% from then on out or wtv holds your boost. unless you have some funked up ebc routing.

EBC based on engine rpm with barometric pressure compensation is best.
I can't get EBC to replicate MBC because tuning EBC has been very frucking frustrating.
Faeflora is offline   Reply With Quote
Old 07-14-2011, 11:31 PM   #11
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

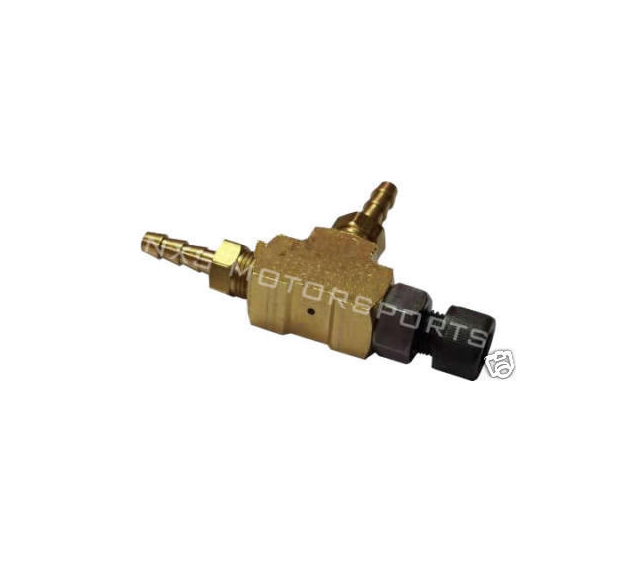

Tonight I tried using the venerable ye olde balle aynd springe $20 MBC.



It didn't work. Boost still sagged :( :( :(

Oh, interestingly, I was able to achieve stable boost at 14psi which is BELOW my wastegate spring jpressure of 17psi. :| Please explain how that works.
Attached Thumbnails
Stiff Schnitzel Boost Control Silk Igloo Snugglespace-2sfyq.png
Faeflora is offline   Reply With Quote
Old 07-18-2011, 03:28 PM   #12
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

I have the same issue going on here, sags from 17psi at 4-5.5k down to 16psi at 5.5-7k. I want my torques..
Der_Idiot is offline   Reply With Quote
Old 07-18-2011, 09:14 PM   #13
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

How do you have yours hooked up der?

I have mine hooked up like this:

brake booster line
in port
out port goes to side wastegate port.

I'm wondering if I should hook it up like this:

Faeflora is offline   Reply With Quote
Old 07-19-2011, 03:20 PM   #14
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

set boost cut, just hook the vac line up to the top port of the WG...none on bottom, drive to an rpm where you cant make the boost you want and slowly brakeboost to see if you can make the boost you want.

in my thinking:
a) your WG spring is too weak and will sag
b) your turbo is old and wont spin enough to make full boost at higher rpms.
shlammed is offline   Reply With Quote
