Default stock o2 sensor

where does the stock o2 sensor plug into? it looks like it is behind the engine, its something that has been bugging me, is there a wiring harness back there? anyone want to fill me in (I havent removed the miata's engine before)
BrokeEnthusiast is offline   Reply With Quote
Old 12-10-2006, 08:56 PM   #2
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

it snaps into a plug at the back side of the cam cover. i'll take a pic if you need it.
Ben is offline   Reply With Quote
Old 12-10-2006, 10:59 PM   #3
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Nashville, TN
Posts: 406
Total Cats: 0
Default

If you dont mind that would clear it up for me...i know its kind of a strange request
BrokeEnthusiast is offline   Reply With Quote
Old 12-11-2006, 05:39 PM   #4
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

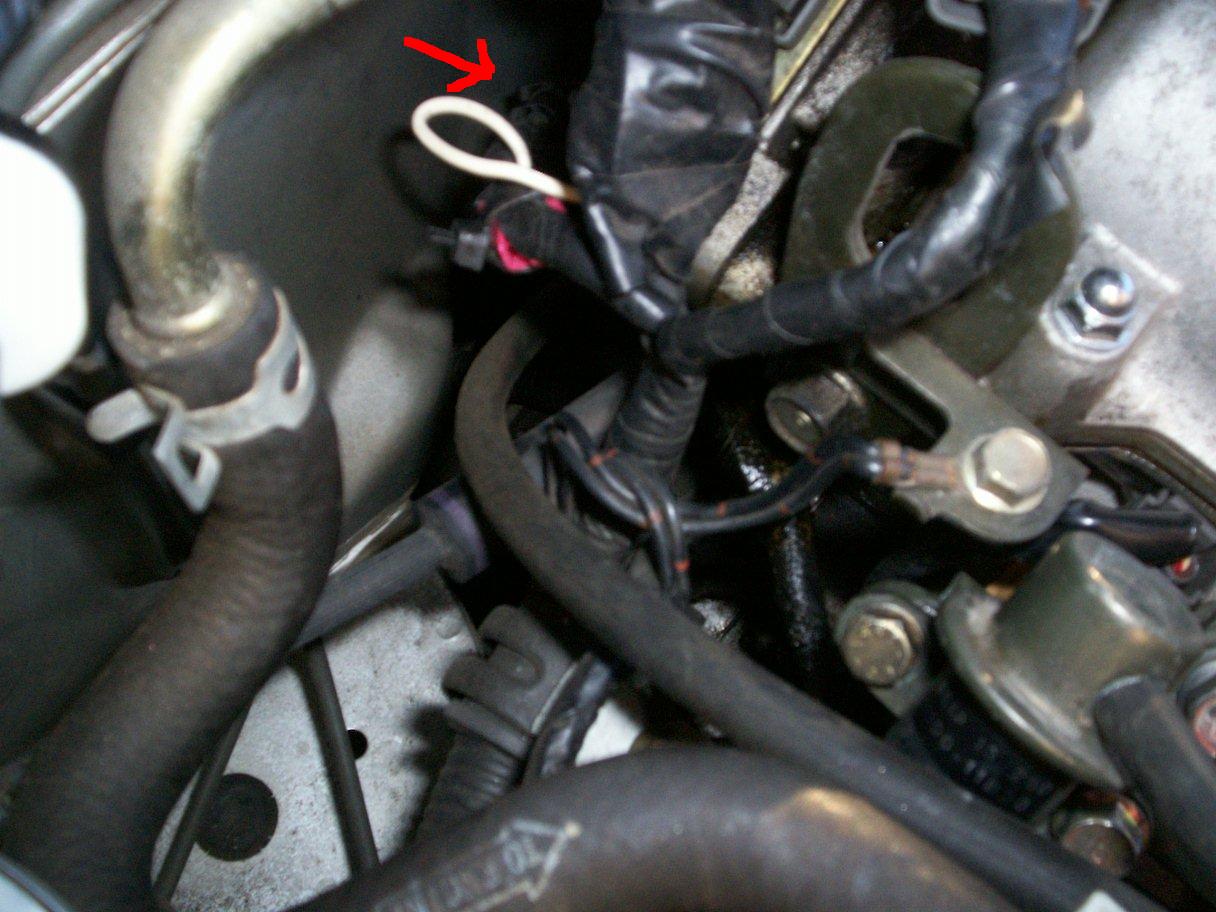

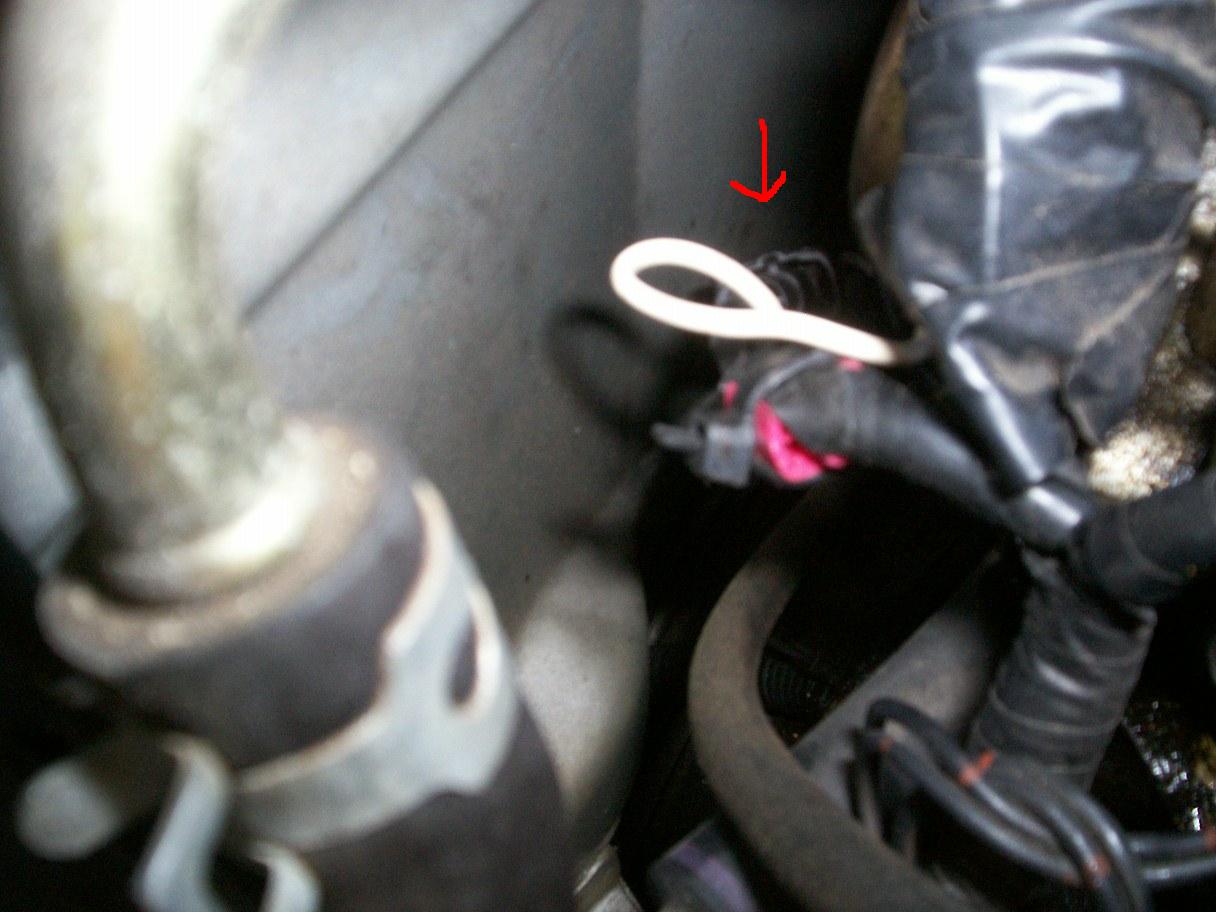

i couldnt get a good pic of it, but hopefully you get the idea
Attached Thumbnails
stock o2 sensor-o2wire.jpg   stock o2 sensor-o2wire2.jpg
Ben is offline   Reply With Quote
Old 12-11-2006, 05:54 PM   #5
Senior Member

Join Date: Jan 2005
Posts: 737
Total Cats: 0
Default

it plugs into the fuel injector harness/ or the ignition harness...not sure which it is. The plug is behind the coil pack and is a 1 wire on the 1.6L and a 4 wire on the 1.8's.
F20turbo is offline   Reply With Quote
Old 12-11-2006, 10:14 PM   #6
Junior Member
Thread Starter
iTrader: (1)

Join Date: Feb 2006
Location: Nashville, TN
Posts: 406
Total Cats: 0
Default

cool, thanks I never knew thats what that was for
