Default Stock radiator mounting brackets : (



Ok im fed up with trying to search for answers as to why, and I wish my camera wasn't broken anymore, but it is so no pictures but ill try to find a picture and edit it to portray what im trying to say.

My radiator brackets are failing, and its not just on my 90, but on my 97 they failed completely and Ive jimmyrigged it to keep the radiator inside the engine bay! Apparantly the radiator brackets are just glued on or something and after a good bit of rattling around, that glue has failed ... i dont know how else to explain it, im gonna look for pictures now

Last edited by akaryrye; 09-27-2007 at 04:17 AM.
akaryrye is offline   Reply With Quote
Old 09-27-2007, 04:19 AM   #2
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

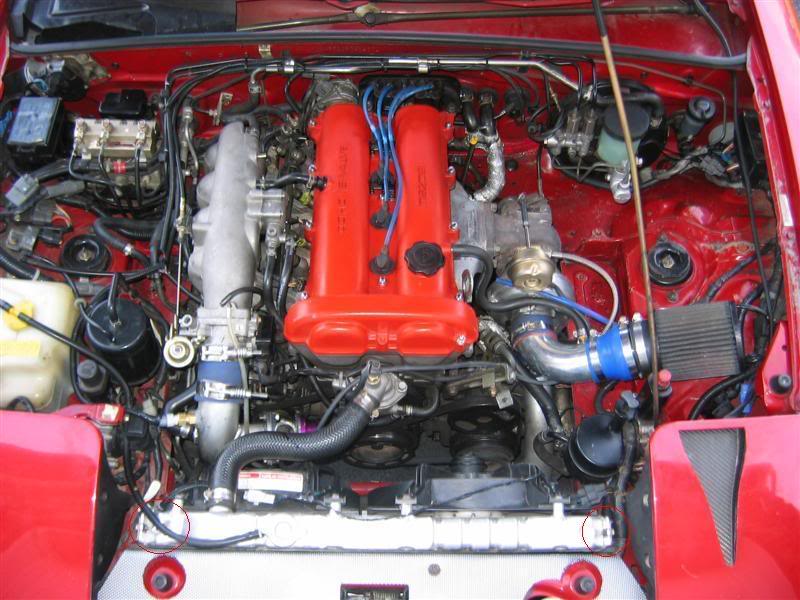

Ok ya gotta look on the sides of the radiator for those lil red circles.
Name:  vbgarage.php.jpg
Views: 2
Size:  87.3 KB

(thanks scott) ok this is where the brackets are failing. They have simply detatched themselves from the radiator core and IDK what to do beside getting a new radiator.
akaryrye is offline   Reply With Quote
Old 09-27-2007, 05:38 AM   #3
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,365
Total Cats: 1,326
Default

Weld new ones?
Savington is offline   Reply With Quote
Old 09-27-2007, 09:06 AM   #4
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

iirc, those bolt to my radiator.
Braineack is offline   Reply With Quote
Old 09-27-2007, 11:04 AM   #5
97m
Newb

Join Date: Jun 2006
Posts: 1
Total Cats: 0
Default

Same thing happened to my 97. Two choices, remove the rad and get them brazed on or what I did was JB Weld them back onto the core.
97m is offline   Reply With Quote
Old 09-27-2007, 12:26 PM   #6
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Quote:
Originally Posted by Braineack View Post
iirc, those bolt to my radiator.
Im thinking of ways they can bolt to mine ... threadserts + jbweld might hold up pretty well
akaryrye is offline   Reply With Quote
Old 10-10-2007, 01:21 AM   #7
Elite Member
Thread Starter
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Just to make a followup to this post, both my 97 (stock) and 90' (turbo) were seeing this crap happen. I took the 97 radiator to a shop for repair for $35 and upon recieving the repaired item i asked what they used to solder it together and they said they use 60/40. So after watching a few videos at muggy-weld (http://www.muggyweld.com/video.html) I went about fixing the bracket on my 90 and it came out pretty good. Just some 60/40 Silver/tin, a propane torch, a wire brush, and a bit of black paint + clearcoat and it looks ballin.
akaryrye is offline   Reply With Quote
