Default stripped exhaust manifold stud?

So tightening up the exhaust manifold studs after repairing my head gasket the nut moves onto the stud the stud does not turn but the nut moves closer to the head but it doesnt get tighter.

I think the stud is pulling out of the head somehow! I was using a torque wrench set to the recommended 34 ft/lb

Anyone know the size of these?

Can I drill out the old threads and use the next size larger stud?
Guy Farting is offline   Reply With Quote
Old 12-04-2014, 09:06 AM   #2
Elite Member

DNMakinson's Avatar

Join Date: Jan 2013
Location: Seneca, SC
Posts: 2,709
Total Cats: 269
Default

See Schuyler's discussion on same issue. Recommendation was high end inserst.
DNMakinson is offline   Reply With Quote
Old 12-04-2014, 12:04 PM   #3
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,012
Total Cats: 584
Default

Even a basic Heli-Coil would be fine for this application. It's liquid-cooled. Doesn't get that hot. Certainly nothing like the manifold to turbo joint.
hornetball is offline   Reply With Quote
Old 12-04-2014, 02:00 PM   #4
Junior Member
Thread Starter

Join Date: Oct 2014
Location: USA
Posts: 125
Total Cats: -65
Default

Quote:
Originally Posted by hornetball View Post
Even a basic Heli-Coil would be fine for this application. It's liquid-cooled. Doesn't get that hot. Certainly nothing like the manifold to turbo joint.
well thats good to know. the inserts are like $80 because they require special tools.
Guy Farting is offline   Reply With Quote
Old 12-04-2014, 04:40 PM   #5
Junior Member
Thread Starter

Join Date: Oct 2014
Location: USA
Posts: 125
Total Cats: -65
Default

Quote:
Originally Posted by DNMakinson View Post
See Schuyler's discussion on same issue. Recommendation was high end inserst.
this one here?

https://www.miataturbo.net/engine-pe...threads-81900/

Doesn't give much information beyond either using helicoil or timesert.

Can't do timesert way to expensive. A kit to fix my one stripped exhaust stud would be about $90 the actual insert is like $3 but you have to buy the special drill tap installion tool tap guide and all this other gubbins.

I think I will do helicoil.

Should I just go up to a M12x 1.25?
Guy Farting is offline   Reply With Quote
Old 12-04-2014, 04:52 PM   #6
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,012
Total Cats: 584
Default

I'd stay with the original stud size. The size is fine, plenty strong. If you drill and tap for the larger stud, you'll still have a steel stud engaging aluminum threads and you may have to enlarge the bolt holes in your exhaust gasket and manifold. Hassle. Once you've put in the Heli-Coil, your steel stud will be engaging stainless steel threads -- no more issues.
hornetball is offline   Reply With Quote
Old 12-04-2014, 09:49 PM   #7
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 561
Default

Do not go up a size. It may lead to unintended consequences. If there was a need for a larger size, it would have been there in the first place. Us designers don't (usually) just pick fasteners at random.

Besides, a decent helicoil (done properly) will be stronger than the original threads anyway.
rleete is offline   Reply With Quote
Old 12-04-2014, 10:17 PM   #8
Junior Member
Thread Starter

Join Date: Oct 2014
Location: USA
Posts: 125
Total Cats: -65
Default

Quote:
Originally Posted by rleete View Post
Do not go up a size. It may lead to unintended consequences. If there was a need for a larger size, it would have been there in the first place. Us designers don't (usually) just pick fasteners at random.

Besides, a decent helicoil (done properly) will be stronger than the original threads anyway.
I assumed when doing helicoil you had to go the next size up since I thought you drill out the threads and then thread larger and put the helicoil in.

The stock size is M10x1.25 correct? It seems a hard to find size.
Guy Farting is offline   Reply With Quote
Old 12-04-2014, 10:19 PM   #9
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,689
Total Cats: 561
Default

the helicoil is almost the next size up, but you re-use the original size stud.
rleete is offline   Reply With Quote
Old 12-04-2014, 11:31 PM   #10
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

I helicoiled one of mine and it is holding up fine.
Last header swap I discovered another one was stripped so I will repeat the process without hesitation. Borrow the tools if you can. That's what I did.

Note: the ones close to the firewall are a bitch. I could barely get the one I did straight with electric drill. A 90 degree air drill would have probably helped for clearance.
williams805 is offline   Reply With Quote
Old 12-05-2014, 12:20 AM   #11
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,012
Total Cats: 584
Default

NAPA has metric Heli-Coil kits.
hornetball is offline   Reply With Quote
Old 12-05-2014, 02:14 AM   #12
Junior Member
Thread Starter

Join Date: Oct 2014
Location: USA
Posts: 125
Total Cats: -65
Default

I will be shopping for heli coil kits. I wish I could just borrow the tools and buy the coils but it sucks not having friends with tools!

I guess if it takes $50-$75 to fix a hole then there isn't a way around it.
Guy Farting is offline   Reply With Quote
Old 12-08-2014, 11:41 AM   #13
Newb

Join Date: Feb 2010
Posts: 20
Total Cats: 0
Default

You could always take it off and to a machine shop for a professional repair. Might be a cheaper solution.
wrench98 is offline   Reply With Quote
Old 12-12-2014, 12:11 AM   #14
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 201
Default

HelicoilS are junk, keencerts (threaded insert, positive locking) are not expensive. McMaster has them for about 4 bucks.

Who is paying 80 for time serts???
ryansmoneypit is offline   Reply With Quote
Old 12-12-2014, 12:43 AM   #15
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by ryansmoneypit View Post
HelicoilS are junk, keencerts (threaded insert, positive locking) are not expensive. McMaster has them for about 4 bucks.

Who is paying 80 for time serts???
Probably someone assuming they "require" special tools. Though, I have been unable to find keen-serts/time-serts locally, and kind of forgot to order them. So I may be going with a helicoil this go round....
Schuyler is offline   Reply With Quote
Old 12-12-2014, 12:45 AM   #16
Senior Member
iTrader: (2)

williams805's Avatar

Join Date: Oct 2013
Location: Goleta, Southern California
Posts: 510
Total Cats: 25
Default

Quote:
Originally Posted by ryansmoneypit View Post
HelicoilS are junk, keencerts (threaded insert, positive locking) are not expensive. McMaster has them for about 4 bucks.

Who is paying 80 for time serts???
Not the inserts... The set. You know the correct drill, countersink thing, tap, installation tool and a handful of inserts?
williams805 is offline   Reply With Quote
Old 12-12-2014, 05:27 AM   #17
Junior Member
Thread Starter

Join Date: Oct 2014
Location: USA
Posts: 125
Total Cats: -65
Default

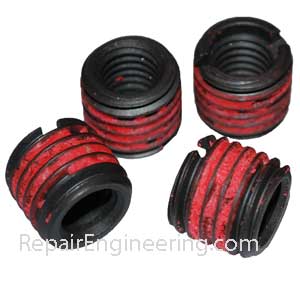

you do need special tools. the insert needs to be expanded into the drilled hole which requires a specialized tool. also needs to be counter bored which also requires a special tool. unless you guys are talking about ez lok above. which are held in with loctite and you have to drill out to 9/16" for the proper size ez lok insert. the whole deal with these is yes you can install them with a scredriver but to make it cheaper they use standard size taps in this case 9/16".

why exactly do helicoils suck?

also I should add I bought everything I need for $22. drill bit tap coil threading tool installation tool and coils. heck of a lot better than $80 for insert.
Attached Thumbnails

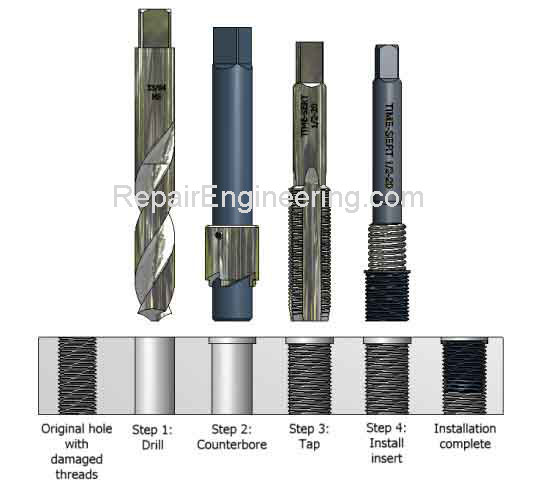

stripped exhaust manifold stud?-time-sert-installation-process.jpg   stripped exhaust manifold stud?-e-z-lok-inserts.jpg
Guy Farting is offline   Reply With Quote
Old 12-12-2014, 05:46 AM   #18
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default



Attached Thumbnails

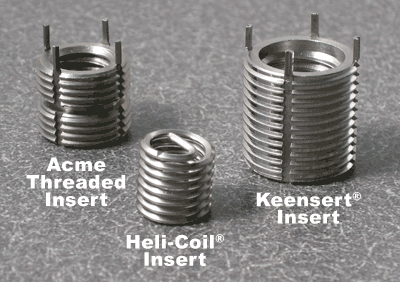

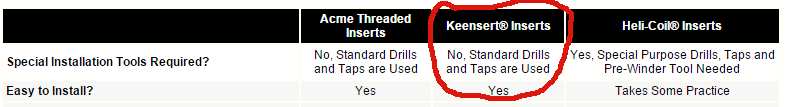

stripped exhaust manifold stud?-acme-insert-comparison.gif   stripped exhaust manifold stud?-acme-insert-comparison.gif
Schuyler is offline   Reply With Quote
Old 12-12-2014, 02:04 PM   #19
Junior Member
Thread Starter

Join Date: Oct 2014
Location: USA
Posts: 125
Total Cats: -65
Default

dont know how I missed you guys were talking about keenserts. those still need to be drilled out quite a lot. the thin wall ones to m14x1.5 and if you like me dont have a tap set already a tap needs to be purchased. according to a test I saw on a 1/4" bolt those are stronger of course its a larger thread a keensert needs to be threaded into. and they seem a little easier to install.
I chose helicoil because I didnt want to have to drill out a big hole in the head and if the helicoil fails I can still do a insert.
Guy Farting is offline   Reply With Quote
