Default Stupid nut size for stupid PPF bolt

So I just pulled my motor and tranny and put it back.

The PPF bolts onto the diff with two bolts.

The rearmost bolt does not thread into anything so I assume some stupid nut is supposed to hold onto it place where it pokes out above the diff.

What is the size of that stupid nut? They didn't have that shizat at home depot.


Side queszation. What is the tip/trick to get the shifter to sit in the middle of the shifter hole. My shifter is kinda sitting towards the driver's side which feels kinda wierd.
Faeflora is offline   Reply With Quote
Old 01-21-2012, 07:43 PM   #2
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

The tip for getting the shifter to sit in the middle is to correctly install your engine and transmission. I don't see how it could not be centered. There may be a bit of adjustment in the PPF if you loosen the bolts, adjust the trans whichever way, and then tighten while someone holds it in place. But there can't be whole lot of play in there.

You sure your engine mounts aren't sitting on something? Did you use the engine mount "cover" things?

As for the PPF, I thought that "nut" was part of the PPF. As in, welded to it. Or at least press fit.

Last edited by FRT_Fun; 01-21-2012 at 07:53 PM.
FRT_Fun is offline   Reply With Quote
Old 01-21-2012, 07:53 PM   #3
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by FRT_Fun View Post
The tip for getting the shifter to sit in the middle is to correctly install your engine and transmission. I don't see how it could not be centered. There may be a bit of adjustment in the PPF if you loosen the bolts, adjust the trans whichever way, and then tighten while someone holds it in place. But there can't be whole lot of play in there.

As for the PPF, I thought that "nut" was part of the PPF. As in, welded to it. Or at least press fit.
There is a nut for the frontmost bolt. Not the rear.
Faeflora is offline   Reply With Quote
Old 01-21-2012, 07:58 PM   #4
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Just for you, Faeflora, I'm going outside in this 5F weather to check on this and get you a picture. BRB.
blaen99 is offline   Reply With Quote
Old 01-21-2012, 07:59 PM   #5
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Also why did you remove the PPF at the diff?
FRT_Fun is offline   Reply With Quote
Old 01-21-2012, 08:03 PM   #6
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Yeah, Faeflora, you are mixed up bro after looking at how my PPF was.

http://virkki.com/jyri/miata/ppf/

Reverse of this.
blaen99 is offline   Reply With Quote
Old 01-21-2012, 08:43 PM   #7
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by FRT_Fun View Post
Also why did you remove the PPF at the diff?
I have no frikken clue. I guess because it seemed like a good idea at the time. :|


Quote:
Originally Posted by blaen99 View Post
Yeah, Faeflora, you are mixed up bro after looking at how my PPF was.

http://virkki.com/jyri/miata/ppf/

Reverse of this.
?????? OK well the way my ---- is, the rearmost bolt does not screw into anything.
Faeflora is offline   Reply With Quote
Old 01-21-2012, 08:47 PM   #8
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Take bolt to your nearest hardware store,
Test nuts,
Profit

Only solution you've got then, bro. Unless you plan on ordering them online and waiting several days for them at least, you'll have to go to the hardware store anyways.
blaen99 is offline   Reply With Quote
Old 01-21-2012, 09:03 PM   #9
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Quote:
Originally Posted by blaen99 View Post
Take bolt to your nearest hardware store,
Test nuts,
Profit

Only solution you've got then, bro. Unless you plan on ordering them online and waiting several days for them at least, you'll have to go to the hardware store anyways.
Quote:
Originally Posted by Faeflora View Post
They didn't have that shizat at home depot.
...
Faeflora is offline   Reply With Quote
Old 01-21-2012, 09:13 PM   #10
Elite Member
iTrader: (6)

blaen99's Avatar

Join Date: Sep 2010
Location: Seattle, WA
Posts: 4,112
Total Cats: 27
Default

Quote:
Originally Posted by Faeflora View Post
...
Okay, my sense of humor failed to come across on the internet (No tone of voice to reflect sarcasm ftl), and I do apologize for failing to express that in my previous post.

Fae, there are special nuts on the PPF. They have specialized splined collars to inset into it/fit into the PPF. You won't find them at a hardware store. They are specialized Mazda nuts for the specific PPF application. However, they also take a good deal of force to remove - they are, as another poster mentioned, basically "welded" into the PPF because of how they fit. I cannot imagine how you got them out and misplaced them - if you removed them, you would have had to have worked at it with a hammer at least as they are press-fit with a splined collar. This is what FRT and I have been getting at in this thread.

Last edited by blaen99; 01-21-2012 at 09:24 PM.
blaen99 is offline   Reply With Quote
Old 01-21-2012, 09:30 PM   #11
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Are you sure you are using the correct bolts?
FRT_Fun is offline   Reply With Quote
Old 01-21-2012, 09:31 PM   #12
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

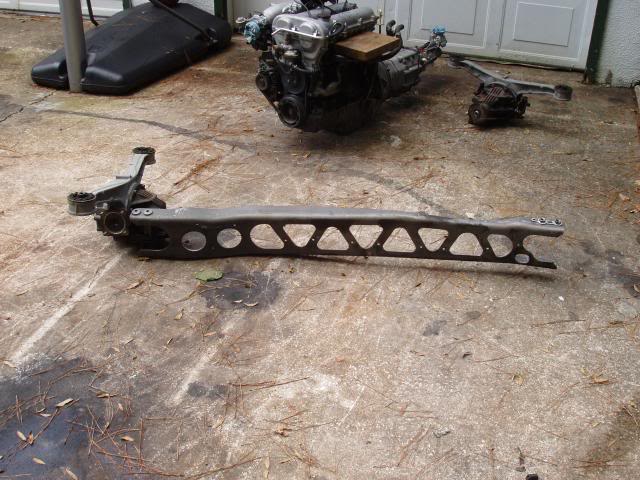

Attached Thumbnails
Stupid nut size for stupid PPF bolt-p8100156.jpg
FRT_Fun is offline   Reply With Quote
Old 01-21-2012, 11:58 PM   #13
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

yeah I just took my PPF off a week ago. There are two nuts on each bolt that must come out to remove the PPF from the rear diff. They have a shoulder on them that goes into the PPF...a regular ol nut might work but it will be THE SUCK. Don't do it. Find the correct nut.
TurboTim is offline   Reply With Quote
Old 01-22-2012, 12:22 AM   #14
Senior Member
iTrader: (18)

Join Date: May 2008
Location: Big Bear Ca
Posts: 990
Total Cats: 8
Default

Call me crazy, but aren't the pressed nuts clearly visible in the picture he just posted? I'm not at home to check, but I did this not to long ago. If I remember right one bolt is larger than the other and this was important in putting it together.
dstn2bdoa is offline   Reply With Quote
Old 01-22-2012, 01:40 AM   #15
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

I think hey are all the same diameter


Per the link, "the bolt closest to the diff simply screws out". Mine slides inand out. No screwing. Ha
Faeflora is offline   Reply With Quote
Old 01-22-2012, 01:49 AM   #16
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

Quote:
Originally Posted by Faeflora View Post
I think hey are all the same diameter


Per the link, "the bolt closest to the diff simply screws out". Mine slides inand out. No screwing. Ha
Both bolts on the differential side have "press-in" nuts. The 2 nuts are identical as far as I know. So you have one but lost the other.

You should have told me last week since I was at a junk yard pulling a diff.

Anyways, as far as I know they aren't sold separate of the PPF.
soviet is offline   Reply With Quote
Old 01-22-2012, 01:52 AM   #17
NB/VVT Connoisseur
iTrader: (23)

viperormiata's Avatar

Join Date: Aug 2008
Location: Key West
Posts: 6,072
Total Cats: 253
Default

Why do you break the stupidest ****
viperormiata is offline   Reply With Quote
Old 01-22-2012, 02:03 AM   #18
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

Quote:
Originally Posted by viperormiata View Post
Why do you break the stupidest ****
Probably everyone did stupid ---- at one point. We just didn't make a thread about it
soviet is offline   Reply With Quote
Old 01-22-2012, 02:14 AM   #19
Elite Member
Thread Starter
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

OMFG if i lost that ---- well fuc that. I cannot gay out and skip this ----. I broke my old ppf at 250hp so i dunwanna f around on this now. Arrrgggggg

Thing is if there is indeed a press in threaded nut thing, it would have to go into the diff at the top. There is no room as it is tight fit on the bottom.

Im gonna use any old fukin bolt and nut that will sorta fit if i cannot get thi shi figured out
Faeflora is offline   Reply With Quote
Old 01-22-2012, 02:14 AM   #20
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Are they all the same length? Is that front bolt that's already in perhaps a bit longer and supposed to go in the rear hole?
