Default SuperMiata Harmonic Balancer & Trigger wheel, install questions

A question I would like to pose to anyone who has installed one of these..

I bought the SuperMiata Harmonic Dampers and the 36-1 Trigger Wheel, which way do I install these? The trigger wheel appears to be reversable, and I'd rather not have my TDC timing off.. lol
Der_Idiot is offline   Reply With Quote
Old 04-26-2013, 11:09 PM   #2
Senior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

I called Emilio and left a VM, but it's the weekend so if anyone has an answer, that would be awesome.
Der_Idiot is offline   Reply With Quote
Old 04-27-2013, 01:05 AM   #3
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

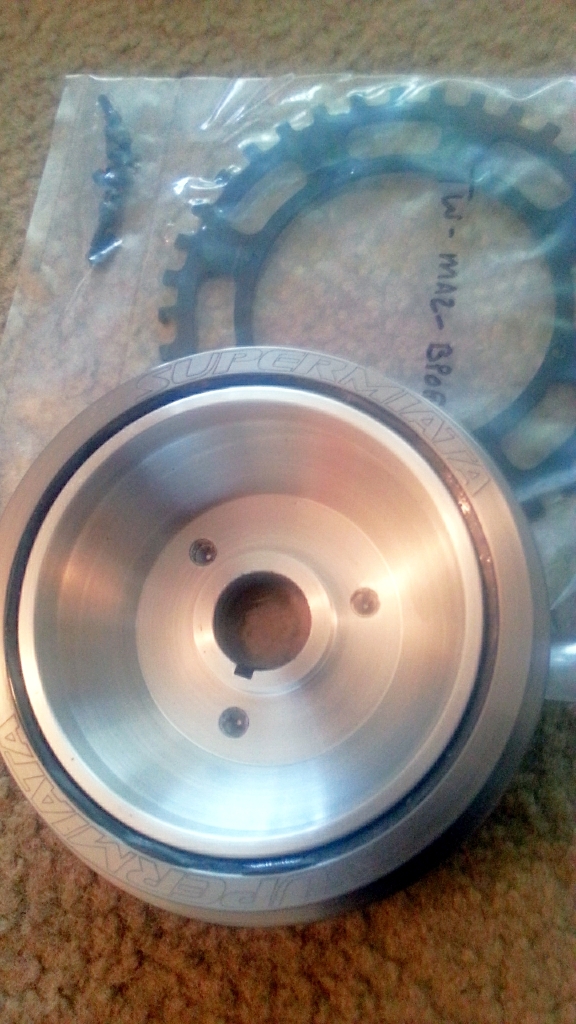

Got mine today.
Attached Thumbnails
SuperMiata Harmonic Balancer & Trigger wheel, install questions-c360_2013-04-26-14-07-43-669_zps02c9e08f.jpg
Impuls is offline   Reply With Quote
Old 04-27-2013, 02:03 AM   #4
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

Quote:
Originally Posted by Der_Idiot View Post
The trigger wheel appears to be reversable, and I'd rather not have my TDC timing off.. lol
Look closer - two of the boltholes on the wheel are indexed differently so you can't bolt it on backwards. Just try it until you get all 8 holes lined up.
Savington is offline   Reply With Quote
Old 04-27-2013, 02:13 AM   #5
Senior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

Success! Thanks! However I have a bit of an issue, did the 95 come with the Hall Sensor to read the crank trigger wheel..? I know I worked on an engine with it, but it might not be mine, or I removed it because there was no connector.. Since my 97 had it, I know the ECU can support it, I just need to run the wiring.
Der_Idiot is offline   Reply With Quote
Old 04-27-2013, 02:38 AM   #6
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

96-97 had a VR sensor, 99-05 had a 3-wire hall sensor. Not sure if the 95 has the tapped hole for the sensor.
Savington is offline   Reply With Quote
Old 04-27-2013, 04:12 AM   #7
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

Not to thread jack but what is the benefit of this trigger wheel? I've seen it mentioned multiple times so I am curious.
Lincoln Logs is offline   Reply With Quote
Old 04-27-2013, 04:49 AM   #8
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: SE NM
Posts: 1,460
Total Cats: 48
Default

Supposedly much more accurate timing control because the amount of teeth gives you a lot more resolution to play with.
Chilicharger665 is offline   Reply With Quote
Old 04-27-2013, 12:53 PM   #9
Senior Member
Thread Starter
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,295
Total Cats: 22
Default

^This, more accurate timing means less likely to have it be slightly off and be more advanced/retarded than it really is.
Der_Idiot is offline   Reply With Quote
Old 04-28-2013, 02:16 AM   #10
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

Quote:
Originally Posted by Chilicharger665 View Post
Supposedly much more accurate timing control because the amount of teeth gives you a lot more resolution to play with.
Quote:
Originally Posted by Der_Idiot View Post
^This, more accurate timing means less likely to have it be slightly off and be more advanced/retarded than it really is.
Thanks, makes sense!
Lincoln Logs is offline   Reply With Quote
Old 04-28-2013, 11:21 AM   #11
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Savington View Post
96-97 had a VR sensor, 99-05 had a 3-wire hall sensor. Not sure if the 95 has the tapped hole for the sensor.
It bolts to the oil pump doesnt it? So they all should have it.
Leafy is offline   Reply With Quote
