Default Switching from short to long nose. Need help

Just recently got a whole long nose swap from gospeed81 (who is btw the most awesome seller i have ever dealt with) and i am a bit confused about how all the new stuff goes together.

Here are a few pictures of how i think it should all go together.

So first the timing belt gear goes on the snout



Then the other thing that i am not sure what it does goes on.



And the the pulley/ balancer




And then the bolt key and the bolt?




To me it looks like something is missing. There is a ton of space left it almost looks like the nose is too short or something.

Rushin is offline   Reply With Quote
Old 06-12-2010, 11:50 PM   #2
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

i think the KEY should go in the key way first. (i think) then stuff starts sliding on.

everything else looks right.
WonTon is offline   Reply With Quote
Old 06-13-2010, 12:03 AM   #3
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

So that empty space is fine? Does anyone have diagram of how this all goes together? I found one for short nose but nothing for long nose
Rushin is offline   Reply With Quote
Old 06-13-2010, 12:07 AM   #4
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

idk about teh empty space. i cant picture, and my motor isnt here at my garage.....
WonTon is offline   Reply With Quote
Old 06-13-2010, 01:37 AM   #5
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Sorry to leave ya hanging on this...nothing but chores since we got back into town, and had to watch soccer match.

I reviewed some pics I had, as well as the motor I'm rebuilding on the stand and this looks correct. The bolt should fit flat on the spacer. I can disassemble this one as well if no one else chimes in before when I can get greasy in the morning.
gospeed81 is offline   Reply With Quote
Old 06-13-2010, 11:52 AM   #6
Junior Member
iTrader: (5)

Join Date: Mar 2008
Location: Dallas
Posts: 131
Total Cats: 1
Default

Scratch what I previously wrote...

Been too long for me to remember correctly.

Last edited by juxt3r; 06-13-2010 at 12:03 PM.
juxt3r is offline   Reply With Quote
Old 06-13-2010, 03:14 PM   #7
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Something is not right there. I just did this the other day and I dont remember having all that space. **** I wish I remembered better how it all went together.

So you got:
-the long nose crank
-the long nose oil pump
-the long nose timing gear
-the long nose pulley boss
-the long nose pulley

Right?
wayne_curr is offline   Reply With Quote
Old 06-15-2010, 02:41 PM   #8
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

can someone please post a diagram?
Rushin is offline   Reply With Quote
Old 06-15-2010, 03:23 PM   #9
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,900
Total Cats: 1,792
Default

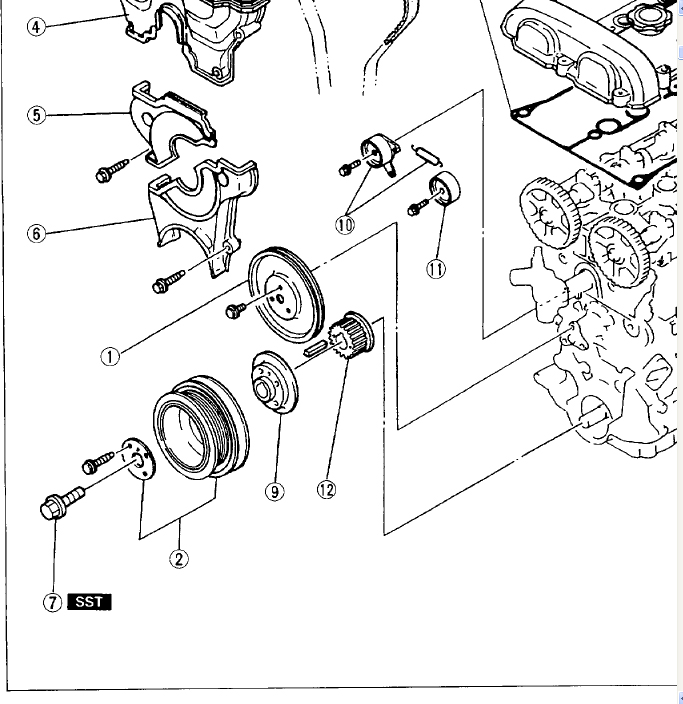

have everything from a long nose?


Attached Thumbnails
Switching from short to long nose. Need help-crank.jpg
Braineack is offline   Reply With Quote
Old 06-15-2010, 03:26 PM   #10
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by wayne_curr View Post
Something is not right there. I just did this the other day and I dont remember having all that space. **** I wish I remembered better how it all went together.

So you got:
-the long nose crank
-the long nose oil pump
-the long nose timing gear
-the long nose pulley boss
-the long nose pulley

Right?
I did not send the oil pump, which I will do if needed/different, and I did send a key.

It looks like that space is there to clear the keystock:

http://www.miata.net/garage/crankshaft.html
gospeed81 is offline   Reply With Quote
Old 06-15-2010, 03:31 PM   #11
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

You guys are awesome! Thanks so much for the diagram. I am going to order a new oilpump anyway. I think the space there is just because its like that. At least i have everything in the diagram aside from the key, which i am going to order anyway new.

Thanks.

P.S. Where do i get a book with all the diagrams? or even better a whole PDF of it?
Rushin is offline   Reply With Quote
Old 06-15-2010, 03:32 PM   #12
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

I'm tearing down my engine again today so i'll be sure to post up the findings.
wayne_curr is offline   Reply With Quote
Old 06-15-2010, 03:32 PM   #13
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

Quote:
Originally Posted by wayne_curr View Post
I'm tearing down my engine again today so i'll be sure to post up the findings.
Perfect do it.

Thanks.
Rushin is offline   Reply With Quote
Old 06-15-2010, 03:32 PM   #14
Elite Member
iTrader: (8)

Join Date: Aug 2007
Location: Bellingham, Wa
Posts: 2,732
Total Cats: 3
Default

Quote:
Originally Posted by Rushin View Post
You guys are awesome! Thanks so much for the diagram. I am going to order a new oilpump anyway. I think the space there is just because its like that. At least i have everything in the diagram aside from the key, which i am going to order anyway new.

Thanks.

P.S. Where do i get a book with all the diagrams? or even better a whole PDF of it?
There is a PDF floating around somewhere which i'd like to get my hands on again. I lost mine.
wayne_curr is offline   Reply With Quote
Old 06-15-2010, 03:36 PM   #15
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Quote:
Originally Posted by Rushin View Post
At least i have everything in the diagram aside from the key
I was pretty sure the key made it into one of the baggies, but new keystock is a good idea anyways.

Let me know if you do need anything else. I had taken a cursory look around in the garage the other day, but if it turns out you are missing anything (or need anything else to save from spending) then let me know, I've got another shortblock in the corner.
gospeed81 is offline   Reply With Quote
Old 06-15-2010, 03:43 PM   #16
Senior Member
Thread Starter
iTrader: (3)

Join Date: Jul 2008
Location: Minneapolis, MN
Posts: 963
Total Cats: -1
Default

Quote:
Originally Posted by gospeed81 View Post
I was pretty sure the key made it into one of the baggies, but new keystock is a good idea anyways.

Let me know if you do need anything else. I had taken a cursory look around in the garage the other day, but if it turns out you are missing anything (or need anything else to save from spending) then let me know, I've got another shortblock in the corner.
haha, sweet man! you are awesome. I might need something else. So i will let you know!
