Old 10-01-2010, 08:53 PM   #21
Elite Member
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

My machine shop back home would have taken care of that. I don't know who i will trust around here. A couple of locals have given me names. I hate that for you. I am in for pics of bottom too.
chicksdigmiatas is offline   Reply With Quote
Old 10-01-2010, 09:07 PM   #22
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

I would buy a 99 head and all the aftermarket bits and see If they will do the work for free instead of rebuilding that one. This is assuming they are taking responseabilty for it.
yellowihss is offline   Reply With Quote
Old 10-01-2010, 11:19 PM   #23
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Wow. If a rod actually broke that will be the first M-tuned H beam style rod I will have heard of breaking. Sorry for your loss.
Faeflora is offline   Reply With Quote
Old 10-02-2010, 05:17 AM   #24
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

i bet the piston wall clearance was sloppy and that bent a rod wich eventualy broke still im sorry to see another perfectly good motor go to waste. I hope the shop does right by you.
magnamx-5 is offline   Reply With Quote
Old 10-02-2010, 10:55 AM   #25
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

I don't know about the piston wall clearance honestly. I never had any piston slap, so I doubt that was the issue. Maybe, but I doubt it. There is another guy locally who has the exact same setup with the machine work done by the same shop. He had someone else assemble it though. He's never had any issues with piston slap or anything either. At this point I don't know what I'm going to do. We'll see what they say, but worst case scenario I found a decent 60k 94 motor that I'll drop in.
baron340 is offline   Reply With Quote
Old 10-02-2010, 07:38 PM   #26
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Well.. I pulled the block out today. As I was unbolting the clutch, the motor suddenly decided it would turn again. In it's sudden turn, the thirsty piston popped out of the block to the point where the first ring was above the deck, allowing me to pull the piston out. Here's what I found.

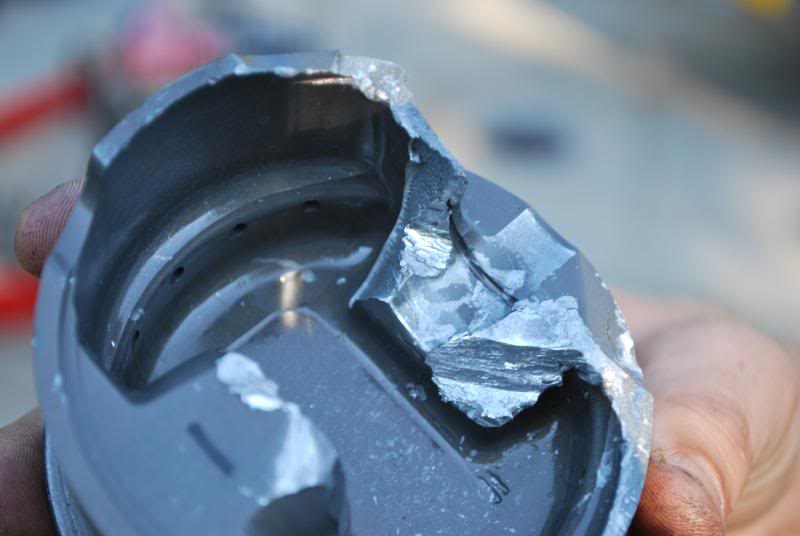

Name:  DSC_0520.jpg
Views: 1
Size:  47.3 KB

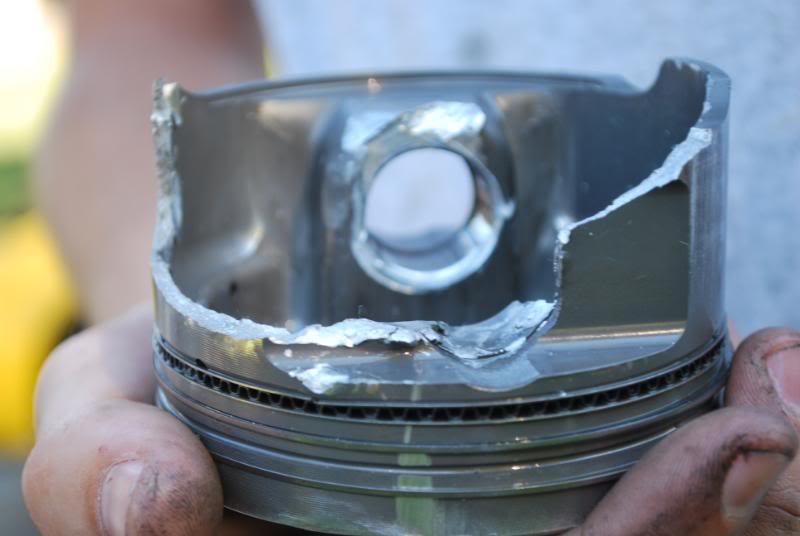

Name:  DSC_0522.jpg
Views: 1
Size:  47.6 KB

Not pretty at all. So I get to looking closer. There is one circlip in place, but the other is no where to be found. Not surprising given the damage. I hope I never find it down in the block, meaning it was never there. But I did find some more interesting clues.

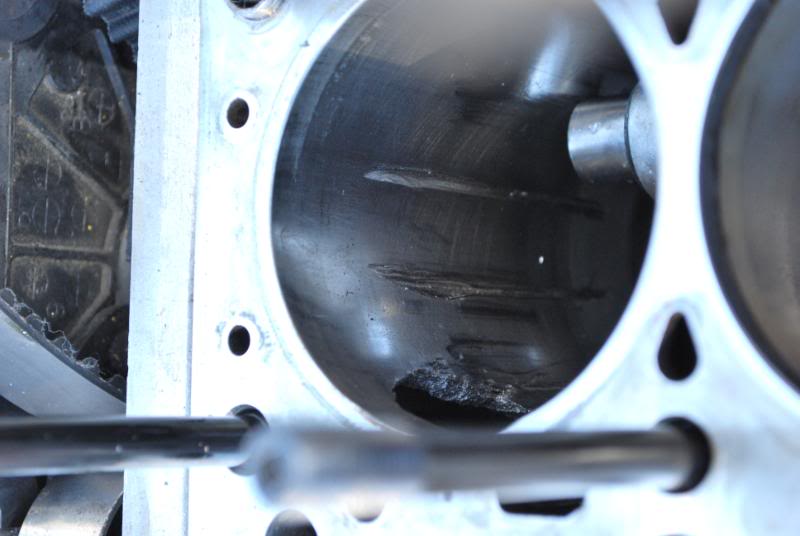

Name:  DSC_0525.jpg
Views: 1
Size:  50.8 KB

Those grooves are parallel and exactly the same width as the wrist pin, even though wrist pin is now centered, it had to have come loose at some point. These wrist pins are floating right?

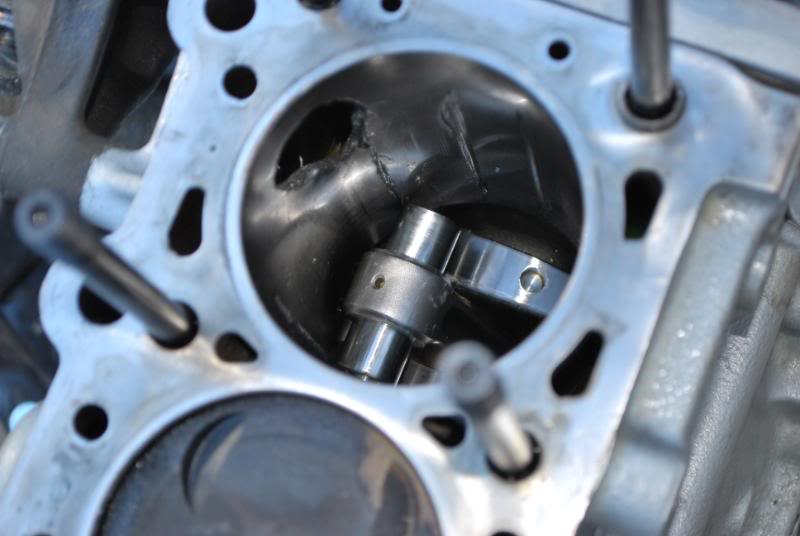

Name:  DSC_0530.jpg
Views: 1
Size:  51.0 KB

Then some more grooves, I'm assuming the one that ultimately resulted in the hole in the sleeve.

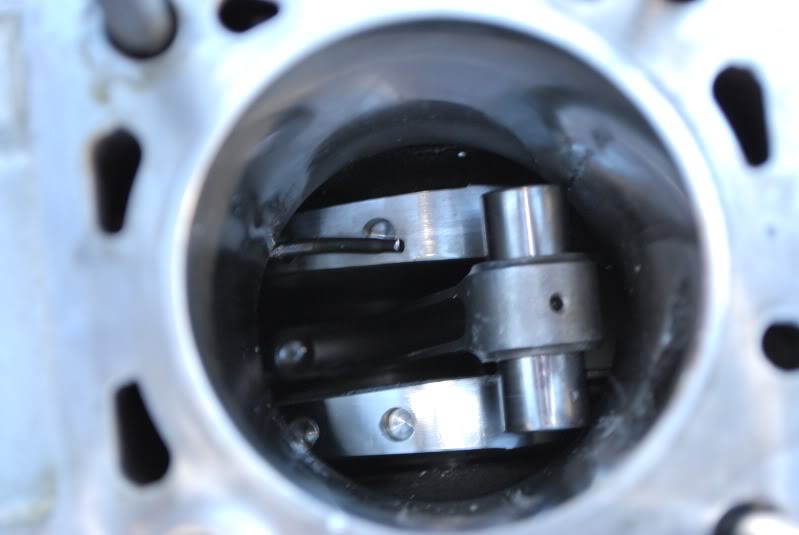

Name:  DSC_0527.jpg
Views: 1
Size:  33.8 KB

I also found this... I dont' know what it is or if it's supposed to be there. The little wire looking thingy above the crank. They aren't present in the honda blocks I've rebuilt, and I never saw the inside of this one.
baron340 is offline   Reply With Quote
Old 10-02-2010, 07:49 PM   #27
Elite Member
iTrader: (5)

Join Date: Oct 2007
Location: Canton, Ga
Posts: 1,707
Total Cats: 19
Default

That wire looking thing is the oil squirter. It looks to me like the piston just decided to come apart for no reason, or a wrist pin clip got left out, and it walked. I'd bet on the latter... yes the pins are floating.
Stealth97 is offline   Reply With Quote
Old 10-02-2010, 09:07 PM   #28
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Quote:
Originally Posted by Stealth97 View Post
or a wrist pin clip got left out, and it walked. I'd bet on the latter... yes the pins are floating.
I think we have a winner.
yellowihss is offline   Reply With Quote
Old 10-02-2010, 09:12 PM   #29
Senior Member
iTrader: (20)

yellowihss's Avatar

Join Date: Dec 2008
Location: Austin, TX
Posts: 738
Total Cats: 7
Default

Looks like the rods are good.
yellowihss is offline   Reply With Quote
Old 10-02-2010, 09:51 PM   #30
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Soooo, how did those detonation pits happen in your head? Was it like that when you put it on?
Faeflora is offline   Reply With Quote
Old 10-02-2010, 10:23 PM   #31
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

I'm hoping the pin walked as well. I honestly have no clue if the head was perfect when I put it back on there. There weren't any glaring signs but I also didn't inspect it with a magnifying glass or anything. Upon closer inspection though, it's not quite as bad looking as the pictures portray. It was dirty in the pics and some of that is from droplets of coolant and oil. There aren't any pits on any of the other cylinders and none on any of the pistons. So if there was some detonation I'm guessing it happened in the last moments of it's life.
baron340 is offline   Reply With Quote
Old 10-02-2010, 10:59 PM   #32
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

looks like they only did one circlip or the **** wasn't seated correctly on install.
magnamx-5 is offline   Reply With Quote
Old 10-03-2010, 10:17 AM   #33
Guest
iTrader: (6)

Join Date: Sep 2007
Location: Vaughan, On, Canada
Posts: 1,092
Total Cats: 0
Default

Quote:
Originally Posted by faeflora View Post
Wow. If a rod actually broke that will be the first M-tuned H beam style rod I will have heard of breaking. Sorry for your loss.
Still batting 100% for our Rods.. New batch arrives this week..

Sorry about your loss.. My guess is a weak damaged piston or the clip was missing / loose on the wrist pin.
M-Tuned is offline   Reply With Quote
Old 10-03-2010, 11:02 AM   #34
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Quote:
Originally Posted by [email protected] View Post
Still batting 100% for our Rods.. New batch arrives this week..

Sorry about your loss.. My guess is a weak damaged piston or the clip was missing / loose on the wrist pin.
Nope.. you're rods are still 100%. Even the one that ran into the block and managed to carve a couple notches out of the iron aren't even scathed. I'll have some more pictures of it when we tear the bottom end off and I can get to the bottom of the cylinders but it really is quite amazing. Taking it back to the machine shop on Thursday when I'm out of class for fall break.
baron340 is offline   Reply With Quote
Old 10-03-2010, 11:37 AM   #35
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

still i would get the rods that hit the block checked for cracking it is amazing they held up to block contact like that. i hope the shop does you right.
magnamx-5 is offline   Reply With Quote
Old 10-03-2010, 01:52 PM   #36
Elite Member
iTrader: (2)

Join Date: Jan 2007
Location: Los Angeles, CA
Posts: 8,782
Total Cats: 119
Default

Regarding H beam rod failiure:

FWIW I googled around for a while and found this really good tech-heavy thread:

http://speedtalk.com/forum/viewtopic...56d1ce84caea98

With this pic:

H beam rods do indeed apparently fail. From the thread, not from the HP that our motors see though. Also, FWIW I am running M-Tuned rods as well. That came out of a motor that had heavy detonation, nothing piston shattering, but melted **** pistons. The rods were just fine.
Faeflora is offline   Reply With Quote
Old 10-03-2010, 02:39 PM   #37
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Oh don't worry, that one rod will be tested thoroughly before going back into a motor. If I have to take it down to the materials sciences lab and bribe a professor or two, I will. But in the end, it all depends what the shop is going to do. A very likely outcome is them saying there is nothing they will do and I drop a stock motor in the car. And ultimately, this could've happened from manufacturing defects, although unlikely. On top of that, a lawyer and court costs would be more expensive than just replacing the broken parts myself.

Ninja edit: That thread on speedtalk is pretty awesome. I don't think I've ever seen so many really smart people argue about car stuff before.

Last edited by baron340; 10-03-2010 at 03:07 PM.
baron340 is offline   Reply With Quote
Old 10-07-2010, 02:33 PM   #38
Senior Member
Thread Starter
iTrader: (5)

Join Date: Sep 2009
Location: Lompoc, CA
Posts: 579
Total Cats: 12
Default

Well... the machinist basically said "you're screwed"... he swears that this failure was caused by manufacturing defects. Claims he's seen it dozens of times in Mahle manufactured pistons. Apparently they put out batches that were improperly heat treated, making the ductility of the 4032 alloy even lower and they crack or outright fail almost immediately. So my new question... has anyone else seen/heard of/experienced any similar failures with supertech stuff? If that was the case, an entire batch should be bad.

Oh yeah.. and does anyone know who exactly makes Supertech's pistons?
baron340 is offline   Reply With Quote
Old 10-07-2010, 02:41 PM   #39
meatbag
iTrader: (50)

gospeed81's Avatar

Join Date: Nov 2008
Location: Houston, TX
Posts: 7,357
Total Cats: 26
Default

Passing the buck...awesome.

I don't see how even a poorly made forged piston would fail without having seen any boost or det.
gospeed81 is offline   Reply With Quote
Old 10-07-2010, 02:59 PM   #40
Elite Member
iTrader: (11)

chicksdigmiatas's Avatar

Join Date: Apr 2008
Location: Texas, 'Murica
Posts: 2,505
Total Cats: 7
Default

Call the manufacturer and see. I would try to get someone to do it. See if you can find that clip. Did they offer to dissassemble?
