Default Thread size for steering rack fittings

What sizes are the threads for the small line fittings and the main steering assembly. $50 + shipping for the miata roadster kit is convenient, I have a pipe place close by. I think I get get a better price on plugs. I just don't know the thread sizes. Anyone know for sure?
miatauser884 is offline   Reply With Quote
Old 03-05-2010, 01:29 AM   #2
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

The small line fittings are M12 x 1.0 with about 5mm of thread below the bolt head.

The two larger ones are different sizes. One is M14 x 1.5 and the other is M16 x 1.5. Both are 8-9mm long below the head.

Bolts with those thread sizes will be difficult to find in those short lengths. You will probably have to buy longer ones and cut them down.
ScottFW is offline   Reply With Quote
Old 03-05-2010, 11:27 AM   #3
Elite Member
Thread Starter
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Thank you. I will go to the hydraulic fitting store and see what I can find.
miatauser884 is offline   Reply With Quote
Old 03-05-2010, 01:27 PM   #4
Elite Member
iTrader: (5)

Join Date: Apr 2007
Location: Wellford, SC
Posts: 1,704
Total Cats: 1
Default

Thanks for the information as well...
thagr81 us is offline   Reply With Quote
Old 03-05-2010, 01:57 PM   #5
Senior Member
iTrader: (4)

Join Date: Jan 2008
Location: Falls Church, VA
Posts: 1,367
Total Cats: 16
Default

FWIW I think those sizes are the same for all cars up through 95, and later years were different. I think they changed to using two M16s instead of one M14 and one M16, but I'd think the smaller line fittings should be the same. Not sure what sizes the NBs used.
ScottFW is offline   Reply With Quote
Old 03-10-2010, 08:30 PM   #6
Elite Member
Thread Starter
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

Anyone able to source the M12x1.0??? I can't find those anywhere. I'll make one more effort tomorrow, otherwise I think I will buy the miataroadster kit.
miatauser884 is offline   Reply With Quote
Old 03-10-2010, 08:47 PM   #7
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,362
Total Cats: 1,323
Default

'96-97 steering racks have different sized fittings.
Savington is online now   Reply With Quote
Old 03-11-2010, 09:29 AM   #8
Elite Member
Thread Starter
iTrader: (11)

Join Date: Feb 2009
Posts: 2,982
Total Cats: 10
Default

I found the M14 and M16 no problem, but the guy said the M12x1.0 were an odd fitting. He's only seen them once. They were from a german diesel engine manufacturer.
miatauser884 is offline   Reply With Quote
Old 05-16-2016, 09:34 PM   #9
Junior Member

Join Date: Jan 2015
Posts: 272
Total Cats: -22
Ebay

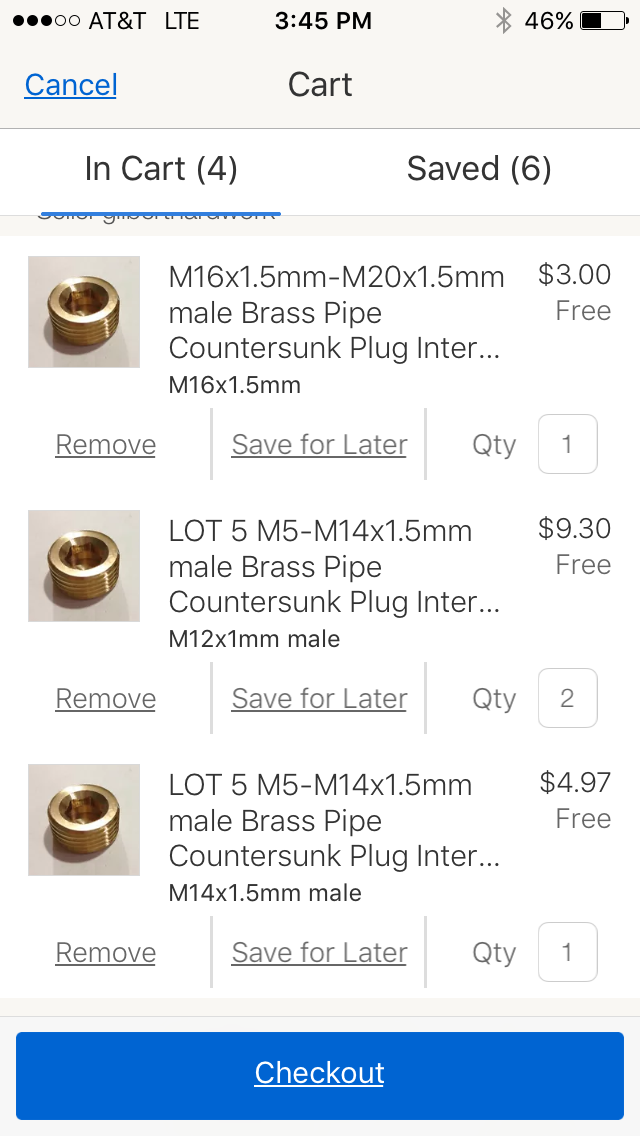

Found theses not eBay, going to give them a shot.
Attached Thumbnails
Thread size for steering rack fittings-image.png
Alternative is offline   Reply With Quote
