Default Throttle bodies/manifold fitment

I'm running the FM spacer (facepalm) and recently installed a coolant reroute. My upper hose is constantly being pushed at an awkward angle by my intake. Now that I have MS, I wanted to slap a 1.8 TB on there and ditch the spacer. My question is: Do 94-97 TB's bolt up to a 99 manifold / is the throttle cable orientation the same? I lost the ****** cable bracket that came with the 99 manifold, not sure if it matters.

(inb4 flame, i searched)
MartinezA92 is offline   Reply With Quote
Old 11-24-2010, 01:30 PM   #2
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,359
Total Cats: 1,323
Default

All 1.8 TBs interchange, the desirable one is the '01+ throttle body because the IAC plumbing is all internal (no IAC air hose to worry about). The NA throttle cable is too long, but the NB cable bolts right up to the firewall/pedal and is the correct length.
Savington is offline   Reply With Quote
Old 11-24-2010, 04:07 PM   #3
Elite Member
Thread Starter
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

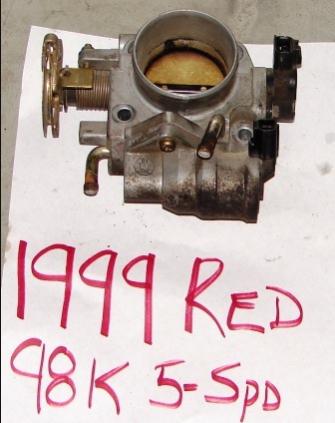

Does this mean the NA cable wouldn't work at all with an NB TB? This is what I'm looking at and it looks like the 2 ports for coolant that my 1.6 TB has,(not sure if those are for IAC on this TB), but I could be wrong.
Attached Thumbnails
Throttle bodies/manifold fitment-tb.jpg

Last edited by MartinezA92; 11-24-2010 at 04:26 PM.
MartinezA92 is offline   Reply With Quote
Old 11-24-2010, 07:20 PM   #4
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 65
Default

the thing screwed onto the bottom is the IAC
RyanRaduechel is offline   Reply With Quote
Old 11-24-2010, 08:14 PM   #5
Elite Member
Thread Starter
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

I know but I don't see the plumbing Sav mentioned
MartinezA92 is offline   Reply With Quote
Old 11-24-2010, 08:24 PM   #6
Trackspeed Engineering
iTrader: (9)

Join Date: Jan 2008
Location: Bay Area, California
Posts: 937
Total Cats: 10
Default

There is no additional plumbing needed on the NB throttle body. It pulls the air from the other side of the throttle plate instead of requiring an additional hose to be ran.

For example, this is a 94-97 throttle body, notice the large port at the top of this picture that is used for the IAC.


Small picture, but this is all I can find right now. NB throttle body where you can see the cutout before the throttle body as the source of air for the idle valve.


And yes, unless you make a custom bracket to place the NA throttle cable farther back, you will have to swap to the NB cable.
crashnscar is offline   Reply With Quote
Old 11-24-2010, 11:40 PM   #7
Elite Member
Thread Starter
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

I need to find a 94-97 TB.
MartinezA92 is offline   Reply With Quote
Old 11-25-2010, 12:18 AM   #8
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

I'll sell you mine.



For $150.
TurboTim is offline   Reply With Quote
Old 11-25-2010, 12:19 AM   #9
Elite Member
Thread Starter
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

not sure if srs
MartinezA92 is offline   Reply With Quote
Old 12-28-2010, 07:52 PM   #10
Elite Member
Thread Starter
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Resurrection of dead thread: I don't feel like pulling my TB off to test this, if one of you possibly already knows the answer to this:

99 manifold, 94-97 TB, no FM spacer, will the 1.6 throttle cable work? I have the bracket from the 99 manifold, and the FM bracket for a 1.8 swap, so I could use either one. I'm guessing but do I also need the NB cable for this?

Last edited by MartinezA92; 12-28-2010 at 08:04 PM.
MartinezA92 is offline   Reply With Quote
Old 12-30-2010, 04:49 PM   #11
Elite Member
iTrader: (17)

Join Date: Aug 2007
Location: Fort Myers, FL
Posts: 2,790
Total Cats: 128
Default

pdexta is offline   Reply With Quote
Old 12-30-2010, 05:09 PM   #12
Junior Member

kday's Avatar

Join Date: Aug 2008
Location: Boston
Posts: 223
Total Cats: 0
Default

Alternatively, you can make an adapter out of a bit of aluminum, a file, and a drill.




That's a 1996 IM/TB and a 1990 cable. The "adapter" is just a ~1"x1"x.25" piece of aluminum to move the 1990 bracket back and tilt it a bit. You can see the third hole, which if used moves the bracket straight back; instead it needed to be tilted a bit. It's pretty obvious. You will find out when you put it together what you need...
kday is offline   Reply With Quote
Old 12-30-2010, 05:10 PM   #13
Elite Member
Thread Starter
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

Thats already on my car, i dont know if it will take up enough length once i take the tb spacer off
MartinezA92 is offline   Reply With Quote
Old 12-30-2010, 05:21 PM   #14
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Quote:
Originally Posted by kday View Post
Alternatively, you can make an adapter out of a bit of aluminum, a file, and a drill.

That's a 1996 IM/TB and a 1990 cable. The "adapter" is just a ~1"x1"x.25" piece of aluminum to move the 1990 bracket back and tilt it a bit. You can see the third hole, which if used moves the bracket straight back; instead it needed to be tilted a bit. It's pretty obvious. You will find out when you put it together what you need...
Nice job Alternatively you could do it entirely in sheet steel too, like the FM piece but more DIY. Same thing, drill, file, bend, tweak.

To answer the OP (I didn't actually read his question however...), try it and find out. Then make it work if it doesn't, or go back to your current TB until you can figure it out. 4 bolts.
TurboTim is offline   Reply With Quote
Old 12-30-2010, 05:40 PM   #15
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

...and take special care to be sure the throttle cable won't melt, and stick open at 120mph going into a 40mph corner. Ask me how I know. Oh and by me, I mean "ask Matt Andrews if he wants to drive my car again!!!"
hustler is offline   Reply With Quote
Old 12-30-2010, 07:57 PM   #16
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,484
Total Cats: 248
Default

Pushing in the clutch would help that situation.
TurboTim is offline   Reply With Quote
Old 12-30-2010, 08:06 PM   #17
Elite Member
Thread Starter
iTrader: (4)

MartinezA92's Avatar

Join Date: Aug 2009
Location: Mountain View, CA
Posts: 1,702
Total Cats: 28
Default

New years resolution: fix all the little **** on my car. Like this.

I don't think I'm gonna have melting throttle cables when theres no snail nearby to melt it. Guess thats good and bad.
MartinezA92 is offline   Reply With Quote
Old 12-31-2010, 12:52 AM   #18
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
All 1.8 TBs interchange, the desirable one is the '01+ throttle body because the IAC plumbing is all internal (no IAC air hose to worry about). The NA throttle cable is too long, but the NB cable bolts right up to the firewall/pedal and is the correct length.
Hmmmm, added to my "To buy list"
WonTon is offline   Reply With Quote
