Default tie rods

I know this is probably an annoying question, but I have run into this very same problem:

Quote:
Originally Posted by neogenesis2004 View Post
I decided to depower my rack while im swaping the motor. Well the motor is ready to go in so I have started work on depowering and want to do that before I put the motor in because it is easier to install from above.

Ok so I have read the FM guide a billion times and know it word for word. My problem is that they assume that to rack has already had the tie rods removed. I am lookin at the tie rods right now and just cant see how they are supposed to be removed. Could someone please help me out? Some pictures would be great

Brian
Apparently I'm not as smart I can't figure the bastards out.
too late just to loop the lines...
if any one could help tonight I would be grateful, I'm hoping to drop the motor in tomorrow morning
nicacus is offline   Reply With Quote
Old 05-09-2008, 02:43 AM   #2
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

OK nevermind I figured them out..
nicacus is offline   Reply With Quote
Old 05-09-2008, 02:47 AM   #3
Senior Member
iTrader: (13)

Join Date: Sep 2006
Location: San Diego
Posts: 606
Total Cats: 0
Default

You should post what you figured out so that when somebody searches with the same problem, they can reference your solution instead of having to start a new thread asking the same question.
jasonrobo02 is offline   Reply With Quote
Old 05-09-2008, 02:08 PM   #4
Senior Member
Thread Starter
iTrader: (7)

nicacus's Avatar

Join Date: Jul 2006
Location: SLC UT
Posts: 1,133
Total Cats: 0
Default

Sounds like a good idea.

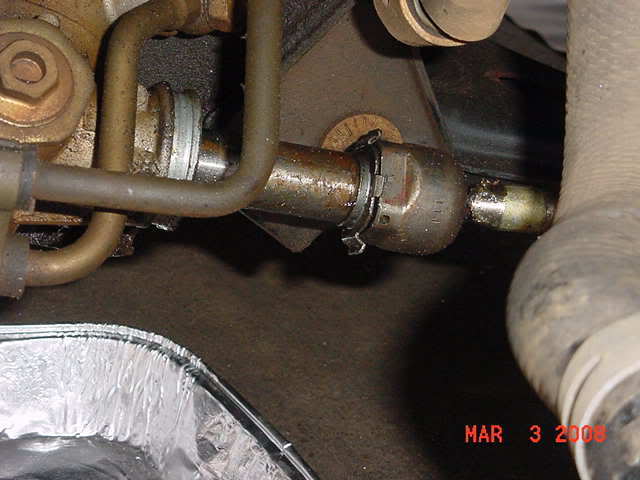

Use a screw driver and a hammer to make the washer on the inner tie rod look like this:
Name:  Tierod.jpg
Views: 2
Size:  33.4 KB

once you have that done you should be able unscrew the tie rod
I used a cresent wrench on both sides

The driver side is a bit tricky, I wrapped a paper towell around the slotted part of the rack to keep it from spinning while I undid the tie rod.
nicacus is offline   Reply With Quote
Old 05-09-2008, 03:44 PM   #5
Junior Member
iTrader: (5)

Join Date: Jan 2006
Posts: 294
Total Cats: 0
Default

yup, that stupid folded over the tie rod lock washer sucks *** to pry apart if you don't have your engine out of the car. Its a lot easier to take the rack out, put it on a vise and hammer away at that little bastard. I only had to remove the drivers side to do the depowering of the rack the FM way.
supersuk is offline   Reply With Quote
