Default tire wear question

Just put my old tires on to burn up, so I had my 1800 miles old toyo t1r's off, and I noticed the outside edge seemed to have more wear than the insides..
my old tire wore nicely even, inside just a tad more, and since the new toyos the car was aligned too...

I'm running 32psi front and 34 psi in the back, what would cause this funny wear pattern?

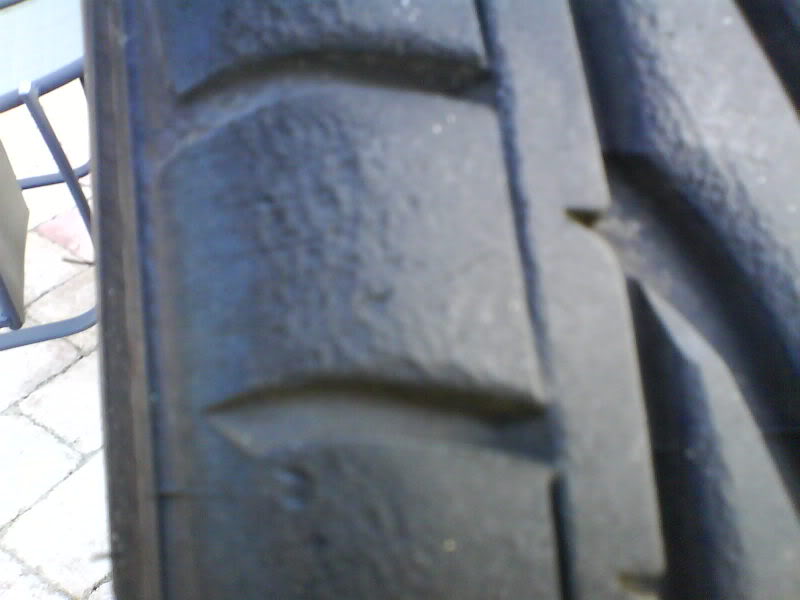

outside edge:
Name:  DSC00212.jpg
Views: 1
Size:  36.2 KB

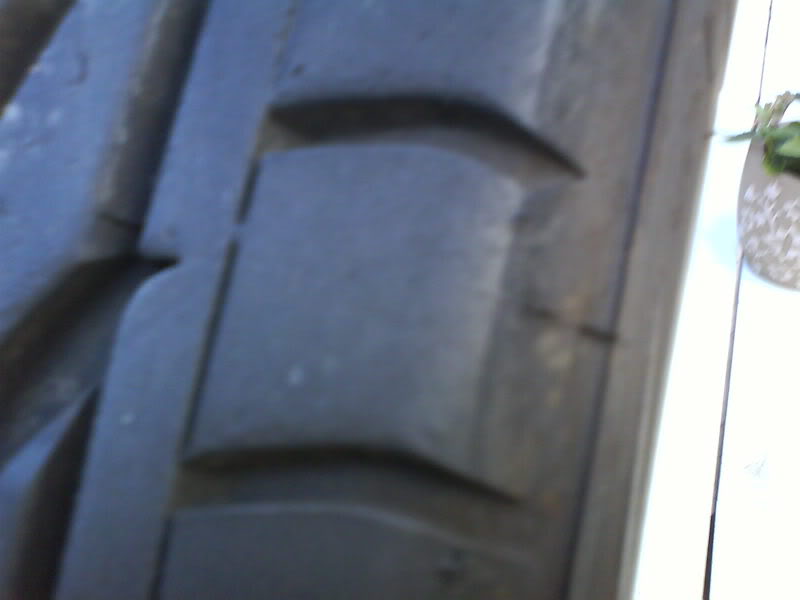

inside edge:
:Name:  DSC00213.jpg
Views: 1
Size:  26.7 KB

edit: I'm running toe-in 06' and -1.44 of camber in the rear according to the alignment spec sheet

Last edited by Oscar; 08-18-2007 at 07:22 PM. Reason: forgot '-'
Oscar is offline   Reply With Quote
Old 08-18-2007, 06:52 PM   #2
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

looks fine to me that is the heat building up and shreding the outside of the tire, it means you are actualy using the tires for what they are intended for.
magnamx-5 is offline   Reply With Quote
Old 08-18-2007, 06:55 PM   #3
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

sure?
seems that the tire is using more of the outside during hard cornering, and the floppy sidewalls allow it, either a tad more pressure or more camber to keep it more 'flat' i.e. more contactpatch instead of running the sidewall on the tarmac?

or leave as is?
Oscar is offline   Reply With Quote
Old 08-18-2007, 06:57 PM   #4
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

I would say you want NEGATIVE camber on the rear (and the front) rather than positive camber. You are riding on the outside of the tire and skiving rubber on any hard turn.
olderguy is offline   Reply With Quote
Old 08-18-2007, 07:21 PM   #5
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

my bad, the 1.44 is actually negative, forgot the '-'
front is -1
Oscar is offline   Reply With Quote
Old 08-18-2007, 07:25 PM   #6
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

In that case, more pressure might help.
olderguy is offline   Reply With Quote
Old 08-18-2007, 10:02 PM   #7
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

get the chalk out, it will tell you what to do.

My azenis look like that too on the 14's.. I run at like 32psi cold on the track, it grows to like 38psi. Any more pressure and i slide all over.
hustler is offline   Reply With Quote
Old 08-19-2007, 07:17 AM   #8
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

just chalk some lines across the tread and see what's left after some hard driving?
Oscar is offline   Reply With Quote
Old 08-19-2007, 12:51 PM   #9
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

dude... you guys are running way too high a pressure. I've found that anything over 30 psi cold and I start losing a lot of traction. if your sidewalls are folding too much add more negative camber (or add caster on front) or get stiffer tires.
Arkmage is offline   Reply With Quote
Old 08-19-2007, 03:48 PM   #10
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

i run 30 psi in the rear and 32 in the front with my 225's just fine.
magnamx-5 is offline   Reply With Quote
Old 08-19-2007, 11:35 PM   #11
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Arkmage View Post
dude... you guys are running way too high a pressure. I've found that anything over 30 psi cold and I start losing a lot of traction. if your sidewalls are folding too much add more negative camber (or add caster on front) or get stiffer tires.
I'm running 14's on the track.
hustler is offline   Reply With Quote
Old 08-19-2007, 11:36 PM   #12
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by Oscar View Post
just chalk some lines across the tread and see what's left after some hard driving?
yep. Common sense will tell you what to do from that point. you can use spraypaint too.
hustler is offline   Reply With Quote
Old 08-20-2007, 04:07 AM   #13
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Chalk the tire across the tread AND down onto the sidewall too. Chances are it's like Magna said and you are simply using the tires for their intended purpose.

I don't understand your toe-in number though, to me it reads "toe'd in zero degrees, six feet". Toe-in could be contributing to the problem too, but I'm curious how much you run. I used to run 1/4" in in the back but found 0 toe much more fun.

Last edited by kotomile; 08-20-2007 at 04:40 AM.
kotomile is offline   Reply With Quote
Old 08-20-2007, 04:32 AM   #14
Senior Member

Join Date: Dec 2004
Location: Brisbane, Australia
Posts: 1,272
Total Cats: 32
Default

Why run more negative camber on the back than the front? Isn't that kinda pointless?
timk is offline   Reply With Quote
Old 08-20-2007, 08:09 AM   #15
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by kotomile View Post
Chalk the tire across the tread AND down onto the sidewall too. Chances are it's like Magna said and you are simply using the tires for their intended purpose.

I don't understand your toe-in number though, to me it reads "toe'd in zero degrees, six feet". Toe-in could be contributing to the problem too, but I'm curious how much you run. I used to run 1/4" in in the back but found 0 toe much more fun.

here we measure the toe in degrees, minutes and seconds, hence the ' and ''
so it reads zero degrees, 6 minutes.

(or something like that:gay: )
Oscar is offline   Reply With Quote
Old 08-20-2007, 08:10 AM   #16
I haz no trubo
Thread Starter
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by saboteur View Post
Why run more negative camber on the back than the front? Isn't that kinda pointless?
I was told you'll want something like half a degree more camber in the back than in the front, handling-wise
Oscar is offline   Reply With Quote
Old 08-20-2007, 08:39 AM   #17
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by saboteur View Post
Why run more negative camber on the back than the front? Isn't that kinda pointless?
to reduce exit oversteer...but also makes trail braking much easier.
hustler is offline   Reply With Quote
Old 08-20-2007, 09:15 AM   #18
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

Quote:
Originally Posted by Oscar View Post
here we measure the toe in degrees, minutes and seconds, hence the ' and ''
so it reads zero degrees, 6 minutes.

(or something like that:gay: )
OK... here we measure it in degrees or distance, your weird Nordic alignment specs mean nothing to us. :gay: For all I know your rear tires are toe'd in 20 degrees. What "US" toe are you running?
kotomile is offline   Reply With Quote
Old 08-20-2007, 11:33 AM   #19
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by kotomile View Post
OK... here we measure it in degrees or distance, your weird Nordic alignment specs mean nothing to us. :gay: For all I know your rear tires are toe'd in 20 degrees. What "US" toe are you running?
lol
hustler is offline   Reply With Quote
