Old 08-17-2007, 03:19 PM   #1
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default Change your engine mounts!

Just a friendly encouragement for those of you who plan on doing this soon to get to it sooner rather than later. See pics.

I was taking out my old mounts in prep for the new shortblock and already had the MS mounts to go in before my old engine gave up the ghost. Left mount is passenger side and right is drivers side. For reference, my car has just over 100K miles and was boosted for about 10K of that.
Attached Thumbnails

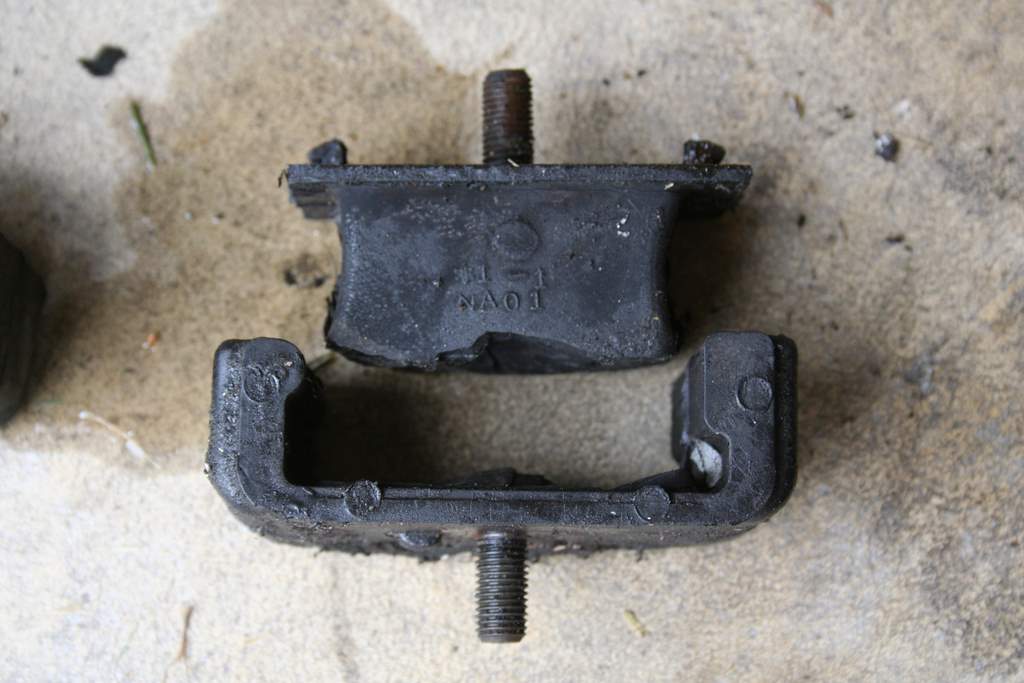

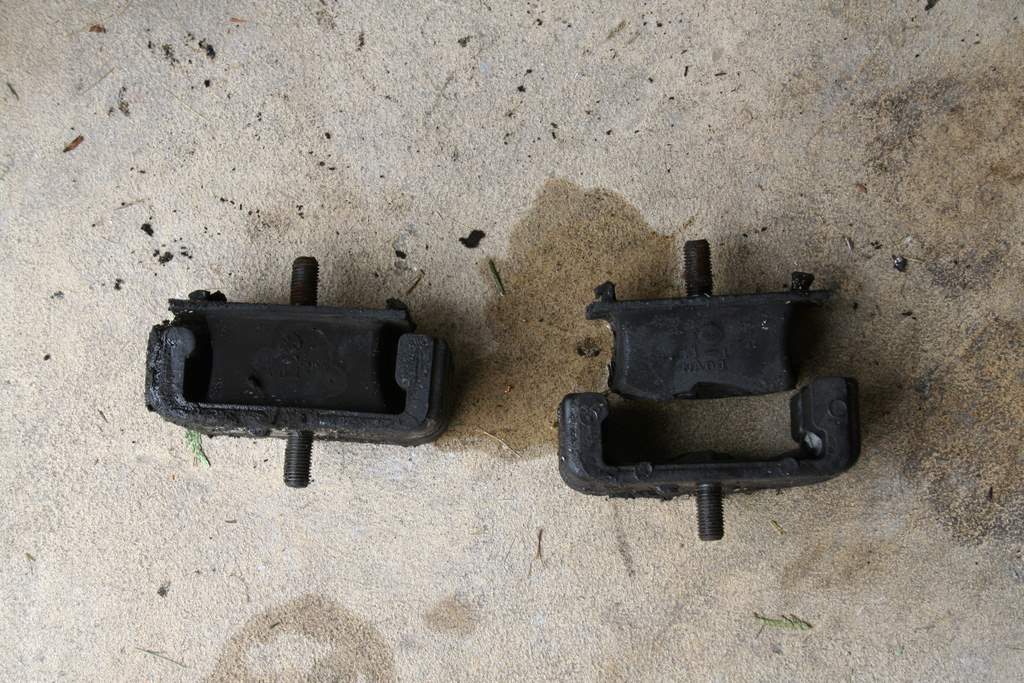

Change your engine mounts!-mounts.jpg   Change your engine mounts!-mount.jpg
brgracer is offline   Reply With Quote
Old 08-17-2007, 03:25 PM   #2
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Yup. Tom, did you ever have any problems shifting?
Ben is offline   Reply With Quote
Old 08-17-2007, 03:52 PM   #3
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Hmm motormounts, the longest job i ever had
Loki047 is offline   Reply With Quote
Old 08-17-2007, 03:55 PM   #4
I'm Miserable!

Join Date: Aug 2007
Location: Sun City, Ca
Posts: 94
Total Cats: 0
Default

+1 here. I ordered the Mazda comp units from FM when I knew I was going to pull the motor. I did it just to maybe help the 2-3 shift under WOT. Once I got the motor out I was glad I ordered them! I also had a bit over 100k miles and one side was badly split.
socal pat is offline   Reply With Quote
Old 08-17-2007, 03:55 PM   #5
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

are the mounts the same for 1.6 and 1.8 cars? Any tips on who offers the best price?
hustler is offline   Reply With Quote
Old 08-17-2007, 04:10 PM   #6
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

Mazda Motorsport does.
Loki047 is offline   Reply With Quote
Old 08-17-2007, 04:14 PM   #7
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

Great mounts too...bit of a bitch to put in. lol, I would have loved to have had the motor OUT before trying to put those bastards on.

Night and Day difference.
miatamania is offline   Reply With Quote
Old 08-17-2007, 04:28 PM   #8
Senior Member
Thread Starter
iTrader: (14)

brgracer's Avatar

Join Date: Nov 2004
Location: Ambler, PA
Posts: 1,275
Total Cats: 1
Default

Quote:
Originally Posted by Ben View Post
Yup. Tom, did you ever have any problems shifting?
Actually, no, but definitely noticed more engine "shake" compared to other miatas. I ordered the mounts after the dyno day last year when Bruce said that my motor was rocking all over the place on the dyno.

Planet Miata also has decent prices on the mounts.
brgracer is offline   Reply With Quote
Old 08-17-2007, 04:28 PM   #9
Senior Member
iTrader: (2)

SamS's Avatar

Join Date: Jun 2006
Location: Wisconsin
Posts: 1,252
Total Cats: 7
Default

Best price I found for non-racers was racing beat. I have 120k on my car and my old mounts were fine. I also couldn't feel any difference with the competition mounts. Then again, I couldn't feel any difference from my FM frame rails either. :gay:
SamS is offline   Reply With Quote
Old 08-17-2007, 04:30 PM   #10
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

mine still looked 100% so i didnt bother, since im a cheap ***.
Braineack is offline   Reply With Quote
Old 08-17-2007, 04:37 PM   #11
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

Quote:
Originally Posted by hustler View Post
are the mounts the same for 1.6 and 1.8 cars? Any tips on who offers the best price?
The rubber parts are the same. The metal parts are not. Hustler you should sign up for MazdaComp if you haven't already.

I am planning on going with standard OEM motor mounts for the "cushy" ride coupled with MazdaComp diff mounts to ensure easy 2-3 shifts.

My current, original mounts are in fine shape. I checked. Just under 60k on the car, with about 10k of it boosted.
Ben is offline   Reply With Quote
Old 08-17-2007, 04:39 PM   #12
Elite Member
iTrader: (13)

cjernigan's Avatar

Join Date: Oct 2006
Location: Atlanta, GA
Posts: 8,147
Total Cats: 6
Default

For those looking for something stiffer. I believe MMR-direct.com sells the solid mounts. They're pretty cheap too. I don't want to deal with the extra NVH of a solid mount though.
cjernigan is offline   Reply With Quote
Old 08-17-2007, 05:19 PM   #13
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

I couldn't imagine a solid mount...

on the 1.8 the MM ones aren't supposed to be bad...the NVH on the 1.6 cars (mine included) is very noticeable.
miatamania is offline   Reply With Quote
Old 08-18-2007, 02:28 AM   #14
Elite Member
iTrader: (24)

kotomile's Avatar

Join Date: Oct 2006
Location: Monterey, CA
Posts: 7,578
Total Cats: 40
Default

I hated my MMRs so much I traded someone on RD for thier used Mazda-comps. Those are sooo much nicer on the ears (the MMRs rattle and vibrate the **** out of the car). The Mazda-comps are only 40% stiffer than standard and are very, very liveable.
kotomile is offline   Reply With Quote
Old 08-18-2007, 03:05 AM   #15
Elite Member
iTrader: (5)

akaryrye's Avatar

Join Date: Jul 2006
Location: Central California
Posts: 2,526
Total Cats: 0
Default

Mazda-comp motormounts here, I like em a lot and dont really notice any negative effects, I guess the engine/tranny just feels a little bit more connected to those two rubber doughnuts in the back. MMR Diff. Mounts will be going in someday, but for now sit above my computer until that day I pull the rear end again, shim the RX7 diff, and install the 3.9 ring/pinion.
akaryrye is offline   Reply With Quote
Old 08-18-2007, 11:53 AM   #16
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

my stockers were totally toast when I swapped motors at 112K miles (NA). so.... you boosted folks are bound to have fucked up mounts.
Arkmage is offline   Reply With Quote
Old 08-18-2007, 12:09 PM   #17
Newb

Join Date: Aug 2007
Posts: 13
Total Cats: 0
Default

i used mazdaspeed comp ones and it really made a difference especially when your running coilovers, you really feel that it's alot smoother =)
geromichi is offline   Reply With Quote
Old 08-18-2007, 01:08 PM   #18
:(
iTrader: (7)

Join Date: Jul 2006
Location: nowhere
Posts: 8,281
Total Cats: 2
Default

I like my MMR's though the vibration is more pronounced i know the motor is solidly there.
magnamx-5 is offline   Reply With Quote
Old 08-18-2007, 10:54 PM   #19
Junior Member

Join Date: Jul 2007
Location: chicago suburbs
Posts: 49
Total Cats: 0
Default

how hard are the mount to put in? would i be able to put them in with basic tools and a couple jacks/jackstands?
bradh88 is offline   Reply With Quote
Old 08-19-2007, 12:43 AM   #20
Elite Member
iTrader: (6)

Loki047's Avatar

Join Date: Sep 2005
Location: Chicago
Posts: 4,145
Total Cats: 0
Default

yeah, jsut need two jack stands and a jack, with a block of wood. An extension is very helpful
Loki047 is offline   Reply With Quote
