Default Track rental Carnage...

So as some of you know My Bar rented Virginia Motorsports Park last Friday for a 1/4 mile rental. I was great weather (34* and windy, but no rain). I made 20+ passes in the Miata with the best of 13.8 @100 Nothing special. Than I let a friend take it down the track and here is the video:



Here the result:



So what you think broke? Its a Torsen out of a 1995. There is a hole about and inch in the top passenger side of the rear. It still moves (not locked up). Think the Torsen is ok?

I'll get it out soon, cold outside.

Last edited by IcantDo55; 12-03-2008 at 01:05 PM. Reason: copying
IcantDo55 is offline   Reply With Quote
Old 11-25-2008, 04:42 PM   #2
I'm Miserable!
iTrader: (1)

Join Date: Oct 2005
Location: Columbia, SC
Posts: 858
Total Cats: 0
Default

I SERIOUSLY doubt its "ok"
SloS13 is offline   Reply With Quote
Old 11-25-2008, 04:42 PM   #3
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

Torsen gears. Welcome to the club! The internal gears crack then split, and every failure that I have seen has been immidiately after wheel hop.

Plan on the entire unit being junk, there was nothing salvagable from mine aside from the axle stubs, which seems consistant with other Torsen failures.
ApexOnYou is offline   Reply With Quote
Old 11-25-2008, 04:58 PM   #4
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

I'd say that gay thing on his helmut was the culprit..
elesjuan is offline   Reply With Quote
Old 11-25-2008, 04:59 PM   #5
I'm Miserable!
iTrader: (5)

Join Date: Sep 2005
Location: SLC, Utah
Posts: 1,591
Total Cats: 0
Default

I guess he won't be letting that happen again....
zoom2zoom is offline   Reply With Quote
Old 11-25-2008, 05:08 PM   #6
Senior Member
iTrader: (14)

Join Date: Aug 2007
Location: Buffalo, NY
Posts: 734
Total Cats: 1
Default

Quote:
Originally Posted by ApexOnYou View Post
Plan on the entire unit being junk, there was nothing salvagable from mine aside from the axle stubs, which seems consistant with other Torsen failures.
Was the front part of the housing salvageable?
deliverator is offline   Reply With Quote
Old 11-25-2008, 05:12 PM   #7
Ben
Supporting Vendor
iTrader: (33)

Ben's Avatar

Join Date: Jul 2006
Location: atlanta-ish
Posts: 12,689
Total Cats: 99
Default

the little gears visible through the speed hole look like the gears inside the torsen. so no, i'd not say that the torsen is ok.

makes me sad to sell my car with its clutch lsd. :(
Ben is offline   Reply With Quote
Old 11-25-2008, 05:16 PM   #8
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

whoops, hate when my differential gears rip to shreads.
Braineack is offline   Reply With Quote
Old 11-25-2008, 05:20 PM   #9
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

If you're lucky the actual gear carrier itself is OK. My R&P jumped out and cracked a cap so I had to throw the entire thing away. Plan on buying a housing (FC Rx7 housings are cheap and easy to find and they bolt right up with new bushings), a Torsen or an Rx7 LSD, and a ring&pinion.

Sucks. Don't wheelhop your car.
Savington is offline   Reply With Quote
Old 11-25-2008, 05:53 PM   #10
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

Quote:
Originally Posted by deliverator View Post
Was the front part of the housing salvageable?
Front as it sits on the car? It was pretty banged up, but the housing itself had a fist sized hole in it.
ApexOnYou is offline   Reply With Quote
Old 11-25-2008, 06:16 PM   #11
Elite Member
iTrader: (5)

Join Date: Mar 2007
Location: NYC
Posts: 1,997
Total Cats: 1
Default

In the immortal words of James May, "Oh ****..."
johndoe is offline   Reply With Quote
Old 11-26-2008, 10:02 AM   #12
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,236
Total Cats: 288
Default

open rear + rx7 clutch lsd = $300 ftw
m2cupcar is offline   Reply With Quote
Old 11-26-2008, 10:49 AM   #13
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Quote:
Originally Posted by m2cupcar View Post
open rear + rx7 clutch lsd = $300 ftw

I see this option a lot. Is there a write up on it somewhere? Searching is not the answer.
IcantDo55 is offline   Reply With Quote
Old 11-26-2008, 10:55 AM   #14
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

Found a parts list:
You will need the differential from a 1.8L Miata, (the '99 & up seem better with the one piece axles), the LSD from a late 80's RX-7, the end circle clips from the RX-7 that hold the axles in the differential, a dial indicator to set the back lash, a 7-8" caliper to set the preload, and the ring gear and pinion from the 1.8L Miata's differential.
You may want to refresh the internal clutches in the RX-7 LSD as well. New axel seals are a good thing as well.
If you need new parts
for the LSD these numbers may still be good;
RX-7 Differential Part Numbers
Snap rings M005-27-421
Friction Plates M020-27-258
Thick washer M020-27-257
Thin washer M020-27-256
Case seals MA02-27-238A
Bearings 0221-27-350
The conversion is within the capabilities of a backyard mechanic and should take an afternoon to perform.
__________________


Oh here a write up:

84-91 RX7 Non-Turbo Clutch Type LSDs can also fit into the 1.8 gear ring if you're looking for a good LSD as well. Clutch-types have proven superior in Drag and Road course situations as the lock under driveshaft torque, whereas a Torsen should prove better in an autox situation as it locks only when one wheel loses torque...so in the middle of corners.

The 84-85 GSL is a 3.909.

The 84-85 GSL-SE is 4.08.

You can do this conversion by two ways:

1. 1.8 open converted to RX7 LSD:

Parts:
94-05 1.8 Miata open assembly
84-91 NON-TURBO Rx7 clutch-type lsd (89-91 is a viscous, don't bother)
94-95 Miata stub shafts or 86-88 RX7 stub shafts and 94-95 Miata half-shafts
or 96-05 Miata axles (no stubs needed)
94-05 Miata driveshaft
Miata Ring and Pinion

Procedure:
Open the 1.8 miata & pull the open diff. Bolt the miata ring gear to the RX7 LSD. Drop it in, set the backlash and reassemble the housing. Swap/install as normal.

2. 86-88 RX7 assembly conversion:

Parts:
86-88 RX7 NON-TURBO differential assembly
94-95 Miata stub shafts or RX7 stub shafts and 94-95 Miata half-shafts
or 96-05 Miata axles (no stubs needed)
94-05 Miata driveshaft
Miata Ring and Pinion
Miata Pinion housing (pumpkin) (find at RX7 performance shops)
Miata Diff. Bushings

Procedure:
Open the RX7 assembly. Bolt the miata ring gear to the RX7 LSD. Swap the LSD to the miata pinion housing. Set the backlash and assemble the miata pinion housing to the RX7 carrier. Drill out the RX7 diff bushings and push in miata specific bushings. Install as normal.

*note: The 85-85 LSD will fit, however, the housing is not compatible....unless you want to convert to a solid rear axle
**note: The 89-91 Non-Turbo LSD will also fit, but shy away from these are they are Viscous LSD units and aren't worth the trouble.
***note: Replace the (2) seals on the Diff before reinstallation (MA02-27-238A $5.95)
__________________
IcantDo55 is offline   Reply With Quote
Old 11-26-2008, 11:09 AM   #15
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

gay as ****.
hustler is offline   Reply With Quote
Old 11-26-2008, 01:17 PM   #16
Senior Member
iTrader: (10)

Join Date: Feb 2007
Location: South Eastern Wisconsin
Posts: 1,282
Total Cats: 0
Default

For some reason I could never get the right diff seals. I'll have to make note of that part number.
ApexOnYou is offline   Reply With Quote
Old 11-26-2008, 01:21 PM   #17
Elite Member
Thread Starter
iTrader: (10)

IcantDo55's Avatar

Join Date: Apr 2007
Location: VA Beach
Posts: 1,762
Total Cats: 18
Default

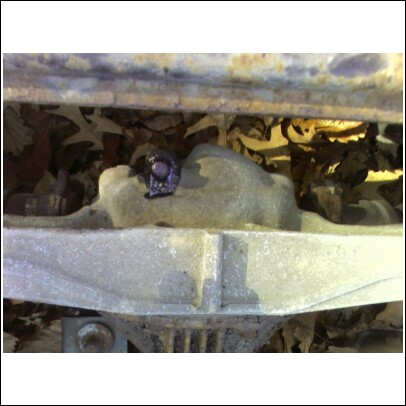

Got me what I think is a rear from a 95 1.8L Here is a pic. The Torsen I had was covered in cooling fins right around the vent on the case, this one is smooth? What rear is it?
Attached Thumbnails
Track rental Carnage...-rear.jpg
IcantDo55 is offline   Reply With Quote
Old 11-26-2008, 01:37 PM   #18
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,833
Total Cats: 1,786
Default

smooth....hmmm, I thought smooth cases went out with the 1.6L open.
Braineack is offline   Reply With Quote
Old 11-26-2008, 01:46 PM   #19
Elite Member
iTrader: (8)

Join Date: Oct 2007
Location: Dallas
Posts: 1,841
Total Cats: 0
Default

My 1.6L has a smooth housing. Miata.net has photo's in the garage section.
Toddcod is offline   Reply With Quote
Old 11-26-2008, 01:48 PM   #20
Elite Member
iTrader: (9)

Join Date: Aug 2006
Location: Concord, North Carolina
Posts: 4,172
Total Cats: 5
Default

You handled that well.

nice little bit of carnage.
