Old 05-08-2009, 01:22 PM   #21
Elite Member
iTrader: (13)

Join Date: Nov 2006
Location: Tigard, Oregon
Posts: 3,908
Total Cats: 0
Default

$300 does seem steep for a no name wing. I bought a used APR GTU extruded aluminum wing for $60. Haven't mounted it to my junkyard trunk yet but the quality seems pretty good. Used name brand stuff pops up on egay and craigslist all the time, cheap.

cueball1 is offline   Reply With Quote
Old 05-08-2009, 01:27 PM   #22
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,244
Total Cats: 291
Default

IMO if the car has a wing on it and it's on track it has a much higher badass factor. If you're going to mount it to the decklid, make sure you get the armature/legs is close to the trunk edge as possible to resist the downforce on the wing.
m2cupcar is offline   Reply With Quote
Old 05-11-2009, 09:01 AM   #23
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

Quote:
Originally Posted by m2cupcar View Post
IMO if the car has a wing on it and it's on track it has a much higher badass factor. If you're going to mount it to the decklid, make sure you get the armature/legs is close to the trunk edge as possible to resist the downforce on the wing.
When I had the wing on my 99, the mounting bolts actually put holes in the rubber weather stripping...pretty sure there wasn't much flexing of the decklid

But yeah, i'll be checking measurements of anything I look at to get the mounts over a solid area.
Doppelgänger is offline   Reply With Quote
Old 05-20-2009, 09:10 AM   #24
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

So speaking of very inexpensive wings, I came across someone selling this for $60. Since i'm not racing on large tracks yet, I think it'll be just fine toutilize and add some downforce and stability. I'll probably make new uprights to get it up much higher into clean air.

For auto-x, i'll be going with Swarengen's setup, the APR GT-II with a few tweaks since i'm actually being competitive.

Is anyone aware of ANY pictures of a Miata in a wind tunnel with the smoke trails showing the air flow? (top up) I'm wondering if I can mount the wing I plan on using as more of an air deflector al la GT3 RS.

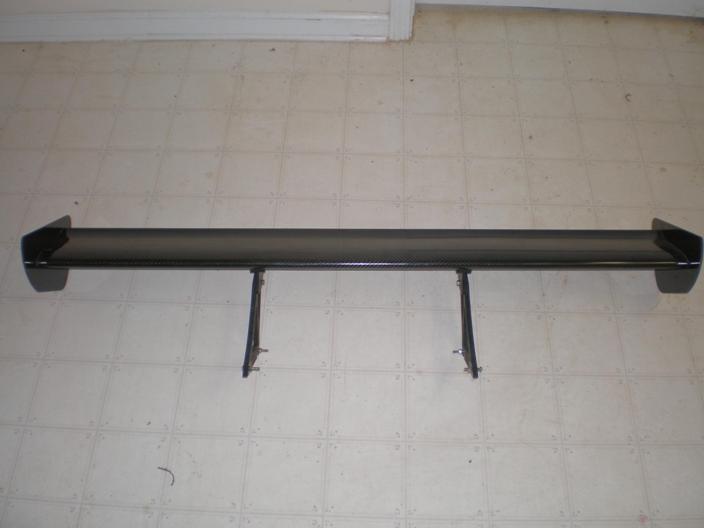

and the $60 wing...
Attached Thumbnails
Track wing?-carbonwing.jpg   Track wing?-carbonwing1.jpg
Doppelgänger is offline   Reply With Quote
Old 05-20-2009, 09:39 AM   #25
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,680
Total Cats: 1,561
Default

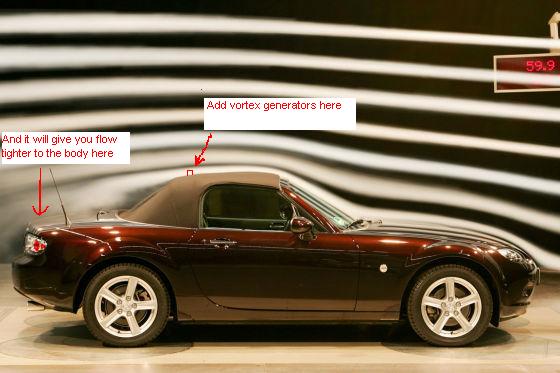

Here's a wind tunnel pic at 60 mph that I saved from a previous discussion.

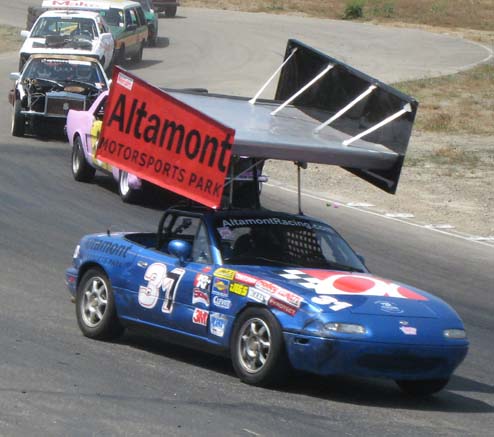

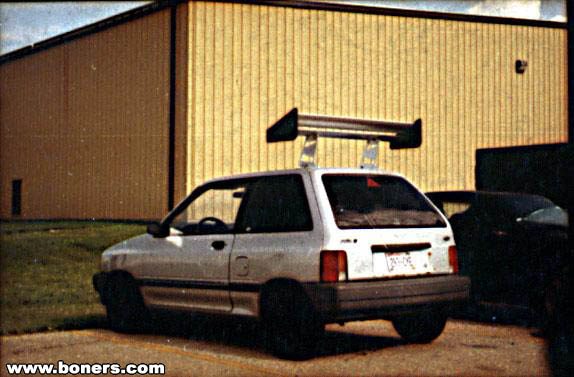

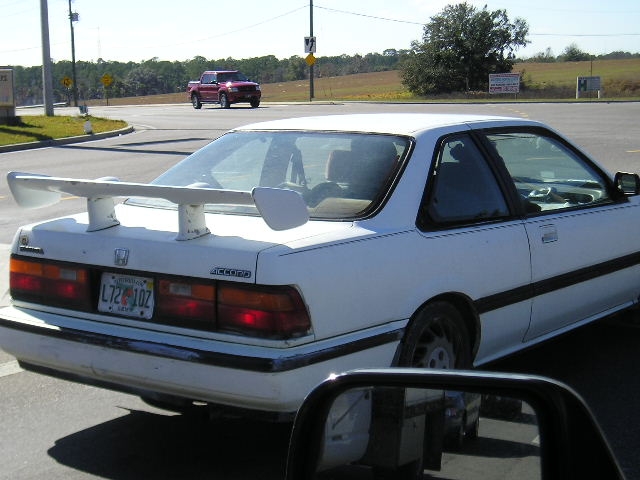

And some other creative wing designs...
Attached Thumbnails
Track wing?-soft-topvortex.jpg   Track wing?-miatasprintwing.jpg   Track wing?-fiesta-wing.jpg   Track wing?-hondawing.jpg   Track wing?-wingcar.jpg

sixshooter is online now   Reply With Quote
Old 05-20-2009, 09:48 AM   #26
Elite Member
Thread Starter
iTrader: (12)

Join Date: Sep 2007
Location: Charlotte, NC
Posts: 6,868
Total Cats: 66
Default

As I thought, it's going to take a wing at about the height of the top to catch "good" air (not to be confused with "clean air"). Which makes me wonder, if a wing were to redirect the air (as seen with the 911 picture), would it help clean up any of the aircoming off the top and down the trunk? I only can guess that since the upper flow of air isn't compressing the lower flow at the trunk lid and may allow it to flow smoother?
Doppelgänger is offline   Reply With Quote
Old 05-20-2009, 10:24 AM   #27
Junior Member
iTrader: (1)

Join Date: Jul 2006
Location: Colorado
Posts: 403
Total Cats: 2
Default

Quote:
Originally Posted by sixshooter View Post
And some other creative wing designs...

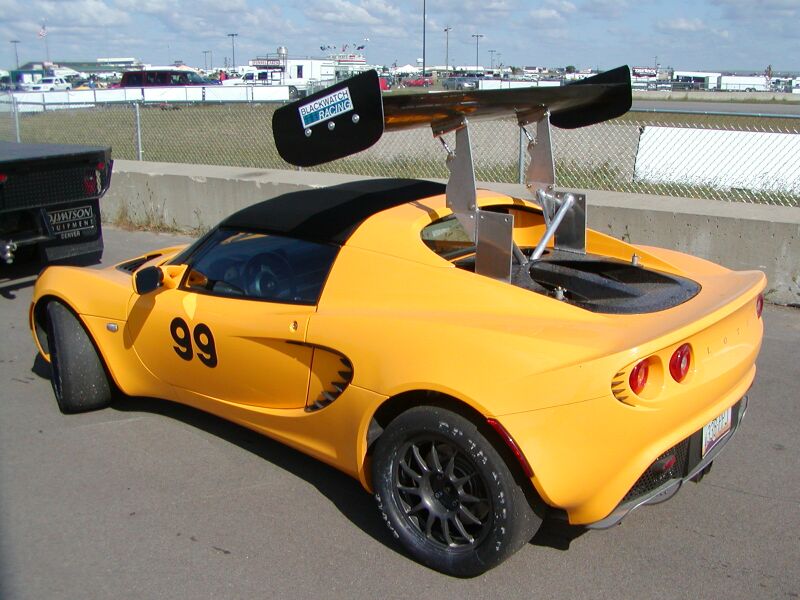

such as this
Attached Thumbnails
Track wing?-06nats103.jpg
Chris Swearingen is offline   Reply With Quote
Old 05-20-2009, 11:15 AM   #28
Elite Member
iTrader: (2)

Join Date: Jun 2006
Location: ABQ, NM
Posts: 1,850
Total Cats: -8
Default

Quote:
Originally Posted by Doppelgänger View Post
Is anyone aware of ANY pictures of a Miata in a wind tunnel with the smoke trails showing the air flow? (top up) I'm wondering if I can mount the wing I plan on using as more of an air deflector al la GT3 RS.


They sell smoke sticks for aerodynamic testing in real world environments.
BenR is offline   Reply With Quote
