Default Tranny problems/clutch???

ok, so today, i was on my way home from boston, i went to the royals vs red sox game. on the way back, i was doing some "spirited driving" on the highway.
well, i broke something...

symptoms.

when i press the clutch, i hear a light chatter, clicking noise

engaging gears, and disengaging gears is now troubled

the point of where the clutch catches seems to have moved, all the way to the floor

shifting between gears is tough, grinds sometimes


i have searched some of these things and came to a conclusion
now, im totally guessing, but throwout bearing?




everyone please give me ur suggestions, stories, personal experiences, anything, thanx

tranny is coming out sat, along with flushing clutch, and change slave and all that good stuff, , either way, i need to figure out what this is, id just like to know what im replacing, before i replace everything. this is my daily car, and i need it running by monday
urgaynknowit is offline   Reply With Quote
Old 05-23-2008, 12:42 AM   #2
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

throwout bearing?
cardriverx is offline   Reply With Quote
Old 05-23-2008, 12:45 AM   #3
Junior Member
iTrader: (1)

Join Date: Feb 2008
Location: Mid Tenn
Posts: 198
Total Cats: 0
Default

Only 5 things to a clutch really: hydraulics,pilot bearing, throwout bearing, clutch, shift fork. Should find out pretty easy once you drop it.
I've never acutally -broke- a throwout bearing before, they can get noisy as **** and then come apart, but you usually have fair warning.
talusfan is offline   Reply With Quote
Old 05-23-2008, 01:17 AM   #4
Antisaint
iTrader: (17)

Vashthestampede's Avatar

Join Date: Feb 2007
Location: Danbury, CT
Posts: 4,659
Total Cats: 54
Default

That sucks man. At least you were able to make it home. I ******* HATE breaking down!

If your pulling the tranny, do yourself a favor and get a better clutch man. Slave's are cheap, so that's a no brainer. Get a ACT package and be done with it.

Vash-
Vashthestampede is offline   Reply With Quote
Old 05-23-2008, 01:19 AM   #5
Senior Member
iTrader: (8)

turbobluemiata's Avatar

Join Date: Aug 2006
Location: Springfield, IL
Posts: 1,019
Total Cats: 0
Default

Mine was like that when my slave went out
turbobluemiata is offline   Reply With Quote
Old 05-23-2008, 04:04 AM   #6
Junior Member

Join Date: Mar 2008
Location: Sunapee, NH
Posts: 188
Total Cats: 0
Default

want to hear the great news? its just a pressure spring!!! It popped out! This JUST happened to me on sunday with my grandfathers car... (only my clutch didnt go to the floor) What happens when you let off the clutch? does the chatter grow louder?
highroller101 is offline   Reply With Quote
Old 05-23-2008, 12:00 PM   #7
Senior Member
Thread Starter
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

Quote:
Originally Posted by highroller101 View Post
want to hear the great news? its just a pressure spring!!! It popped out! This JUST happened to me on sunday with my grandfathers car... (only my clutch didnt go to the floor) What happens when you let off the clutch? does the chatter grow louder?
yea, so what does this mean? new clutch!?!??!

that would suck if i need a new one
urgaynknowit is offline   Reply With Quote
Old 05-24-2008, 10:38 PM   #8
Senior Member
Thread Starter
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

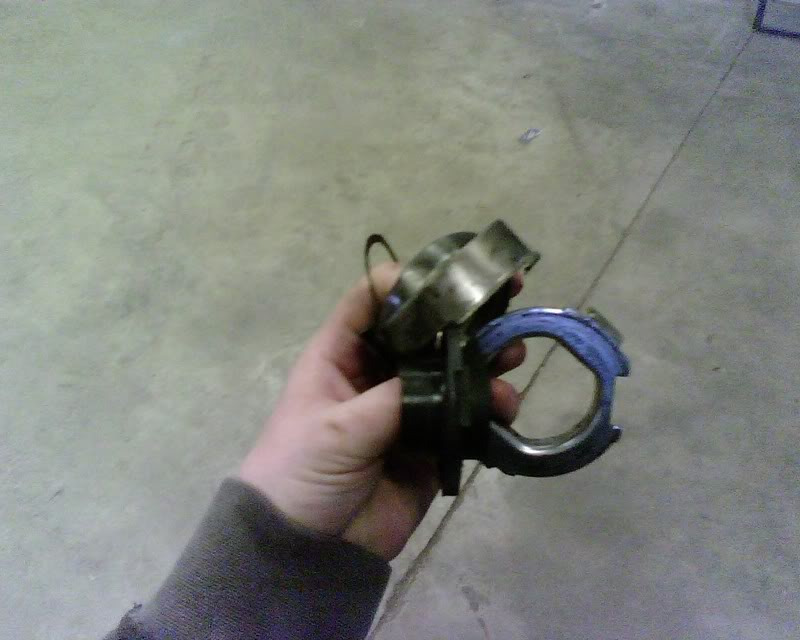

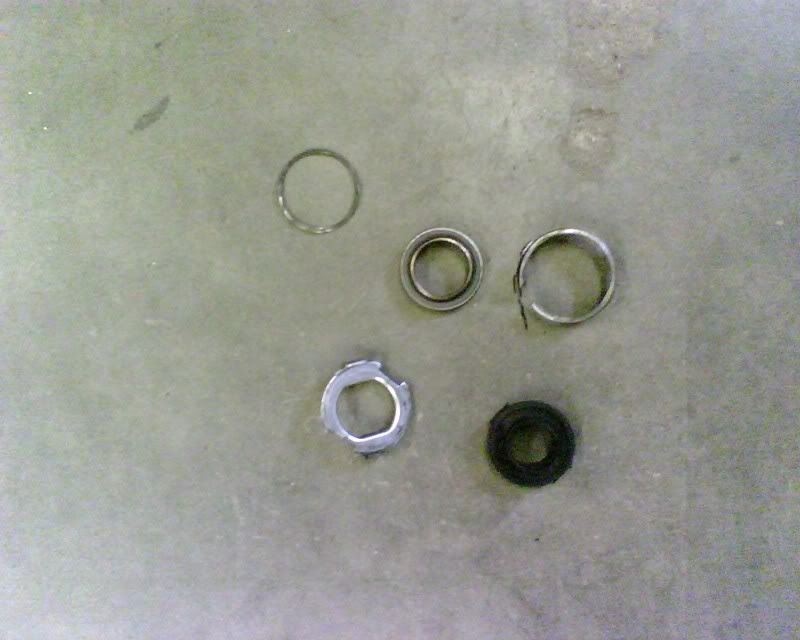

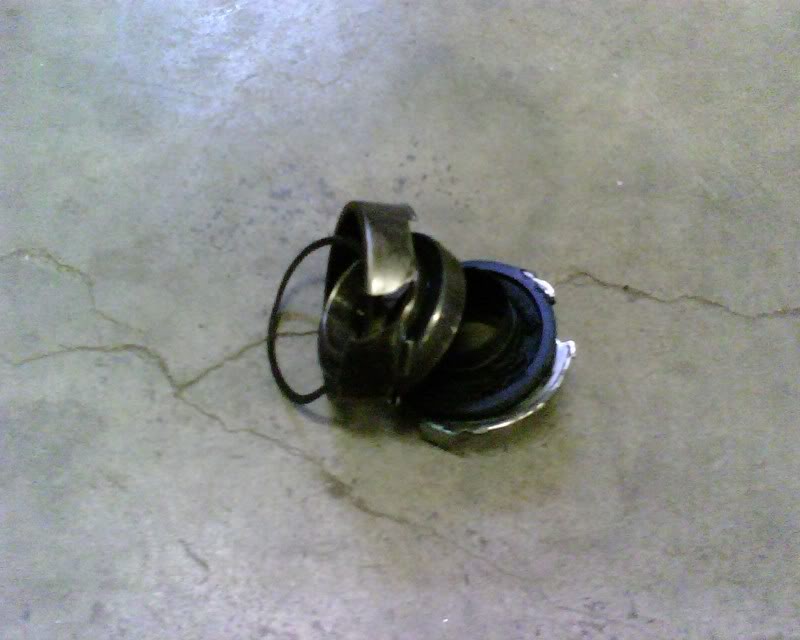

ok guys, so it was the throw out bearing, it blew up

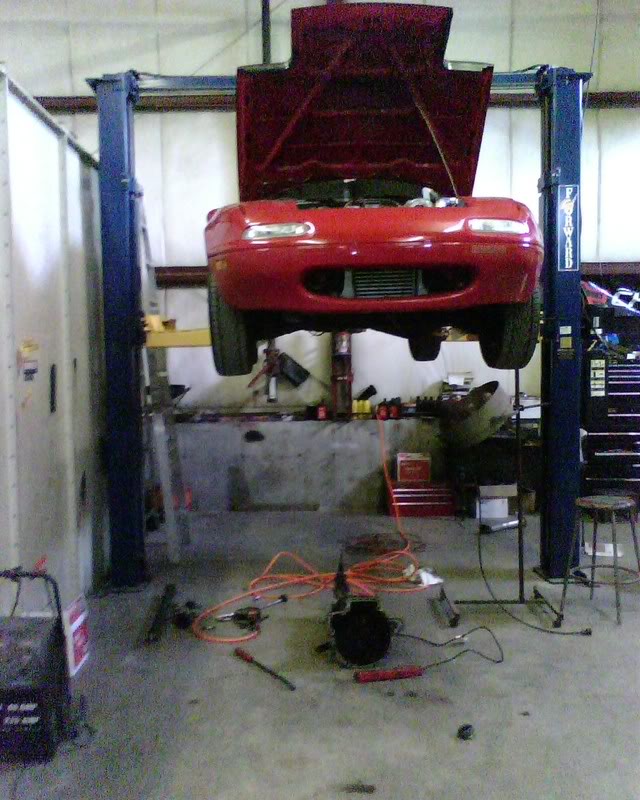

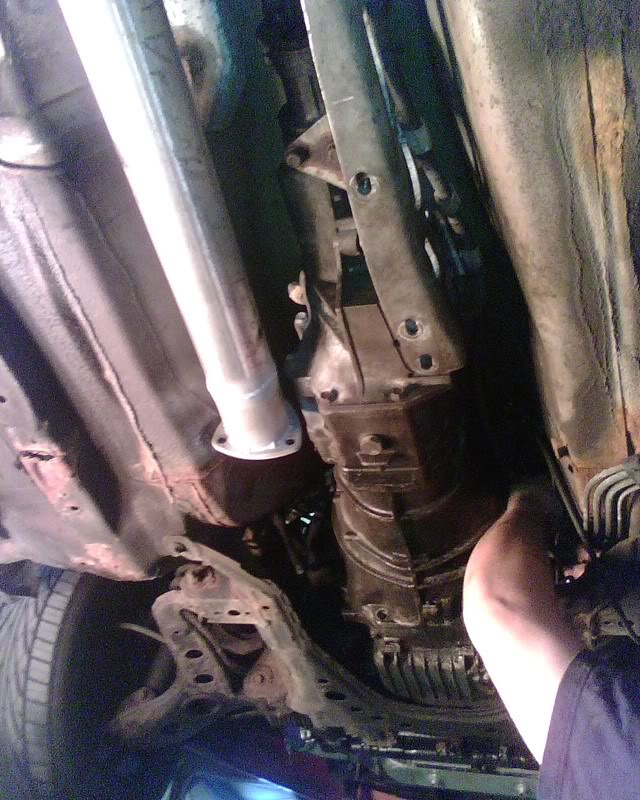

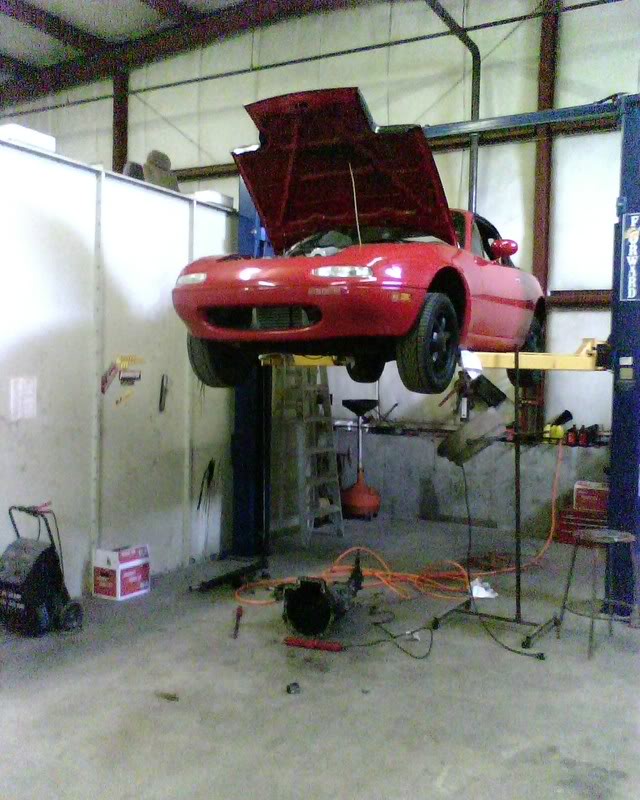

swapped it out with a new one today. i had the tranny out in 37 minutes

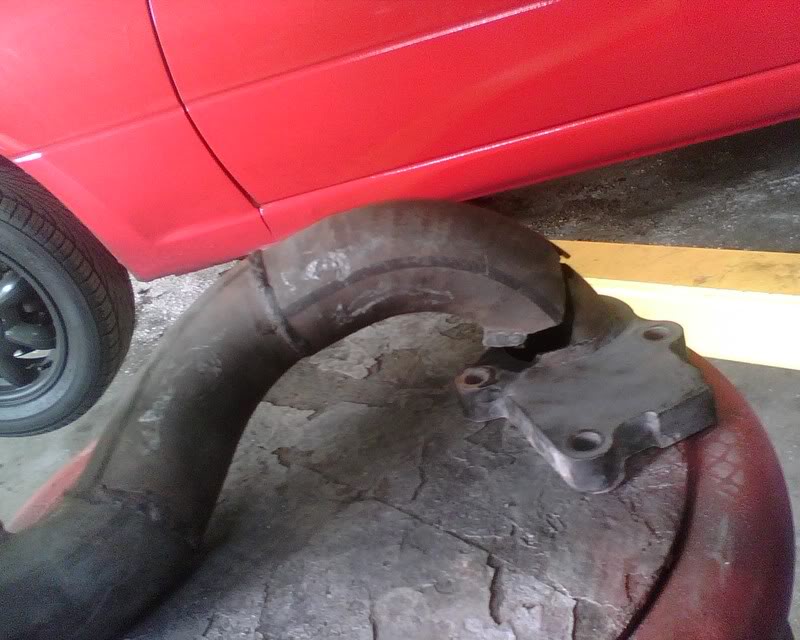

while taking this all apart, and cleaning it all up, i noticed my downpipe was cracked
upon further inspection, i found out it was broken in half.....

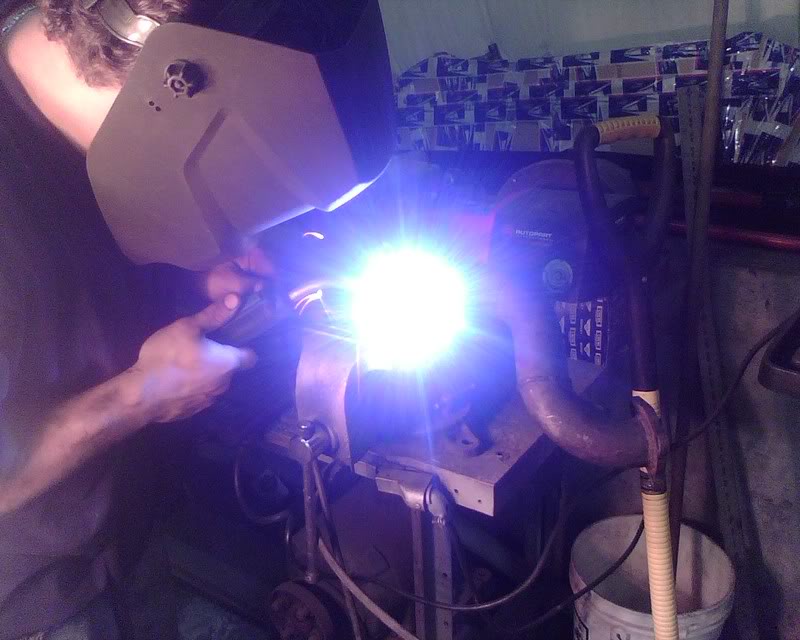

my friend is pretty crafty with a welder and we had it back in tip top shape in a few minutes.
car now runs around and drives fine, no leaks, no sounds, no problems

Name:  IMG00612.jpg
Views: 0
Size:  120.9 KB
Name:  IMG00615.jpg
Views: 0
Size:  102.6 KB
Name:  IMG00616.jpg
Views: 0
Size:  100.3 KB
Name:  IMG00620.jpg
Views: 0
Size:  53.0 KB
Name:  IMG00621.jpg
Views: 0
Size:  54.8 KB
Name:  IMG00622.jpg
Views: 0
Size:  51.8 KB
Name:  IMG00624.jpg
Views: 0
Size:  76.3 KB
Name:  IMG00626.jpg
Views: 0
Size:  72.2 KB
urgaynknowit is offline   Reply With Quote
Old 05-24-2008, 10:44 PM   #9
Senior Member
iTrader: (10)

Join Date: Nov 2006
Location: Raleigh,NC
Posts: 912
Total Cats: 0
Default

Buy a oem throwout bearing!
supra441979 is offline   Reply With Quote
Old 05-24-2008, 10:50 PM   #10
Elite Member
iTrader: (12)

Join Date: Jan 2007
Location: Hermosa Beach, CA
Posts: 2,575
Total Cats: 11
Default

woot, I was right! haha
cardriverx is offline   Reply With Quote
Old 05-24-2008, 11:13 PM   #11
Senior Member
Thread Starter
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

Quote:
Originally Posted by supra441979 View Post
Buy a oem throwout bearing!
i did lol
urgaynknowit is offline   Reply With Quote
Old 05-24-2008, 11:23 PM   #12
AFM Crusader
iTrader: (18)

olderguy's Avatar

Join Date: Oct 2004
Location: Wayne, NJ
Posts: 4,438
Total Cats: 84
Default

Was the one that broke OEM or someone elses?
olderguy is offline   Reply With Quote
Old 05-25-2008, 01:01 AM   #13
Senior Member
iTrader: (1)

miataspeed1point6's Avatar

Join Date: Feb 2006
Location: Detroit
Posts: 1,235
Total Cats: 0
Default

Do you have a flex section anywhere in your exhaust? That break looks pretty bad.

So taking the trans out was easy? I'm still trying to figure out if I want to do it at home or take it to work.
miataspeed1point6 is offline   Reply With Quote
Old 05-25-2008, 01:57 AM   #14
Senior Member
Thread Starter
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

Quote:
Originally Posted by miataspeed1point6 View Post
Do you have a flex section anywhere in your exhaust? That break looks pretty bad.

So taking the trans out was easy? I'm still trying to figure out if I want to do it at home or take it to work.
no flex piece = broken exhaust, i need to get one



ill make it easy for you

lift + tranny = easy as pie,
no life + tranny =

2 people make it a snap
urgaynknowit is offline   Reply With Quote
Old 05-25-2008, 02:03 AM   #15
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

I was about to ask before i saw the pics. How did you take it out in 37 minutes? Then i saw the lift.
mike_671 is offline   Reply With Quote
Old 05-25-2008, 02:08 AM   #16
Junior Member
iTrader: (2)

Join Date: Dec 2007
Location: Québec, Canada
Posts: 407
Total Cats: -1
Default

I have a problem too with my tranny/clutch. The release point of it is very high. I think it's my clutch that is worn out but not sure. When I make wot acceleration, 1st do 2nd is ok but 2nd to 3rd seems to choke up when I release the clutch and the rpm makes a big drop and it's pretty slow to reaccelerate. Here's a vid. I'll try to make 1-2-3-4 gear tommorow.



Just a bad clutch to replace or? Oh and my slave cylinder is leaking too, I must change it. Dunno if it change something to the problem?
Dark Wanderer is offline   Reply With Quote
Old 05-25-2008, 05:43 AM   #17
Senior Member
iTrader: (4)

Join Date: Aug 2007
Location: Guam (U.S Terr.)
Posts: 786
Total Cats: -2
Default

^Needs less music.

Seems like you just went into 5th instead of 3rd.
mike_671 is offline   Reply With Quote
Old 05-25-2008, 11:28 AM   #18
Junior Member
iTrader: (1)

Join Date: Feb 2008
Location: Mid Tenn
Posts: 198
Total Cats: 0
Default

Was that the oem bearing???? Never seen one do that
talusfan is offline   Reply With Quote
Old 05-25-2008, 12:01 PM   #19
Senior Member
Thread Starter
iTrader: (5)

Join Date: Dec 2007
Location: worcester ma
Posts: 1,124
Total Cats: 0
Default

Quote:
Originally Posted by mike_671 View Post
^Needs less music.

Seems like you just went into 5th instead of 3rd.
looks exactly like that, ive done it, i know

Quote:
Originally Posted by talusfan View Post
Was that the oem bearing???? Never seen one do that
no, this was an aftermarket bearing, it came in my clutch masters kit

im now rocking the oem one
urgaynknowit is offline   Reply With Quote
Old 05-25-2008, 07:06 PM   #20
Junior Member
iTrader: (2)

Join Date: Dec 2007
Location: Québec, Canada
Posts: 407
Total Cats: -1
Default

Quote:
Originally Posted by urgaynknowit View Post
looks exactly like that, ive done it, i know



no, this was an aftermarket bearing, it came in my clutch masters kit

im now rocking the oem one
I just checked and yes it's the thing that happened.... I feel so dumb... At least I'm not the only one who that happened!
Dark Wanderer is offline   Reply With Quote
